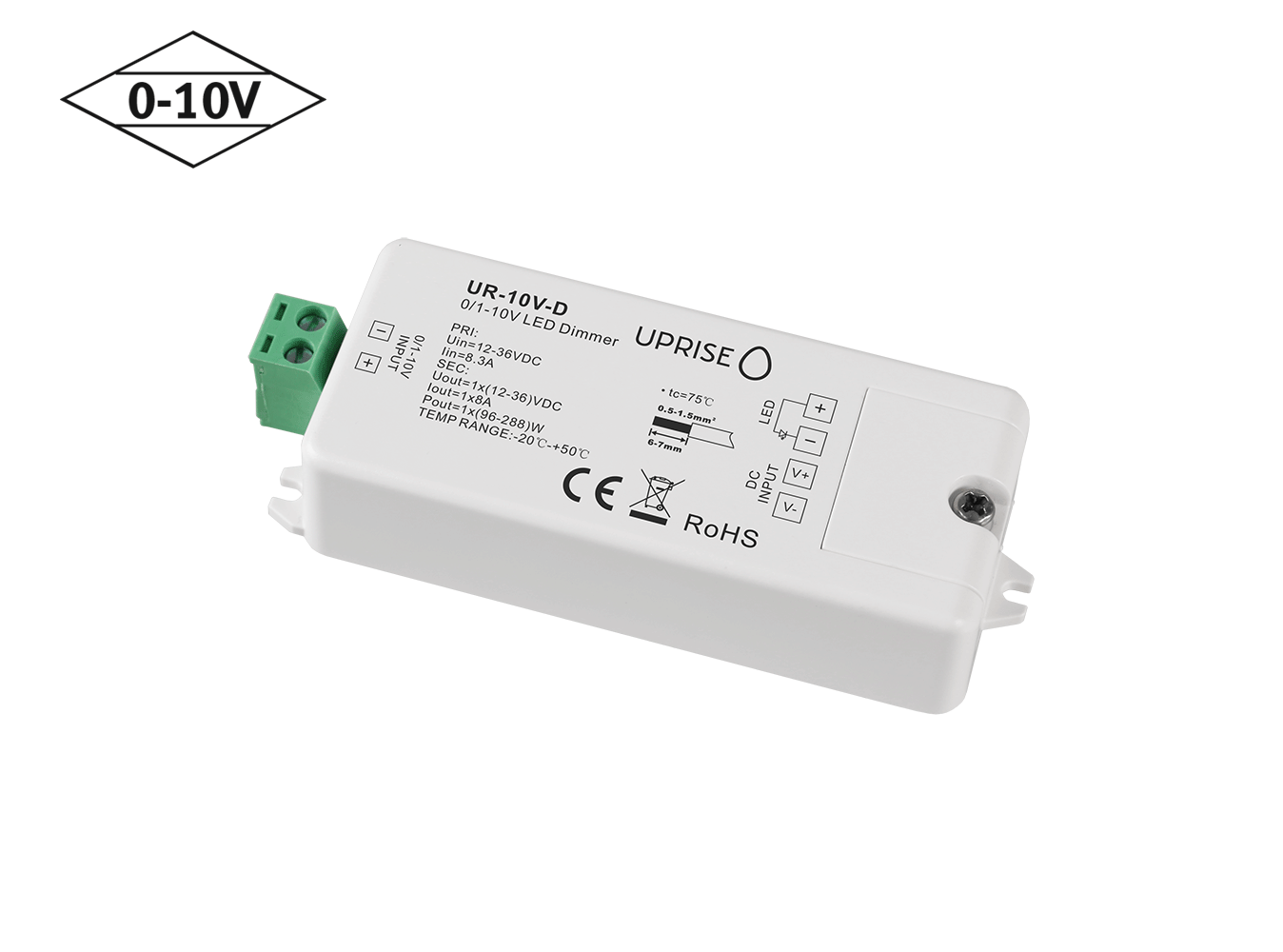

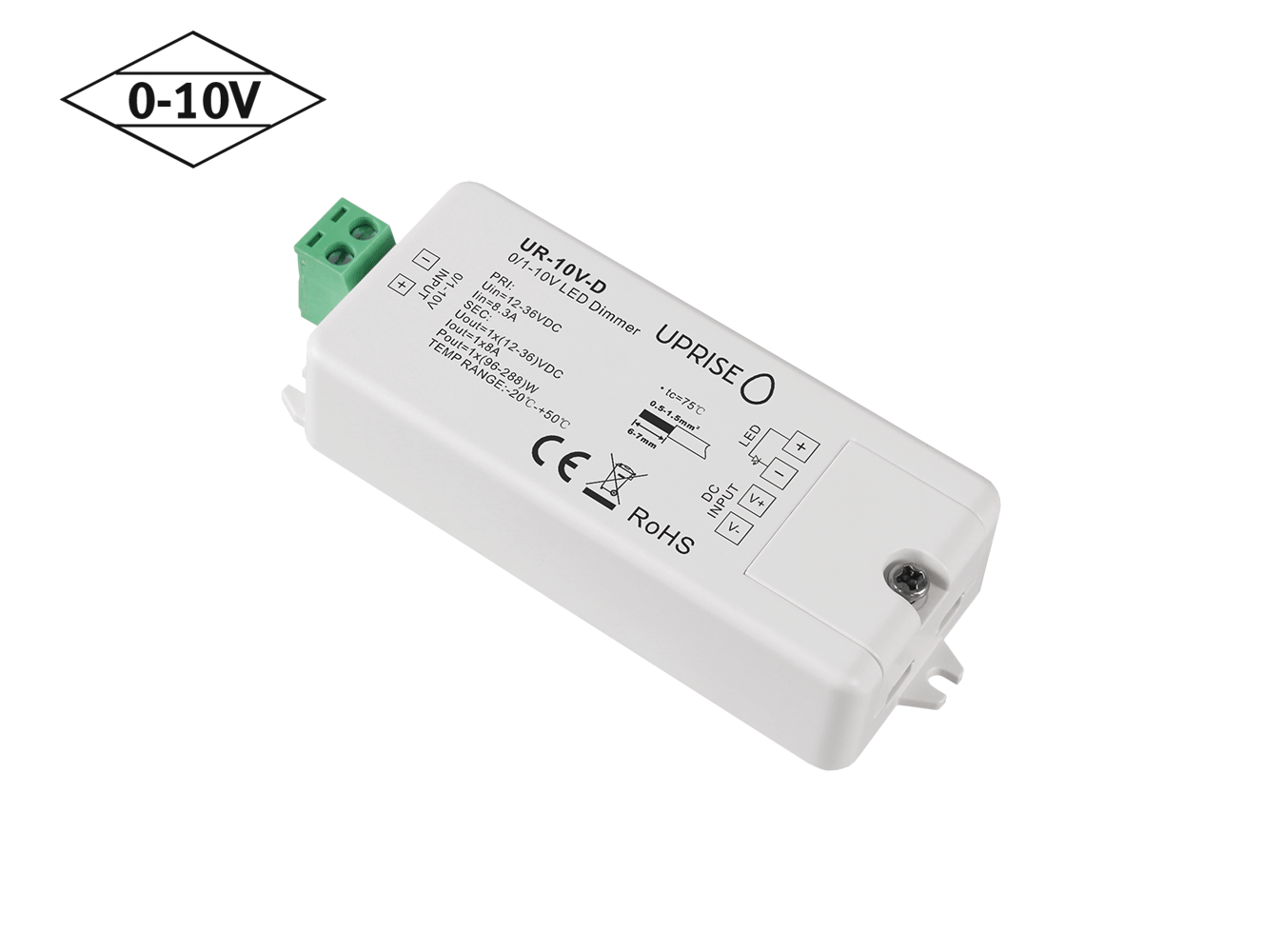

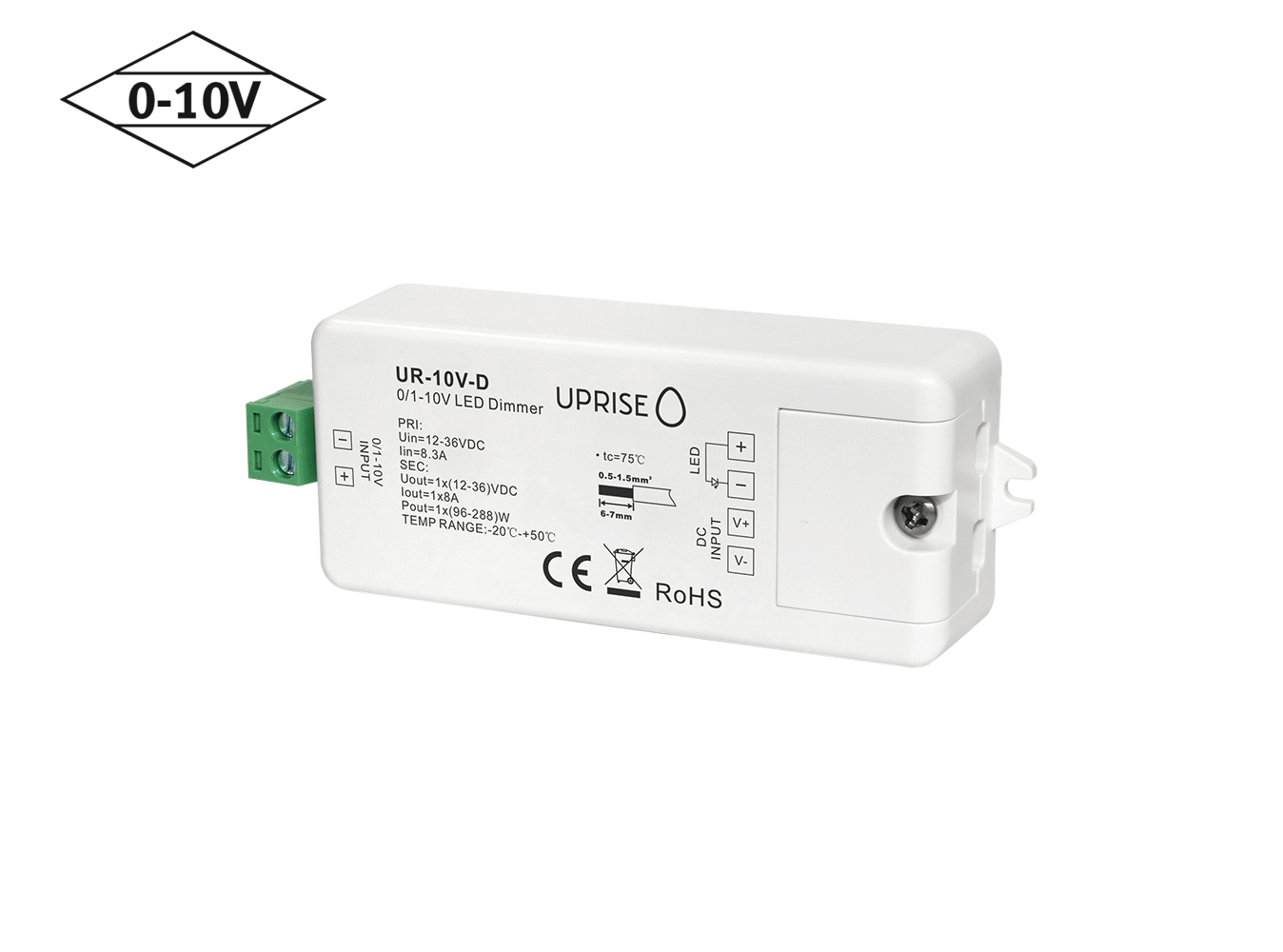

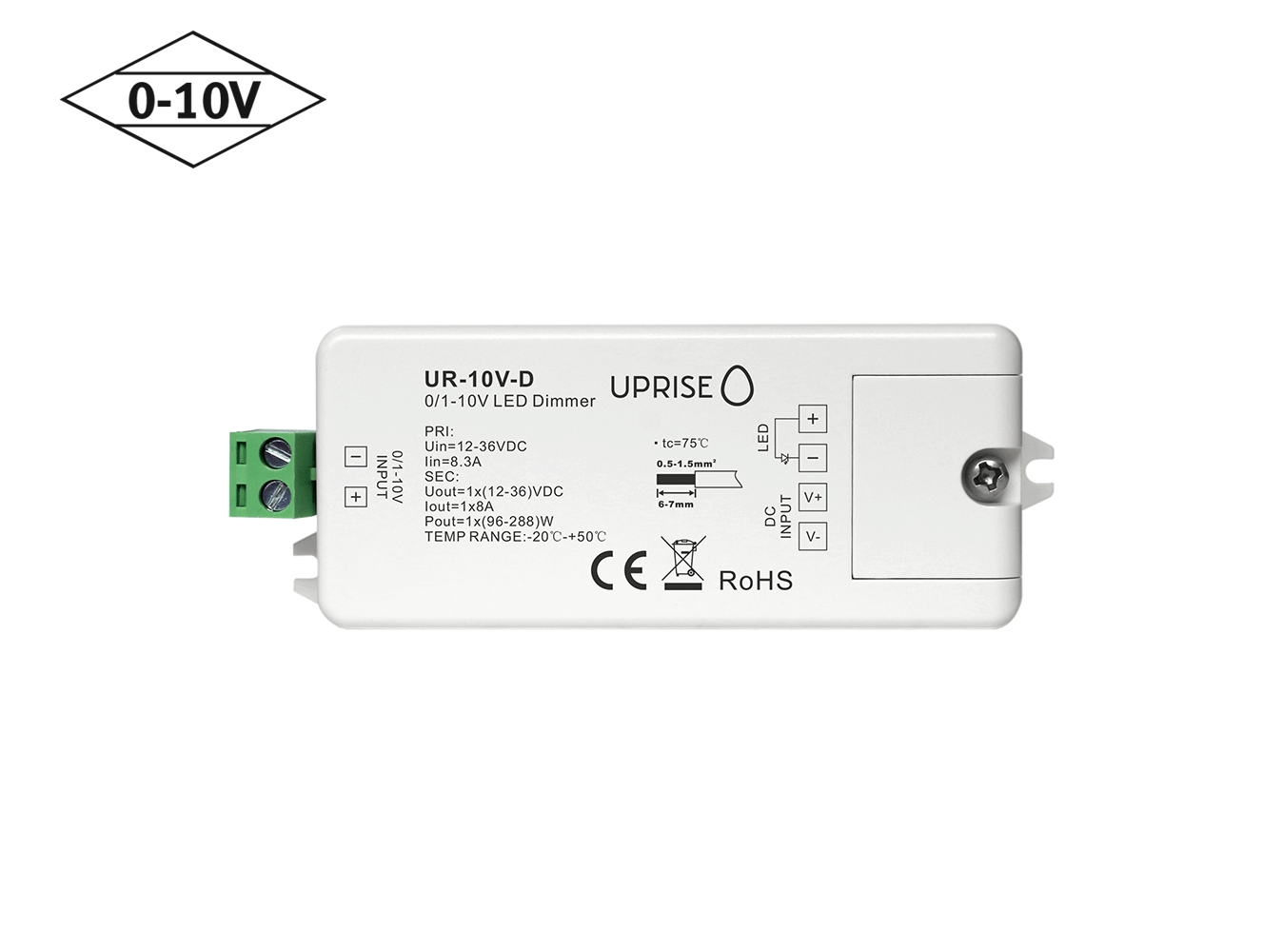

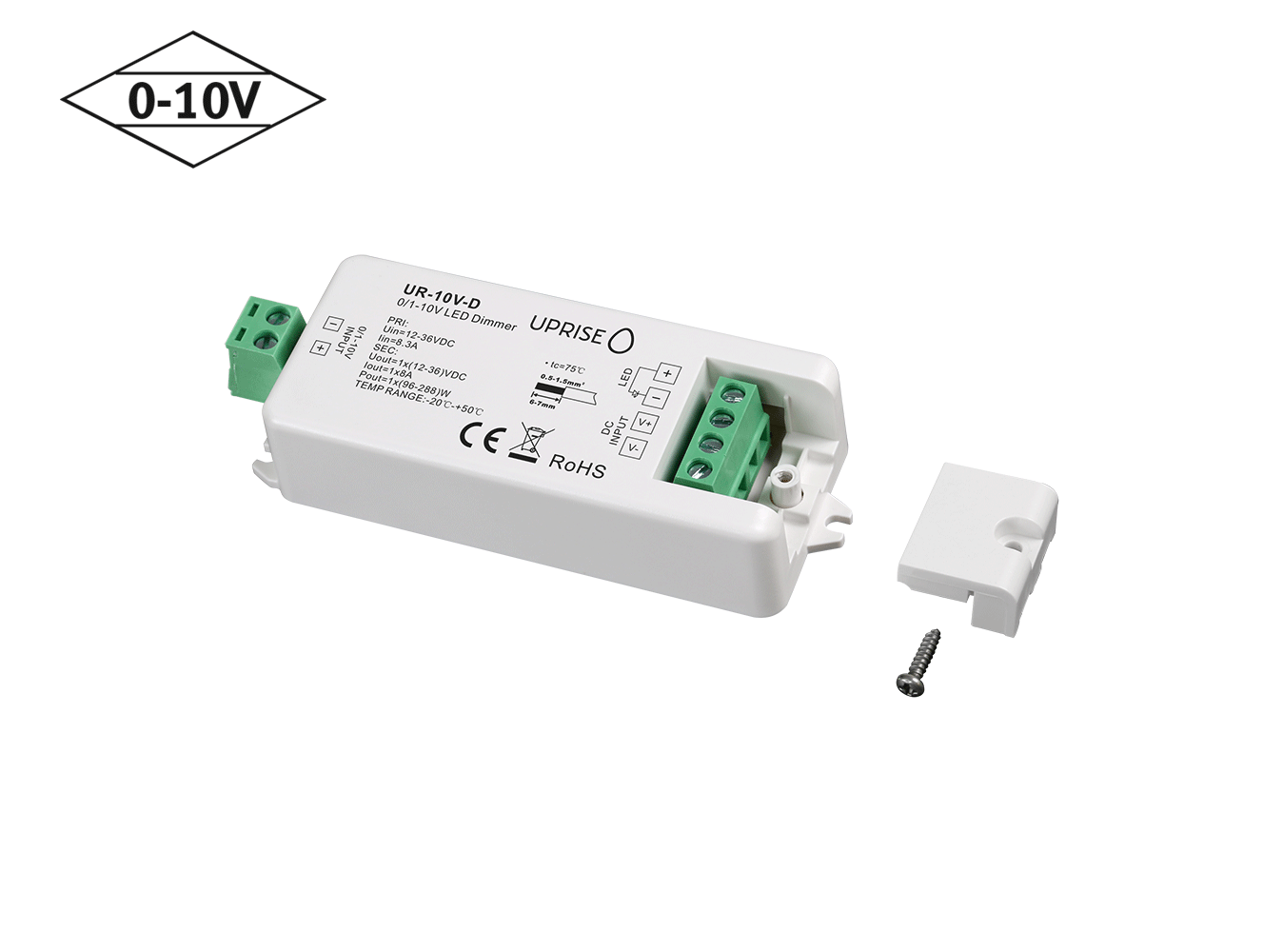

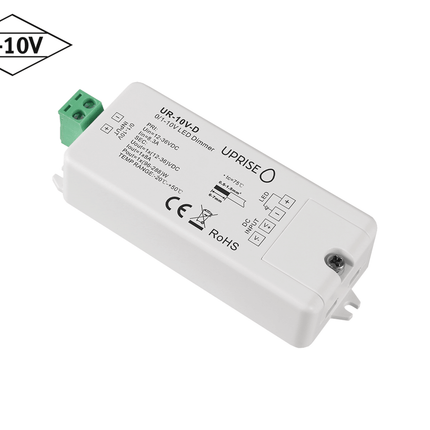

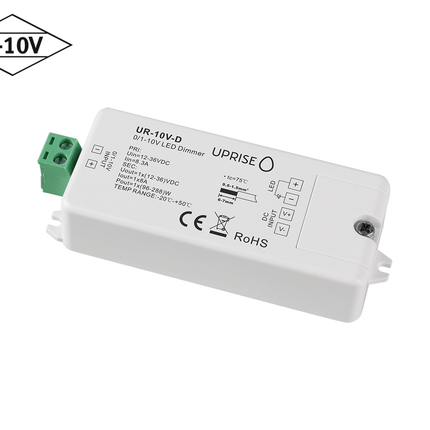

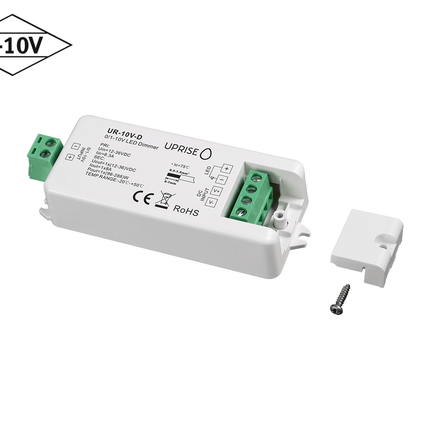

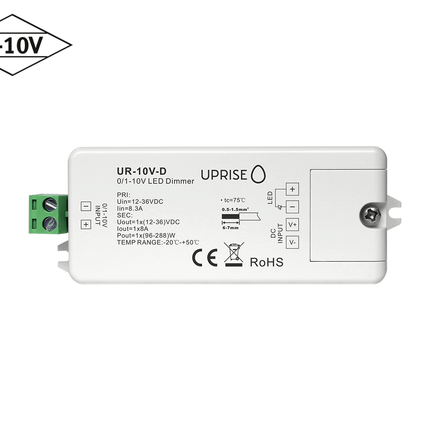

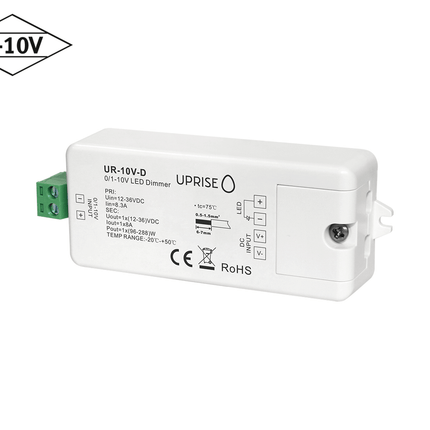

0-10V LED Dimmer (1CH) Constant Voltage
0-10V LED Dimmer (1CH) Constant Voltage
[VIDEO] Seamless lighting simplified.
[VIDEO] Seamless lighting simplified.
Couldn't load pickup availability
UR-10V-D instructions.pdf
--
0-10V LED Dimmer (1CH) Constant Voltage
Download UR-10V-D instructions.pdf for installation support.
Features
- Miniature style 0-10V LED Dimmer
- 0-10V LED dimmer that is constant voltage, has 1 channel with an output of 8A per channel. Available in 12V, 24V and 36V.
- This analog style dimming driver receives a standard 1-10V dim signal input
- A logarithmic dimming range of 0-100% offers a comfortable dimming visual for human eyes.
- Single channel 1-10V input with a single channel PWM output
- An adjustable LED dimmer offering soft, smooth, flicker free dimming using 256 levels of greyscale
- Works well with power repeater allowing practically unlimited expansion
- Also compatible with 1-10V dial / push switches / potentiometers
Specifications
General
- Part Number: UR-10V-D
- Product Type: Single channel (1ch) 0-10V constant voltage LED dimmer
- IP Rating: IP20
- Brand: Uprise
Electrical
- Input Voltage: 12V-36V
- Output Current: 1CH, 8A/CH
- Output Power: 96-288W
- Output Type: Constant Voltage
Product Data
- Greyscale: 256 level greyscale
- Channels: 1 channel
- Flicker: Anti-flicker
- Output Data: PWM (Pulse Width Modulation)
- Dimming Range: 0%-100%
Dimensions
- Width: 33mm
- Height: 20mm
- Length: 82mm
Guarantee
- Certification: CE, RoHS
- Warranty: 5 Years
Packaging
- Packaging: White cardboard box
- Net Weight: 375g
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
What style of LED tape lights is this compatible with?
This 0-10V LED dimmer is compatible with any 12V, 24V or 36V 2 core single colour LED tape strip or 12V, 24V, 36V LED source such as lamps, battens or marker LEDs. Contact us below for more information.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
Questions & Answers
Questions & Answers
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 12mm and will fit into all LED profiles with an inside width of 12mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
