This pack comes complete with multiple pcs (depending on selection) micro corner LED aluminium profiles designed for surface mount applications. This corner profile is ideal for cabinetry, shelf detailing and walk-in wardrobes where an angled aesthetic light visual is desired. Works perfectly with 4mm Seamless COB LED tape lights.
It comes complete with plastic end caps and metal fix clips. Supplied with a professional semi-clear diffuser.Micro Corner (Quadrant) LED Profile Product Data Sheets
8MM_Black_Micro_Corner_LED_Profile_DATASHEET8MM_Silver_Micro_Corner_LED_Profile_DATASHEET
The dimensions are 8mm wide x 8mm high. The internal width for mounting an LED strip is <5mm. Standard lengths are available in 0.6M, 1.2M, 1.8M, 2.4M. For 1.8M and 2.4M lengths an XL shipping service must be booked on. Please get in touch on 07957 180 481 or email us at sales@upriseled.com
Product Videos
[VIDEO] Dimensions of 8mm Silver Micro Corner LED Profile
[VIDEO] 4mm 27K COB LED Strip Within Black & Silver Micro Corner Profiles[VIDEO] 4mm 30K COB LED Strip Within Black & Silver Micro Corner Profiles[VIDEO] Why 35K soft white 4mm COB LED strips are great for fashion[VIDEO] 4mm 40K COB LED Strip Within Black & Silver Micro Corner Profiles[VIDEO] 4mm 50K COB LED Strip Within Black & Silver Micro Corner Profiles[VIDEO] 4mm 65K COB LED Strip Within Black & Silver Micro Corner Profiles
Specifications
Product type: Micro
Compatible with: Suitable for LED tape width :<5mm
Material: Aluminum
End Caps: Plastic
Fix Clips: Metal
Finish: Silver/Black
PC Cover: Diffused/Milk optional
Width: 8mm
Internal Width: 5mm
Height: 8mm
Length: 0.6M/1.2M/1.8M/2.4M
Warranty: 5 Year Warranty
Questions & Answers
Q) Which LED strip light should I put inside this corner LED profile?
A) For the absolute best spot free visual effect we recommend using our 4mm seamless "no dot" LED strip. Which is available in 2700K warmer white, 3000K warm, 3500K soft, 4000K neutral, 5000K cool and 6500K cooler white.
Q) Can this profile be cut to precision lengths, what's the best way to do this?
A) Due to the small size profile the aluminium metal base and semi-opaque diffuser can be cut with a hacksaw easily.
Q) What is the best fixing method for this mini corner profile?
A) There are three main ways of fixing this micro corner profile.
1) drill and small screws, this will create a secure fixing for most surface materials. It will result in a slight bump for the LED strip which won't be noticeable if the LED is a 4mm "no dot" seamless COB LED strip.
2) For upwards facing positioning (laid down shining upwards) or vertical positioning (lengthwise down a wall or surface) strong double sided 3M backing tape will work. For upside down (facing downwards under a shelf) due to gravity we strongly advise using screws or alternatively a strong tape adhesion combined with silicone or super glue depending on the surface material.
3) Using the metal clips provided. We think this option is the least workable solution for "permanent" installations as it looks unsightly. However this is a good option for indirect integrations where the clips would not be seen, i.e in an unseen channel or cove. Or popup event / exhibition styles projects for short term use due to easy dismount and reusability.
Q) Does this corner profile include accessories?
A) Yes we've bundled the associated semi-diffuser (light cover) along with metal mount clips and diffusers?
Q) What is the best way to mount this aluminium micro corner profile within a cabinet?
A) If you are looking to position this profile on the underside of a shelf facing downwards we recommend small secure screws. As long as you are using this micro corner LED profile in conjunction with seamless "no dotting" 4mm COB LED strip lights you won't see any hot spotting despite slight bumping due to the screws. Alternatively you can use a recessed screw leaving a flat surface the LED to be mounted to. WARNING: It's important to ensure there are no serrated edges or sharp aluminium pieces left on the profile as this can short circuit the LED strip. Please ensure a smooth surface prior to sticking LED tape down.
Q) What mounting and positioning options are available for this type of profile?
A) There are two mains uses for this type of profile as follows:
1) Two surface illumination + Direct visual light line aesthetic. This is where the profile is mounted top or bottom of a cabinet, the result is the light beam spreading across the bottom/top & backwall surface along with a visual seamless lighting line aesthetic.
2) Indirect angled beam. You'd round an 8mm hole and place this angled at the desired surface. It focuses the light at a specific angle to maximise light cover. A good example of this is within a walk-in wardrobe angling the light backwards to illuminate the clothes better.
Q) What are the dimensions of this profile?
A) 8mm wide by 8mm high by either 0.6M / 1.2M / 1.8M / 2.4M long.
Q) What length are these profiles available in?
A) Lengths available include: 0.6M (600mm), 1.2M (1200mm), 1.8M (1800mm) and 2.4M (2400mm)
Further applications include retail displays, fashion displays for shoes & accessories, ceiling features, picture frame surrounds, super yacht detailing, media walls, light posts, thin visual light lines and more.
Q) I can see this comes in Black & Silver, is it available in white or brass?
A) We have UK stock available on a 1-2 day turnaround delivery in both Black & Silver. White is potentially available on request. Please note due to the "corner" style nature of this profile you don't really see visible edge of the profile unless up close. The seamless LED strip will also remove focus due to light effect.
Available in black and silver.
This is an 8mm micro LED aluminium profile (U shape) designed for surface mount applications, including cabinet, recess and integrated LED light lines. This aluminium LED profile is known for its thermal management of LED strips, sleek size, simple mounting and easy to clean diffuser. It also provides a more "complete look" for a better visual aesthetic.
It comes complete with plastic end caps and metal fix clips. Supplied with a professional Semi Clear Diffuser.
Micro Surface (U Shape) LED Profile Product Data Sheets
8MM_Black_Micro_Surface_LED_Profile_DATASHEET8MM_Silver_Micro_Surface_LED_Profile_DATASHEET
The size is 8mm wide and 7mm high. The internal width is 5.5mm. This LED channel comes in either 0.75M, 1M or 2.25M lengths. Bespoke cut lengths can be discussed. Aluminium constructed, which makes it durable and tough.
Aluminium extrusion finished in silver or black.
If you would like a custom length please get in touch via phone, text or whatsapp on 07957 180 481 or email us at sales@upriseled.com
Specifications
Product type: Micro
Compatible with: Suitable for LED tape width :<5.5mm
Material: 6063 T5 Aircraft Aluminum
End Caps: Plastic (white end caps)
Fix Clips: Metal
Finish: Silver / Black
PC Cover: Semi Diffused
Width: 8mm
Internal Width: 5.5mm
Height: 7mm
Length: 0.75M / 1M / 2.25M as standard
Bespoke Cut Lengths: Get in touch to discuss.
Warranty: 5 Year Warranty
A slim aluminium LED profile designed for surface mount applications.
It comes complete with a length of silver aluminium profile, plastic end caps and both, metal or plastic fix clips. Supplied with a professional Semi Clear Diffuser for a smoother appearance of the LEDs.
Internal width of 12mm allows you to house flexible LED strips up to 12mm wide. The standard length of this LED profile is 1M or 2M. The construction is based on 6063 T5 Aircraft Aluminium, which makes it tough and fit for purpose.
If you would like a custom length please get in touch via phone, text or whatsapp on 07957 180 481 or email us at sales@upriseled.com
Specifications
Product type: Slim Surface
Compatible with: Suitable for LED tape width :<12mm
Material: 6063 T5 Aircraft Aluminum
End Caps: Plastic
Fix Clips: Metal/Plastic optional
Finish: Silver
PC Cover: Semi Diffused
Width: 17mm
Internal Width: 12mm
Height: 8mm
Length: 1M / 2M
Bespoke Cut Lengths: Contact to discuss.
1 meter package size: 150PCS/Carton, 102X13X17CM
2 meter package size: 150PCS/Carton, 202X13X17CM
G.W (Per meter): 0.14KG
Warranty: 5 Year Warranty
A slim silver aluminium extrusion profile designed for surface mounted LED lighting projects. This bendable LED profile produces a smoother light appearance.
It comes with plastic end caps and metal fix clips. Supplied with a professional Semi Clear Diffuser, which helps with the transmission of soft light.
Compatible with LED strip lights that are 13mm wide.
The size is 18mm wide and 5.7mm high. The internal width is 13.5mm. The length of this LED Channel is 2M. Available bespoke cut lengths also include 0.5M/1.5M/2.5M/3M. Constructed with 6063 T5 Aircraft Aluminum, which makes it tough and fit for purpose.
If you would like a custom length please get in touch via phone, text or whatsapp on 07957 180 481 or email us at sales@upriseled.com
Specifications
Product type: Slim Bendable
Compatible with: Suitable for LED tape width :13mm
Material: 6063 T5 Aircraft Aluminum
End Caps: Plastic
Fix Clips: Metal
Finish: Silver
PC Cover: Semi Diffused
Width: 18mm
Internal Width: 13.5mm
Height: 5.7mm
Length: 1M / 2M
Available Cut Lengths: 0.5M/1M/1.5M/2M/2.5M/3M
G.W (Per meter): 0.14KG
Warranty: 5 Year Warranty
Plaster in LED profile for a seamless light finish.
A simple to fit plaster in LED profile designed for seamless LED tape light applications.
What accessories do I get with this plaster-in extrusion?
It comes complete with a length of silver aluminium profile, plastic end caps and both, metal or plastic fix clips. Supplied with a professional diffuser that is available in transparent (clear), diffused (Semi Frosted) or milky (Opal).
Internal mounting width of 12.50mm allows you to house flexible LED strips up to 12.5mm wide. Standard lengths are available in 1M and 2M. Available bespoke cut lengths also include 0.5M/1.5M/2.5M/3M. The construction is based on 6063 T5 Aircraft Aluminium, which makes it tough and fit for purpose.
If you would like a custom length please get in touch on 0116 406 2959 or email us at sales@uprisemed.com
Specifications
Product type: Plaster In LED Profile
Compatible with: Suitable for LED tape width :<12.5mm
Material: 6063 T5 Aircraft Aluminum
End Caps: Plastic
Fix Clips: Metal/Plastic optional
Finish: Silver
PC Cover: Transparent (Clear)/Diffused (Semi Opaque)/Milk (Opal) optional
Overall Width (With wings): 55.5mm
Cutout Width: 15.5mm
Internal Width: 12.5mm
Overall Height: 15mm
Recessing Height: 10.7mm recessing depth (For cutout depth before touching bottom of mounting wings)
Plaster in Height: 3mm plaster in filler height.
Length: 1M/2M
Available Cut Lengths: 0.5M/1M/1.5M/2M/2.5M/3M
1 meter package size: 150PCS/Carton, 102X13X17CM
2 meter package size: 150PCS/Carton, 202X13X17CM
G.W (Per meter): 0.14KG
Warranty: 5 Year Warranty
An aluminium LED profile, creating a stylish light along an external corner.
It includes plastic end caps and metal fix clips needed for a complete aluminium channel installation. In addition, there is a professional Semi Clear Diffuser.
This extruded aluminium LED profile is compatible with LED strip lights that are up to 11mm wide.
Both, width and height are 16mm. The internal width is 10mm. This LED profile comes in either 1M or 2M lengths. The construction of the extrusion is based on 6063 T5 Aircraft Aluminium.
Silver finish for a refined look.
If you would like a custom length please get in touch via phone, text or whatsapp on 07957 180 481 or email us at sales@upriseled.com
Specifications
Product type: Corner
Compatible with: Suitable for LED tape width :<11mm
Material: 6063 T5 Aircraft Aluminum
End Caps: Plastic
Fix Clips: Metal
Finish: Silver
PC Cover: Semi Diffused
Beam Angle: 45°
Width: 16mm
Internal Width: 10mm
Height: 16mm
Length: 1M / 2M as standard
Bespoke Cut Length: Contact us to discuss
1 meter package size: 100PCS/Carton 102X13X17CM
2 meter package size: 100PCS/Carton 202X13X17CM
G.W (Per meter): 0.16KG
Warranty: 5 Year Warranty
This is an LED aluminium extrusion designed for slim recessed lighting applications. This LED profile also acts as a heatsink, offering greater thermal management.
Supplied with plastic end caps and both, metal or plastic fix clips. The profile comes complete with a Semi Diffused PC Cover. Compatible with LED strips that are up to 12mm wide.
The cutout hole size is 17.1mm wide, 8mm high, 23.2mm (outer flange width). The internal width is 12mm. The length of this LED Profile is 2M. Available bespoke cut lengths also include 0.5M/1.5M/2.5M/3M. The base of the construction is 6063 T5 Aircraft Aluminium, which makes it tough and fit for purpose.
Additional detail is the silver finish that provides a professional look.
If you would like a custom length please get in touch on 0116 406 2959 or email us at sales@uprisemed.com
Specifications
Product Type: Slim Recessed
Compatible with: Suitable for LED tape width: <12mm
Material: 6063 T5 Aircraft Aluminum
End Caps: Plastic
Fix Clips: Metal/Plastic optional
Finish: Silver
PC Cover: Semi Diffused
Width: 17.1mm
Outer Flange Width: 23.2mm
Internal Width: 12mm
Height: 8mm
Length: 2M
Available Cut Lengths: 0.5M/1M/1.5M/2M/2.5M/3M
1 meter package size: 125PCS/Carton,102X13X17CM
2 meter package size: 125PCS/Carton, 202X13X17CM
G.W (Per meter): 0.14KG
Warranty: 5 Year Warranty
An aluminium LED profile designed for surface mount applications, supplied with plastic end caps and metal fix clips.
The profile comes complete with a professional diffuser for a smoother appearance of the LEDs. It comes with a professional Semi Clear Diffuser.
Compatible with LED strip lights that are 11mm wide or less.
It comes with a 16mm width and 7mm height. The length of this LED Aluminium is available in 1M & 2M as standard. Bespoke lengths can be discussed. Constructed with 6063 T5 Aircraft Aluminum, which makes it tough and fit for purpose.
Silver finish for a refined look.
If you would like a custom length please get in touch via phone, text or whatsapp on 07957 180 481 or email us at sales@upriseled.com
Specifications
Product type: Slim Surface
Compatible with: Suitable for LED tape width:<11mm
Material: 6063 T5 Aircraft Aluminum
End Caps: Plastic
Fix Clips: Metal
Finish: Silver
PC Cover: Semi Diffused
Width: 16mm
Internal Width: 11mm
Height: 7mm
Length: 1M / 2M as standard.
Bespoke Cut Length: Get in touch to discuss.
1 meter package size: 100PCS/Carton,102X13X17CM
2 meter package size: 100PCS/Carton,202 X 13 X 17CM
G.W (Per meter): 0.12kg
Warranty: 5 Year Warranty
A silver staircase aluminium profile for LED strip lighting. Compatible with LED strip lights that are 13mm wide or less.
It includes fix clips and metal end caps for a complete aluminium channel installation. For a regulated heat dissipation, it's supplied with a professional Semi Clear Diffuser.
It comes with 65mm width and 27.5mm height. This LED aluminium stair nosing profiles comes with in either a 1M or 2M standard length. Constructed with 6063 T5 Aircraft Aluminum.
For bespoke lengths please contact via sales@upriseled.com or phone, text or whatsapp with projects on 07957 180 481.
Specifications
Product type: Stair Nosing
Compatible with: Suitable for LED tape width :<13mm
Material: 6063 T5 Aircraft Aluminum
End Caps: Metal
Finish: Silver
PC Cover: Semi Diffused
Width: 65mm
Internal Width: 13.3mm
Height: 27.5mm
Length: 2M
Available Cut Lengths: 0.5M/1M/1.5M/2M/2.5M/3M
Warranty: 5 Year Warranty
This is a round aluminium LED profile compatible with LED strip lights that are up to 21mm wide.
Supplied with metal fix clips and plastic end caps for surface mount applications. Substantial part of the extrusion is the professional Semi Clear Diffuser.
This LED profile has width and height that are 30mm. The internal width is 21mm. This LED channel comes in wither 1M or 2M lengths. Constructed with 6063 T5 Aircraft Aluminum, which makes it durable and fit for purpose.
The silver finish of the extrusion provides a professional look.
If you would like a custom length please get in touch via phone, text or whatsapp on 07957 180 481 or email us at sales@upriseled.com
Specifications
Product type: Rounded
Compatible with: Suitable for LED tape width :<21mm
Material: 6063 T5 Aircraft Aluminum
End Caps: Plastic
Fix Clips: Metal
Finish: Silver
PC Cover: Semi Diffused
Width: 30mm
Internal Width: 21mm
Height: 30mm
Length: 1M / 2M as standard
Bespoke Cut Lengths: Contact us to discuss
1 meter package size: 102X13X17CM
2 meter package size: 202X13X17CM
G.W (Per meter): 0.3KG
Warranty: 5 Year Warranty
A large square aluminium extrusion profile for LED strip lighting. Compatible with LED strip lights that are up to 30mm wide. Available in black and silver.
Supplied with end caps and fix clips, which are made out of plastics. The LED profile is completed with a professional Semi Clear Diffuser.
The size is 40mm wide and 40mm high. The internal width is 31mm. The length of the LED aluminium is available in 1M and 2M lengths. The construction is based on 6063 T5 Aircraft Aluminium, which makes it tough and fit for purpose.
Aluminium extrusion finished in black / silver.
If you would like a custom length please get in touch via phone, text or WhatsApp on 07957 180 481 or email us at sales@upriseled.com
Specifications
Product type: Square
Compatible with: Suitable for LED tape width:<31mm
Material: 6063 T5 Aircraft Aluminium
End Caps: Plastic
Fix Clips: Plastic
Finish: Black / Silver
PC Cover: Semi Diffused
Width: 40mm
Internal Width: 30mm
Height: 40mm
Length: 1M / 2M as standard
Bespoke Cut Lengths: Contact us to discuss.
Warranty: 5 Year Warranty
Available in black and silver.

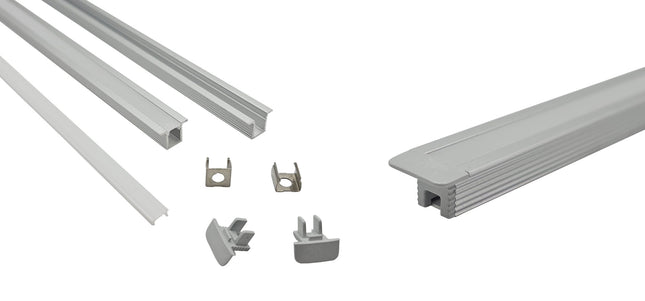

This is an 8mm micro recessed LED aluminium profile (With outer flange) designed for recessed mount applications, including cabinet, recess and integrated LED light lines. This aluminium LED profile is known for its thermal management of LED strips, sleek size, simple mounting and easy to clean diffuser. It also provides a more "complete look" for a better visual aesthetic.
It comes complete with plastic end caps and metal fix clips. Supplied with a professional Semi Clear Diffuser.
Micro Recessed LED Profile Product Data Sheets
8MM_Black_Micro_Recessed_LED_Profile_DATASHEET8MM_Silver_Micro_Recessed_LED_Profile_DATASHEET

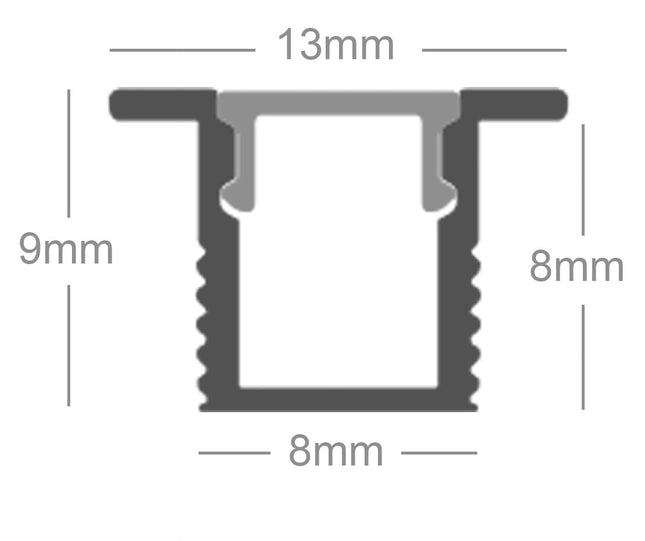

The size cut-out is 8mm wide and 8mm high. With a total height of 9mm and 13mm outer flange size (wing span) The internal width is 5mm. This LED channel comes in either 0.75M, 1M or 2.25M lengths. Bespoke cut lengths can be discussed. Aluminium constructed, which makes it durable and tough.
Aluminium extrusion finished in silver or black.
If you would like a custom length please get in touch via phone, text or whatsapp on 07957 180 481 or email us at sales@upriseled.com
Specifications
Product type: Micro Recessed Profile
Compatible with: Suitable for LED tape width :<5mm
Material: 6063 T5 Aircraft Aluminum
End Caps: Plastic Grey / Black
Fix Clips: Metal
Finish: Silver / Black
PC Cover: Semi Diffused
Cutout Width: 8mm
Wings Width: 13mm (covers routed chips in woodwork)
Internal Width: 5mm
Cutout Height: 8mm
Total Height: 9mm
Length: 0.75M / 1M / 2.25M as standard
Bespoke Cut Lengths: Get in touch to discuss.
Warranty: 3 Year Warranty
Browse our range of standard and specialist aluminium LED profiles. Designed to case your LED strips, offering thermal protection, simple install, easy cleaning and a more complete look.
