LED Strip Lights - LED Tape - Digital Pixel

*5M Reel. A professional RGB digital LED tape strip that is single pixel addressable. Create beautiful artistic visuals for entertainment, leisure and fitness spin studios. 30LED/M.

Read more less

*5M Reel. A professional 60 LED per meter RGB digital LED tape light. Pixel programmable, dynamic and versatile, this 18W/M LED strip is ideal for gym spin studios, clubs, bars and for stage backlighting or events. 5V.

Read more less

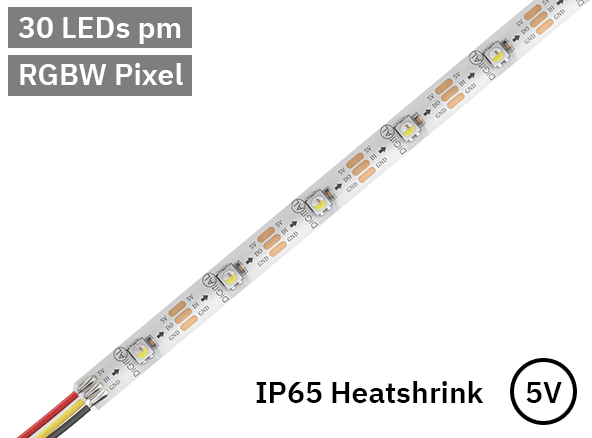

*Supplied on 5M Reel. This individually controllable RGBW (4000K) pixel LED tape offers fluid, exciting effects. Create full colour strobes, flows and pixel patterns easily. 5V Specifications Voltage: 5VSupplied Length: 5MWattage: 12W per meterLEDs per meter: 30IC Type: WS2811Cut Points: 33mmLED Spacings: 33mmColour: RGB-NWPCB Colour: WhitePCB Thickness: 2 OunceVoltage drop: 4M trail off (Power both ends)Data Flow: Arrow points away from data/power source.Cable: 3 core flat cableCable Colours: Red +, Black -, Yellow DataCut to length service: Available on request Wiring Diagram Our digital RGBW LED strip is a flexible full colour pixel LED strip light. It has amongst the widest range of uses out of all types of flex tape strips. Championing individually addressable pixels that can each be controlled with the widest gamut of colour, full RGBW. This means you can reach the full colour spectrum whilst also having precision control over every single LED. This level of control allows for a wide scope of both colour generation and kinetic visual effects. Animations such as roasting flames, night sky twinkles, sparkles, static and moving gradients along with cross fades, bounces, pulses, comets and even low resolution video to name a few examples. Uprise's tried and tested digital LED strip is made to a high standard using the best components. We call this pioneer grade. Within the make up of our strip is a diffused LED offering superior colour mixing. Use this strip as a feature light within alcoves, bars, restaurants in the home for kitchen entertaining, lounges for relaxation or even in home cinemas for dramatic effect. Due to the intelligent range of colour our pixel strip is also ideal within custom lights boxes to improve mood and wellbeing. Studies show that introducing smart lighting that mimics the bodies natural circadian rhythm can improve emotional and psychological wellbeing. Our Digital LED Strip 30 RGBW strip is available in two IP rated types. IP20 - For internal non waterproof fit outs. IP65 - For splash proof applications such as bars, clubs or other areas where splashes of water or liquid ingress may be present. In addition our pixel LED strip comes is available in two PCB paint finishes, white or black. White - Typical for everyday applications such as in coves, within aluminium profiles or within lights boxes. When in an enclosure white finish helps reflect the light to improve overall brightness and wash out of visual. Black - This is ideal for areas that are finished in black and the desire is to only see the pixel LEDs. The result? An almost ghost like visual. Should you require something brighter or a higher definition of pixel LEDs, we have the following products available. Digital LED Strip RGBW 60 - Our 60LED per meter digitally addressable RGBW LED strip packs a serious punch. Consisting of of twice as many LEDs as our 30LED version it's ideal when you need extra brightness. Q) Are these digital LED strips pixel mappable?A) Yes these can be pixel mapped via any leading control software. Q) What is pixel mapping?A) Pixel mapping is when each LED is used as a controllable pixel in a larger grid or matrix. Imagine a lower resolution but bright display. Now imagine that display is a single yet flexible line, that's an addressable pixel LED strip. Pixel LEDs can come in many different product forms including batons, large domes, orbs and even IP rated nodes. Q) How do I install and program an RGBW digital LED strip?A) Please our installation and setup guide. Q) What do "channels" mean? I notice you mention each LED uses 4 channels, what does this actually mean?A)  A channel is assigned to control different parameters also known as a (personality) of a light. Traditionally this could be a colour, rotation or strobe and have values of 0-255. In our case it's the 4 colours of each individual pixel LED, red, green, blue and white. 4 channel. Q) What is sACN or Artnet?A) For more information on sACN or Artnet checkout art-net.org.uk Q) What is DMX?A) DMX stands for digital multiplex. See this article for more information Q) What is DMX universe 512?A) A DMX universe consists of 512 channels, remember how we answered what channels were before? Well a single universe is made up of 512 channels. This means that 1 dmx universe can control  512/3 (RGB) = 170 RGB pixels or 512/4 (RGBW) = 128 RGBW pixels. Q) What power supply do I need to run these strips?A) This particular strip is 5v and consumes 12W/M or 60W per 5M supplied reel. You will require a 5V 100W / 200W / 320W or larger power supply. Q) What controller do I need to control these strips?A) Feel to contact us on 0116 406 2959 to discuss your project needs, we can assist you in bring your ideas to life. Q) How do I control these lights from my mobile or iPad?A) There are several ways of achieving this and it will depend on the overall goal of your project. Contact us today, we're here to help.

Read more less

*Supplied on 5M reel. Flexible, cuttable, stickable and colourfully flowable. This bright 60 LED per meter RGBW (4000K) digital LED tape is ideal for creating artistic light visuals. 5V.

Read more less

Quick Overview This LTECH SPI-16 M16 Mini RF SPI LED Pixel Controller is compatible with DC5-25V input. It's purpose is to generate both small and large scale digital pixel visual effects via simple handheld remote and presets. It's a popular, hardy system that is also cost effective. You easily generate a gradient rainbow effect amongst other fun effects patterns.  It has a max output rating of 10A which means this pixel LED controller can power no more than: 50W at 5V, 120W at 12V, 240W at 24V. Compatible IC Types:TM1803, TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912, UCS2903, UCS2909, UCS2912, TLS3001, TLS3002, LPD6803, LPD1101, D705, UCS6909, UCS6912, LPD8803, LPD8806, WS2801, WS2803, WS2811, WS2812, P9813 Please note: The RF handset requires a cr2032 lithium battery. Please contact sales@upriseled.com for Pixel LED strips, LED controllers and compatible LED power supplies. This product is in stock UK for next day delivery (DPD). Many customers choose Uprise for high quality products, fast delivery and excellent service and support. If you have any challenges with your order we're here to help. You can also contact us on 0116 406 2959 to discuss your project. Payments are safe via Stripe a leading platform or you can get in touch with us to discuss your needs and to arrange BACs transfer. Specifications Model: MI6 Mini LED Pixel Controller With RF RemoteSKU: M16-RFReceiver Dimensions: L135 x W30 x H20mmHandset Dimensions: L104 x W60 x H9mmType: Digital ICPower input: 5V-24VOutput Power: 10 Amps MaxWatts: 50W at 5V, 120W at 12V, 240W at 24VTotal Pixels: 8 - 1020 pixelsRating: IP20 (Dry / Indoor)Operating Temperature: -22°C ~ 55°CWarranty: 1 yearPrevious Mode On Power Cycle: YesRemote Radius: 40M-50M (line of site)Colour Effect Modes: 16 Packaging Dimensions: 13.2x20cmPackaging Weight (G.W): 120g

Read more less
