Description

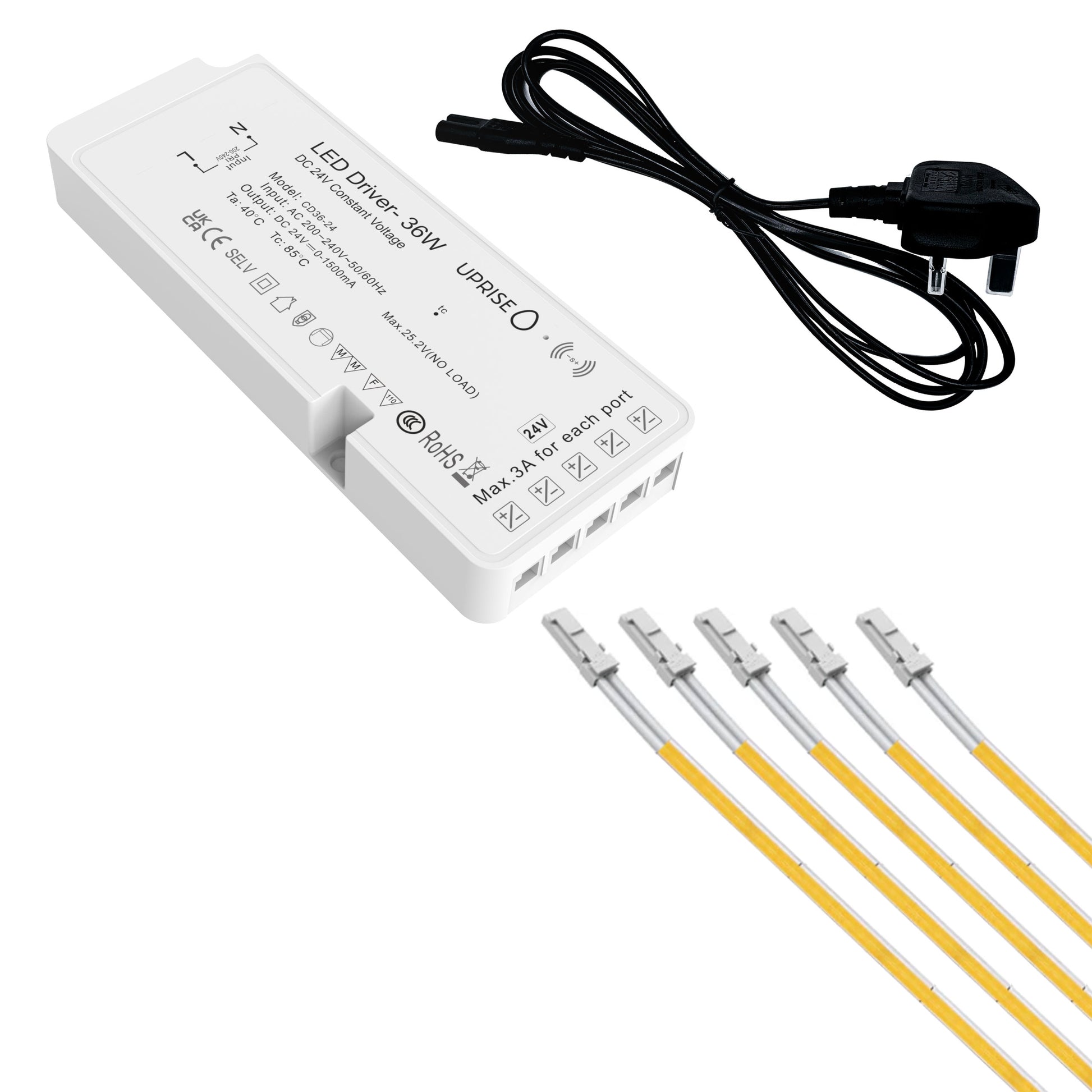

Plug & Play LED Strip Kit | 4mm Seamless LED Strips | 36W 5 Output Undercabinet LED Driver 24V | 5 x 2M Extension Cables

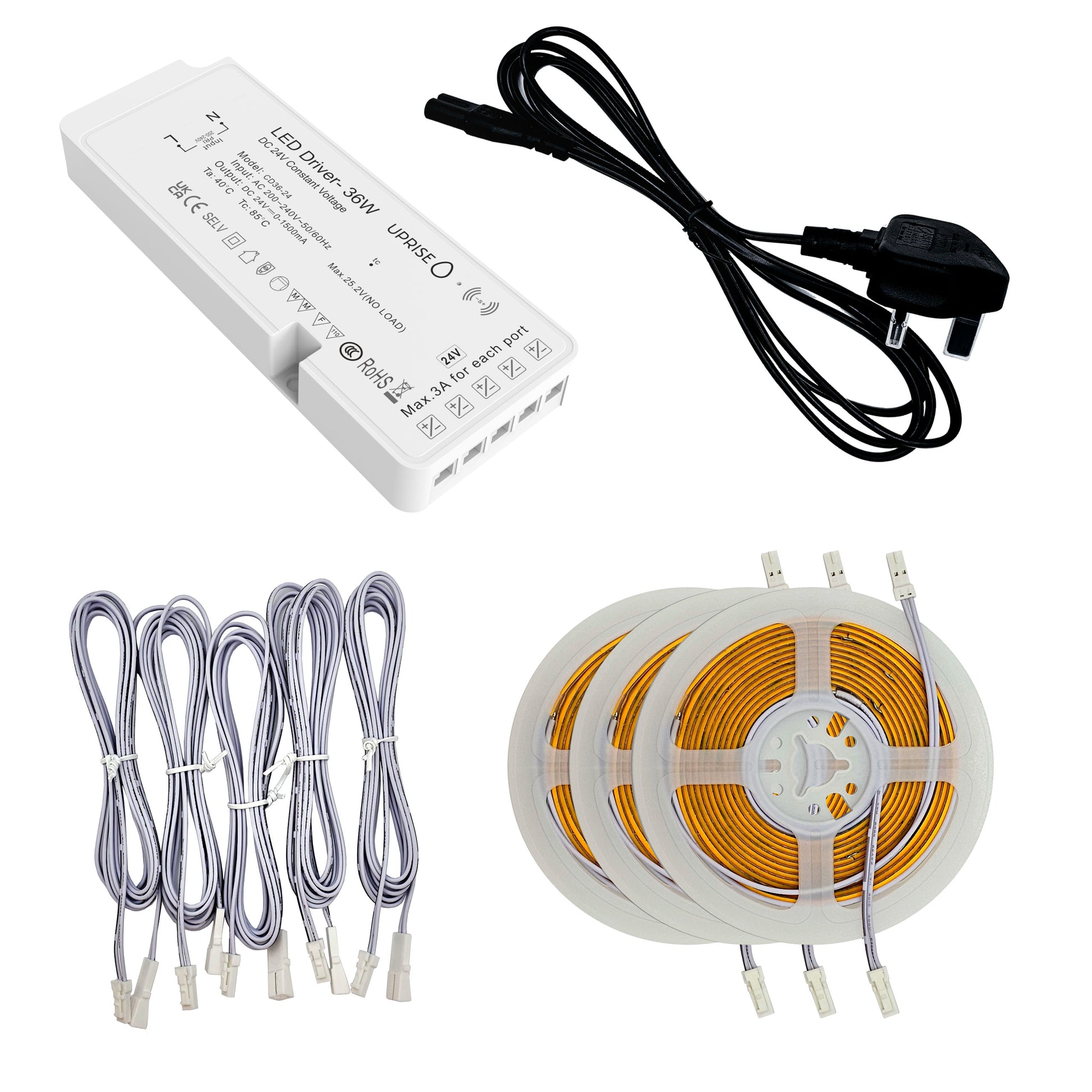

What you will receive within this seamless COB LED strip kit:
Seamless LED Strips: 3 x 2.4M (7.2M total length) 4mm Seamless "No Dotting" 5W/M flexible LED strip lights with 0.5M tails both ends. 24V. (Can be cut into x6 individual length LED strips, x5 for setup, x1 spare). Available in 3000K warm, 3500K soft, 4000K neutral.
480LED/M 5W/M 3000K Warm White COB LED Tape - Datasheet
480LED/M 5W/M 3500K Soft White COB LED Tape - Datasheet
480LED/M 5W/M 4000K Neutral White COB LED Tape - Datasheet
Note: Each 2.4M LED strip can be cut every 25mm, so you could cut at the 600mm point (on the black line) and have a 0.6M and 1.8M LED strip. Or in half for 2 x 1.2M LED strips. Or at any measurement to make two LED strips. The strips could then be cut down further to desired fit size.
Extension Cables: 5 x 2M male to female extension cables (allows for 2.5M of extension from driver, 0.5M from LED strips + 2M from extension cable).
Cabinet LED Driver: 1 x 36W plug & play cabinet LED driver (24V).
Mains Lead: 1 x 1000mm black (1M) UK mains to C7 mains lead.
Extension Cables
Wiring Setup: [UK mains socket] > UK to C7 Mains Lead > 36W Cabinet Driver > (optional) extension cable > Upto x5 LED strips
36W Cabinet LED Driver Details
This 5 output, slimline undercabinet led lighting driver by Uprise offers quick and simple setup for single colour spot lights, furniture lights & LED tape lights. Ideal for areas where space is limited and a thin 24V LED power source is required. With it’s 24W capacity and 5 micro connectors upto x5 24V LED products / LED strips can be connected effortlessly. Compatible with next generation hand wave sensors as well as single and double door sensors means turning your lighting setup on/off has never been easier.
Download Cabinet LED Drivers Q&A Sheet PDF for more support.
Support Videos
*Brightness
How bright and adaptable is this 4mm 5W LED Strip?
*Colour Temperature
3000K Warm White Colour Temperature (Within micro corner profile)
3500K (New Colour) Soft White Light Colour (Within micro quadrant profile)
4000K Neutral White Light Source Colour (Inside corner extrusion)
*Cabling
How can I extend the cable easily between COB LED strips?
36W Cabinet LED Driver Specifications
Driver Outputs
With 5 micro connectable outputs you can easily run 5 separate LED areas or shelves.
Connectable Accessories
Connect a hand wave, touch, or even a single door or double sensor (inline or master).
Power Consumption
This under-cabinet kitchen LED driver is rated at 36W.
Size
Ultra thin design at just 18.5mm depth for hidden installation. 147mm x 56mm x 18mm
Wiring
5 way distributor outputs with micro connection terminals. Keep wiring tidy and professional.
Testing
100% full load age testing, consistent with world lighting safety standards.
Circuit Protection
Open circuit, short circuit, overload and overheating protection.
Standards
All of our Uprise LED drivers are TUV/CE/SAA/ETL/FCC approved.
Choose your lengths
This product is compatible with all our 24V marker LED downlights, cabinet pad downlights, seamless cob and single colour LED tape lights. Simply decide the lengths required and ensure that the total wattage across all lengths when totalled does not exceed 36W - 10% (32.4W) to build in a safety buffer.
Application

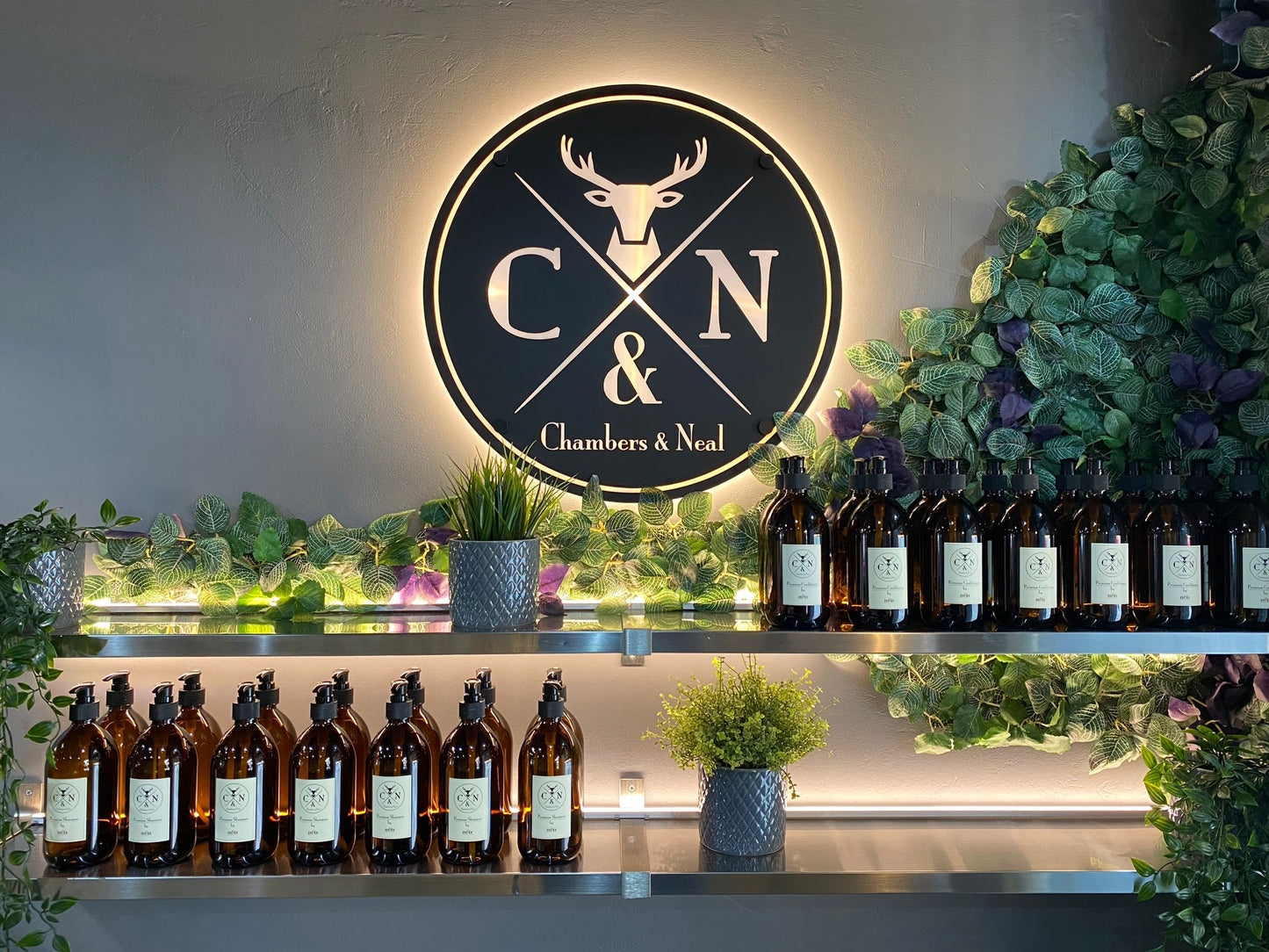

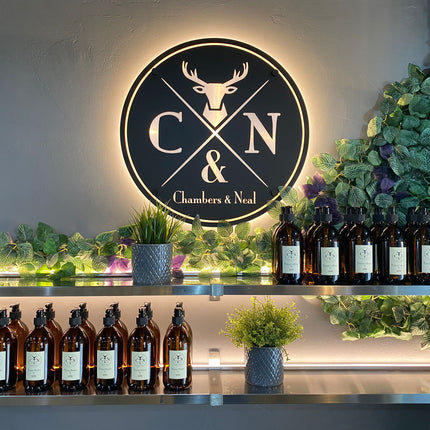

A thin and functional multi-port LED driver that’s best suited for fitouts within cabinet displays, under pelmets, shelves, signage and within coves. It’s also suited for many other applications whereby space is limited and multiple lengths of LED strips are desired.
The driver is only 56mm wide and standard IP20 rated. This provides complete protection against solid items over 12.5mm like finger touch.
IP Rating
This LED supply is IP20 rated and suitable for internal applications.
Environments

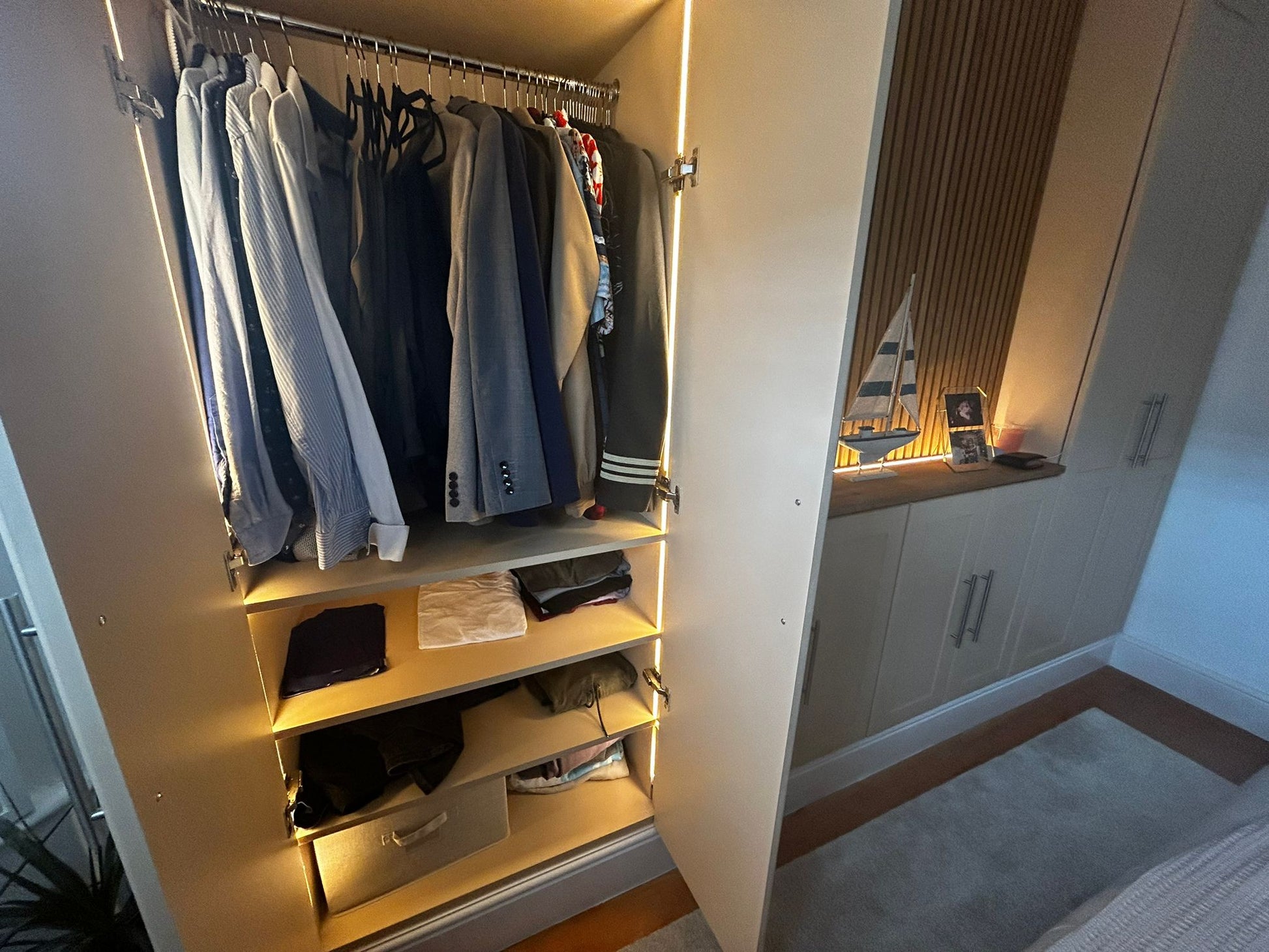

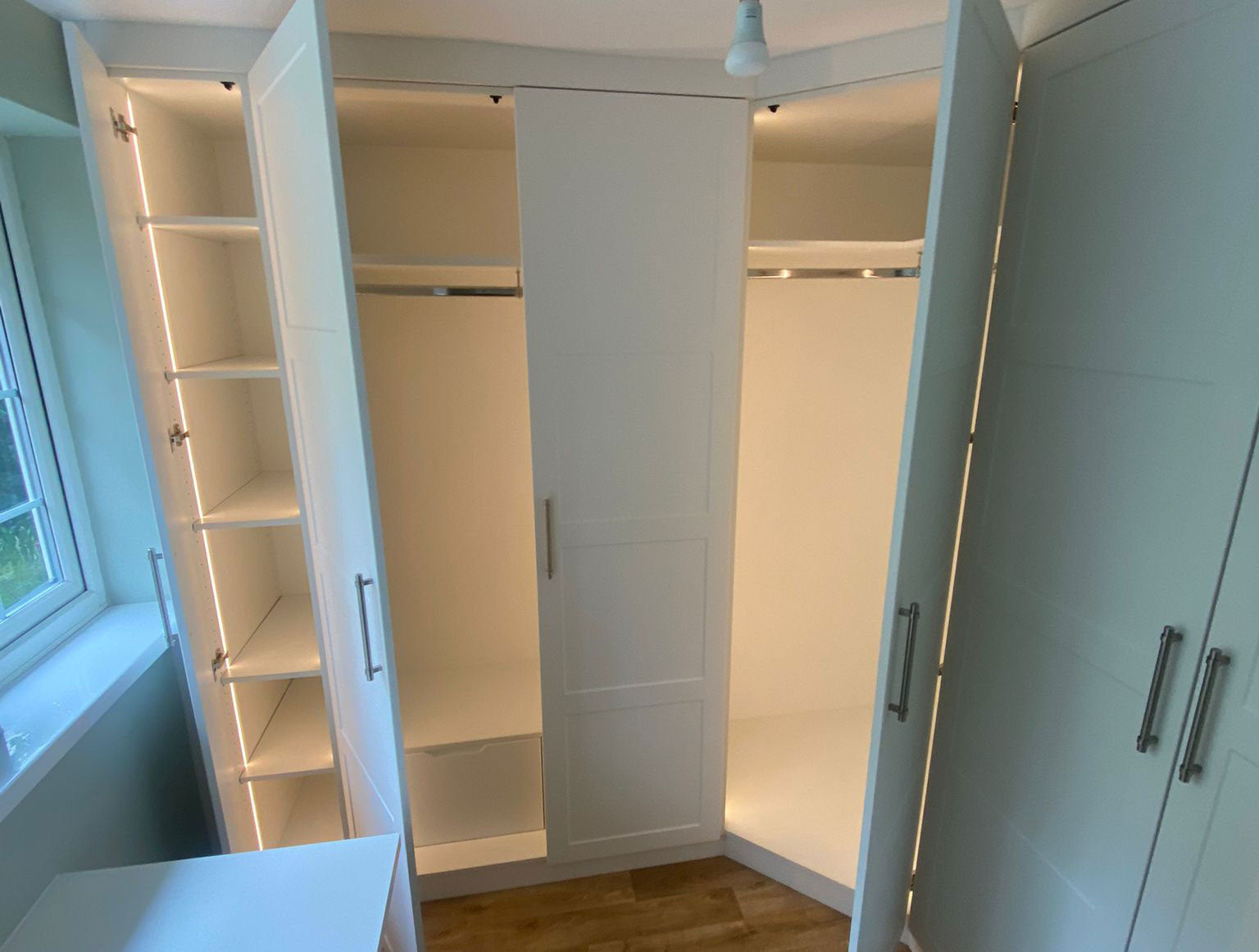

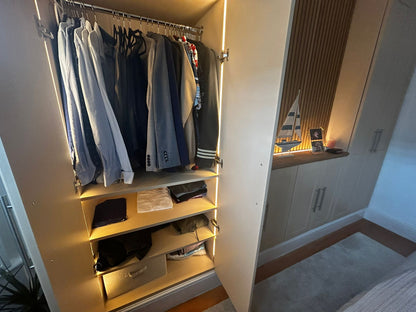

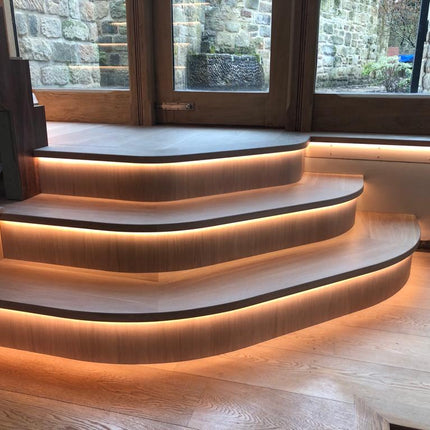

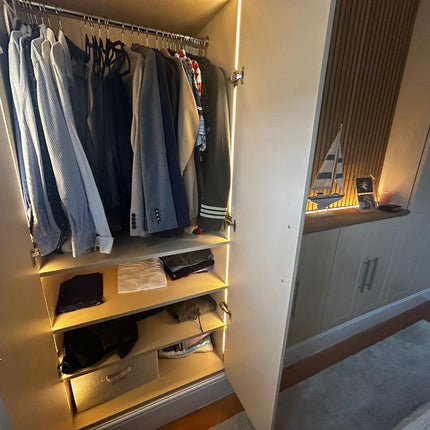

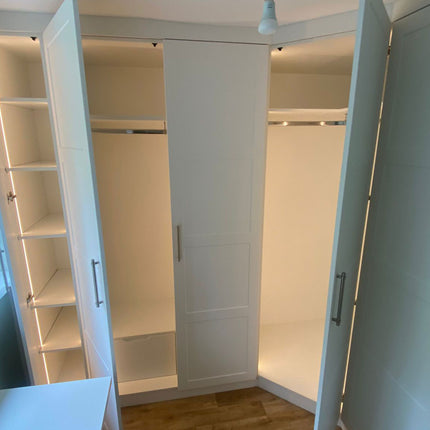

Create a stunning, continuous visual aesthetic within the home, add beauty to your walk in wardrobes, designer cabinets, or prestigious wine racks by combining this Uprise 24V 24W LED driver with a range of our seamless cob LED tape lights.
Quality Assurance
Uprise believes in long-term value, which is why our enterprise class LED tape lights include high-quality, long lasting components. Colour consistency and uniformity are important for the right finish for all our LED strips.
Uprise offers a wide variety of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. For splendid visual aesthetics and end dimming results, you can also view the Dim to Warm & Seamless COB flexible LED strip
Specifications
General
-
Product Type: 5 output cabinet LED driver (5 way distributor ports built in)
-
IP Rating: IP20
-
Brand: Uprise
Electrical
-
Power Range: 32W-36W
-
Input Voltage: 200-240V
-
Output Voltage: 24V +/- 5%
-
AC Input Current: 0.36A
-
3A Port: 5
-
Outputs: x5 micro connectors (5-port micro plug connector)
-
Wattage: 36W
-
Voltage: 24V
-
Surge Protection: 1.5Kv
Sensor Connectivity
-
Sensor Port: PHB 2.0
-
Sensor Compatibility: Hand Wave Sensor / Touch Sensor / Single Door Switch / Double Door Switch
Dimensions
-
Width: 56mm
-
Height: 18mm
-
Length: 147mm
Installation
Guarantee
-
Certification / Standards: CE, SELV, RoHS, UKCA
-
Warranty: 3 Years
Packaging
-
Packaging: White cardboard box
-
Net Weight: 375g
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
What style of LED tape lights is this compatible with?
This driver is compatible with any 24V 2 core single colour LED tape strip or 24V LED source such as lamps, battens or marker LEDs. Contact us for more information.
How can I buy?
You either buy individual components online or call / WhatsApp us on 07957 180 481 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
