Seamless Lighting Simplifed - Uprise Company Overview Video
[Y] ep1 - Best way to connect a 5M 4mm COB LED strip to driver (24V)
Description

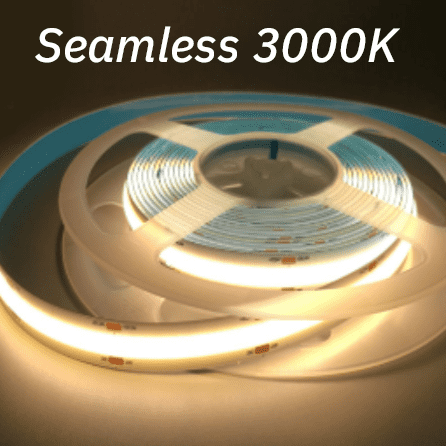

A super slim white cob led tape light that offers seamless light throughout the strip. 5W per meter with a 2700K / 3000K / 4000K / 6000K colour temperature temperature, it's ideal for tight grooves, cabinet displays or shelving units. Comes with 0.5M tail and plug & play that connects to 24V LED power supplies.
Compatible Products (LED Solution)
Cabinet LED Drivers
60W 7 output cabinet LED driver (24V) with mains lead
24W 5 output cabinet LED driver (24V) with mains lead
Cabinet LED Sensors
Furniture LED sensors for cabinets, drawers, walk in wardrobes
Extension Cables
2M / 3M / 4M / 5M male-female 2 core flat LED extension cables
Product Datasheets
Product Data Sheet (Branded)Product Data Sheet (Unbranded)
How to connect COB LED tape lights simply.
--

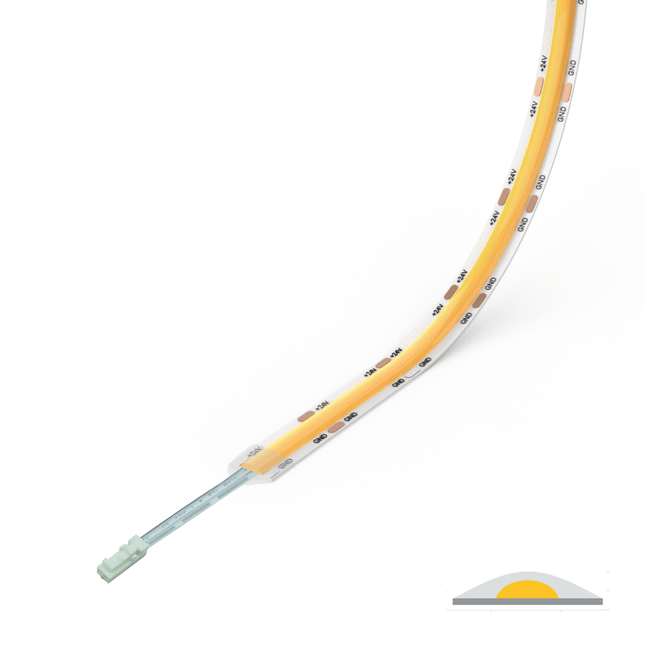

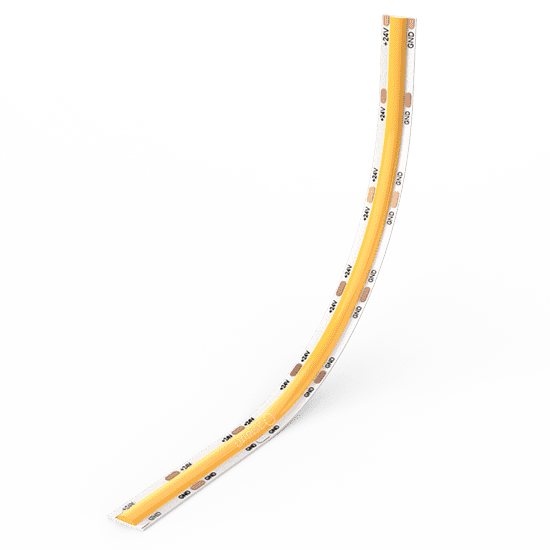

Seamless PRO COB LED Tape 4W per meter IP20
Supplied as 1M / 3.5M / 5M reel as standard. Enterprise class quality with the latest in integrated LED technology.
Article - The Definitive Guide to COB LED Strip Lights
Seamless cob LED tape by Uprise. A revolutionary new PCB design mounted LED strip light with a uniform "micro dot" LED configuration for the most beautiful light line you've ever witnessed. Our 4 watts per meter flexible COB (Chip on-board) LED strip light provides a stunning flow of ambience throughout. Innovative cut of the cloth design means LEDs are closely knitted directly to the PCB substrate. A clever design that offers maximum efficacy and flexibility. This combined with a unique "bubble doming" silicone coating method ensures a stable, reliable solution for professional integrations. Lighting brilliance to put it simply.
Wiring Example
This precision engineered 24V COB LED tape strip is just 4W/M offering excellent efficiency and upto 700 lumens per meter output. 480 LEDs per meter allow for a continuous, homogeneous illumination throughout the strip. Available colours include 2700K warmer white, 3000K warm, 4000K neutral white and 6500K cool.
Lifetime expectancy is 50,000 hours of continuous use. 25mm cut points. 4mm wide. 12V. 2 core wiring.
Here at Uprise we aim to provide the utmost value and integrity throughout the entire supply process. From first point of call to happy result. That's why we ensure carefully selected high tolerance components are utilised. This means we've done our due diligence throughout the design and selection process ensuring premium quality throughout. High grade LED chips have been utilised for superior quality in strip longevity and effect.
Specifications
General
Product Type: Seamless No Dot LED Tape (4W/M)
Colour: Warmer White (2700K) / Warm White (3000K) / Neutral White (4000K) / Cool White (6500K)
IP Rating: IP20 (Internal)
PCB Colour: White
Chip: COB (Chip on board) Flip Chip Technology
LEDs per meter: 480LEDS
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 700lm/m
Lumens/w: 105lm/W
High CRI: 85+
Beam angle: 180°
Electrical
LED Wattage (Per meter): 5W
Input Voltage: 24V DC
Current (A): 0.166A/m

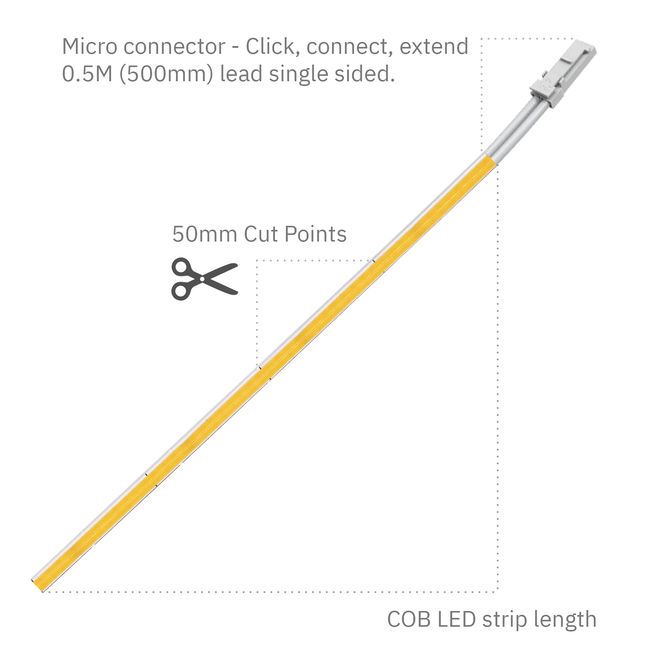

Cable in: 500mm 2 core with micro connector (as standard) for seamless installation with our professional cabinet LED drivers & sensor range. 3.5M+ lengths includes x2 0.5M tails with micro connectors either end.
Cable out: 500mm 2 core (as standard) with male micro connector (3.5M+ lengths only)
Dimensions
Width: 4mm
Height: 2mm
Length: 1M, 1.8M, 2M, 2.5M, 3M, 3.5M, 4M, 5M, 10M (as standard), available in bespoke custom cut to lengths, call us on 0116 406 2959, email us at sales@upriseled.com or send us a project request on 07957 180 481.
Installation
Cut points: 50mm
Cable: 2 core flat cable
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 3 Years
Packaging
Packaging: 1M / 3.5M as standard / 5M Roll or custom lengths available on request.
Net Weight: 152g/Roll
Product Questions & Answers
Q) Are these 4mm COB LED strips lights waterproof?A) The 4mm COB LED tape light is IP20 meaning it is not waterproof and ideally suited for internal applications.
Q) Would this work if I connect it to a sensor switch?A) Yes, our cabinet LED drivers are compatible with many of our different types of sensors. For example we offer a single, double door sensor ideal for kitchen cabinets and walk-in wardrobes along with PIR and 1-100% on/off silver touch sensors. These sensors are available in both an [inline] and [master] type. Inline means that it connects to one of the LED accessory ports between the driver and LED light. Master means it connects to the master port of the driver for full control of every LED light attach to the inline driver ports.
Q) I purchased a 12V 2700K 5M COB LED strip length back in August 2022 and notice an ever so slight brightness decrease towards the end of the strip. Why is this and what can I do to stop it? A) This is due to voltage drop, due to the number of micro COB LEDs (chip on board) and overall length of strip you will notice a slight drop in power and brightness towards the end. To avoid this simple power it from both ends, you can do this by soldering a return cable onto the other end. Alternatively you can add a slide on connector and wire the bares to your associated constant voltage power supply.
Q) After I cut the 5M light strip into 4 segments of the lengths I wanted, how do I power these 4 segments?A) You can do this by first ensuring you have cut across the designated copper solder pad intervals. These can be soldered to. Second you would then solder a +/- cable to each segment and connect to a designated constant voltage power supply. This can either be done in series or parralell. Here are the wiring scenarious: 1) 12V Series: Power Supply > Strip > Strip > Strip > Strip > Return (If over 3.5M) 2) 24V Series: Power Supply > Strip > Strip > Strip > Strip > Return (If over 5M) 3) 12V/24V Paralell: Power Supply > 4 Strips on seperate lines. Please Note: If you are unsure, please consult a qualified electrician or electrical contractor before carrying out any electrical works.
Q) Hi, I purchased this a few months back and the COB LED tape is not working. It's not lighting up?A) Dear Uprise Customer: Please can you check that the mains power source is turned on. Alternatively, if you're seamless LED strip has a micro connector, please check that this is securely connected to either the extension cable, sensor or Cabinet LED driver. Check all the micro connectors are secure and connected.
Q) What is the power consumption and IP rating and for a 5 metre strip? ThanksA) Dear Uprise Customer: The power consumption for this 4mm 5M spot free COB LED strip is advised at 4W/M.5M Powered one end: 19W or 3.8W/M.5M powered from both ends: 24W or 6W/M. The IP rating is IP20, which means it's ideal for internal applications and offers no splash proofing or liquid resistance.
Q) Can I cut this strip and how far apart can I cut?A) Yes this strip can be cut at each cutting interval. Marked as a small black line. Be carefulA) You can cut this 24V 4mm COB LED strip at every 50mm (5cm) cut point.
Q) Can I cut this strip and how far apart can I cut?A) Yes this strip can be cut at each cutting interval. Marked as a small black line. Be carefulA) You can cut this 24V 4mm COB LED strip at every 50mm (5cm) cut point.
Q) Do you sell this in 1m or other custom size lengths? I'm using this for under-counter lighting and cabinet light and have a gap between for the cooker. Thank you!A) Dear Uprise customer: Yes we offer a cut for you service or alternatively you can buy a 5M length and cut & solder yourself. It's entirely upto you. Email us at sales@upriseled.com to discuss your kitchen worktop, under-cabinet or drawer light application. We're here to help.
For this 3000K 4mm "dot free" COB LED strip you can also consider putting it into a further micro channel for a more complete, finished look.
Q) Can these be joined or extended, let's say if i need 9m of light in one run?A) Yes, we've tested upto 14M with a return. The strips can be soldered together at the copper solder intervals. You need a return cable (ring mains - series) to power effectively. If in doubt give us a call on 07957 180 481 or consult with a qualified electrical professional.
Project Support
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 4mm wide and will fit into all LED profiles with an inside width of 4mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I've purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we're here to help.
Support Videos
Seamless Lighting Simplifed - Uprise Company Overview Video
[Y] ep1 - Best way to connect a 5M 4mm COB LED strip to driver (24V)
Description
A super slim white 5mm cob led tape light that offers seamless light throughout the strip. Using the highest grade, latest generation micro LED chips this professional COB LED tape light is ideal for bespoke kitchens, furniture lighting and media unit integration.
Compatible Products (LED Solution)
Cabinet LED Drivers
60W 7 output cabinet LED driver (12V) with mains lead
24W 5 output cabinet LED driver (12V) with mains lead
Cabinet LED Sensors
Furniture LED sensors for cabinets, drawers, walk in wardrobes
Extension Cables
2M / 3M / 4M / 5M male-female 2 core flat LED extension cables
This ultra energy efficient strip is just 7-watt per meter. Available in a choice 3000K warm white / 4000K neutral (day light) / 6500K cool white temperatures, it's ideal for tight grooves, cabinet displays or shelving units. Complete with hand soldered pre- 2M tail for plug & play connection our our range of 12V cabinet LED drivers. Save time from project start of spec to long-term satisfaction.
How to connect COB LED tape lights simply.
--

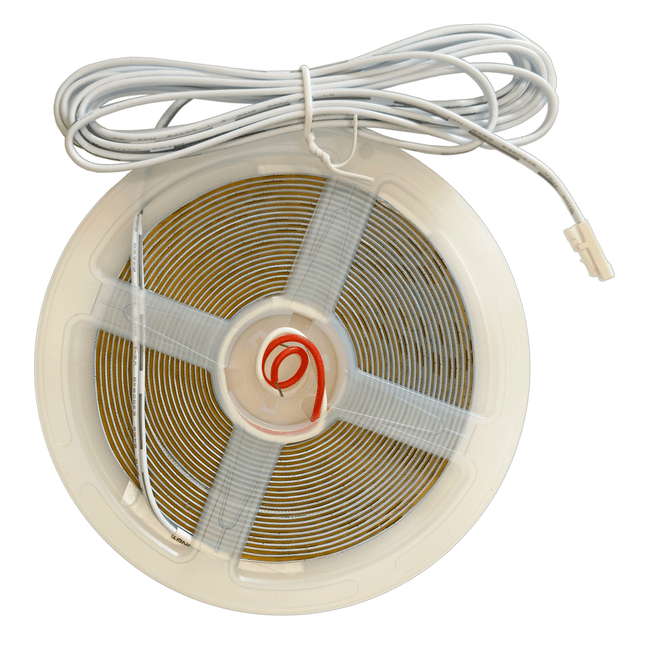

Seamless PRO COB LED Tape 7W per meter (5M) IP20
Supplied as 5M reel as standard. Enterprise class quality with the latest in integrated LED technology.
Article - The Definitive Guide to COB LED Strip Lights
Seamless cob LED tape by Uprise. A revolutionary new PCB design mounted LED strip light with a uniform "micro dot" LED configuration for the most beautiful light line you've ever witnessed. Our 5 watts per meter flexible COB (Chip on-board) LED strip light provides a stunning flow of ambience throughout. Innovative cut of the cloth design means LEDs are closely knitted directly to the PCB substrate. A clever design that offers maximum efficacy and flexibility. This combined with a unique "bubble doming" silicone coating method ensures a stable, reliable solution for professional integrations. Lighting brilliance to put it simply.
Wiring Example
This precision engineered 12V COB LED tape strip is just 7W/M offering excellent efficiency and upto 700 lumens per meter output. 480 LEDs per meter allow for a continuous, homogeneous illumination throughout the strip. Available colours include 3000K warm, 4000K neutral and 6500K cool.
Lifetime expectancy is 50,000 hours of continuous use. 25mm cut points. 5mm wide. 12V. 2 core wiring.
Here at Uprise we aim to provide the utmost value and integrity throughout the entire supply process. From first point of call to happy result. That's why we ensure carefully selected high tolerance components are utilised. This means we've done our due diligence throughout the design and selection process ensuring premium quality throughout. High grade LED chips have been utilised for superior quality in strip longevity and effect.
Specifications
General
Product Type: Seamless No Dot LED Tape (7W/M)
Colour: Warm White (3000K) / Neutral White (4000K) / Cool White (6500K)
IP Rating: IP20 (Internal)
PCB Colour: White
Chip: COB (Chip on board) Flip Chip Technology
LEDs per meter: 480LEDS
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 450-550lm/m
Lumens/w: 72lm/W
High CRI: 90+
Beam angle: 180°
Electrical
LED Wattage (Per meter): 7W
Input Voltage: 12v DC
Current (A): 0.58A/m
Cable in: 2000mm 2 core with micro connector (as standard) for seamless installation with our professional cabinet LED drivers & sensor range.
Cable out: 200mm 2 core (as standard)
Dimensions
Width: 5mm
Height: 2mm
Length: 5m (as standard), available in bespoke custom cut to lengths, call us on 0116 406 2959, email us at sales@upriseled.com or send us a project request on 07957 180 481.
Installation
Cut points: 25mm
Cable: 2 core flat cable
Mounting: Strong adhesive backing tape (blue)
Guarantee
Certification: CE, RoHS
Warranty: 3 Years
Packaging
Packaging: 5M Roll as standard.
Net Weight: 152g/Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 5mm and will fit into all LED profiles with an inside width of 5mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I've purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we're here to help.
Special Trial Offer - Try Before You Begin. Limited number of kits available. Includes free shipping to UK Mainland. Limited to one per customer.This simple to connect 500mm 3000K warm white cob led strip kit comes with a 24W 5 output plug and play driver. It's ideal for trialling "no dot" lighting before you commence with a lighting project.
Wiring Setup: UK Mains Socket > UK Mains Plug (Inc C7 connector) > 24W Cabinet LED Driver (12V) > 12V 3000K "no dot" COB LED TapeIdeal for trade professionals, DIY'ers, lighting designers, joinery companies and great for product fit testing within home environments such as kitchens, bedrooms and bathrooms. Along with applications like cabinets, drawers, shelves, media units, walk in wardrobes and more.
--

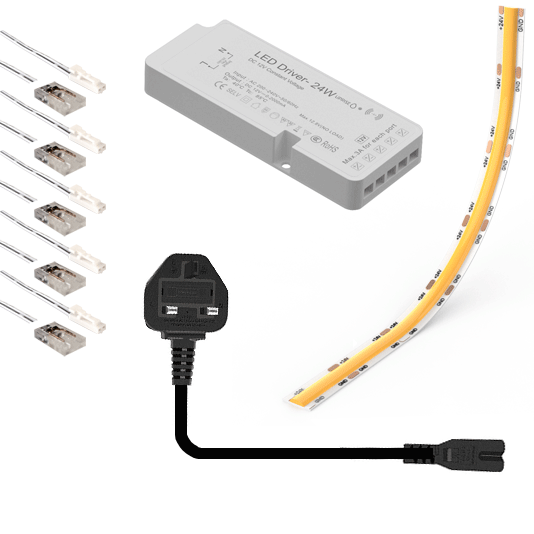

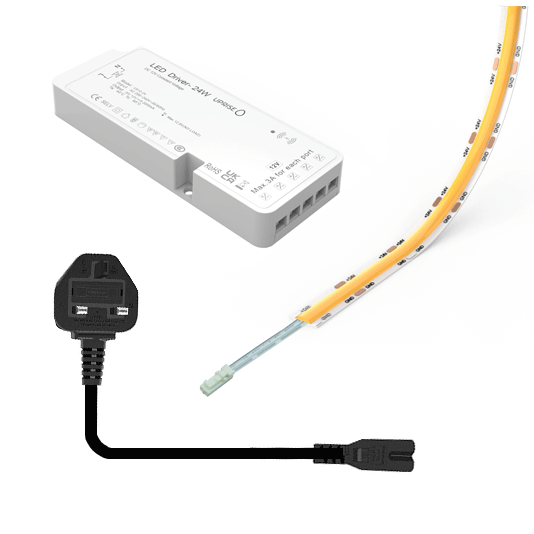

12V 0.5M COB LED Tape Kit With Quick Connect Driver
Kit Includes
x1 0.5M (500mm) 8mm 12V IP65 (heatshrink) COB LED tape light packed on reel.
x1 24W 12V plug and play cabinet style LED driver
x1 2M Extension cable so you can see how easy it is to extend your length.
x1 2M mains plugs with C7 type connector (plugs directly into cabinet LED driver).
Support
How to connect COB LED tape lights simply.
Specifications
COB LED Tape
Product Type: Seamless No Dot LED Tape (9W)
Colour: Warmer White (2700K) / Warm White (3000K) / Neutral White (4000K) / Cool White (6000K)
IP Rating: IP20 (Internal)
PCB Colour: White
Chip: COB (Chip on board) Flip Chip Technology
LEDs per meter: 480LEDS
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 900lm/m
Lumens/w: 80-120lm/W
High CRI: 90
Beam angle: 180°
Electrical
LED Wattage (Per meter based on 5M run length): 9WFor Actual Wattages: Download Wattage & Driver Parameters Sheet .csv
Input Voltage: 12v DC
Current (A): 0.75A/m
Cable in: 500mm 2 core (as standard)
Cable out: 500mm 2 core (as standard)
Dimensions
Width: 8mm
Height: 2mm
Length: 2.5m (as standard)
Installation
Cut points: 25mm
Cable: 2 core flat cable
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 3 Years
Packaging
Packaging: 2.5M Roll as standard.
Net Weight: 152g/Roll
*Please Note: No more than 3 metres of COB LED tape should be connected to a single port. Upto 6 metres can be powered across two ports (powered both ends).
Article - The Definitive Guide to COB LED Strip Lights
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can I cut this COB LED strip to length?
Yes, it can be cut easily at every 25mm indicated cut point. Alternatively we can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
How do I connect an extension cable to the LED tape?
This LED tape kit comes with 10mm wide LED tape to 2 core cable connectors. Simply push the ends of tape into one side of the connector and the 2 core cable into the other. Once both are firmly in place clamp down the metal connection spokes with a pair of plyers. This results in a secure circuit. It's important to ensure the polarity of the + / - are correctly orientated, please check this.
What aluminium LED extrusions can I fit this into?
This product is 8mm and will fit into all LED profiles with an inside width of 8mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I've purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we're here to help you get a finished result that lasts.
A white 480LED/M cob led tape light that offers seamless light throughout the strip. 5W per meter with a 2700K / 3000K / 4000K / 6000K temperature, it's ideal for cabinets or shelves.
--
Seamless COB LED Tape 5W (5M) IP20
*Priced per meter. Typically supplied as 5M reel as standard. Enterprise class quality with the latest in integrated LED technology.
Article - The Definitive Guide to COB LED Strip Lights
Seamless cob LED tape by UpriseMED. A revolutionary new PCB design mounted LED strip light with a uniform "micro dot" LED configuration for the most beautiful light line you've ever witnessed. Our 5 watts per meter flexible COB (Chip on-board) LED strip light provides a stunning flow of ambience throughout. Innovative cut of the cloth design means LEDs are closely knitted directly to the PCB substrate. A clever design that offers maximum efficacy and flexibility. This combined with a unique "bubble doming" silicone coating method ensures a stable, reliable solution for professional integrations. Lighting brilliance to put it simply.
Wiring Example
Support
How to connect COB LED tape lights simply.
This 12V COB LED tape strip is just 5W/M offering excellent efficiency and upto a respectable 525 lumens per meter output. 480 LEDs per meter allow for a continuous, homogeneous illumination throughout the strip. Available colours include 2700K, 3000K, 4000K, 6000K.
Lifetime expectancy is 50,000 hours of continuous use. 25mm cut points. 10mm wide. 12V. 2 core wiring.
Here at Uprise we aim to provide the utmost value and integrity throughout the entire supply process. From first point of call to happy result. That's why we ensure carefully selected high tolerance components are utilised. This means we've done our due diligence throughout the design and selection process ensuring premium quality throughout. High grade San'an LED chips have been utilised for superior quality in strip longevity and effect.
Specifications
General
Product Type: Seamless No Dot LED Tape (5W)
Colour: Warmer White (2700K) / Warm White (3000K) / Neutral White (4000K) / Cool White (6000K)
IP Rating: IP20 (Internal) / IP65 Heat Shrink (splash proof)
PCB Colour: White
Chip: COB (Chip on board) Flip Chip Technology
LEDs per meter: 480LEDS
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 525lm/m
Lumens/w: 105lm/W
High CRI: 90
Beam angle: 180°
Electrical
LED Wattage (Per meter): 5W
Input Voltage: 12v DC
Current (A): 0.42A/m
Cable in: 500mm 2 core (as standard)
Cable out: 500mm 2 core (as standard)
Dimensions
Width: 10mm
Height: 2mm
Length: 5m (as standard)
Installation
Cut points: 25mm
Cable: 2 core flat cable
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 3 Years
Packaging
Packaging: 5M Roll as standard.
Net Weight: 152g/Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 10mm and will fit into all LED profiles with an inside width of 10mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I've purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we're here to help.
Quick Overview

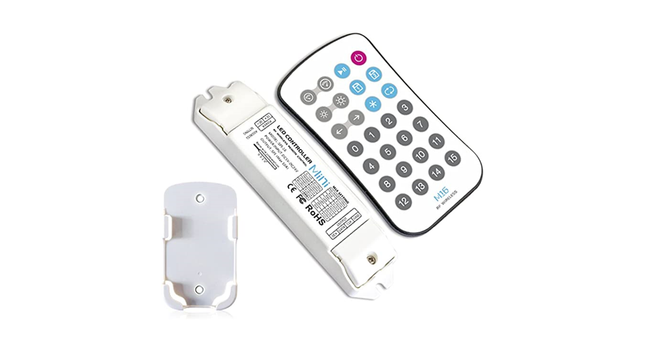

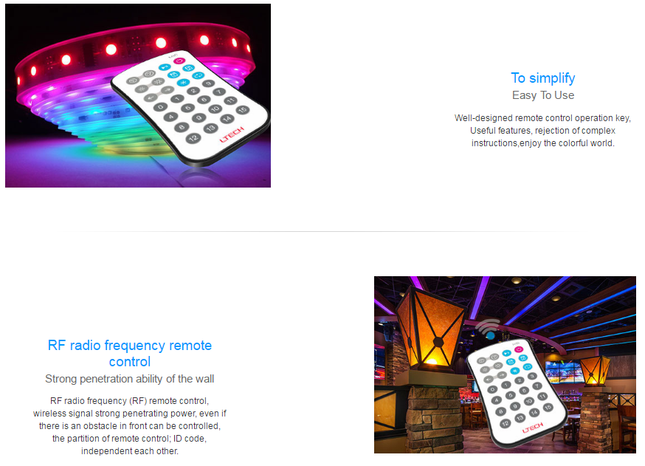

This LTECH SPI-16 M16 Mini RF SPI LED Pixel Controller is compatible with DC5-25V input. It's purpose is to generate both small and large scale digital pixel visual effects via simple handheld remote and presets. It's a popular, hardy system that is also cost effective. You easily generate a gradient rainbow effect amongst other fun effects patterns.
It has a max output rating of 10A which means this pixel LED controller can power no more than: 50W at 5V, 120W at 12V, 240W at 24V.
Compatible IC Types:TM1803, TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912, UCS2903, UCS2909, UCS2912, TLS3001, TLS3002, LPD6803, LPD1101, D705, UCS6909, UCS6912, LPD8803, LPD8806, WS2801, WS2803, WS2811, WS2812, P9813
Please note: The RF handset requires a cr2032 lithium battery.
Please contact sales@upriseled.com for Pixel LED strips, LED controllers and compatible LED power supplies. This product is in stock UK for next day delivery (DPD). Many customers choose Uprise for high quality products, fast delivery and excellent service and support. If you have any challenges with your order we're here to help. You can also contact us on 0116 406 2959 to discuss your project.
Payments are safe via Stripe a leading platform or you can get in touch with us to discuss your needs and to arrange BACs transfer.
Specifications
Model: MI6 Mini LED Pixel Controller With RF RemoteSKU: M16-RFReceiver Dimensions: L135 x W30 x H20mmHandset Dimensions: L104 x W60 x H9mmType: Digital ICPower input: 5V-24VOutput Power: 10 Amps MaxWatts: 50W at 5V, 120W at 12V, 240W at 24VTotal Pixels: 8 - 1020 pixelsRating: IP20 (Dry / Indoor)Operating Temperature: -22°C ~ 55°CWarranty: 1 yearPrevious Mode On Power Cycle: YesRemote Radius: 40M-50M (line of site)Colour Effect Modes: 16
Packaging Dimensions: 13.2x20cmPackaging Weight (G.W): 120g
A white cob led tape light that offers seamless "dot free" light throughout the strip. This provides a spot free "no dotting" impression when placed within a groove, channel or aluminium LED profile. Just 5W per meter with a 2700K / 3000K / 4000K / 6000K temperature, it's ideal for kitchen features, pull-out drawers, countertop grooves, media units, cabinets or shelves and bedrooms and bathrooms.
Here's what customers have to say
--
"No Dot" COB LED Tape 5W/M IP65 (Splash Proof)
*Priced per length. Commercial grade quality with the latest in integrated LED technology. Ideal for both commercial and domestic applications.
Article - The Definitive Guide to COB LED Strip Lights
Seamless cob LED tape by Uprise LED. A revolutionary new PCB design mounted LED strip light with a uniform "micro dot" LED configuration for the most beautiful light line you've ever witnessed. Our 5 watts per meter flexible COB (Chip on-board) LED strip light provides a stunning flow of ambience throughout. Innovative cut of the cloth design means LEDs are closely knitted directly to the PCB substrate. A clever design that offers maximum efficacy and flexibility. This combined with a unique "bubble doming" silicone coating method ensures a stable, reliable solution for professional integrations. Lighting brilliance to put it simply.
Wiring Example
Support
How to connect COB LED tape lights simply.
This 12V COB LED tape strip is just 5W/M offering excellent efficiency and upto a respectable 525 lumens per meter output. 320 LEDs per meter allow for a continuous, homogeneous illumination throughout the strip. Available colours include 2700K, 3000K, 4000K, 6000K.
Lifetime expectancy is 50,000 hours of continuous use. 25mm cut points. 9mm wide. 12V. 2 core wiring.
Here at Uprise we aim to provide the utmost value and integrity throughout the entire supply process. From first point of call to happy result. That's why we ensure carefully selected high tolerance components are utilised. This means we've done our due diligence throughout the design and selection process ensuring premium quality throughout. High grade San'an LED chips have been utilised for superior quality in strip longevity and effect.
Specifications
General
Product Type: Seamless Dot Free LED Tape (5W)
Colour: Warmer White (2700K) / Warm White (3000K) / Neutral White (4000K) / Cool White (6000K)
IP Rating: IP65 Heat Shrink (splash proof)
PCB Colour: White
Chip: COB (Chip on board) Flip Chip Technology
LEDs per meter: 320LEDS
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 289lm/m
Lumens/w: 57.8lm/W
High CRI: 90+
Beam angle: 180°
Electrical
LED Wattage (Per meter): 5W (based on 5M run length).
Input Voltage: 12v DC
Current (A): 0.42A/m*5M Length Supply
Cable in: 500mm 2 core with micro connector (as standard)
Cable out: 500mm 2 core with micro connector (as standard)*Custom Length Supply
Cable in: 500mm 2 core with micro connector (as standard)
Cable out: N/A
Dimensions
Width: 9mm
Height: 2mm
Length: 5m (as standard) / Selected length.
Installation
Cut points: 25mm
Cable: 2 core flat cable
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 3 Years (back to base)Note: any custom made strip defaults to a 1 year warranty (back to base).
Packaging
Packaging: 5M Roll as standard.
Net Weight: 152g/Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 9mm and will fit into all LED profiles with an inside width of 9mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I've purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we're here to help.
[VIDEO] How can I extend the cable easily between COB LED strips?
A Super thin 5W COB LED strip light that creates a continuous, seamless light line result. Select a colour that suits, ideal for kitchens, under cabinets, shelf lighting, wardrobes, routed linear crevices, retail POS displays, highlights and more.
Support Videos
Seamless Lighting Simplifed - Uprise Company Overview Video
[Y] ep1 - Best way to connect a 5M 4mm COB LED strip to driver (24V)
Compatible Products (LED Solution)
POWERUP Furniture LED Drivers
60W constant voltage furniture LED driver (24V) > 6CH single colour wifi connectable controller receiver (12V-24V)
Cabinet LED Drivers
60W 7 output cabinet LED driver (24V) with mains lead
24W 5 output cabinet LED driver (24V) with mains lead
Cabinet LED Sensors
Furniture LED sensors for cabinets, drawers, walk in wardrobes
Extension Cables
2M / 3M / 4M / 5M male-female 2 core flat LED extension cables
Product Datasheets
Product Data Sheet (Branded)Product Data Sheet (Unbranded)
How to connect COB LED tape lights simply.
Super narrow 4mm COB LED tape. No-Dot lighting made easy.

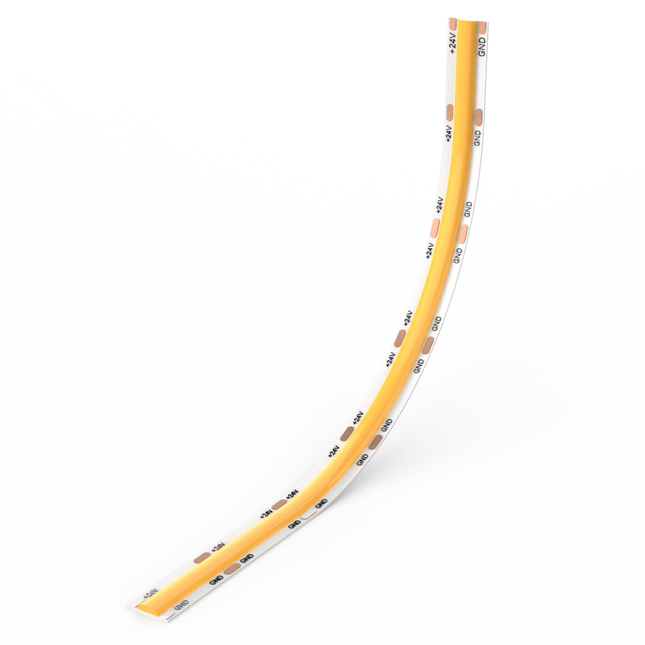

This 5-watt COB LED strip is a continuous LED lighting source that is ultra narrow and very flexible, making it excellent for a variety of applications. This high lumen LED tape, which uses branded COB LEDs and is manufactured to a high quality standard, produces up to 573.9 (6000K) lumens per meter, while consuming only 5 watts per meter. A normal life expectancy is 50,000 hours of continuous use.
24V COB LED Strip Wiring Scenarios

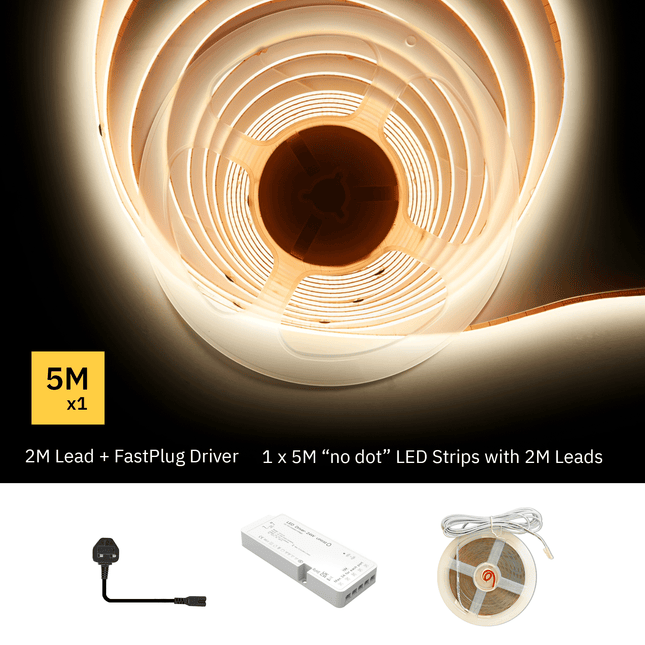

1) Plug & Play Furniture System (on/off): UK Mains > 2M UK plug to C7 mains lead > 24V 24W Furniture Cabinet Light Driver > 24V COB LED strip light
2) Plug & Play Furniture System w/sensor: UK Mains > 2M UK plug to C7 mains lead > 24W / 60W Furniture LED Driver (24V) > Furniture Sensors > 24V COB LED strip light
3) Plug & Play Multi-Port (6) Wifi/Remote Furniture Light System: UK Mains > 2M UK plug to C7 mains lead > 60W Furniture LED Driver (24V) > Single Channel Wifi Connectable Controller Receiver > 24V COB LED strip light < Single Colour Remote Handset / Smart Device Control.
Articles
The Definitive Guide to COB LED Strip Lights

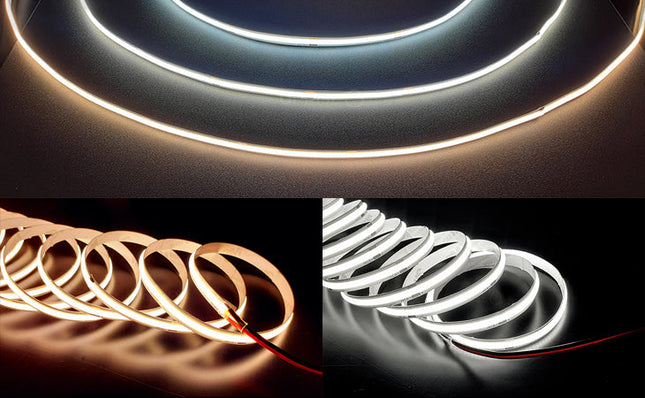

Colour Temperatures
Uprise has a wide range of LED strip lights to accommodate your needs, from roasting deep warm whites to cool white shades. We offer a standard range of kelvin temperatures that match to 2700K, 3000K, 4000K, and 6000K. Do you have a colour in mind? Any bespoke manufacturing requirements you may have can be discussed with us.
Colour Rendering Index (CRI)
This flexible LED tape light is available in CRI>90.
Brightness (Lumen Output)
This luminous LED ribbon produces 481.05lm/m (2700K), 512.8lm/m (3000K), 550.75lm/m (4000K), and 573.9lm/m (6000K) typically.
Light Diffusion
When illuminating any surface, our COB LED tape lights provide a seamless linear effect as standard. Our LED tape strips can be used in combination with our extruded aluminium channels, commonly known as LED profiles. The light source of the LED strips will be evenly dispersed when they are fitted within profiles.
Wiring Example
Choose your length
Uprise's 5-watt COB LED tape light, like our other bendable strip light series, comes in standard 5M reels and may be cut at each 50mm soldered (copper coloured) segment. If you require specific lengths, large or small, we can cut your tape to length.
Application

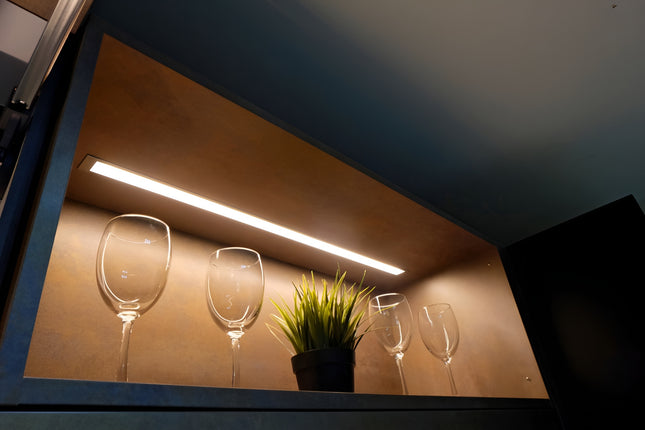

This ultra narrow COB LED tape light is suitable for fitouts within cabinet displays, under pelmets, shelves, signage and within coves.
The LED strip is only 4mm wide and standard IP20 rated. This provides complete protection against solid items over 12.5mm like finger touch. LED strip lights with IP20 rating are perfect for inside applications.
IP Rating Options
This LED strip is available in IP20. Feel free to contact us on 0116 406 2959 or email us via sales@uprisemed.com to talk to an expert. We'll assist you to choose the right strip to apply.
See our IP rating charts here for additional information about the ideal strip for your application.
Environments

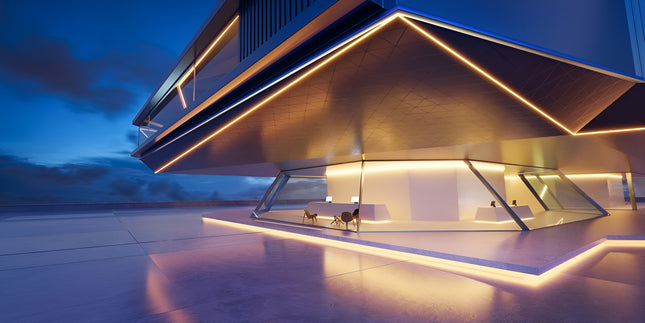

This strip light offers bright lighting for commercial applications, which is suitable for luxury resorts, restaurants, bars, hotel lobby areas as well as retail environments and window displays. When in need of a super narrow, bright, long lasting LED strip, this product is ideal for architects, lighting designers, AV integrators, electrical contractors and trade professionals alike.

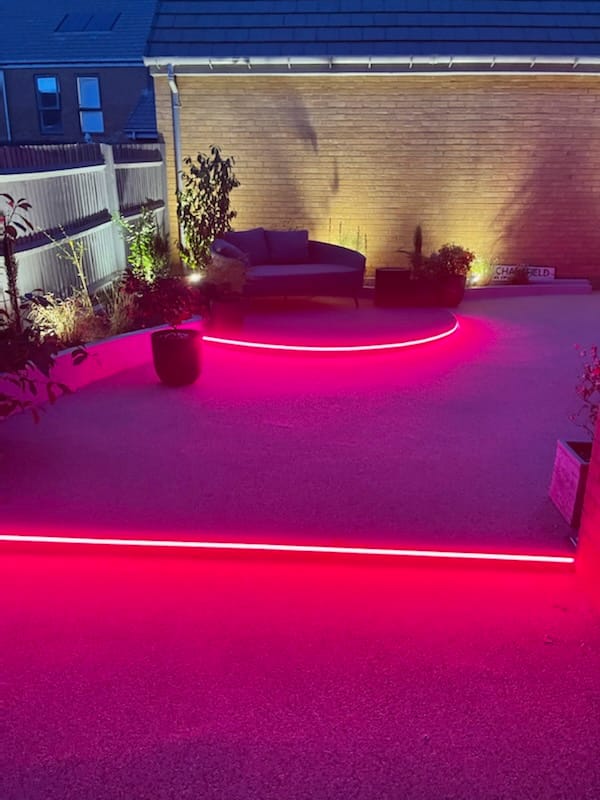

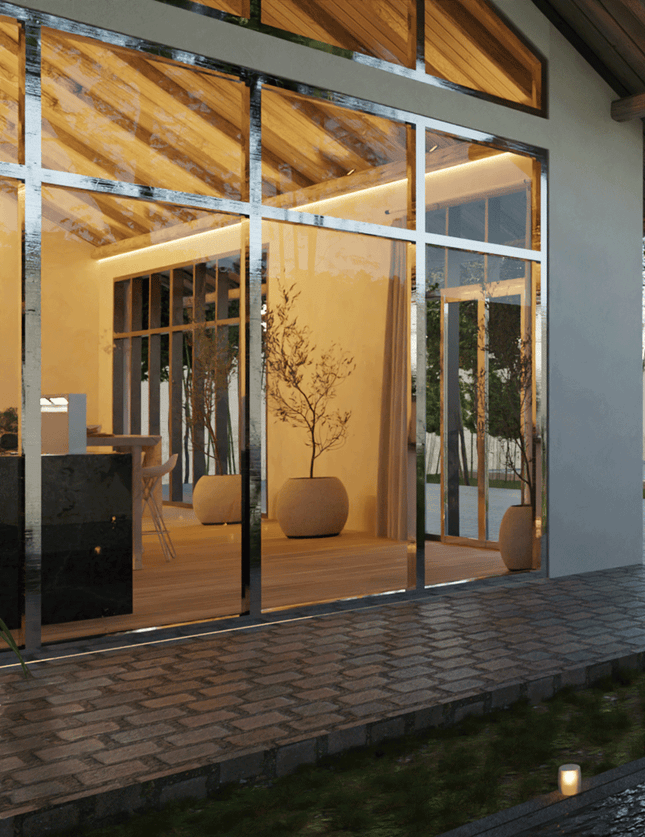

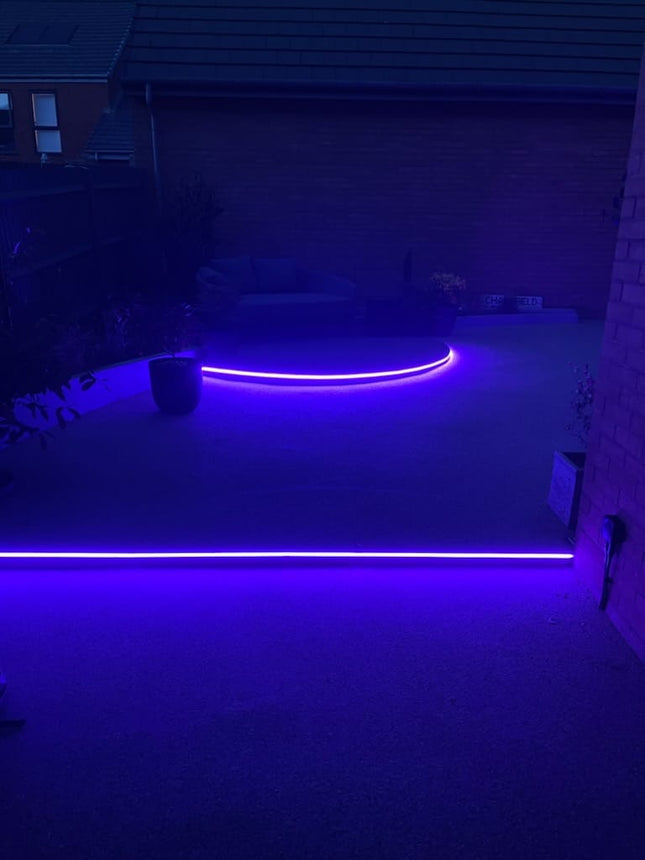

It is perfectly suited for outside garden areas such as edge lights, garden bars and steps, living rooms, kitchens and home movies.
Quality Assurance
Uprise believes in long term value, which is why our enterprise class LED tape lights include high-quality, long lasting components. Colour consistency and uniformity are important for the right finish for all our LED strips.
Uprise offers a wide variety of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. For splendid visual aesthetics and end dimming results, you can also view the Dim to Warm & Seamless COB flexible LED strip.
Specifications
General
Product Type: Seamless COB LED Tape

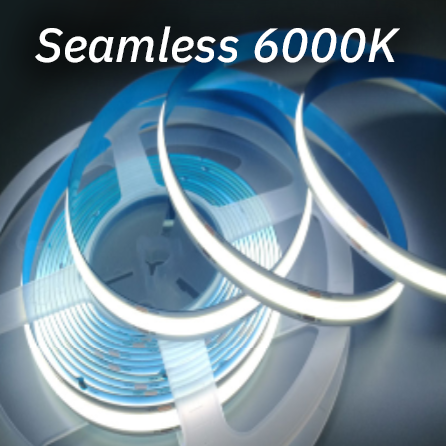

Colour: 2700K / 3000K / 4000K / 6000K
IP Rating: IP20
PCB Colour: White
Chip: COB (Chip on board) technology
LEDs per meter: 480LEDs
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 481.05Lm/m (2700K), 573.90Lm/m (6000K)
Lumens/w: 96.21Lm/w (2700K), 114.78Lm/m (6000K)
CRI: >90
Beam angle: 180°
Electrical
LED Wattage (Per meter): 5W
Input Voltage: 24V
Current (A): 0.21A
Cable in: 500mm 2 core (as standard)
Cable out: 500mm 2 core (as standard)
Dimensions
Width: 4mm
Height: 2mm
Length: 5m (as standard)
Installation
Cut points: 50mm
Cable: 2 core flat cable
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 5 Years
Packaging
Packaging: 5M Roll
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this 4mm cob led tape strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 4mm and will fit into all LED profiles with an inside width of 4mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.

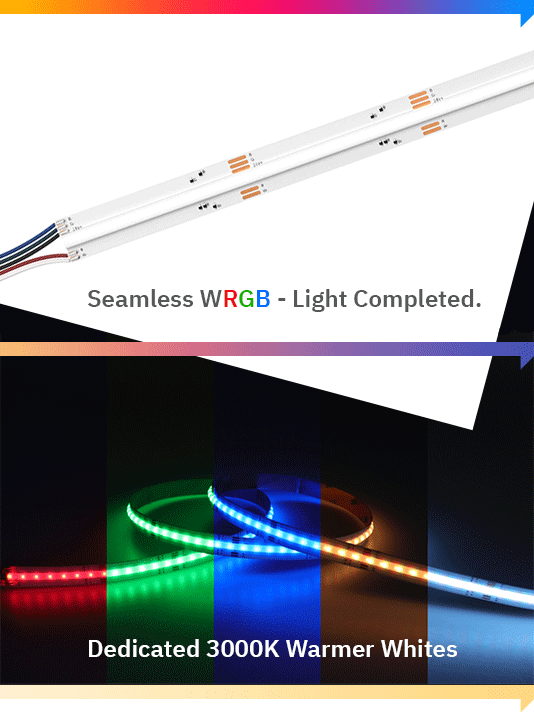

RGBW COB LED Strip Light.
*Priced per meter, supplied with 200mm 5 core flat cable as standard. Contact us for made to measure seamless "no dot" (when placed within any aluminium channel / LED profile) RGBW LED strip light solution.

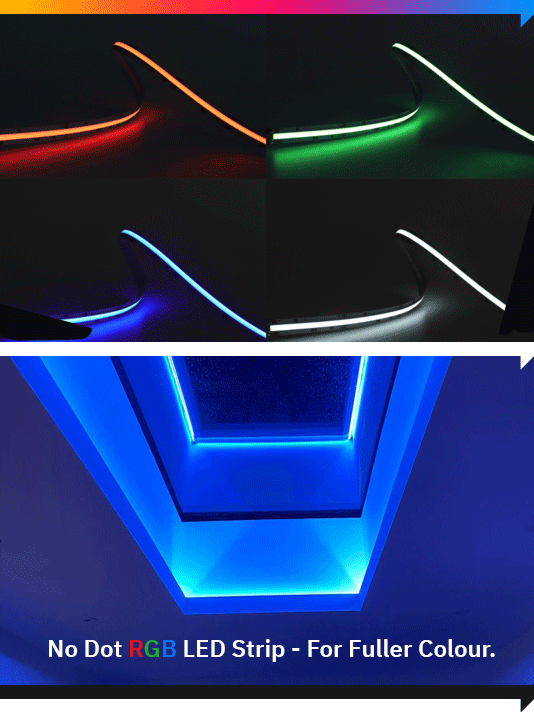

Create a colour changing light line that's seamless on the eye. Ideal for architectural light lines, media units, undercabinet areas within kitchens, bedrooms or walk in wardrobes along with low profile coving, retail POS displays and more.
Works well with
Wireless 5 in 1 CCT & RGBWW LED Remote Handset [Remote Handset]Smart Wireless 5 in 1 CCT & RGBWW LED Controller Receiver [Controller-Receiver]
Article – The Definitive Guide to COB LED Strip Lights
Build Your Solution
Add corner joint or feed custom length feed in services below.
Solder Corner Cable to RGBW colour changing (5 wire) LED Strip LightSolder Cable to RGBW colour changing (5 wire) LED Strip Light

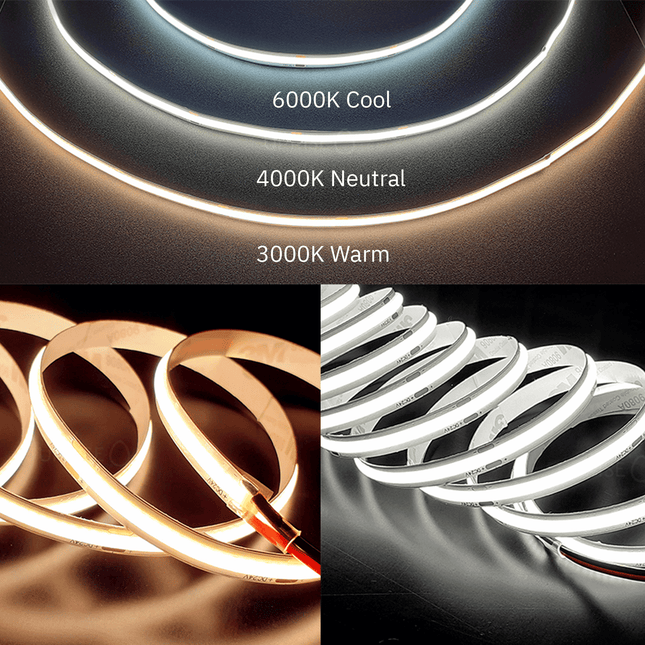

Colour Temperatures
This strip offers a dedicated 3000K warm white / 4000K neutral white / 6000K cool white along with full RGB colour changing for millions of colour combinations. Generate beautiful pastel hues and shades to compliment your room scheme. When combined with an LED profile a "no dot" lighting result can be achieved.
Colour Rendering Index (CRI)
This versatile LED tape light is available in CRI>80.
Brightness (Lumen Output)
This bright COB LED strip produces 711.8lm/m (RGB+3000K+6000K).
Light Diffusion
When it comes to illuminating any area, our COB LED strip lights come equipped with a smooth linear appearance. These flexible LED strips can be used together with our extruded aluminium channels, generally known as LED profiles, if desired. Once LED tape strips are fitted into the profiles, the light source will be evenly distributed.
Choose your length
This full colour COB LED strip light can be purchased now in 1,2,3,4 5M increments with a 200mm tail. Or Uprise can cut your tape to exact sizes if you need specific lengths along with extended cables.
Application
This flexible COB LED ribbon is ideal for fitouts within cabinet displays, under pelmets, shelves, signage and within coves.
The LED tape is available in several IP rating options ranging from IP20 at 12mm wide to an IP65 rating. A silicone gel IP65 rating offers LED strip lights protection against splashes of water. Due the makeup of the silicone gel coating this can ever so slightly affect the original colour of the strip. Newer generations of IP65 LED strips have become better.
IP Rating Options
This bright LED tape is available in the IP20 & IP65 versions. Contact us on 0116 406 2959 or send us a message at sales@uprisemed.com if you wish to talk to a lighting expert. We will guide you to select the correct type to apply.
Quality Assurance
Uprise believes in long term value, that’s why our enterprise class LED tape lights use premium grade, long lasting components. Colour consistency and uniformity is a project must, so all our LED strip lights are batched for overall peace of mind.
Specifications
General

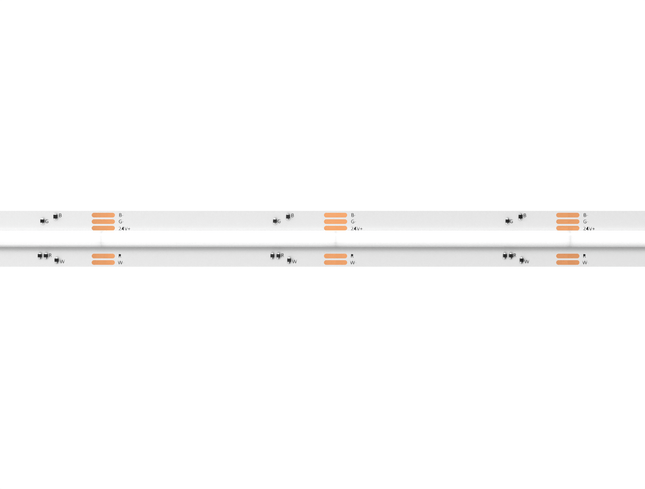

Product Type: Seamless COB RGBW LED Tape
Colour: RGB+3000K / RGB+4000K / RGB+6000K
IP Rating: IP20 / IP65
PCB Colour: White
Chip: COB (Chip on board) technology
LEDs per meter: 896LEDs
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 711.8Lm/m (RGB+3000K)
Lumens/w: N/A
CRI: >90
Beam angle: 180°
Electrical
LED Wattage (Per meter): 20W (19.2 actual)
Input Voltage: 24V
Current (A): N/A
Cable in: 500mm 2 core (as standard)
Cable out: 500mm 2 core (as standard)
Dimensions
Width: 12mm
Height: 2mm
Length: 5m (as standard)
Installation
Cut points: 31.2mm
Cable: 5 core flat cable (20 AWG)
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 2 Years
Packaging
Packaging: 5M Roll (As standard)
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 12mm and will fit into all LED profiles with an inside width of 12mm and above.
How can I buy?
You either buy individual components online or call us on 07957 180 481 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
A white cob led tape light that offers seamless "dot free" light throughout the strip. This provides a spot free "no dotting" impression when placed within a groove, channel or aluminium LED profile. Just 9W per meter with a 2700K / 3000K / 4000K / 6000K temperature, it's ideal for kitchen features, pull-out drawers, countertop grooves, media units, cabinets or shelves and bedrooms and bathrooms.
Here's what customers have to say
--
"Spot Free" COB LED Tape 9W/M IP65 (Splash Proof)
*Priced per length. Commercial grade quality with the latest in integrated LED technology. Ideal for both commercial and domestic applications.
Article - The Definitive Guide to COB LED Strip Lights
Seamless cob LED tape by Uprise LED. A revolutionary new PCB design mounted LED strip light with a uniform "micro dot" LED configuration for the most beautiful light line you've ever witnessed. Our 5 watts per meter flexible COB (Chip on-board) LED strip light provides a stunning flow of ambience throughout. Innovative cut of the cloth design means LEDs are closely knitted directly to the PCB substrate. A clever design that offers maximum efficacy and flexibility. This combined with a unique "bubble doming" silicone coating method ensures a stable, reliable solution for professional integrations. Lighting brilliance to put it simply.
Wiring Example
Support
How to connect COB LED tape lights simply.
This 12V COB LED tape strip is just 9W/M offering excellent efficiency and upto a respectable 525 lumens per meter output (6K cool). 480 LEDs per meter allow for a continuous, homogeneous illumination throughout the strip. Available colours include 2700K, 3000K, 4000K, 6000K.
Lifetime expectancy is 50,000 hours of continuous use. 25mm cut points. 9mm wide. 12V. 2 core wiring.
Here at Uprise we aim to provide the utmost value and integrity throughout the entire supply process. From first point of call to happy result. That's why we ensure carefully selected high tolerance components are utilised. This means we've done our due diligence throughout the design and selection process ensuring premium quality throughout. High grade San'an LED chips have been utilised for superior quality in strip longevity and effect.
Specifications
General
Product Type: Seamless Dot Free LED Tape (9W)
Colour: Warmer White (2700K) / Warm White (3000K) / Neutral White (4000K) / Cool White (6000K)
IP Rating: IP65 Heat Shrink (splash proof)
PCB Colour: White
Chip: COB (Chip on board) Flip Chip Technology
LEDs per meter: 480LEDS
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 525lm/m
Lumens/w: 105lm/W
High CRI: 90+
Beam angle: 180°
Electrical
LED Wattage (Per meter): 9W (based on 5M run length).
Input Voltage: 12v DC
Current (A): 0.75A/m*5M Length Supply
Cable in: 500mm 2 core with micro connector (as standard)
Cable out: 500mm 2 core with micro connector (as standard)*Custom Length Supply
Cable in: 500mm 2 core with micro connector (as standard)
Cable out: N/A
Dimensions
Width: 9mm
Height: 2mm
Length: 5m (as standard) / Selected length.
Installation
Cut points: 25mm
Cable: 2 core flat cable
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 3 Years (back to base)Note: any custom made strip defaults to a 1 year warranty (back to base).
Packaging
Packaging: 5M Roll as standard.
Net Weight: 152g/Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 9mm and will fit into all LED profiles with an inside width of 9mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I've purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we're here to help.
UHD RGBW COB LED Tape. Redefining light.
The best "No Dot" RGBW LED tape on the market, it's lighting redefined. *Priced per meter, supplied with 200mm 5 core flat cable as standard. Contact us for made to measure colour changing spot free light lines (when placed within any aluminium channel / LED profile) RGBW LED strip light solution.Create an ultra high definition "tron" style neon LED light line. Perfect for the tech enthusiast wanting to showcase state of the art kitchen cabinets, work tops and furnishings. The ideal complement to trending Anthracite style designs in cuboard, cabinets or walk-in wardrobes.
Wiring Diagram & Best Practises
Works well with
Wireless 5 in 1 CCT & RGBWW LED Remote Handset [Remote Handset]Smart Wireless 5 in 1 CCT & RGBWW LED Controller Receiver [Controller-Receiver]

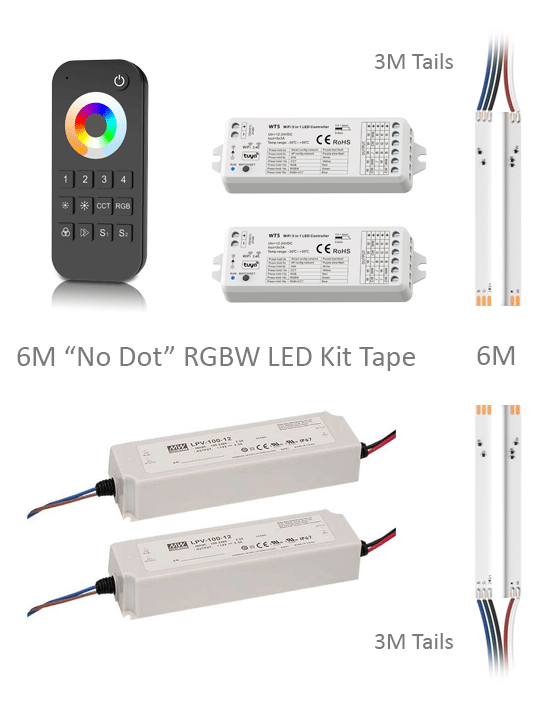

Vienna No Dot RGBW Kits - It's Seamless Lighting Made Simple
Article – The Definitive Guide to COB LED Strip Lights
Build Your Solution
Contact us for a fast quote today. We aim to quote within 1 hour. Feel free to call on 0116 406 2959, email at sales@upriseled.com or contact us for super fast response on WhatsApp: 07957 180 481.
Colour Temperatures

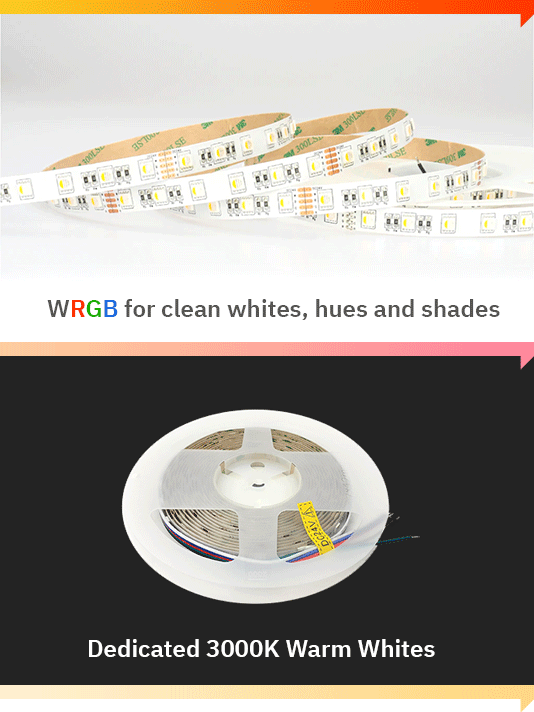

First and foremost this WRGB strip offers a dedicated 3000K warm white / 4000K neutral white / 6000K cool white along with full RGB colour changing for millions of colour combinations. Generate beautiful pastel hues and shades to compliment your room scheme. When combined with an LED profile a "spotless" lighting result can be achieved.
Colour Rendering Index (CRI)
This versatile LED tape light is available in CRI>90.
Brightness (Lumen Output)
This bright COB LED strip produces 711.8lm/m (RGB+3000K+6000K).
Light Diffusion
When it comes to illuminating any area, our UHD (Ultra High Definition) RGBW COB LED strip lights come equipped 1132 micro LEDs per meter offering a no spotting appearance. When used in conjunction with our extruded aluminium channels, generally known as LED profiles, you get a truly "seamless" effect. Once LED tape strips are fitted into the profiles, the light source will be evenly distributed.
Choose your length
This full colour COB LED strip light can be purchased now in 1,2,3,4 5M increments with a 200mm tail. Or Uprise can cut your tape to exact sizes if you need specific lengths along with extended cables.
Feed In Cable Tails
Uprise can solder any length of 5 core flat cable to your UHD RGBW seamless LED strip light. Simply let us know your project application and we'll advise the best way to achieve your desired result.
Application
This flexible COB LED ribbon is ideal for fitouts within cabinet displays, under pelmets, shelves, signage and within coves.
The LED tape is available in several IP rating options ranging from IP20 at 12mm wide to an IP65 rating. A silicone gel IP65 rating offers LED strip lights protection against splashes of water. Due the makeup of the silicone gel coating this can ever so slightly affect the original colour of the strip. Newer generations of IP65 LED strips have become better.
IP Rating Options
This bright LED tape is available in the IP20 & IP65 versions. Contact us on 0116 406 2959 or send us a message at sales@uprisemed.com if you wish to talk to a lighting expert. We will guide you to select the correct type to apply.
Quality Assurance
Uprise believes in long term value, that’s why our enterprise class LED tape lights use premium grade, long lasting components. Colour consistency and uniformity is a project must, so all our LED strip lights are batched for overall peace of mind.
Specifications
General
Product Type: Seamless COB RGBW LED Tape
Colour: RGB+3000K / RGB+4000K / RGB+6000K
IP Rating: IP20 / IP65
PCB Colour: White
Chip: COB (Chip on board) technology
LEDs per meter: 1132LEDs
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 711.8Lm/m (RGB+3000K)
Lumens/w: N/A
CRI: >90
Beam angle: 180°
Electrical
LED Wattage (Per meter): 20W (19.6 actual)
Input Voltage: 24V
Current (A): N/A
Cable in: 200mm 2 core (as standard)
Cable out: N/A
Dimensions
Width: 12mm
Height: 2mm
Length: 5m (as standard)
Installation
Cut points: 22.5mm
Cable: 5 core flat cable (20 AWG)
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 2 Years
Packaging
Packaging: 5M Roll within antistatic silver bag (typical)
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 12mm and will fit into all LED profiles with an inside width of 12mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
A white cob led tape light that offers seamless light throughout the strip. This provides a spot free "no dotting" impression within a groove, channel or aluminium LED profile. Just 9W per meter with a 2700K / 3000K / 4000K / 6000K temperature, it's ideal for kitchen features, pull-out drawers, countertop grooves, media units, cabinets or shelves and bedrooms and bathrooms.
Here's what customers have to say
--
"No Dot" COB LED Tape 9W/M (5M) IP20
*Priced per length. Enterprise class quality with the latest in integrated LED technology. Ideal for both commercial and domestic applications.
Article - The Definitive Guide to COB LED Strip Lights
Seamless cob LED tape by Uprise LED. A revolutionary new PCB design mounted LED strip light with a uniform "micro dot" LED configuration for the most beautiful light line you've ever witnessed. Our 9 watts per meter flexible COB (Chip on-board) LED strip light provides a stunning flow of ambience throughout. Innovative cut of the cloth design means LEDs are closely knitted directly to the PCB substrate. A clever design that offers maximum efficacy and flexibility. This combined with a unique "bubble doming" silicone coating method ensures a stable, reliable solution for professional integrations. Lighting brilliance to put it simply.
Wiring Example
Support
How to connect COB LED tape lights simply.
This 12V COB LED tape strip is just 9W/M offering excellent efficiency and upto a respectable 525 lumens per meter output. 480 LEDs per meter allow for a continuous, homogeneous illumination throughout the strip. Available colours include 2700K, 3000K, 4000K, 6000K.
Lifetime expectancy is 50,000 hours of continuous use. 25mm cut points. 10mm wide. 12V. 2 core wiring.
Here at Uprise we aim to provide the utmost value and integrity throughout the entire supply process. From first point of call to happy result. That's why we ensure carefully selected high tolerance components are utilised. This means we've done our due diligence throughout the design and selection process ensuring premium quality throughout. High grade San'an LED chips have been utilised for superior quality in strip longevity and effect.
Specifications
General
Product Type: Seamless No Dot LED Tape (9W)
Colour: Warmer White (2700K) / Warm White (3000K) / Neutral White (4000K) / Cool White (6000K)
IP Rating: IP20 (Internal) / IP65 Heat Shrink (splash proof)
PCB Colour: White
Chip: COB (Chip on board) Flip Chip Technology
LEDs per meter: 480LEDS
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 525lm/m
Lumens/w: 105lm/W
High CRI: 90
Beam angle: 180°
Electrical
LED Wattage (Per meter): 9W (based on 5M run length).
Input Voltage: 12v DC
Current (A): 0.42A/m
Cable in: 500mm 2 core (as standard)
Cable out: N/A
Dimensions
Width: 8mm
Height: 2mm
Length: 5m (as standard)
Installation
Cut points: 25mm
Cable: 2 core flat cable
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 3 Years
Packaging
Packaging: 5M Roll as standard.
Net Weight: 152g/Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 10mm and will fit into all LED profiles with an inside width of 10mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I've purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we're here to help.
A fun and adventurous LED lighting solution for everyone. Our dot free COB LED strip light kits are easy to setup, simply click, click, play. The result is a slim, seamless light line that's ideal for many types of applications. An excellent choice for the home and commercial usage. Mount freestanding or place within LED profile for an absolutely seamless "no dot" impression.
Support Videos
Seamless Lighting Simplifed - Uprise Company Overview Video
[Y] ep1 - Best way to connect a 5M 4mm COB LED strip to driver (24V)
--
No Dot 12V COB LED Tape Kits With Driver, 0.5M long QuickClick Cables with micro connectors.
Kit Includes
x1 2.5M (2500mm) LED strips with 0.5M (500mm) tails and micro connector ends (For fast connection). Packed on a reel.
x1 24W 12V plug and play cabinet style LED driver (Quick Connect)
x1 2M mains plugs with C7 type connector (plugs directly into cabinet LED driver).
Wiring Setup
Mains > 2M UK to C7 Mains Lead > 24W Driver (12V) > COB LED strip (12V)
Application Ideas
Domestic: Kitchens, Coves, Cabinets, Work tops, Under Cabinets, Drawers, Home Offices, Media Walls, Plaster-in light lines, TV surrounds, Vanity Mirrors,

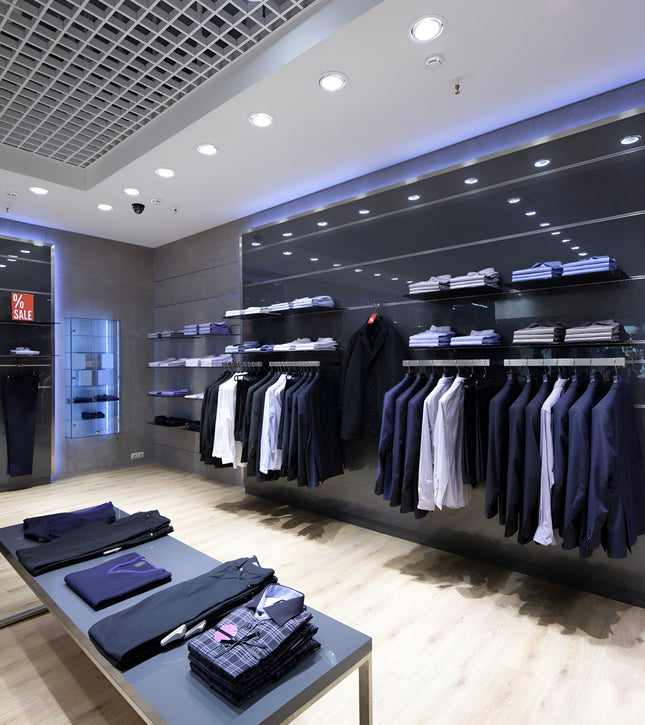

Commercial: Window Displays, Retail Environments, Hotel Lobbies, Conference Rooms, Stage Sets, Shelving, Cove Lighting.
[Video] Support
How to connect COB LED tape lights simply.
Specifications
COB LED Tape
Product Type: Seamless No Dot LED Tape (7W)
Colour Options: Warm White (3000K) / Neutral White (4000K) / Cool White (6000K)
IP Rating: IP20 (Internal)
PCB Colour: White
Chip: COB (Chip on board) Flip Chip Technology
LEDs per meter: 480LEDS
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 900lm/m
Lumens/w: 80-120lm/W
High CRI: 90
Beam angle: 180°
Electrical
LED Wattage (Per meter): 7W
LED Wattage (Per 2.5M run): 17.5W
Input Voltage: 12v DC
Current (A): 0.75A/m
Cable in: 500mm 2 core (as standard)
Cable out: 500mm 2 core (as standard)
COB LED Strip Dimensions
Width: 5mm
Height: 2mm
Lengths: 2.5M COB LED strip light. Can be cut to any length at 25mm cut points.
Installation
Cut points: 25mm
Cable: 2 core flat cable
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 2 Years typical (1 year modified back to base warranty on modified strip lengths)
Packaging
Packaging: 1 x 2.5M Roll as standard.
Net Weight: 152g/Roll
*Please Note: No more than 2.5 metres of 5mm 7W/M COB LED tape should be connected to a single port. Any length over 3M will suffer from voltage drop (a trail off of brightness towards the end of strip). For uniformity of light power from both ends, 3M+. Speak to one of our expert advisors today via sales@upriseled.com
Article - The Definitive Guide to COB LED Strip Lights
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can I cut this COB LED strip to length?
Yes, it can be cut easily at every 25mm indicated cut point. Alternatively we can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
How do I connect an extension cable to the LED tape?
This LED tape kit comes with 10mm wide LED tape to 2 core cable connectors. Simply push the ends of tape into one side of the connector and the 2 core cable into the other. Once both are firmly in place clamp down the metal connection spokes with a pair of plyers. This results in a secure circuit. It's important to ensure the polarity of the + / - are correctly orientated, please check this.
What aluminium LED extrusions can I fit this into?
This product is 8mm and will fit into all LED profiles with an inside width of 8mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I've purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we're here to help you get a finished result that lasts.
A simple to setup 6M RGBW seamless COB LED tape kit. It includes x2 wireless 5 channel LED controller-receivers, x2 power supplies and a wireless RGBCCT handset remote.
[VIDEO >] 840LED RGBW No Dot COB LED Tape With Wireless 5-Channel Remote
6M Seamless RGBW Kit Breakdown
6M 840LED No Dot RGBW 3000K COB LED Tape with 3M tails both ends. This allows for the strip light to be cut in half at 50mm cut points resulting in two lengths.
x2 5CH Wireless Controller Receiver
x1 Wireless Handset Remote
x2 Power Supplies
Download Tuya app free for "Smart Device" control.
This solution allows for upto 4 zone control via the 5CH remote handset. To control from a smart phone or device simply download the Tuya app, connect your RGBW no dot LED tape lights and create a colourful dream scene for your space.
WT5 Manual.pdf
--
Smart Wifi 5-Channel CCT & RGBTW LED Strip Controller (12V-24V)
Features
Alexa and Google Assistant Compatible
Control via Smart Device via Tuya App
DIM, Smart Dual-White (CCT), RGBCW (RGB+CCT) 4 in 1 constant voltage LED controller. 4A per channel, 5 channels output.
Download Tuya Smart application and control from mobile wirelessly
Voice command control via Tuya app.
Control single colour, tuneable white (CCT), RGB, RGBW, RGBCW and RGB+CCT LED lighting
WiFi and 2.4GHz Compatibility
Setup
Compatible with Tuya application for simple wireless control via mobile or tablet device. Download for installation support.
Quick Kit Breakdown
Part Number: 6M-RGBW3K-COBKIT
Product Type: 6M RGBW (3000K) "no dot" LED tape reel with 3M 5 core flat cable tails each end. x2 Wireless 5CH LED Controller-Receivers, x1 4 zone Remote, x2 60W 24V commercial grade power supplies.
IP Rating: IP20
Brand: Uprise
LED Strip Specifications
Product Type: Seamless COB RGBW LED Tape
Colour: RGB+3000K / RGB+4000K / RGB+6000K
IP Rating: IP20 / IP65
PCB Colour: White
Chip: COB (Chip on board) technology
LEDs per meter: 840LEDs
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 711.8Lm/m (RGB+3000K)
Lumens/w: N/A
CRI: >80
Beam angle: 180°
Electrical
LED Wattage (Per meter): 20W (19.2 actual)
Input Voltage: 24V
Current (A): N/A
Cable in: 500mm 2 core (as standard)
Cable out: 500mm 2 core (as standard)
Dimensions
Width: 12mm
Height: 2mm
Length: 5m (as standard)
Installation
Cut points: 33.3mm
Cable: 5 core flat cable (20 AWG)
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 2 Years
Packaging
Packaging: 5M Roll
Net Weight: 152g / Roll
Controller Receiver Technical Parameters
Input & Output
Input Voltage: 12-24VDC (24V Kit)
Input Current: 15.5A
Output Voltage: 5 x (12-24)VDC
Output Current: 5CH,3A/CH
Output Power: 5 x (36-72)W
Output type: Constant Voltage
Dimming Data
Input Signal: Tuya APP + RF 2.4GHz
Control distance: 30m(Barrier-free space)
Dimming Grayscale: 4096 (2^12) levels
Dimming range: 0 -100%
Dimming curve: Logarithmic
PWM Frequency: 1000Hz (default)
Dimming Data
EMC standard (EMC): ETSI EN 301 489-1 V2.2.3 ETSI EN 301 489-17 V3.2.4
Safety standard(LVD): EN 62368-1:2020+A11:2020
Radio Equipment(RED): ETSI EN 300 328 V2.2.2
Certification: CE,EMC,LVD,RED
Environment
Operation temperature: Ta: -30 O C ~ +55 O C
Case temperature (Max.): T c:+85 O C
IP rating: IP20
Warranty & Protection
Warranty: 5 Years
Protection: Reverse polarity Over-heat Short circuit
Mobile Application
Required Application: Tuya Smart App
Dimensions
Width: 38mm
Height: 20mm
Length: 114mm
Installation
Mounting: x2 Screws
Packaging
Packaging: White cardboard box
Net Weight: 65g
System Parameters
The max power is 15A, the controller can support around (12*15=180W or 24*15=360W)
Generally speaking, our controller is suitable for up to 10m led strip per controller without brightness degradation. If you connect up to 20m to 25m, the brightness will be affected unless strip is powered at both ends.
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
What style of LED tape lights is this compatible with?
This driver is compatible with any 12V/24V single colour, RGB, RGBW LED tape lights or RGBTW LED strips including our latest generation No Dot RGBW LED strip light. Contact us for more information.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
Plug & Play LED Strip Kit | 4mm Seamless LED Strips | 36W 5 Output Undercabinet LED Driver 24V | 5 x 2M Extension Cables
What you will receive within this seamless COB LED strip kit:
Seamless LED Strips: 3 x 2.4M (7.2M total length) 4mm Seamless "No Dotting" 5W/M flexible LED strip lights with 0.5M tails both ends. 24V. (Can be cut into x6 individual length LED strips, x5 for setup, x1 spare). Available in 3000K warm, 3500K soft, 4000K neutral.
480LED/M 5W/M 3000K Warm White COB LED Tape - Datasheet480LED/M 5W/M 3500K Soft White COB LED Tape - Datasheet480LED/M 5W/M 4000K Neutral White COB LED Tape - Datasheet
Note: Each 2.4M LED strip can be cut every 25mm, so you could cut at the 600mm point (on the black line) and have a 0.6M and 1.8M LED strip. Or in half for 2 x 1.2M LED strips. Or at any measurement to make two LED strips. The strips could then be cut down further to desired fit size.Extension Cables: 5 x 2M male to female extension cables (allows for 2.5M of extension from driver, 0.5M from LED strips + 2M from extension cable).Cabinet LED Driver: 1 x 36W plug & play cabinet LED driver (24V). Mains Lead: 1 x 1000mm black (1M) UK mains to C7 mains lead.Extension Cables
Wiring Setup: [UK mains socket] > UK to C7 Mains Lead > 36W Cabinet Driver > (optional) extension cable > Upto x5 LED strips
36W Cabinet LED Driver DetailsThis 5 output, slimline undercabinet led lighting driver by Uprise offers quick and simple setup for single colour spot lights, furniture lights & LED tape lights. Ideal for areas where space is limited and a thin 24V LED power source is required. With it’s 24W capacity and 5 micro connectors upto x5 24V LED products / LED strips can be connected effortlessly. Compatible with next generation hand wave sensors as well as single and double door sensors means turning your lighting setup on/off has never been easier. Download Cabinet LED Drivers Q&A Sheet PDF for more support.
Support Videos*BrightnessHow bright and adaptable is this 4mm 5W LED Strip?*Colour Temperature3000K Warm White Colour Temperature (Within micro corner profile)3500K (New Colour) Soft White Light Colour (Within micro quadrant profile)4000K Neutral White Light Source Colour (Inside corner extrusion)*CablingHow can I extend the cable easily between COB LED strips?
36W Cabinet LED Driver Specifications
Driver Outputs
With 5 micro connectable outputs you can easily run 5 separate LED areas or shelves.
Connectable Accessories
Connect a hand wave, touch, or even a single door or double sensor (inline or master).
Power Consumption
This under-cabinet kitchen LED driver is rated at 36W.
Size
Ultra thin design at just 18.5mm depth for hidden installation. 147mm x 56mm x 18mm
Wiring
5 way distributor outputs with micro connection terminals. Keep wiring tidy and professional.
Testing
100% full load age testing, consistent with world lighting safety standards.
Circuit Protection
Open circuit, short circuit, overload and overheating protection.
Standards
All of our Uprise LED drivers are TUV/CE/SAA/ETL/FCC approved.
Choose your lengths
This product is compatible with all our 24V marker LED downlights, cabinet pad downlights, seamless cob and single colour LED tape lights. Simply decide the lengths required and ensure that the total wattage across all lengths when totalled does not exceed 36W - 10% (32.4W) to build in a safety buffer.
Application
A thin and functional multi-port LED driver that’s best suited for fitouts within cabinet displays, under pelmets, shelves, signage and within coves. It’s also suited for many other applications whereby space is limited and multiple lengths of LED strips are desired.
The driver is only 56mm wide and standard IP20 rated. This provides complete protection against solid items over 12.5mm like finger touch.
IP Rating
This LED supply is IP20 rated and suitable for internal applications.
Environments
Create a stunning, continuous visual aesthetic within the home, add beauty to your walk in wardrobes, designer cabinets, or prestigious wine racks by combining this Uprise 24V 24W LED driver with a range of our seamless cob LED tape lights.
Quality Assurance
Uprise believes in long-term value, which is why our enterprise class LED tape lights include high-quality, long lasting components. Colour consistency and uniformity are important for the right finish for all our LED strips.
Uprise offers a wide variety of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. For splendid visual aesthetics and end dimming results, you can also view the Dim to Warm & Seamless COB flexible LED strip
Specifications
General
Product Type: 5 output cabinet LED driver (5 way distributor ports built in)
IP Rating: IP20
Brand: Uprise
Electrical
Power Range: 32W-36W
Input Voltage: 200-240V
Output Voltage: 24V +/- 5%
AC Input Current: 0.36A
3A Port: 5
Outputs: x5 micro connectors (5-port micro plug connector)
Wattage: 36W
Voltage: 24V
Surge Protection: 1.5Kv
Sensor Connectivity
Sensor Port: PHB 2.0
Sensor Compatibility: Hand Wave Sensor / Touch Sensor / Single Door Switch / Double Door Switch
Dimensions
Width: 56mm
Height: 18mm
Length: 147mm
Installation
Mounting: x2 Screws
Guarantee
Certification / Standards: CE, SELV, RoHS, UKCA
Warranty: 3 Years
Packaging
Packaging: White cardboard box
Net Weight: 375g
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
What style of LED tape lights is this compatible with?
This driver is compatible with any 24V 2 core single colour LED tape strip or 24V LED source such as lamps, battens or marker LEDs. Contact us for more information.
How can I buy?
You either buy individual components online or call / WhatsApp us on 07957 180 481 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
896LED/M RGBW COB LED Strip Light. 24V.
*Priced per meter, supplied with 0.5M / 2M /4M 5 core flat cable as standard. Contact us for made to measure seamless "no dot" (when placed within any aluminium channel / LED profile) RGBW LED strip light solution.
NOTE: This seamless RGBW COB LED tape light should be placed within an aluminium LED profile to act as a further heatsink, protect from dust ingress and as a barrier to human touch contact.
Create a colour changing light line that's seamless on the eye. Ideal for architectural light lines, media units, undercabinet areas within kitchens, bedrooms or walk in wardrobes along with low profile coving, retail POS displays and more.
Works well with
Wireless 5 in 1 CCT & RGBWW LED Remote Handset [Remote Handset]Smart Wireless 5 in 1 CCT & RGBWW LED Controller Receiver [Controller-Receiver]
Article – The Definitive Guide to COB LED Strip Lights
Build Your Solution
Add corner joint or feed custom length feed in services below.
Solder Corner Cable to RGBW colour changing (5 wire) LED Strip LightSolder Cable to RGBW colour changing (5 wire) LED Strip Light
Colour Temperatures
This strip offers either a dedicated 3000K warm white / 4000K neutral white / 6000K cool white along with full RGB colour changing for millions of colour combinations. Generate beautiful pastel hues and shades to compliment your room scheme. When combined with an LED profile a "no dot" lighting result can be achieved.
Colour Rendering Index (CRI)
This versatile LED tape light is available in CRI>80.
Brightness (Lumen Output)
This bright COB LED strip produces 711.8lm/m
Light Diffusion
When it comes to illuminating any area, our COB LED strip lights come equipped with a smooth linear appearance. These flexible LED strips can be used together with our extruded aluminium channels, generally known as LED profiles, if desired. Once LED tape strips are fitted into the profiles, the light source will be evenly distributed.
Choose your length
This full colour COB LED strip light can be purchased now in 1,2,3,4 5M increments with a 500mm tail. Or Uprise can cut your tape to exact sizes if you need specific lengths along with extended cables.
Application
This flexible COB LED ribbon is ideal for home av fitouts within media walls, featgure acoustic panels, under pelmets, shelves, signage and within coves.
IP Rating Options
This bright LED tape is available in the IP20 and IP65 (on request). Phone/Whatsapp us on 07957 180 481 or send us a message at sales@upriseled.com if you wish to talk to a lighting expert. We will guide you to select the correct type to apply.
Quality Assurance
Uprise believes in long term value, that’s why our enterprise class LED tape lights use premium grade, long lasting components. Colour consistency and uniformity is a project must, so all our LED strip lights are batched for overall peace of mind.
Specifications
General
Product Type: Seamless COB RGBW LED Tape
Colour: RGB+3000K / RGB+4000K / RGB+6000K
IP Rating: IP20 / IP65 (Available to discuss)
PCB Colour: White
Chip: COB (Chip on board) technology
LEDs per meter: 896LEDs
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 711.8Lm/m (RGB+3000K)
Lumens/w: N/A
CRI: >90
Beam angle: 180°
Electrical
LED Wattage (Per meter): 16W
Input Voltage: 24V
Current (A): N/A
Cable in: 0.5M/2M/4M
Cable out (return): 0.5M/2M/4M (On 10M lengths)
Dimensions
Width: 12mm
Height: 2mm
Length: 1M/2M/3M/4M/5M/6M/7M/8M/9M/10M
Installation
Cut points: 33.3mm
Cable: 5 core flat cable (22 AWG)
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS, ETL
Warranty: 2 Years
Packaging
Packaging: Silver Foil Bag
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 12mm and will fit into all LED profiles with an inside width of 12mm and above.
How can I buy?
You either buy individual components online or call us on 07957 180 481 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
RGBW COB LED Tape. Light completion.
*Priced per meter, supplied with 200mm 5 core flat cable as standard. Contact us for made to measure seamless "no dot" RGBW LED strip light solution.
Create a colour changing light line that's seamless on the eye. Ideal for undercabinet areas within kitchens, bedrooms or walk in wardrobes along with low profile coving, retail POS displays and more.
This 16-watt per meter RGBW COB LED strip is slim, flexible, offering excellent brightness and colour output. Utilising the latest in flip chip COB technology with a long expected life of 50K hours.
Article – The Definitive Guide to COB LED Strip Lights
Build Your Solution
Add corner joint or feed custom length feed in services below.
Solder Corner Cable to RGBW colour changing (5 wire) LED Strip LightSolder Cable to RGBW colour changing (5 wire) LED Strip Light
Colour Temperatures
This strip offers a dedicated 3000K warm white along with full RGB colour changing for millions of colour combinations. Generate beautiful pastel hues and shades to compliment your room scheme. When combined with an LED profile a "no dot" lighting result can be achieved.
Colour Rendering Index (CRI)
This versatile LED tape light is available in CRI>80.
Brightness (Lumen Output)
This bright COB LED strip produces 711.8lm/m (RGB+3000K+6000K).
Light Diffusion
When it comes to illuminating any area, our COB LED strip lights come equipped with a smooth linear appearance. These flexible LED strips can be used together with our extruded aluminium channels, generally known as LED profiles, if desired. Once LED tape strips are fitted into the profiles, the light source will be evenly distributed.
Choose your length
This full colour COB LED strip light can be purchased now in 1,2,3,4 5M increments with a 200mm tail. Or Uprise can cut your tape to exact sizes if you need specific lengths along with extended cables.
Application
This flexible COB LED ribbon is ideal for fitouts within cabinet displays, under pelmets, shelves, signage and within coves.
The LED tape is available in several IP rating options ranging from IP20 at 12mm wide to an IP65 rating. A silicone gel IP65 rating offers LED strip lights protection against splashes of water. Due the makeup of the silicone gel coating this can ever so slightly affect the original colour of the strip. Newer generations of IP65 LED strips have become better.
IP Rating Options
This bright LED tape is available in the IP20 & IP65 versions. Contact us on 0116 406 2959 or send us a message at sales@uprisemed.com if you wish to talk to a lighting expert. We will guide you to select the correct type to apply.
Quality Assurance
Uprise believes in long term value, that’s why our enterprise class LED tape lights use premium grade, long lasting components. Colour consistency and uniformity is a project must, so all our LED strip lights are batched for overall peace of mind.
Specifications
General
Product Type: Seamless COB RGBW LED Tape
Colour: RGB+3000K / RGB+6000K
IP Rating: IP20 / IP65
PCB Colour: White
Chip: COB (Chip on board) technology
LEDs per meter: 560LEDs
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 711.8Lm/m (RGB+3000K+6000K)
Lumens/w: N/A
CRI: >80
Beam angle: 180°
Electrical
LED Wattage (Per meter): 16W
Input Voltage: 24V
Current (A): N/A
Cable in: 500mm 2 core (as standard)
Cable out: 500mm 2 core (as standard)
Dimensions
Width: 12mm
Height: 2mm
Length: 5m (as standard)
Installation
Cut points: 50mm
Cable: 2 core flat cable
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 5 Years
Packaging
Packaging: 5M Roll
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 12mm and will fit into all LED profiles with an inside width of 12mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
*Priced per meter.
A super slim white 5mm cob led tape light that offers seamless light throughout the strip. Using the highest grade, latest generation micro LED chips this professional COB LED tape light is ideal for bespoke kitchens, furniture lighting and media unit integration. This ultra energy efficient strip is just 7-watt per meter. 3000K warm white or choose from 4000K neutral / 6500K cool white temperatures. It's ideal for tight grooves, cabinet displays or shelving units. Complete with hand soldered pre- 2M tail for plug & play connection our our range of 12V cabinet LED drivers. Save time from project start of spec to long-term satisfaction.
How to connect COB LED tape lights simply.
--

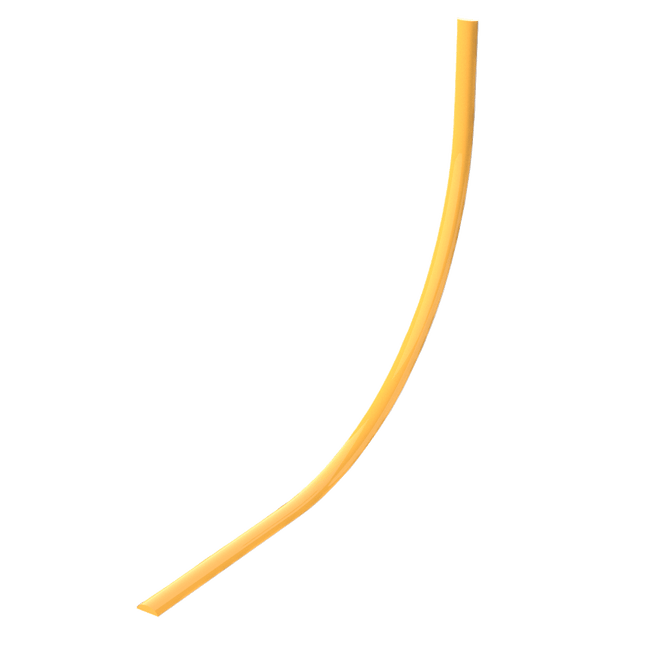

Seamless PRO COB LED Tape 7W per meter (5M) IP20
Supplied as 5M reel as standard. Enterprise class quality with the latest in integrated LED technology.
Article - The Definitive Guide to COB LED Strip Lights
Seamless cob LED tape by Uprise. A revolutionary new PCB design mounted LED strip light with a uniform "micro dot" LED configuration for the most beautiful light line you've ever witnessed. Our 5 watts per meter flexible COB (Chip on-board) LED strip light provides a stunning flow of ambience throughout. Innovative cut of the cloth design means LEDs are closely knitted directly to the PCB substrate. A clever design that offers maximum efficacy and flexibility. This combined with a unique "bubble doming" silicone coating method ensures a stable, reliable solution for professional integrations. Lighting brilliance to put it simply.
Wiring Example
This precision engineered 12V COB LED tape strip is just 7W/M offering excellent efficiency and upto 700 lumens per meter output. 480 LEDs per meter allow for a continuous, homogeneous illumination throughout the strip. Available colours include 3000K warm, 4000K neutral and 6500K cool.
Lifetime expectancy is 50,000 hours of continuous use. 25mm cut points. 5mm wide. 12V. 2 core wiring.
Here at Uprise we aim to provide the utmost value and integrity throughout the entire supply process. From first point of call to happy result. That's why we ensure carefully selected high tolerance components are utilised. This means we've done our due diligence throughout the design and selection process ensuring premium quality throughout. High grade LED chips have been utilised for superior quality in strip longevity and effect.
Specifications
General
Product Type: Seamless No Dot LED Tape (7W/M)
Colour: Warm White (3000K)
IP Rating: IP20 (Internal)
PCB Colour: White
Chip: COB (Chip on board) Flip Chip Technology
LEDs per meter: 480LEDS
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 450-550lm/m
Lumens/w: 72lm/W
High CRI: 90+
Beam angle: 180°
Electrical
LED Wattage (Per meter): 7W
Input Voltage: 12v DC
Current (A): 0.58A/m
Cable in: 2000mm 2 core with micro connector (as standard) for seamless installation with our professional cabinet LED drivers & sensor range.
Cable out: 200mm 2 core (as standard)
Dimensions
Width: 5mm
Height: 2mm
Length: 5m (as standard), available in bespoke custom cut to lengths, call us on 0116 406 2959, email us at sales@upriseled.com or send us a project request on 07957 180 481.
Installation
Cut points: 25mm
Cable: 2 core flat cable
Mounting: Strong adhesive backing tape (blue)
Guarantee
Certification: CE, RoHS
Warranty: 3 Years
Packaging
Packaging: 5M Roll as standard.
Net Weight: 152g/Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 5mm and will fit into all LED profiles with an inside width of 5mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I've purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we're here to help.
RGBCCT (Colour & 3000K-6000K) COB LED Tape. Beauty in light.
Working on a big or small project that requires custom lengths and expert advise? Send us an email via sales@upriseled.com or Whatsapp us details to 07957 180 481.
Inspired by the teachings of the Dalai Lama, this "no dot" RGBCCT LED strip light is one with everything. Clean whites, vibrants colours and stunning pastels.. Create a full colour, beautiful light line today.*Priced per meter, supplied with 200mm 6 core flat cable as standard. Contact us for made to measure seamless "no dot" (when placed within any aluminium channel / LED profile) RGBCCT LED strip light solution.
Create a beautiful light line that's seamless on the eye. Ideal for routed work tops, undercabinet lighting, within kitchens, accents, bedrooms or walk in wardrobes along with low profile coving, retail POS displays and more.
Works well with
Wireless 5 in 1 CCT & RGBWW LED Remote Handset [Remote Handset]Smart Wireless 5 in 1 CCT & RGBWW LED Controller Receiver [Controller-Receiver]
Article – The Definitive Guide to COB LED Strip Lights
Colour Temperatures
It's RGBCCT, that means it R,G,B colour with Warm 3000K & Cool 6000K mixing, providing the most beautiful, full colour, spot free lighting result.
Colour Rendering Index (CRI)
This versatile LED tape light is available in CRI>80.
Brightness (Lumen Output)
Light Diffusion
Add this RGB, Dual White (3000K-6000K transitioning) LED strip light to any light channel, LED profile or aluminium extrusion for a truly "no dot" LED lighting result.When mounted within a routed hole via a professional joinery company or woodworker the low depth and make up of this strip offers minimal if any hot spotting at low groove depth. In some instances it can be mounted without an LED extrusion,use best judgement or contact us today to discuss your project.
Choose your length
This true full colour COB LED strip light can be purchased "made to measure" with longer length tails for ease of integration. It can also be purchased in various lengths online.
Application
This flexible RGBCCT COB LED strip light is ideal for fitouts within cabinet displays, under pelmets, shelves, signage and within coves.
The LED tape is available in several IP rating options ranging from IP20 at 12mm wide to an IP65 rating. A silicone gel IP65 rating offers LED strip lights protection against splashes of water. Due the makeup of the silicone gel coating this can ever so slightly affect the original colour of the strip. Newer generations of IP65 LED strips have become better.
IP Rating Options
This bright LED tape is available in the IP20 & IP65 versions. Contact us on 0116 406 2959 or send us a message at sales@upriseled.com if you wish to talk to a lighting expert. We will guide you to select the correct type to apply.
Quality Assurance
Uprise believes in long term value, that’s why our enterprise class LED tape lights use premium grade, long lasting components. Colour consistency and uniformity is a project must, so all our LED strip lights are batched for overall peace of mind.
Specifications
General
Product Type: Seamless "no dot" COB RGBCCT LED Tape
Colour: RGBCCT (RGB Colour + 3000K-6000K transitioning)
IP Rating: IP20 / IP65
PCB Colour: White
Chip: COB (Chip on board) technology
LEDs per meter: 840LEDs
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 1170LM
Wave Length: R: 620nm, G: 540nm, B: 455nm
Lumens/w: N/A
CRI: >80
Beam angle: 180°
Electrical
LED Wattage (Per meter): 21W
Input Voltage: 24V
Current (A): N/A
Cable in: 500mm 2 core (as standard)
Cable out: N/A
Dimensions
Width: 12mm
Height: 2.7mm
Length: 5m (as standard)
Installation
Cut points: 35.71mm
Cable: 6 core flat cable (20 AWG)
Mounting: 3M backing tape / VHB backing tape (contact us)
Guarantee
Certification: CE, RoHS
Warranty: 2 Years
Packaging
Packaging: 5M Roll
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 12mm and will fit into all LED profiles with an inside width of 12mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
Update 13-10-22: Wattage changed from 18-watt per meter to 20-watts per meter (19.2W/m actual) to build in tolerances based on new information.- Stephen Watts
*Priced per meter. This flexible, high output RGBW LED tape light uses quality branded LEDs for excellent light performance. 14W/M (Max wattage potential). Typically supplied on a 5M reel (add qty x5), lengths include 100mm tail as standard.
60LED RGBW LED tape light. All in one colour, for fuller light visuals.
This 1-watt (4 in 1) RGBW (3000K) LED strip lighting is a continuous LED light source that is both compact and flexible, making it perfect for a wide range of applications. This slim LED tape, which uses 60 5050 SMD branded LEDs and is manufactured to a high quality, emits up to 990 lumens per meter, while drawing only 14 watts per meter. Life expectancy of this luminous LED tape is 50,000 hours of continuous use.
Colour Temperatures
RGBW offers all the advantages of RGB colour changing LED tapes with the added dimensions of a dedicated 3000K white chip. Ideal for applications where quality in colour, longevity and brightness is required.
Colour Rendering Index (CRI)
This slim LED ribbon is available in CRI>80.
Brightness (Lumen Output)
Ultra efficient as standard, this radiant LED strip light emits 990 (RGB+3000K) lumens per meter.
Light Diffusion
As standard our LED strips offer a smooth linear effect when illuminating any surface.
Optionally, you can use these LED tapes together with our aluminium extrusions, also known as LED profiles. Fitted within profiles, the LED strips light source will be evenly diffused.
Wiring Example
Choose your length
Uprise’s 14-watt LED tape light, like our alternative bendable strip light series, comes in standard 5M reels and may be cut at every 100mm copper pads cut point. If you require specific lengths, large or small, we can cut your tape to length.
Application
This flexible LED strip light is ideal for fitouts within cabinet displays, under pelmets, shelves, signage and within coves.
The LED strip is just 10mm wide (IP20) and selectable up to an IP67 standard. An IP67 rating provides full dust and low immersion protection. It can be used, when water resistance is needed, within bathrooms, external areas or water features.
IP Rating Options
This LED tape is available in IP20, IP65(H), IP65(S) and IP68. Feel free to contact us on 0116 406 2959 or email us via sales@upriseled.com to talk to an expert. We’ll assist you to choose the right strip to apply.
See our IP rating charts here for additional information about the ideal strip for your application.
Environments
This slim LED tape provides excellent lighting for commercial applications, perfect for resorts, restaurants, bars, hotel lobbies and retail spaces and window displays. This LED ribbon is well suited to architects, light engineers, AV integrators and electrical specialists when there is a requirement for slim, bright, long lasting LED strips.
It is particularly suited for outside garden areas such as edge lights, garden bars and steps, living rooms, kitchens and home movies.
Quality Assurance
Uprise believes in long term value, that’s why our enterprise class LED tape lights use premium grade, long lasting components. Colour consistency and uniformity is a project must, so all our LED strip lights are batched for overall peace of mind.
Looking to dim your LED tape lights, Uprise offers a comprehensive range of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. You can also check out our new Dim to Warm & Seamless COB flexible LED strips for beautiful visual aesthetics and end dimming results.
Specifications
General
Product Type: RGBW LED Tape
Colour: RGBW (RGB+3000K warm white)
IP Rating: IP20
PCB Colour: White
Chip: 5050 SMD
LEDs per meter: 60LEDs
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 990Lm/m (RGB+3000K)
Lumens/w: 70.71Lm/w (RGB+3000K)
CRI: >80
Beam angle: 120°
Electrical
LED Wattage (Per meter): 14W
Input Voltage: 12V
Current (A): 0.8A
Cable in: 100mm 2 core (as standard)
Dimensions
Width: 10mm
Height: 2mm
Length: 5m (as standard)
Installation
Cut points: 50mm
Cable: 5 Core Flat Cable
Mounting: 3M backing tape / VHB Bonding tape
Guarantee
Certification: CE, RoHS
Warranty: 3 Year Warranty
Packaging
Packaging: 5M Roll
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 12mm and will fit into all LED profiles with an inside width of 12mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
Get a fully weather proofed (IP68), light line with zero hot spots.
Best in class for ultra sleek, spot free, weather proof exterior LED light lines.
IP68 casing for water proof / exterior lighting applications
Robust, bendable (top down) and durable.
Completely spotless for a seamless light line
Encased with clear silicone for superior light projection compared to other diffused lighting products such as neon flex.
Ultra thin at just at just 5mm in depth
Just 11mm wide
Ideal for exterior signage and letter illumination (cinemas), pond and water features, decking, architectural and landscaping projects.
Great for bathrooms, showers and kitchen applications where steam or water ingress may be present.
An IP68 fully waterproof white cob led tape light that offers seamless light throughout the strip. 9W per meter with a 2700K / 3000K / 4000K / 6000K temperature. Comes complete with feed in and out water proof connectors. Male/Female connector tails sold separately.
--
Waterproof Spotless Flexible COB LED Tape 9W (5M) IP68
*Priced per meter. Supplied as 5M reel as standard. Enterprise class quality with the latest in integrated LED technology.
Article - The Definitive Guide to COB LED Strip Lights
Wiring Example
Support
How to connect COB LED tape lights simply.
This 12V COB LED tape strip is just 9W/M offering excellent efficiency and upto a respectable 525 lumens per meter output. 480 LEDs per meter allow for a continuous, homogeneous illumination throughout the strip. Available colours include 2700K, 3000K, 4000K, 6000K.
Lifetime expectancy is 50,000 hours of continuous use. 25mm cut points. 11mm wide. 12V. 2 core wiring. Includes IP68 rated male and female pig-tail style connectors either end of strip.
Specifications
General
Product Type: IP68 waterproof seamless No Dot LED Tape (9W)
Colour: Warmer White (2700K) / Warm White (3000K) / Neutral White (4000K) / Cool White (6000K)
IP Rating: IP68
PCB Colour: White
Chip: COB (Chip on board) Flip Chip Technology
LEDs per meter: 480LEDS
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 525lm/m
Lumens/w: 105lm/W
High CRI: 90
Beam angle: 180°
Electrical
LED Wattage (Per meter): 9W
Input Voltage: 12v DC
Current (A): 0.42A/m
Cable in: 500mm IP68 pigtail (male screw style) 2 core heavy duty cable
Cable out: 500mm IP68 pigtail (female screw style) 2 core heavy duty cable
Dimensions
Width: 11mm
Width (End Caps): 12mm
Height: 5mm
Height (End Caps): 6mm
Length: 5m (as standard), other lengths available and can be made to measure.
Installation
Cut points: 25mm
Cable: 2 core flat cable
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 2 Years
Packaging
Packaging: Length as selected. Roll as standard.
Net Weight: 152g/Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 11mm and will fit into all LED profiles with an inside width of 11mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I've purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we're here to help.
This simple to connect 2500mm cob led tape kit comes with 24W 5 output plug and play driver, x5 2M cable with micro connectors and x5 COB tape to wire connectors. This allows for an adaptable LED setup within any space where a seamless lighting result is desired.
--
12V 2.5M COB LED Tape Kit With Driver, Click Fit Cables and Connectors
Kit Includes
x1 2.5M (2500mm) 8mm 12V COB LED tape light packed on reel.
x1 24W 12V plug and play cabinet style LED driver
x5 2M (2000mm) micro connector to bare end extension cables. Allows quick connect to supplied driver.
x5 COB LED tape to 2 core cable 10mm wide connectors. These are ideal for connection to custom cut lengths from the 2.5M provided COB LED strip light.Micro Connector-2M-Cable > Connector > COB LED tape length (cut down to size)
x1 2M mains plugs with C7 type connector (plugs directly into cabinet LED driver).
Support
How to connect COB LED tape lights simply.
Specifications
COB LED Tape
Product Type: Seamless No Dot LED Tape (9W)
Colour: Warmer White (2700K) / Warm White (3000K) / Neutral White (4000K) / Cool White (6000K)
IP Rating: IP20 (Internal)
PCB Colour: White
Chip: COB (Chip on board) Flip Chip Technology
LEDs per meter: 480LEDS
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 900lm/m
Lumens/w: 80-120lm/W
High CRI: 90
Beam angle: 180°
Electrical
LED Wattage (Per meter): 9W
Input Voltage: 12v DC
Current (A): 0.75A/m
Cable in: 500mm 2 core (as standard)
Cable out: 500mm 2 core (as standard)
Dimensions
Width: 8mm
Height: 2mm
Length: 2.5m (as standard)
Installation
Cut points: 25mm
Cable: 2 core flat cable
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 3 Years
Packaging
Packaging: 2.5M Roll as standard.
Net Weight: 152g/Roll
*Please Note: No more than 3 metres of COB LED tape should be connected to a single port. Upto 6 metres can be powered across two ports (powered both ends).
Article - The Definitive Guide to COB LED Strip Lights
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can I cut this COB LED strip to length?
Yes, it can be cut easily at every 25mm indicated cut point. Alternatively we can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
How do I connect an extension cable to the LED tape?
This LED tape kit comes with 10mm wide LED tape to 2 core cable connectors. Simply push the ends of tape into one side of the connector and the 2 core cable into the other. Once both are firmly in place clamp down the metal connection spokes with a pair of plyers. This results in a secure circuit. It's important to ensure the polarity of the + / - are correctly orientated, please check this.
What aluminium LED extrusions can I fit this into?
This product is 8mm and will fit into all LED profiles with an inside width of 8mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I've purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we're here to help you get a finished result that lasts.
HD RGBW COB LED Tape. Light completion.
*Priced per meter, supplied with 200mm 5 core flat cable as standard. Contact us for made to measure seamless "no dot" (when placed within any aluminium channel / LED profile) RGBW LED strip light solution.
Create a colour changing light line that's seamless on the eye. Ideal for undercabinet areas within kitchens, bedrooms or walk in wardrobes along with low profile coving, retail POS displays and more.
Wiring Diagram & Best Practises
[PDF] Branded - How to install 24V RGBW COB LED Tape Lights - 2 x 4M Lengths (840LED/M RGBW No Dot 24V)
[PDF] Unbranded - How to install 24V RGBW COB LED Tape Lights - 2 x 4M Lengths (840LED/M RGBW No Dot 24V)
Works well with
Wireless 5 in 1 CCT & RGBWW LED Remote Handset [Remote Handset]Smart Wireless 5 in 1 CCT & RGBWW LED Controller Receiver [Controller-Receiver]
Vienna No Dot RGBW Kits - It's Seamless Lighting Made Simple
6M 840LED No Dot RGBW 3000K COB LED Tape Kit With Wireless Handset
This 20-watt per meter RGBW COB LED strip is slim, flexible, offering excellent brightness and colour output. Utilising the latest in flip chip COB technology with a long expected life of 50K hours.
Article – The Definitive Guide to COB LED Strip Lights
Build Your Solution
Add corner joint or feed custom length feed in services below.
Solder Corner Cable to RGBW colour changing (5 wire) LED Strip LightSolder Cable to RGBW colour changing (5 wire) LED Strip Light
Colour Temperatures
This strip offers a dedicated 3000K warm white / 4000K neutral white / 6000K cool white along with full RGB colour changing for millions of colour combinations. Generate beautiful pastel hues and shades to compliment your room scheme. When combined with an LED profile a "no dot" lighting result can be achieved.
Colour Rendering Index (CRI)
This versatile LED tape light is available in CRI>80.
Brightness (Lumen Output)
This bright COB LED strip produces 711.8lm/m (RGB+3000K+6000K).
Light Diffusion
When it comes to illuminating any area, our COB LED strip lights come equipped with a smooth linear appearance. These flexible LED strips can be used together with our extruded aluminium channels, generally known as LED profiles, if desired. Once LED tape strips are fitted into the profiles, the light source will be evenly distributed.
Choose your length
This full colour COB LED strip light can be purchased now in 1,2,3,4 5M increments with a 200mm tail. Or Uprise can cut your tape to exact sizes if you need specific lengths along with extended cables.
Application
This flexible COB LED ribbon is ideal for fitouts within cabinet displays, under pelmets, shelves, signage and within coves.
The LED tape is available in several IP rating options ranging from IP20 at 12mm wide to an IP65 rating. A silicone gel IP65 rating offers LED strip lights protection against splashes of water. Due the makeup of the silicone gel coating this can ever so slightly affect the original colour of the strip. Newer generations of IP65 LED strips have become better.
IP Rating Options
This bright LED tape is available in the IP20 & IP65 versions. Contact us on 0116 406 2959 or send us a message at sales@uprisemed.com if you wish to talk to a lighting expert. We will guide you to select the correct type to apply.
Quality Assurance
Uprise believes in long term value, that’s why our enterprise class LED tape lights use premium grade, long lasting components. Colour consistency and uniformity is a project must, so all our LED strip lights are batched for overall peace of mind.
Specifications
General
Product Type: Seamless COB RGBW LED Tape
Colour: RGB+3000K / RGB+4000K / RGB+6000K
IP Rating: IP20 / IP65
PCB Colour: White
Chip: COB (Chip on board) technology
LEDs per meter: 840LEDs
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 711.8Lm/m (RGB+3000K)
Lumens/w: N/A
CRI: >80
Beam angle: 180°
Electrical
LED Wattage (Per meter): 20W (19.2 actual)
Input Voltage: 24V
Current (A): N/A
Cable in: 500mm 2 core (as standard)
Cable out: 500mm 2 core (as standard)
Dimensions
Width: 12mm
Height: 2mm
Length: 5m (as standard)
Installation
Cut points: 33.3mm
Cable: 5 core flat cable (20 AWG)
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 2 Years
Packaging
Packaging: 5M Roll
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 12mm and will fit into all LED profiles with an inside width of 12mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
Update 13-10-22: Wattage changed from 18-watt per meter to 20-watts per meter (19.2W/m actual) to build in tolerances based on new information.- Stephen Watts
High Definition RGB COB LED Tape. Colour Completed.
This RGB "no dot" LED strip light provides a seamless LED light line that can be colour changed. Ideal for undercabinet areas within kitchens, bedrooms or walk in wardrobes along with low profile coving, retail POS displays and more.Looking a continuous light line with extra dedicated white? Check out our RGBW No Dot LED strip light.
*Priced per meter, typically supplied as 5M reel with 2000mm 5 core flat cable as standard. Can be cut to length. Contact us for made to measure seamless RGB LED solution. Comes with an IP65 heat shrink protective coating as standard.
At 14-watt per meter, this RGB COB LED strip is slim, flexible, offering excellent brightness and colour output. Utilising the latest in flip chip COB technology with a long expected life of 50K hours.
Article – The Definitive Guide to COB LED Strip Lights
Build Your Solution
Add corner joint or feed custom length feed in services below.
Solder Corner Cable to RGB colour changing (4 wire) LED Strip Light
Colour Temperatures
This strip offers full RGB colour changing for millions of colour combination. When all on you can also generate a nice white which can be toned and adjusted.
Colour Rendering Index (CRI)
This versatile "no dotting" LED tape light is available in CRI>80.
Brightness (Lumen Output)
This bright COB LED strip produces 650lm/m (RGB all on).
Light Diffusion
When it comes to illuminating any area, our COB LED strip lights come equipped with a smooth linear appearance. These flexible LED strips can be used together with our extruded aluminium channels, generally known as LED profiles, if desired. Once LED tape strips are fitted into the profiles, the light source will be evenly distributed.
Choose your length
This full colour COB LED strip light can be purchased now in 5M increments with a 2000mm tail. Or Uprise can cut your tape to exact sizes if you need specific lengths along with extended cables.
Application
This flexible COB LED ribbon is ideal for fitouts within cabinet displays, under pelmets, shelves, signage and within coves.
The LED tape is available in IP65 (splashproof) or IP20 (internal) at 10mm.
IP Rating Options
This bright LED tape is available in the IP65 (splashproof) or IP20 (internal) versions. Contact us on 0116 406 2959 or send us a message at sales@upriseled.com if you wish to talk to a lighting expert. We will guide you to select the correct type to apply.
Quality Assurance
Uprise believes in long term value, that’s why our enterprise class LED tape lights use premium grade, long lasting components. Colour consistency and uniformity is a project must, so all our LED strip lights are batched for overall peace of mind.
Specifications
General
Product Type: Seamless COB RGB LED Tape
Colour: RGB colour mixing (white achieved with 100% all on)
IP Rating: IP65 / IP20
PCB Colour: White
Chip: COB (Chip on board) technology
LEDs per meter: 768 LEDs
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 650Lm/m (RGB all on)
Lumens/w: N/A
CRI: >80
Beam angle: 180°
Electrical
LED Wattage (Per meter): 14W
Input Voltage: 24V
Current (A): N/A
Cable in: 2000mm 2 core (as standard)
Cable out: 0mm as standard
Dimensions
Width: 10mm
Height: 2mm
Length: 5m (as standard), can be cut to size.
Installation
Cut points: 50mm
Cable: 4 core flat cable
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 3 Years
Packaging
Packaging: 5M Roll
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 12mm and will fit into all LED profiles with an inside width of 12mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
*Priced per meter. To order 5M you would add quantity 5, 1M qty 1, 2M qty 2 etc.. Made to measure lengths available on request. A bright white cob led tape light that offers seamless light throughout the strip. 12W per meter with a 2700K / 3000K / 4000K / 6500K temperature, it's ideal for cabinets or shelves. Contact us via sales@upriseled.com or on 0116 406 2959 to discuss your project today.
--
Seamless COB LED Tape 12W IP20
*Priced per meter. Supplied as 5M reel typically (Order x5 qty). Enterprise class quality with the latest in integrated LED technology.
Article - The Definitive Guide to COB LED Strip Lights
Seamless cob LED tape by Uprise LED. A revolutionary new PCB design mounted LED strip light with a uniform "micro dot" LED configuration for the most beautiful light line you've ever witnessed. Our 12 watts per meter flexible COB (Chip on-board) LED strip light provides a stunning flow of ambience throughout. Innovative cut of the cloth design means LEDs are closely knitted directly to the PCB substrate. A clever design that offers maximum efficacy and flexibility. This combined with a unique "bubble doming" silicone coating method ensures a stable, reliable solution for professional integrations. Lighting brilliance to put it simply.
Wiring Example
Support
How to connect COB LED tape lights simply.
This 12V COB LED tape strip is just 12W/M offering excellent efficiency and upto a respectable 1100 lumens per meter output. 480 LEDs per meter allow for a continuous, homogeneous illumination throughout the strip. Available colours include 2700K, 3000K, 4000K, 6000K.
Lifetime expectancy is 30,000+ hours of continuous use. 25mm cut points. 10mm wide. 12V. 2 core wiring.
Here at Uprise we aim to provide the utmost value and integrity throughout the entire supply process. From first point of call to happy result. That's why we ensure carefully selected high tolerance components are utilised. This means we've done our due diligence throughout the design and selection process ensuring premium quality throughout. High grade LED chips have been utilised for superior quality in strip longevity and effect.
Specifications
General
Product Type: Seamless No Dot LED Tape (12W)
Colour: Warmer White (2700K) / Warm White (3000K) / Neutral White (4000K) / Cool White (6000K)
IP Rating: IP20 (Internal) / IP65 Heat Shrink (splash proof) (Available on request)
PCB Colour: White
Chip: COB (Chip on board) Flip Chip Technology
LEDs per meter: 480LEDS
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 1000-1100lm/m
Lumens/w: 87.5lm/W
High CRI: 90+
Beam angle: 180°
Electrical
LED Wattage (Per meter): 12W
Input Voltage: 12v DC
Current (A): 1A/m
Cable in: 200mm 2 core (as standard)
Cable out: 200mm 2 core (as standard)
Dimensions
Width: 10mm
Height: 2mm
Length: 5m (as standard)
Installation
Cut points: 25mm
Cable: 2 core flat cable
Mounting: Strong adhesive backing tape (Blue)
Guarantee
Certification: CE, RoHS
Warranty: 3 Years
Packaging
Packaging: 5M Roll as standard.
Net Weight: 152g/Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 10mm and will fit into all LED profiles with an inside width of 10mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I've purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we're here to help.
