Description
A Super thin IP65 (splash proof) 5W COB LED strip light that creates a continuous, seamless light line result. Ideal for bathrooms, kitchens, bars or exterior areas where splash resistance is required. Available in 2700K warmer, 3000K warm, 3500K soft, 4000K neutral, 5000K cool and 6500K cooler light temperatures.
Support Videos
What are the different colour temperatures available for this 4mm COB LED strip light?
Do you offer single / double door cabinet sensors for wardrobes, how do they work?
Seamless Lighting Simplifed - Uprise Company Overview Video
[VIDEO] How can I extend the cable easily between COB LED strips?
[Y] ep1 - Best way to connect a 5M 4mm COB LED strip to driver (24V)
Product Datasheets
480LED_M_4mm_5W_M_COB_LED_Tape_2700K_IP65_HS_24V_DATASHEET
480LED_M_4mm_5W_M_COB_LED_Tape_3000K_IP65_HS_24V_DATASHEET
480LED_M_4mm_5W_M_COB_LED_Tape_3500K_IP65_HS_24V_DATASHEET
480LED_M_4mm_5W_M_COB_LED_Tape_4000K_IP65_HS_24V_DATASHEET
480LED_M_4mm_5W_M_COB_LED_Tape_5000K_IP65_HS_24V_DATASHEET
480LED_M_4mm_5W_M_COB_LED_Tape_6500K_IP65_HS_24V_DATASHEET
Compatible Products (LED Solution)
POWERUP Furniture LED Drivers
Cabinet LED Drivers
Cabinet LED Sensors
Extension Cables
How to connect COB LED tape lights simply.
Super narrow 4mm COB LED tape. No-Dot lighting made easy.

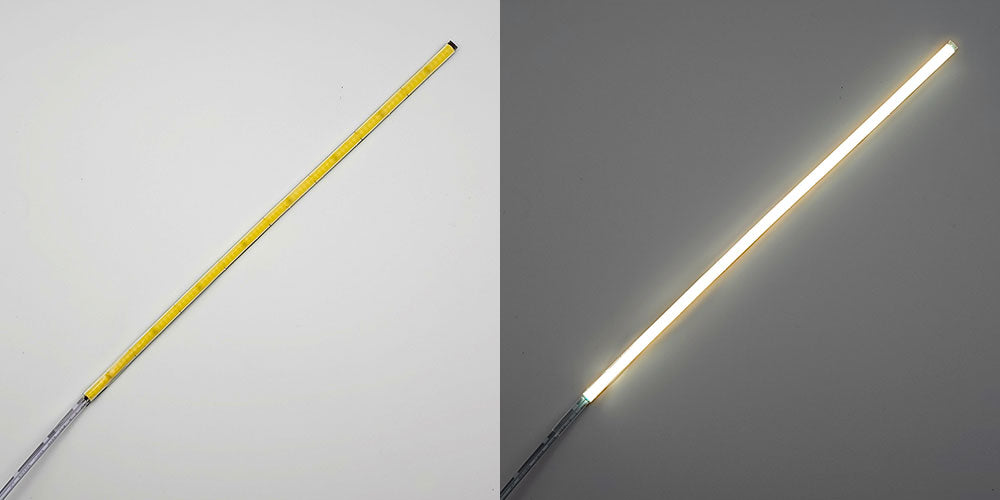

This 5-watt COB LED strip is a continuous LED lighting source that is ultra narrow and very flexible, making it excellent for a variety of applications. This high lumen LED tape, which uses branded COB LEDs and is manufactured to a high quality standard, produces up to 573.9 (6000K) lumens per meter, while consuming only 5 watts per meter. A normal life expectancy is 50,000 hours of continuous use.
24V COB LED Strip Wiring Scenarios
1) Plug & Play Furniture System (on/off): UK Mains > 2M UK plug to C7 mains lead > 24V 24W Furniture Cabinet Light Driver > 24V COB LED strip light
2) Plug & Play Furniture System w/sensor: UK Mains > 2M UK plug to C7 mains lead > 24W / 60W Furniture LED Driver (24V) > Furniture Sensors > 24V COB LED strip light
3) Plug & Play Multi-Port (6) Wifi/Remote Furniture Light System: UK Mains > 2M UK plug to C7 mains lead > 60W Furniture LED Driver (24V) > Single Channel Wifi Connectable Controller Receiver > 24V COB LED strip light < Single Colour Remote Handset / Smart Device Control.
Articles
The Definitive Guide to COB LED Strip Lights
Colour Temperatures
Uprise has a wide range of LED strip lights to accommodate your needs, from roasting deep warm whites to cool white shades. We offer a standard range of kelvin temperatures that match to 2700K, 3000K, 4000K, and 6000K. Do you have a colour in mind? Any bespoke manufacturing requirements you may have can be discussed with us.
Colour Rendering Index (CRI)
This flexible LED tape light is available in CRI>90.
Brightness (Lumen Output)
This luminous LED ribbon produces 481.05lm/m (2700K), 512.8lm/m (3000K), 550.75lm/m (4000K), and 573.9lm/m (6000K) typically.
Light Diffusion
When illuminating any surface, our COB LED tape lights provide a seamless linear effect as standard. Our LED tape strips can be used in combination with our extruded aluminium channels, commonly known as LED profiles. The light source of the LED strips will be evenly dispersed when they are fitted within profiles.
Wiring Example
Choose your length
Uprise's 5-watt COB LED tape light, like our other bendable strip light series, comes in standard 5M reels and may be cut at each 50mm soldered (copper coloured) segment. If you require specific lengths, large or small, we can cut your tape to length.
Application

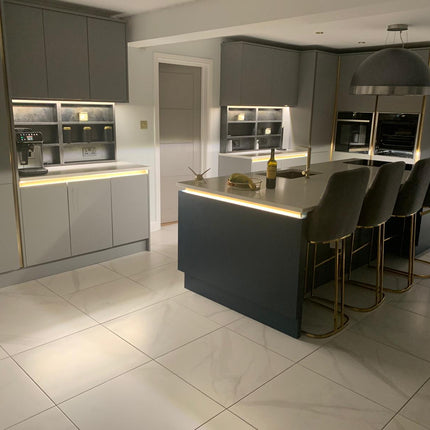

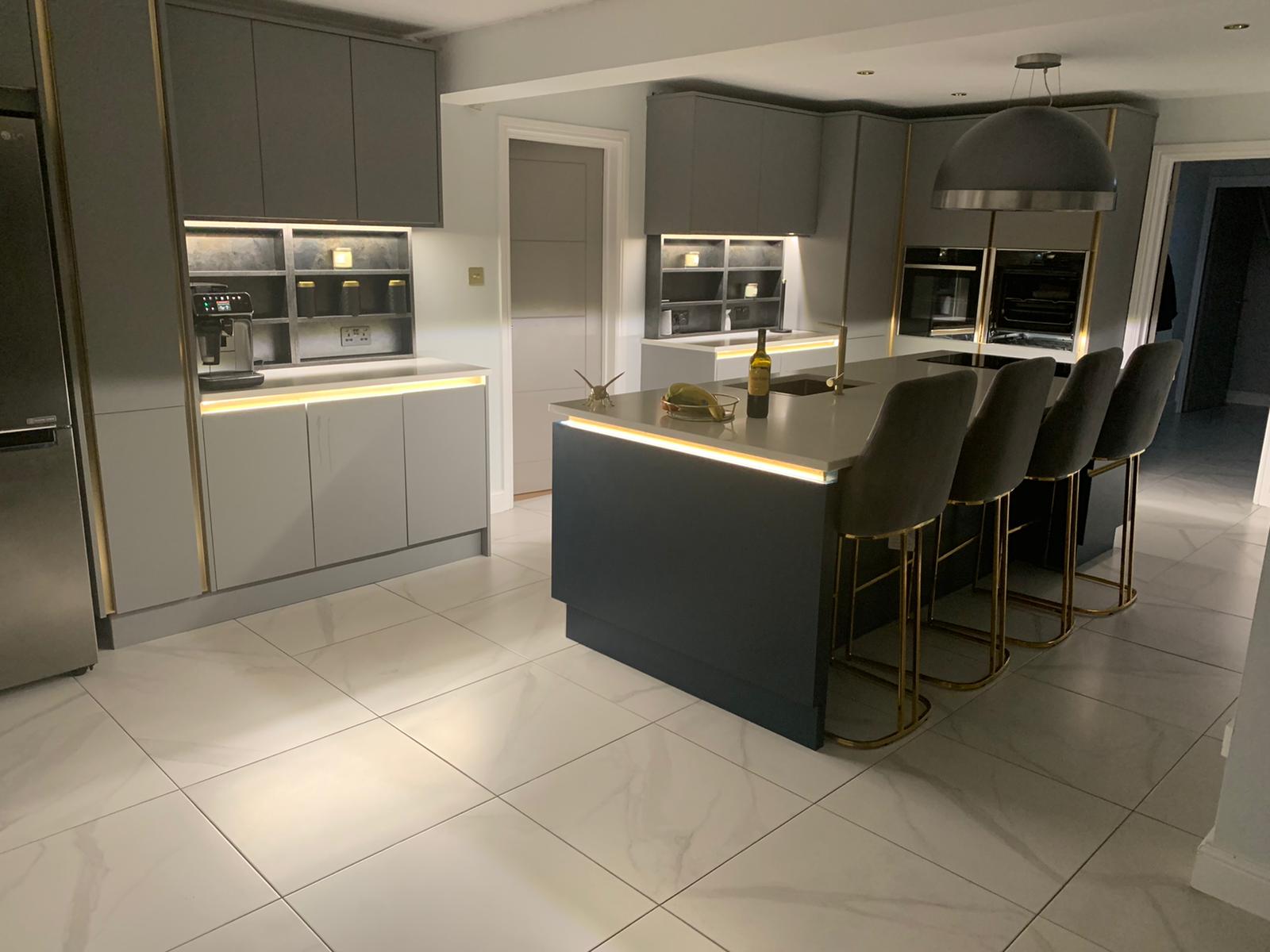

This ultra narrow COB LED tape light is suitable for fitouts within cabinet displays, under pelmets, shelves, signage and within coves.

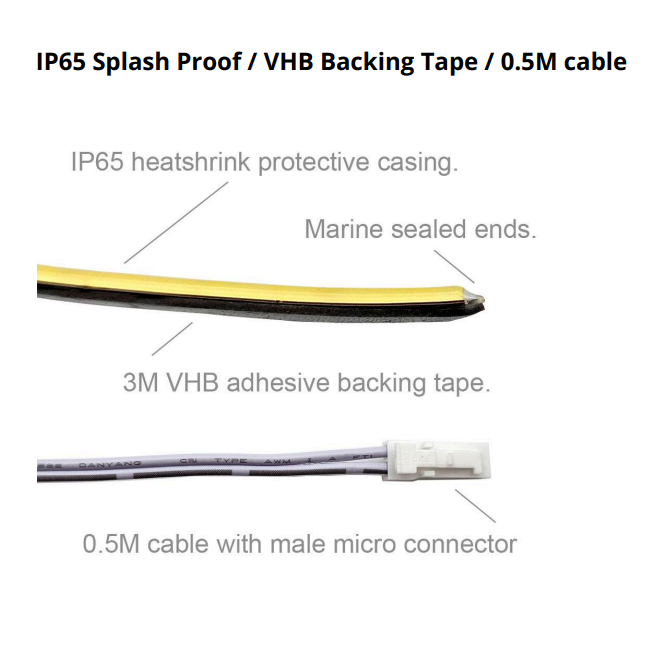

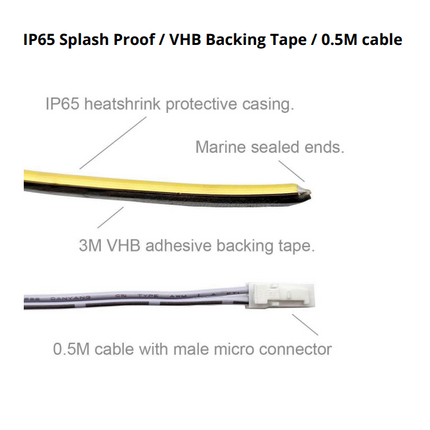

The LED strip is only 4mm wide and IP65 (splash proof) rated. This provides complete protection against solid items over 12.5mm like finger touch. LED strip lights with a IP65 rating are ideal for applications where the potential for liquid ingress is present.
IP Rating Options
This LED strip is available in IP65 (splash proof). Feel free to WhatsApp us on 07957 180 481 or email us via sales@upriseled.com to talk to an expert. We'll assist you to choose the right strip to apply.
Environments
This strip light offers bright lighting for commercial applications, which is suitable for luxury resorts, restaurants, bars, hotel lobby areas as well as retail environments and window displays. When in need of a super narrow, bright, long lasting LED strip, this product is ideal for architects, lighting designers, AV integrators, electrical contractors and trade professionals alike.
It is perfectly suited for outside garden areas such as edge lights, garden bars and steps, living rooms, kitchens and home movies.
Quality Assurance
Uprise believes in long term value, which is why our enterprise class LED tape lights include high-quality, long lasting components. Colour consistency and uniformity are important for the right finish for all our LED strips.
Uprise offers a wide variety of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. For splendid visual aesthetics and end dimming results, you can also view the Dim to Warm & Seamless COB flexible LED strip.
Specifications
General
-
Product Type: Seamless COB LED Tape
-
Colour: 2700K / 3000K / 4000K / 6000K
-
IP Rating: IP65 (Splash Proof)
-
PCB Colour: White
-
Chip: COB (Chip on board) technology
-
LEDs per meter: 480LEDs
-
LED Life: 70% @ 50,000 Hours
-
Brand: Uprise
Light Characteristics
-
Lumens/m: 481.05Lm/m (2700K), 573.90Lm/m (6000K)
-
Lumens/w: 96.21Lm/w (2700K), 114.78Lm/m (6000K)
-
CRI: >90
-
Beam angle: 180°
Electrical
-
LED Wattage (Per meter): 5W
-
Input Voltage: 24V
-
Current (A): 0.21A
-
Cable in: 500mm 2 core (as standard)
-
Cable out: 500mm 2 core (as standard)
Dimensions
-
Width: 4mm
-
Height: 2mm
-
Length: 5m (as standard)
Installation
-
Cut points: 50mm
-
Cable: 2 core flat cable
-
Mounting: 3M backing tape
Guarantee
-
Certification: CE, RoHS
-
Warranty: 3 Years
Packaging
-
Packaging: 5M Roll
-
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this 4mm cob led tape strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 4mm and will fit into all LED profiles with an inside width of 4mm and above.
How can I buy?
You either buy individual components online or call / WhatsApp us on 07957 180 481 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
