Description

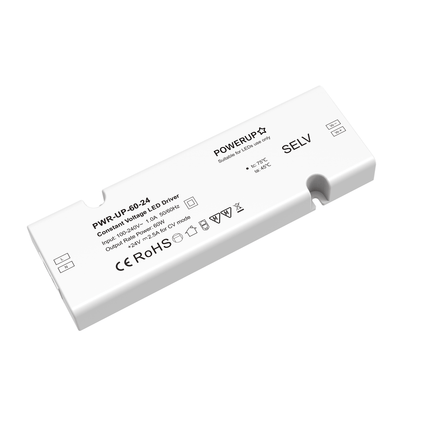

POWERUP 60W Constant Voltage Furniture LED Driver (24V)
Note: This driver requires a UK/Euro/US C7 Mains lead.
This 60W cabinet LED driver can power 24V LED products including no dot LED strip lights. The value innovation comes when combined with our 1UP (GO) 6CH LED control box that allows for 6 output LED control and synchronous dimming via a single channel remote handset.
12V / 24V 60W Cabinet LED Driver User Manual
PWR-UP-60_USER_MANUAL
Download Cabinet LED Drivers Q&A Sheet PDF for more support.
Compatible system products
6 Way Controller Receiver: 6CH Single Colour Wifi Connectable Controller Receiver (12V-24V)
Remote Handset: Single Colour Remote Control 4 Zone (Black)
Outputs
- Single output
- 6 outputs for LED accessories when combined with 1UP (GO) or 2UP wireless LED control boxes (allows for remote handset / phone app control). Ideal for cabinet shelves or kitchen feature lighting.
Features
- 100-240VAT Input
- Single channel (1) constant voltage output, Maximum total output 60W
- Ultra slimline design, light weight and high efficiency
- Over-load / Short circuit protection
- Suited for indoor (internal) LED lighting applications
- 5 Year, 50,000 hour warranty as standard
Applications
- Cabinets, Shelves, Walkin-wardrobes, Integrated Light lines, Undercabinet Lighting
- Coving, Architectural features,
- Residential - Kitchens, Bedrooms, Conservatories, Home AV, Media Units,
- Commercial - Retail, window displays, Hotel, lobbies, conference rooms,
Connectable Accessories
Connect a hand wave, touch, or even a single door or double sensor (inline or master).
Power Consumption
This cabinet LED driver is rated at 60W.
Size
Ultra thin design at just 18mm depth for hidden installation. 164mm x 55mm x 18mm
Wiring
Mains > UK Mains Plug to C7 connector > PWR-UP-60-24
Testing
100% full load age testing, consistent with world lighting safety standards.
Circuit Protection
Open circuit, short circuit, overload and overheating protection.
Standards
All of our Uprise LED drivers are TUV/CE/SAA/ETL/FCC approved.
Choose your lengths
This product is compatible with all our 24V COB LED strip lights, marker LED downlights, cabinet pad downlights, seamless cob and single colour LED tape lights. Simply decide the lengths required and ensure that the total wattage across all lengths when totalled does not exceed 60W - 10% (54W) to build in a safety buffer.
IP Rating
This LED supply is IP20 rated and suitable for internal applications.
Environments
Create an easy, fast setup for any environment. Just click and connect this plug and play system to create stunning, continuous LED light aesthetics.
Quality Assurance
Uprise believes in long-term value, which is why our enterprise class LED tape lights include high-quality, long lasting components. Color consistency and uniformity are important for the right finish for all our LED strips.
Specifications
General
-
Product Type: Constant voltage furniture LED driver
-
IP Rating: IP20
-
Brand: POWERUP
Electrical
-
Power Range: 18W-60W
-
Input Voltage: 200-240V
-
Output Voltage: 24V +/- 5%
-
AC Input Current: 0.36A
-
Wattage: 60W
-
Voltage: 24V
-
Surge Protection: 1.5Kv
Sensor Connectivity
-
Sensor Port: PHB 2.0
-
Sensor Compatibility: Hand Wave Sensor / Touch Sensor / Single Door Switch / Double Door Switch / Wood Sensor (Hidden sensor)
Dimensions
-
Width: 55mm
-
Height: 18mm
-
Length: 164mm
Installation
Guarantee
-
Certification / Standards: CE, SELV, RoHS, UKCA
-
Warranty: 5 Years
Packaging
-
Packaging: White cardboard box
-
Net Weight: 375g
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
What style of LED tape lights is this compatible with?
This driver is compatible with any 24V 2 core single colour LED tape strip or 24V LED source such as lamps, battens or marker LEDs. Contact us for more information.
How can I buy?
You either buy individual components online or call us on 07957 180 481 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
