Description

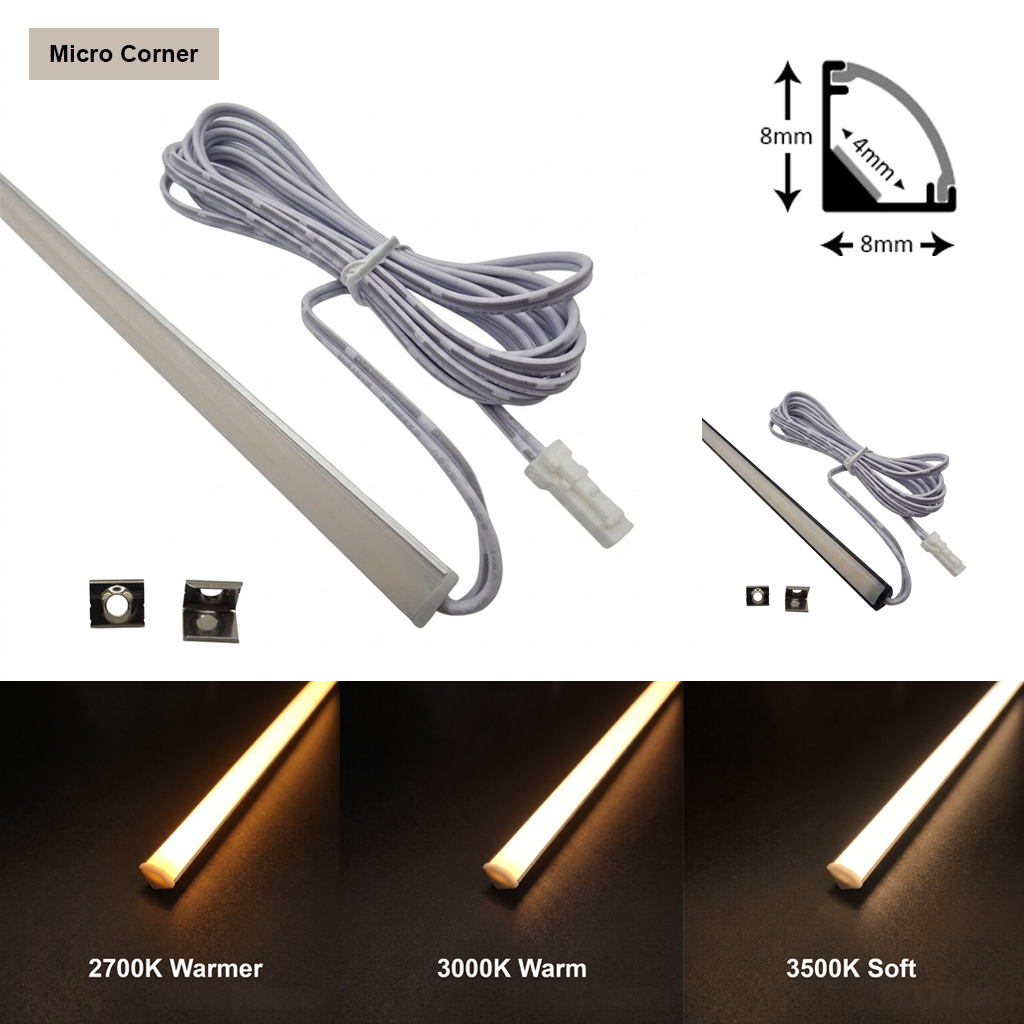

Seamless LED Aluminium Micro Corner Profile Light For Cabinets, Shelves & Drawers.
This 604mm long seamless LED aluminium micro corner profile comes pre-made with end caps and a 2M click and connect lead. Or as individual components for bespoke fitouts (LED strip cut at 25mm intervals).
This sleek, spot free linear corner LED light is ideal for surface mounting within shelves, cabinets, drawers and walk-in wardrobes. With it's compact micro quadrant (45° Diagonal) style design, it offers multi-direction light throw (vertical & horizontal) with the addition of a frontfacing continuous visual effect.
Compatible Products (LED Solution)
POWERUP Furniture LED Drivers
Cabinet LED Drivers
Cabinet LED Sensors
Extension Cables
Product Datasheets
Colour Temperatures
Uprise has a wide range of LED strip lights to accommodate your needs, from roasting deep warm whites to cool white shades. We offer a standard range of kelvin temperatures that match to 2700K, 3000K, 3500K, 4000K, 5000K and 6500K. Do you have a colour in mind? Any bespoke manufacturing requirements you may have can be discussed with us.
Colour Rendering Index (CRI)
This flexible LED tape light is available in CRI>90.
Brightness (Lumen Output)
This luminous LED ribbon produces 481.05lm/m (2700K), 512.8lm/m (3000K), 550.75lm/m (4000K), and 573.9lm/m (6000K) typically.
Light Diffusion
When illuminating any surface, our COB LED tape lights provide a seamless linear effect as standard. Our LED tape strips can be used in combination with our extruded aluminium channels, commonly known as LED profiles. The light source of the LED strips will be evenly dispersed when they are fitted within profiles.
Wiring Example
Application
This ultra narrow micro corner LED light is suitable for fitouts within cabinet displays, under pelmets, shelves, media units, signage and within coves.
The standard seamless COB LED strip is only 4mm wide and IP20 rated.
Specifications
General
-
Product Type: Seamless COB LED Tape
-
Colour: 2700K Warmer / 3000K Warm White / 3500K Soft / 4000K Neutral / 5000K Cool / 6000K Cooler
-
IP Rating: IP20
-
PCB Colour: White
-
Chip: COB (Chip on board) technology
-
LEDs per meter: 480LEDs
-
LED Life: 70% @ 50,000 Hours
-
Brand: Uprise
Light Characteristics
-
Lumens/m: 481.05Lm/m (2700K), 573.90Lm/m (6000K)
-
Lumens/w: 96.21Lm/w (2700K), 114.78Lm/m (6000K)
-
CRI: >90
-
Beam angle: 180°
Electrical
-
LED Wattage (Per meter): 5W (3W @ 0.6M)
-
Input Voltage: 24V
-
Current (A): 0.21A
-
Cable in: 2000mm 2 core (as standard)
Dimensions
-
Width: 4mm
-
Height: 2mm
-
Length: 604mm (0.604M) or 600mm without end caps
Installation
-
Cut points: 25mm
-
Cable: 2 core flat cable
-
Mounting: 3M backing tape
Guarantee
-
Certification: CE, RoHS
-
Warranty: 2 Years
Packaging
-
Packaging: 0.604M length
-
Net Weight: 152g
