12V 500mm Seamless 3000K IP65 COB LED Tape Trial Kit With Plug & Play Driver
12V 500mm Seamless 3000K IP65 COB LED Tape Trial Kit With Plug & Play Driver
[VIDEO] Seamless lighting simplified.
[VIDEO] Seamless lighting simplified.
Special Trial Offer - Try Before You Begin. Limited number of kits available. Includes free shipping to UK Mainland. Limited to one per customer.
This simple to connect 500mm 3000K warm white cob led strip kit comes with a 24W 5 output plug and play driver. It's ideal for trialling "no dot" lighting before you commence with a lighting project.

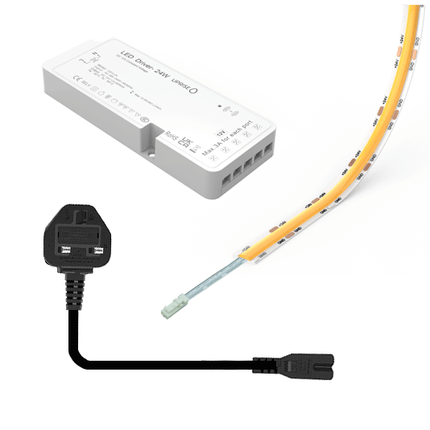

Wiring Setup: UK Mains Socket > UK Mains Plug (Inc C7 connector) > 24W Cabinet LED Driver (12V) > 12V 3000K "no dot" COB LED Tape
Ideal for trade professionals, DIY'ers, lighting designers, joinery companies and great for product fit testing within home environments such as kitchens, bedrooms and bathrooms. Along with applications like cabinets, drawers, shelves, media units, walk in wardrobes and more.
12V 0.5M COB LED Tape Kit With Quick Connect Driver
Kit Includes

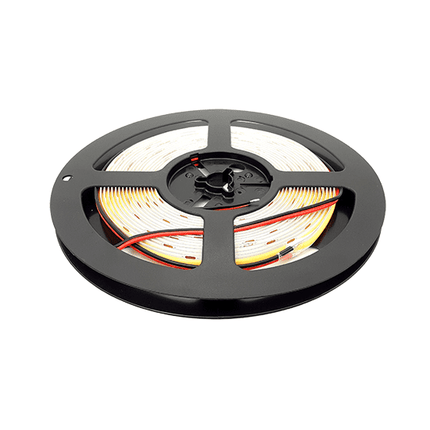

- x1 0.5M (500mm) 8mm 12V IP65 (heatshrink) COB LED tape light packed on reel.

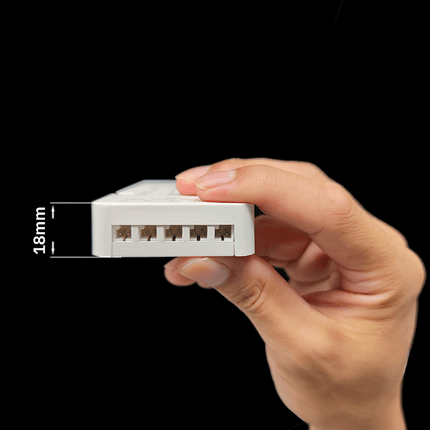

- x1 24W 12V plug and play cabinet style LED driver
- x1 2M Extension cable so you can see how easy it is to extend your length.

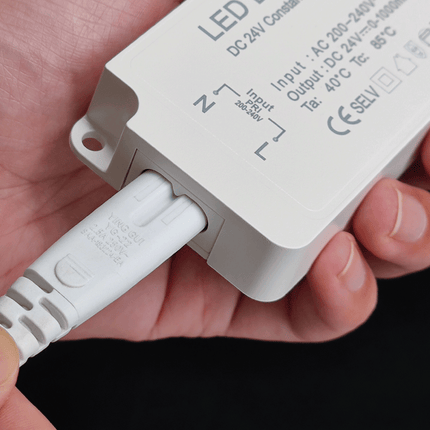

- x1 2M mains plugs with C7 type connector (plugs directly into cabinet LED driver).
Support
How to connect COB LED tape lights simply.
Specifications
COB LED Tape
- Product Type: Seamless No Dot LED Tape (9W)
- Colour: Warmer White (2700K) / Warm White (3000K) / Neutral White (4000K) / Cool White (6000K)
- IP Rating: IP20 (Internal)
- PCB Colour: White
- Chip: COB (Chip on board) Flip Chip Technology
- LEDs per meter: 480LEDS
- LED Life: 70% @ 50,000 Hours
- Brand: Uprise
Light Characteristics
- Lumens/m: 900lm/m
- Lumens/w: 80-120lm/W
- High CRI: 90
- Beam angle: 180°
Electrical
-
LED Wattage (Per meter based on 5M run length): 9W
For Actual Wattages: Download Wattage & Driver Parameters Sheet .csv - Input Voltage: 12v DC
- Current (A): 0.75A/m
- Cable in: 500mm 2 core (as standard)
- Cable out: 500mm 2 core (as standard)
Dimensions
- Width: 8mm
- Height: 2mm
- Length: 2.5m (as standard)
Installation
- Cut points: 25mm
- Cable: 2 core flat cable
- Mounting: 3M backing tape
Guarantee
- Certification: CE, RoHS
- Warranty: 3 Years
Packaging
- Packaging: 2.5M Roll as standard.
- Net Weight: 152g/Roll
*Please Note: No more than 3 metres of COB LED tape should be connected to a single port. Upto 6 metres can be powered across two ports (powered both ends).
Article - The Definitive Guide to COB LED Strip Lights
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can I cut this COB LED strip to length?
Yes, it can be cut easily at every 25mm indicated cut point. Alternatively we can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
How do I connect an extension cable to the LED tape?
This LED tape kit comes with 10mm wide LED tape to 2 core cable connectors. Simply push the ends of tape into one side of the connector and the 2 core cable into the other. Once both are firmly in place clamp down the metal connection spokes with a pair of plyers. This results in a secure circuit. It's important to ensure the polarity of the + / - are correctly orientated, please check this.
What aluminium LED extrusions can I fit this into?
This product is 8mm and will fit into all LED profiles with an inside width of 8mm and above.How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@upriseled.com and a member of our team will help you with your project.What support will I receive once I've purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we're here to help you get a finished result that lasts.
Questions & Answers
Questions & Answers
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 12mm and will fit into all LED profiles with an inside width of 12mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
Shipping & Returns
Shipping & Returns
Questions & Answers - LED Strips
Q) Do you have a fast, easy connection system for LED strip lights?

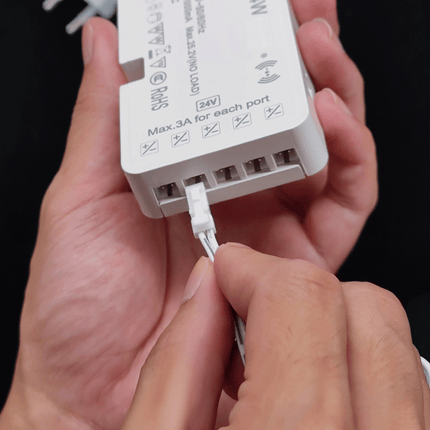

A) Yes typically our COB LED tape lights come with a 500mm lead with a micro male connector that clicks into our range of furniture lighting LED Drivers.
This allows for one of the fastest, simplest LED strip light setups you'll experience.
We also supply male to female micro connector extension leads which are available in 2M/3M/4M/5M/10M/20M lengths. This allows a quick and easy way of getting a cable to an LED strip without the need for onsite soldering.
Overall Benefits
1) Save allot of time onsite or with your project due to click and connect system.
2) Reduce risk of faulty connections due to poor soldering.
3) Allows adaptability in system connectivity for hard to reach areas.
4) Our cabinet LED drivers are also compatible with cabinet sensors such as hand wave, single & double door (for walkin wardrobes / cabinets) and PIR for movement.
5) Our next generation furniture LED drivers offer sensor and remote handset / wifi syncronisation.
Q) Can you help me with my LED lighting project design?
Yes, we're here to help you bring your unique project to completion.
Our team of LED lighting experts with over 16 years experience will go through your project with you and ensure a solution that's best suited for your goals.
Q) Do you supply no dot COB LED tape lights?
A) Yes, Uprise aims to bring you the absolute latest in LED strip technology including "no dot" COB LED strip lights. We're now able to supply COB LED tape at just 3mm wide along with 4mm, 5mm, 8mm, 10mm.

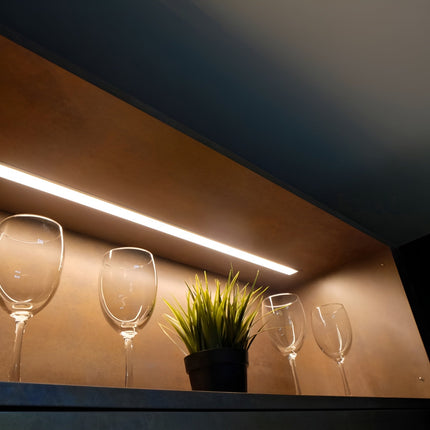

Looking to add spotless COB LED strips for your kitchen under cabiet lighting, within cupboards or within routed grooves? Or perhaps you to light up your bathroom or vanity mirrors? We can help supply a made to measure solution ideally suited for your project.
Q) How do I bend LED tape around a corner?
A) LED tape lights typically flex up/down and not side to side. So there are a options for mounting LED tapes around corners.
Option 1: Mount the LED tape horizontally allowing for it's natural bend ability.
Option 2: For corner applications where the LED tape is mounted and cannot bend you can use corner accessories. This are typically a good option but connections can come lose or degrade over time.
Option 3: Communicate your requirement to us and we can create and solder a corner "knuckle joint" especially for your project. Get in touch today via sales@upriseled.com or 07957 180 481.
Q) Are your LED strip lights available in 12V or 24V?
A) We typically offer both 12V and 24V LED strips. These come in a wide variety of colour options including "no dot" COB LED tapes, single colour, CCT, RGB, RGBW & RGBCCT.
I've heard about 12V, 24V and even 5V LED tape lights, what's the difference?
12V and 24V are the standard for most single colour or colour changing LED tapes.
The main difference between 12V and 24V is how far you can run an LED tape light without voltage drop.
What is voltage drop? It's the distance in which an LED light strip can be powered from one end without the light degrading or "trailing off" in brightness. 24V carries further than 12V before a noticeable brightness drop is visibly seen.
Another key difference you'll notice between 12V and 24V is the "cut points", these are the points in which an LED tape can be cut and are typically indicated by copper pads. With 12V the cut points are usually smaller allowing for a precision fit whereas 24V are usually wider.
So you could say 24V LED strip lights are good for long distance straight runs when you may only be able to feed from one end and 12V are better for smaller lengths where a "precision fit" for the light result is needed.
So what about 5V, what's the deal?
5V LED tape lights are usually associated with flexible Digitial pixel LED strip lights. These come in either single colour, RGB or RGBW and allow individual control over each LED. They can be controlled by SPI or DMX LED drivers or controller receivers. And then pixel mapped by frontend software such as Madrix, Light Jams, ELM or other such software.
Q) Do you supply LED profiles / aluminium channels for LED strips?
A) Yes we offer a wide range of aluminium profiles including the latest generation micro recessed, corner and surface types. Available in black / silver. Complete with blackout / semi-diffuser cover for a seamless light impression.
We also Plaster-in, walkover and circle tube style profiles along with standard sized corner, surface or recessed.
Q) What guarantee or warranty to do you provide?
All our products typically come with a 3-5 year warranty unless otherwise advised.
For modified LED strips by ourselves we offer a 1 year back to base warranty. However we always aim to provide a professional bespoke service. This is extremely unlikely to affect long term performance of the LED strip lights. Typical life estimation for our LED strips are 50,000 hours.
Q) Are your LED strips available in just white or do you offer colours as well?
A) We offer white LED tape lights along with CCT (Colour changing temperature, smart whites), RGB, RGBW and RGBCCT colour changing LED strips.
Whites: 2300K Deep Warm, 2700 Warmer, 3000K Warm, 4000K Neutral, 5000K Natural, 6000K Cool, 6500K Cooler.
CCT (Dual white): 2700K-6000K
RGB: Colour Changing for vibrant colours
RGBW: RGB3000K, RGB4000K,RGB6000K colour changing for vibrant colours, dedicated whites and pastel hues and shades.
RGBCCT: RGBCCT offers the most complete colour rendering. Allowing for vibrant colours and two seperate dedicated whites (typically 3K-6K) for crisp colour selection and toning.
Q) Are LED tape lights flexible? How flexible?
A) LED tape lights are extremely flexible, offering versatility in light planning and integration.
Typically LED tape lights will flex up and down. This allows for straight runs or if side facing to bend at 90 degree angles around a perimeter.
Depending on the LED tape it can also be flexed and folded or "looped" to get around corners within a wide cove integration for example. If in doubt contact one of our support team.
