Description
A simple to setup 6M RGBW seamless COB LED tape kit. It includes x2 wireless 5 channel LED controller-receivers, x2 power supplies and a wireless RGBCCT handset remote.
[VIDEO >] 840LED RGBW No Dot COB LED Tape With Wireless 5-Channel Remote

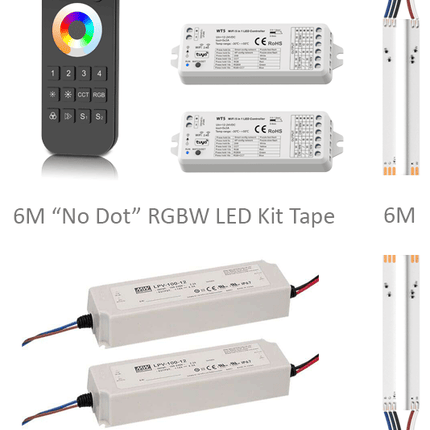

6M Seamless RGBW Kit Breakdown
- 6M 840LED No Dot RGBW 3000K COB LED Tape with 3M tails both ends. This allows for the strip light to be cut in half at 50mm cut points resulting in two lengths.
- x2 5CH Wireless Controller Receiver
- x1 Wireless Handset Remote
- x2 Power Supplies
- Download Tuya app free for "Smart Device" control.
This solution allows for upto 4 zone control via the 5CH remote handset. To control from a smart phone or device simply download the Tuya app, connect your RGBW no dot LED tape lights and create a colourful dream scene for your space.
WT5 Manual.pdf
--
Smart Wifi 5-Channel CCT & RGBTW LED Strip Controller (12V-24V)
Features
- Alexa and Google Assistant Compatible
- Control via Smart Device via Tuya App
- DIM, Smart Dual-White (CCT), RGBCW (RGB+CCT) 4 in 1 constant voltage LED controller. 4A per channel, 5 channels output.
- Download Tuya Smart application and control from mobile wirelessly
- Voice command control via Tuya app.
- Control single colour, tuneable white (CCT), RGB, RGBW, RGBCW and RGB+CCT LED lighting
- WiFi and 2.4GHz Compatibility
Setup
Compatible with Tuya application for simple wireless control via mobile or tablet device. Download for installation support.
Quick Kit Breakdown
-
Part Number: 6M-RGBW3K-COBKIT
-

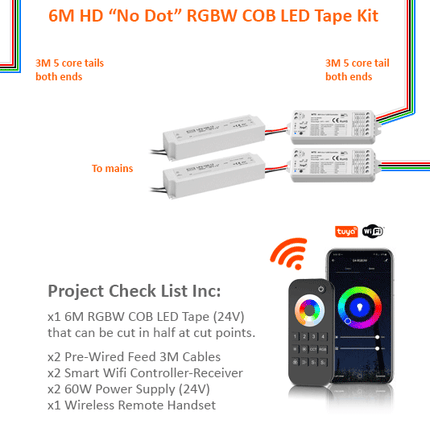

Product Type: 6M RGBW (3000K) "no dot" LED tape reel with 3M 5 core flat cable tails each end. x2 Wireless 5CH LED Controller-Receivers, x1 4 zone Remote, x2 60W 24V commercial grade power supplies.
-
IP Rating: IP20
-
Brand: Uprise
LED Strip Specifications
-

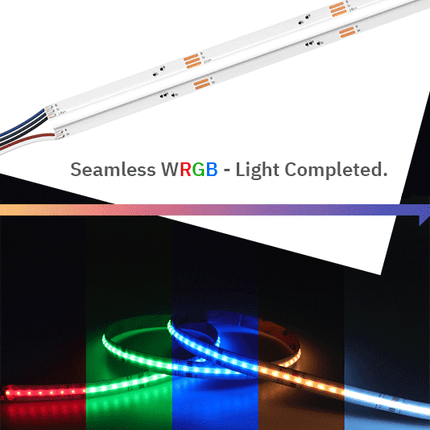

Product Type: Seamless COB RGBW LED Tape
-
Colour: RGB+3000K / RGB+4000K / RGB+6000K
-
IP Rating: IP20 / IP65
-
PCB Colour: White
-
Chip: COB (Chip on board) technology
-
LEDs per meter: 840LEDs
-
LED Life: 70% @ 50,000 Hours
-
Brand: Uprise
Light Characteristics
-
Lumens/m: 711.8Lm/m (RGB+3000K)
-
Lumens/w: N/A
-
CRI: >80
-
Beam angle: 180°
Electrical
-
LED Wattage (Per meter): 20W (19.2 actual)
-
Input Voltage: 24V
-
Current (A): N/A
-
Cable in: 500mm 2 core (as standard)
-
Cable out: 500mm 2 core (as standard)
Dimensions
-
Width: 12mm
-
Height: 2mm
-
Length: 5m (as standard)
Installation
-
Cut points: 33.3mm
-
Cable: 5 core flat cable (20 AWG)
-
Mounting: 3M backing tape
Guarantee
-
Certification: CE, RoHS
-
Warranty: 2 Years
Packaging
-
Packaging: 5M Roll
-
Net Weight: 152g / Roll
Controller Receiver Technical Parameters
Input & Output
-
Input Voltage: 12-24VDC (24V Kit)
-
Input Current: 15.5A
- Output Voltage: 5 x (12-24)VDC
-
Output Current: 5CH,3A/CH
-
Output Power: 5 x (36-72)W
-
Output type: Constant Voltage
Dimming Data
-
Input Signal: Tuya APP + RF 2.4GHz
- Control distance: 30m(Barrier-free space)
- Dimming Grayscale: 4096 (2^12) levels
-
Dimming range: 0 -100%
-
Dimming curve: Logarithmic
-
PWM Frequency: 1000Hz (default)
Dimming Data
-
EMC standard (EMC): ETSI EN 301 489-1 V2.2.3 ETSI EN 301 489-17 V3.2.4
- Safety standard(LVD): EN 62368-1:2020+A11:2020
- Radio Equipment(RED): ETSI EN 300 328 V2.2.2
-
Certification: CE,EMC,LVD,RED
Environment
-
Operation temperature: Ta: -30 O C ~ +55 O C
- Case temperature (Max.): T c:+85 O C
- IP rating: IP20
Warranty & Protection
-
Warranty: 5 Years
-
Protection: Reverse polarity Over-heat Short circuit
Mobile Application
Dimensions
-
Width: 38mm
-
Height: 20mm
-
Length: 114mm
Installation
Packaging
-
Packaging: White cardboard box
-
Net Weight: 65g
System Parameters
The max power is 15A, the controller can support around (12*15=180W or 24*15=360W)
Generally speaking, our controller is suitable for up to 10m led strip per controller without brightness degradation. If you connect up to 20m to 25m, the brightness will be affected unless strip is powered at both ends.
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
What style of LED tape lights is this compatible with?
This driver is compatible with any 12V/24V single colour, RGB, RGBW LED tape lights or RGBTW LED strips including our latest generation No Dot RGBW LED strip light. Contact us for more information.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
