Uprise LED

5mm PRO Seamless COB LED Tape 7W IP20 (12V) 5M with 2M tail and connector

Regular price £49.50 GBP
Regular price £96.00 GBP Sale price £49.50 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.
Colour Temperature
Length
IP Rating

A super slim white 5mm cob led tape light that offers seamless light throughout the strip. Using the highest grade, latest generation micro LED chips this professional COB LED tape light is ideal for bespoke kitchens, furniture lighting and media unit integration.

This ultra energy efficient strip is just 7-watt per meter. Available in a choice 3000K warm white / 4000K neutral (day light) / 6500K cool white temperatures, it's ideal for tight grooves, cabinet displays or shelving units. Complete with hand soldered pre- 2M tail for plug & play connection our our range of 12V cabinet LED drivers. Save time from project start of spec to long-term satisfaction.

How to connect a COB LED tape light without soldering

How to connect COB LED tape lights simply.


--



Seamless PRO COB LED Tape 7W per meter (5M) IP20

Supplied as 5M reel as standard. Enterprise class quality with the latest in integrated LED technology.

Article - The Definitive Guide to COB LED Strip Lights

Seamless cob LED tape by Uprise. A revolutionary new PCB design mounted LED strip light with a uniform "micro dot" LED configuration for the most beautiful light line you've ever witnessed. Our 5 watts per meter flexible COB (Chip on-board) LED strip light provides a stunning flow of ambience throughout. Innovative cut of the cloth design means LEDs are closely knitted directly to the PCB substrate. A clever design that offers maximum efficacy and flexibility. This combined with a unique "bubble doming" silicone coating method ensures a stable, reliable solution for professional integrations. Lighting brilliance to put it simply.

Wiring Example


Single Colour LED Tape Light Wiring

This precision engineered 12V COB LED tape strip is just 7W/M offering excellent efficiency and upto 700 lumens per meter output. 480 LEDs per meter allow for a continuous, homogeneous illumination throughout the strip. Available colours include 3000K warm, 4000K neutral and 6500K cool.

Lifetime expectancy is 50,000 hours of continuous use. 25mm cut points. 5mm wide. 12V. 2 core wiring.

Here at Uprise we aim to provide the utmost value and integrity throughout the entire supply process. From first point of call to happy result. That's why we ensure carefully selected high tolerance components are utilised. This means we've done our due diligence throughout the design and selection process ensuring premium quality throughout. High grade LED chips have been utilised for superior quality in strip longevity and effect.


Specifications


General

    • Product Type: Seamless No Dot LED Tape (7W/M)

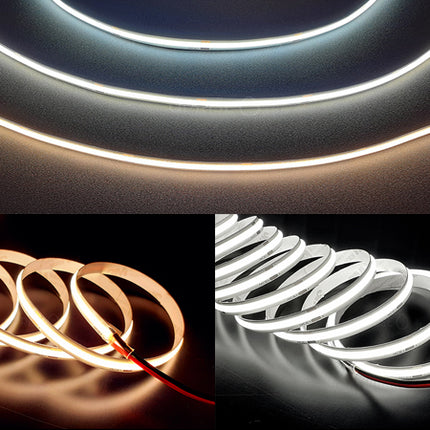

    • Colour: Warm White (3000K) / Neutral White (4000K) / Cool White (6500K)
    • IP Rating: IP20 (Internal)
    • PCB Colour: White

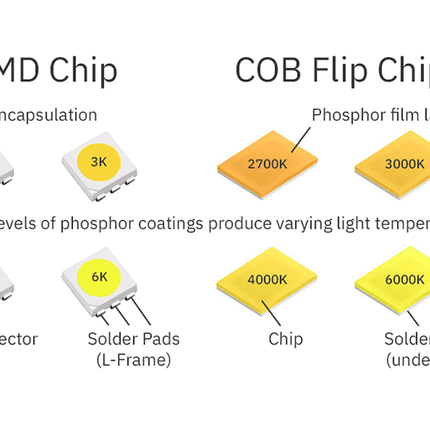

    • Chip: COB (Chip on board) Flip Chip Technology
    • LEDs per meter: 480LEDS
    • LED Life: 70% @ 50,000 Hours
    • Brand: Uprise

Light Characteristics

    • Lumens/m: 450-550lm/m
    • Lumens/w: 72lm/W
    • High CRI: 90+
    • Beam angle: 180°

Electrical

    • LED Wattage (Per meter): 7W
    • Input Voltage: 12v DC
    • Current (A): 0.58A/m
    • Cable in: 2000mm 2 core with micro connector (as standard) for seamless installation with our professional cabinet LED drivers & sensor range.
    • Cable out: 200mm 2 core (as standard)

Dimensions

    • Width: 5mm
    • Height: 2mm
    • Length: 5m (as standard), available in bespoke custom cut to lengths, call us on 0116 406 2959, email us at sales@upriseled.com or send us a project request on 07957 180 481.

Installation

    • Cut points: 25mm
    • Cable: 2 core flat cable

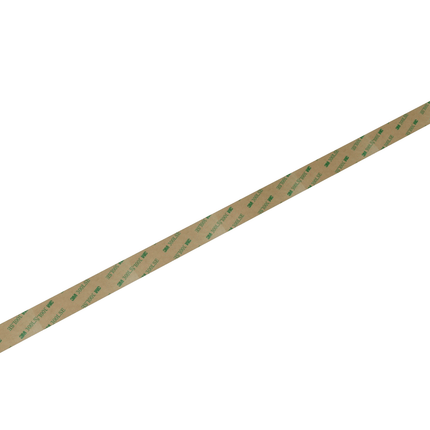

    • Mounting: Strong adhesive backing tape (blue)

Guarantee

    • Certification: CE, RoHS
    • Warranty: 3 Years

Packaging

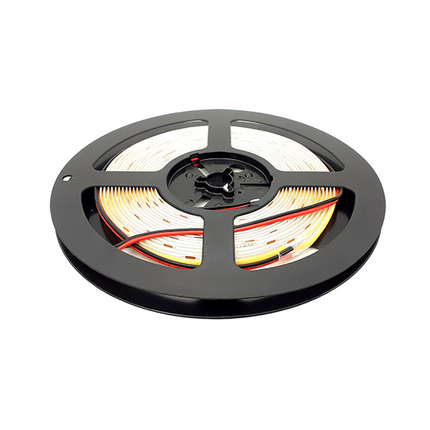

    • Packaging: 5M Roll as standard.
    • Net Weight: 152g/Roll

I need help designing my project, can you help?

Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.

Can you custom cut this strip to length?

We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.

What aluminium LED extrusions can I fit this into?

This product is 5mm and will fit into all LED profiles with an inside width of 5mm and above.

How can I buy?

You either buy individual components online or call us on 0116 406 2959 or email us at sales@upriseled.com and a member of our team will help you with your project.

What support will I receive once I've purchased?

Our aim is to ensure you get an end result that you are completely satisfied with, we're here to help.

Questions & Answers

I need help designing my project, can you help?

Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.

Can you custom cut this strip to length?

We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.

What aluminium LED extrusions can I fit this into?

This product is 12mm and will fit into all LED profiles with an inside width of 12mm and above.

How can I buy?

You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.

What support will I receive once I’ve purchased?

Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.

Shipping & Returns

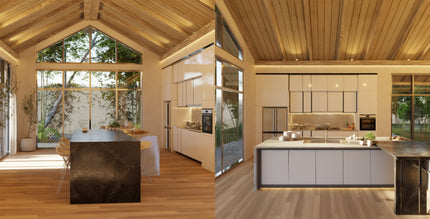

Balinese style kitchen design
