Uprise LED

24W 5 Output Cabinet LED Driver (12V) With Mains Lead

[VIDEO] Seamless lighting simplified.

Regular price £23.99 GBP
Regular price £26.65 GBP Sale price £23.99 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

In Stock - Order now for 1-2 day delivery.

Wiring (Add components)

Mains Source > 2M C7 Mains Lead > 24W Cabinet Driver > Sensor > COB LED Tape

24W 5 Output Cabinet Display LED Driver 12V

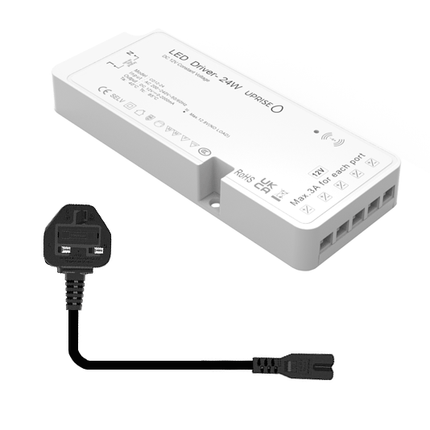

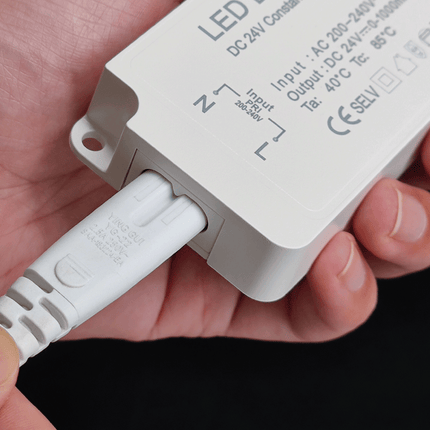

*Includes x1 black coloured 2M (2000mm) UK mains plug to C7 kettle lead.

This 5 output, slimline cabinet LED driver by Uprise offers quick and simple PowerUp to single colour LED tape lights. Ideal for areas where space is limited and a thin LED power source is required. With it’s 24W capacity and 5 micro connectors upto x5 12V LED products / LED tape strips can be connected effortlessly. Compatible with next generation hand wave sensors as well as single and double door sensors means turning your lighting setup on/off has never been easier.

Download Cabinet LED Drivers Q&A Sheet PDF for more support.

Outputs

With 5 micro connectable outputs you can easily run 5 separate LED areas or shelves.

Connectable Accessories

Connect a hand wave, touch, or even a single door or double sensor (inline or master).

Power Consumption

This cabinet LED driver is rated at 24W.

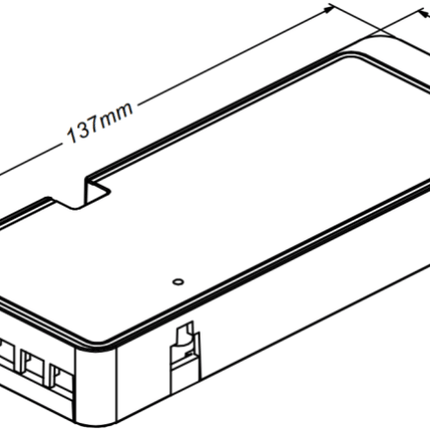

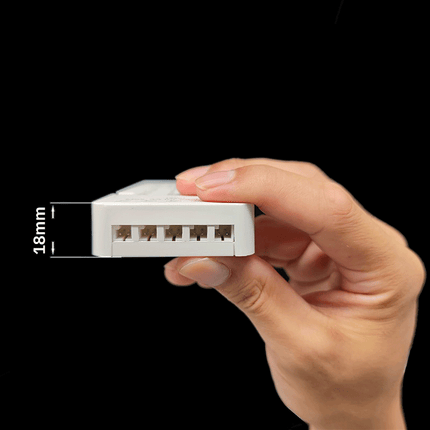

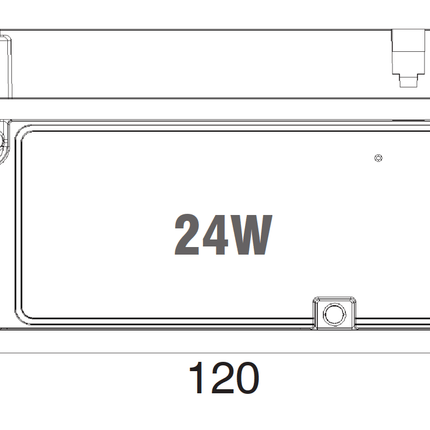

Size

Ultra thin design at just 18.5mm depth for hidden installation. 136mm x 54mm x 18.5mm

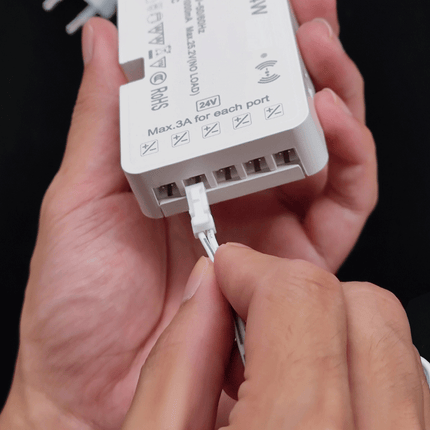

Wiring

5 outputs with micro connection terminals. Keep wiring tidy and professional.

Testing

100% full load age testing, consistent with world lighting safety standards.

Circuit Protection

Open circuit, short circuit, overload and overheating protection.

Standards

All of our Uprise LED drivers are TUV/CE/SAA/ETL/FCC approved.

Choose your lengths

This product is compatible with all our 12V marker LED downlights, cabinet pad downlights, seamless cob and single colour LED tape lights. Simply decide the lengths required and ensure that the total wattage across all lengths when totalled does not exceed 24W - 10% (21.6W) to build in a safety buffer.

Application

A thin and functional LED driver that’s best suited for fitouts within cabinet displays, under pelmets, shelves, signage and within coves. It’s also suited for many other applications whereby space is limited and multiple lengths of LED strips are desired.

The driver is only 54mm wide and standard IP20 rated. This provides complete protection against solid items over 12.5mm like finger touch.

IP Rating

This LED supply is IP20 rated and suitable for internal applications.

Environments

Create a stunning, continuous visual aesthetic within the home, add beauty to your walk in wardrobes, designer cabinets, or prestigious wine racks by combining this Uprise 12V 24W LED driver with a range of our seamless cob LED tape lights.

Quality Assurance

Uprise believes in long-term value, which is why our enterprise class LED tape lights include high-quality, long lasting components. Colour consistency and uniformity are important for the right finish for all our LED strips.

Uprise offers a wide variety of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. For splendid visual aesthetics and end dimming results, you can also view the Dim to Warm & Seamless COB flexible LED strip

Specifications

General

  • Product Type: 5 output cabinet LED driver
  • IP Rating: IP20
  • Brand: Uprise

Electrical

  • Power Range: 18W-24W
  • Input Voltage: 200-240V
  • Output Voltage: 12V +/- 5%
  • AC Input Current: 0.36A
  • 3A Port: 5
  • Outputs: x5 micro connectors
  • Wattage: 24W
  • Voltage: 12V
  • Surge Protection: 1.5Kv

Sensor Connectivity

  • Sensor Port: PHB 2.0
  • Sensor Compatibility: Hand Wave Sensor / Touch Sensor / Single Door Switch / Double Door Switch

Dimensions

  • Width: 54mm
  • Height: 18.5mm
  • Length: 136mm

Installation

  • Mounting: x2 Screws

Guarantee

  • Certification / Standards: CE, SELV, RoHS, UKCA
  • Warranty: 3 Years

Packaging

  • Packaging: White cardboard box
  • Net Weight: 375g
I need help designing my project, can you help?

Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.

What style of LED tape lights is this compatible with?

This driver is compatible with any 12V 2 core single colour LED tape strip or 12V LED source such as lamps, battens or marker LEDs. Contact us for more information.

How can I buy?

You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.

What support will I receive once I’ve purchased?

Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.

Questions & Answers

I need help designing my project, can you help?

Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.

Can you custom cut this strip to length?

We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.

What aluminium LED extrusions can I fit this into?

This product is 12mm and will fit into all LED profiles with an inside width of 12mm and above.

How can I buy?

You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.

What support will I receive once I’ve purchased?

Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
