Uprise LED

12mm 1232LED UHD No Dot RGBW COB LED Tape, 20W, 24V

[VIDEO] Seamless lighting simplified.

Regular price £35.90 GBP
Regular price Sale price £35.90 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.
Colour Temperature
IP Rating (Splash Resistance)
Length

In Stock - Order now for 1-2 day delivery.

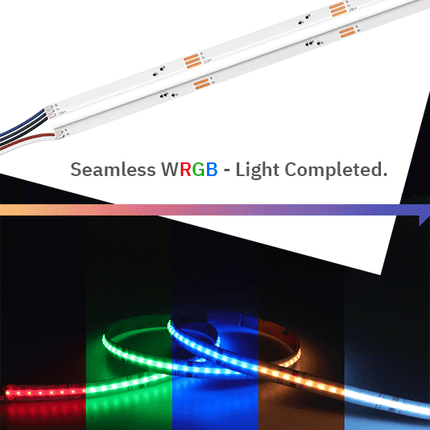

UHD RGBW COB LED Tape. Redefining light.

The best "No Dot" RGBW LED tape on the market, it's lighting redefined.
*Priced per meter, supplied with 200mm 5 core flat cable as standard. Contact us for made to measure colour changing spot free light lines (when placed within any aluminium channel / LED profile) RGBW LED strip light solution.

Create an ultra high definition "tron" style neon LED light line. Perfect for the tech enthusiast wanting to showcase state of the art kitchen cabinets, work tops and furnishings. The ideal complement to trending Anthracite style designs in cuboard, cabinets or walk-in wardrobes.

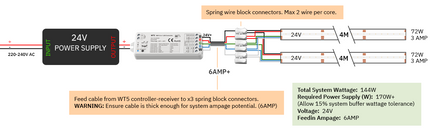

Wiring Diagram & Best Practises



Works well with

Wireless 5 in 1 CCT & RGBWW LED Remote Handset [Remote Handset]
Smart Wireless 5 in 1 CCT & RGBWW LED Controller Receiver [Controller-Receiver]

Vienna No Dot RGBW Kits - It's Seamless Lighting Made Simple



Article – The Definitive Guide to COB LED Strip Lights

Build Your Solution

Contact us for a fast quote today. We aim to quote within 1 hour. Feel free to call on 0116 406 2959, email at sales@upriseled.com or contact us for super fast response on WhatsApp: 07957 180 481.

Colour Temperatures

First and foremost this WRGB strip offers a dedicated 3000K warm white / 4000K neutral white / 6000K cool white along with full RGB colour changing for millions of colour combinations. Generate beautiful pastel hues and shades to compliment your room scheme. When combined with an LED profile a "spotless" lighting result can be achieved.

Colour Rendering Index (CRI)

This versatile LED tape light is available in CRI>90.

Brightness (Lumen Output)

This bright COB LED strip produces 711.8lm/m (RGB+3000K+6000K).

Light Diffusion

When it comes to illuminating any area, our UHD (Ultra High Definition) RGBW COB LED strip lights come equipped 1132 micro LEDs per meter offering a no spotting appearance. When used in conjunction with our extruded aluminium channels, generally known as LED profiles, you get a truly "seamless" effect. Once LED tape strips are fitted into the profiles, the light source will be evenly distributed.

Choose your length

This full colour COB LED strip light can be purchased now in 1,2,3,4 5M increments with a 200mm tail. Or Uprise can cut your tape to exact sizes if you need specific lengths along with extended cables.

Feed In Cable Tails

Uprise can solder any length of 5 core flat cable to your UHD RGBW seamless LED strip light. Simply let us know your project application and we'll advise the best way to achieve your desired result.

Application

This flexible COB LED ribbon is ideal for fitouts within cabinet displays, under pelmets, shelves, signage and within coves.

The LED tape is available in several IP rating options ranging from IP20 at 12mm wide to an IP65 rating. A silicone gel IP65 rating offers LED strip lights protection against splashes of water. Due the makeup of the silicone gel coating this can ever so slightly affect the original colour of the strip. Newer generations of IP65 LED strips have become better.

IP Rating Options

This bright LED tape is available in the IP20 & IP65 versions. Contact us on 0116 406 2959 or send us a message at sales@uprisemed.com if you wish to talk to a lighting expert. We will guide you to select the correct type to apply.

Quality Assurance

Uprise believes in long term value, that’s why our enterprise class LED tape lights use premium grade, long lasting components. Colour consistency and uniformity is a project must, so all our LED strip lights are batched for overall peace of mind.

Specifications

General

  • Product Type: Seamless COB RGBW LED Tape
  • Colour: RGB+3000K / RGB+4000K / RGB+6000K
  • IP Rating: IP20 / IP65
  • PCB Colour: White
  • Chip: COB (Chip on board) technology
  • LEDs per meter: 1132LEDs
  • LED Life: 70% @ 50,000 Hours
  • Brand: Uprise

Light Characteristics

  • Lumens/m: 711.8Lm/m (RGB+3000K)
  • Lumens/w: N/A
  • CRI: >90
  • Beam angle: 180°

Electrical

  • LED Wattage (Per meter): 20W (19.6 actual)
  • Input Voltage: 24V
  • Current (A): N/A
  • Cable in: 200mm 2 core (as standard)
  • Cable out: N/A

Dimensions

  • Width: 12mm
  • Height: 2mm
  • Length: 5m (as standard)

Installation

  • Cut points: 22.5mm
  • Cable: 5 core flat cable (20 AWG)
  • Mounting: 3M backing tape

Guarantee

  • Certification: CE, RoHS
  • Warranty: 2 Years

Packaging

  • Packaging: 5M Roll within antistatic silver bag (typical)
  • Net Weight: 152g / Roll



I need help designing my project, can you help?

Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.

Can you custom cut this strip to length?

We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.

What aluminium LED extrusions can I fit this into?

This product is 12mm and will fit into all LED profiles with an inside width of 12mm and above.

How can I buy?

You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.

What support will I receive once I’ve purchased?

Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.

Questions & Answers

I need help designing my project, can you help?

Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.

Can you custom cut this strip to length?

We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.

What aluminium LED extrusions can I fit this into?

This product is 12mm and will fit into all LED profiles with an inside width of 12mm and above.

How can I buy?

You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.

What support will I receive once I’ve purchased?

Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
