100W Constant Voltage LED Driver
[VIDEO] Seamless lighting simplified.
[VIDEO] Seamless lighting simplified.
Couldn't load pickup availability

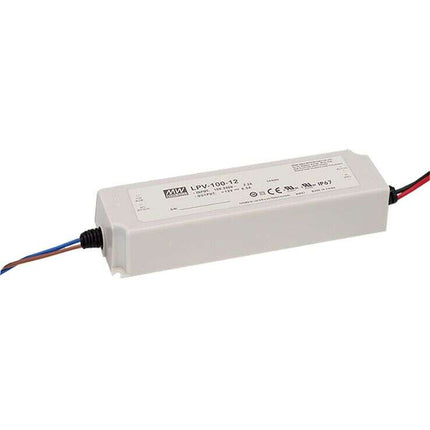

100W MeanWell Constant Voltage LED Driver
This 100W constant voltage power supply offers a professional, reliable power source for 24V LED lighting products. It's available in standard 24V, 12V along with 5V, 36V and 48V options.
Features
- Universal AC Input / Full Range
- Isolation class II, no F.G
- Withstand 300VAC surge input for 5 seconds
- Cooling by free air convection
- 100% full load burn-in test
- High reliability, Low cost
Output
24V +/- connection for connection with 24V LED lamps, marker LEDs or LED tape lights.
Power Consumption
100W rated.
Size
Small design at just 22mm depth for hidden installation. 95mm x 45mm x 24mm
Wiring
2 core cable connected to +/- connectors
Testing
100% full load age testing, consistent with world lighting safety standards.
Circuit Protection
Open circuit, short circuit, overload and overheating protection.
Standards
All of our LED power supplies are TUV/CE/SAA/ETL/FCC approved.
Choose your lengths
This product is compatible with all our 24V seamless cob and single colour LED tape lights. Simply decide the lengths required and ensure that the total wattage across all lengths when totalled does not exceed 100W - 10% (90W) to build in a safety buffer.
Application
A thin and functional LED driver that’s best suited for fitouts within cabinet displays, under pelmets, shelves, signage and within coves. It’s also suited for many other applications whereby space is limited and multiple lengths of LED strips are desired.
IP Rating
This LED supply is fully encapsulated with IP67 level rating.
Environments
Create a stunning, continuous visual aesthetic within the home, add beauty to your walk in wardrobes, designer cabinets, or prestigious wine racks by combining this 100W super small constant voltage LED driver with a range of our single colour & seamless cob LED tape lights.
Quality Assurance
Uprise believes in long-term value, which is why our enterprise class LED tape lights include high-quality, long lasting components. Colour consistency and uniformity are important for the right finish for all our LED strips.
Uprise offers a wide variety of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. For splendid visual aesthetics and end dimming results, you can also view the Dim to Warm & Seamless COB flexible LED strip
General
- Product Type: Constant Voltage LED driver
- IP Rating: IP67 encapsulated
- Brand: MeanWell
Electrical
- Output Wattage: 100W
- Input Voltage: 90~264VAC
- Output Voltage: 24V + / - connection
- Power Factor: 0.6
- Efficiency: 83%
- Dimmable Type: No
- Safety Standards: Design refer to TUV EN60950-1, EN61347-2-13
- Output Voltage Options: Single
Dimensions
- Width: 52mm
- Height: 37mm
- Length: 190mm
Installation
- Mounting: x2 Screws at corners
Guarantee
- Certification: CE, RoHS
- Warranty: 2 Years
Packaging
- Packaging: White cardboard box
- Net Weight: 190g
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
What style of LED tape lights is this compatible with?
This driver is compatible with any 24V 2 core single colour LED tape strip or 24V LED source such as lamps, battens or marker LEDs. Contact us for more information.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
Questions & Answers
Questions & Answers
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 12mm and will fit into all LED profiles with an inside width of 12mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
