10mm Ultra Bright 2300K Roast Warm LED Tape 120LED per meter (24W/M) SMD2835 (White PCB) IP65 Heat Shrink 24V

10mm roast warm white ultra bright LED tape. Seamless lighting made simple.

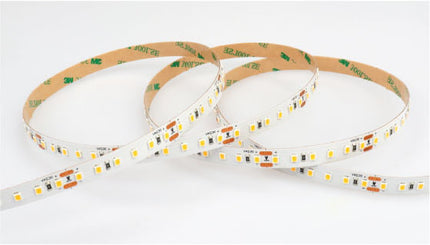

This 24 watt ultra bright 2300K white (roast warm) LED strip light is a roll-out LED lighting source that is both compact and flexible, making it ideal for a wide range of applications. This slim LED ribbon, which uses 120 2835 SMD branded LEDs and is manufactured to a high quality standard, drawing only 24 watts per meter. Life expectancy of this luminous LED tape is 50,000 hours of continuous use.

Light Diffusion

As standard our LED strip lights offer a smooth linear effect when illuminating any surface. Optionally, you can use these LED strip lights together with our aluminium extrusions, also known as LED profiles. Fitted within profiles, the LED strip light source will be evenly diffused.

Wiring Example

Choose your length

This 24-watt per meter LED tape may be purchased in standard 5M reels and cut at every 100mm soldered (copper coloured) part of the circuit. Uprise can cut your tape to size if you need specific lengths, whatever size. We also have a variety of in stock lengths pre-made for ease of specification.

Call us on 0116 406 2959 or email us sales@upriseled.com with your requirements.

Application

This LED tape light is suitable for fitouts within cabinet displays, under pelmets, shelves, signage and within coves. Due to it's high brightness it requires an adequate heat sink for thermal management and is best set to 50% brightness. The benefit is a very bright visual that is built to last as the LEDs are only running at half capacity.

The LED strip light is available in several IP rating options ranging from IP20 at 10mm wide through to an IP67 rating. An IP67 rating provides full dust and low immersion protection. It can be used, when water resistance is needed, within bathrooms, external areas or water features.

IP Rating Options

This blisteringly bright LED tape comes with an IP65 heat shrink for splash proof, water resistant applications.  Contact us on 0116 406 2959 or send us a message at sales@upriseled.com if you wish to talk to a lighting expert. We will guide you to select the right strip to apply.

Check our IP rating charts here for additional information about which strip is suitable for your application.

Environments

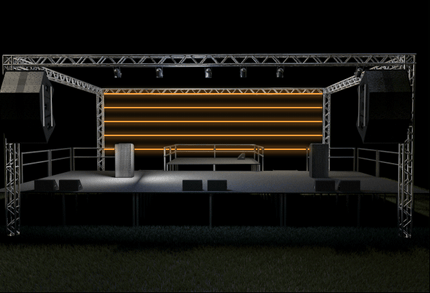

Due to it's high brightness and heat output this strip is ideally suited for outdoor stage blinder strobe lighting applications. Note: These strips should not be left on for long periods of time without adequate heatsink or thermal management.

Quality Assurance

Uprise believes in long term value, that’s why our enterprise class LED tape lights use premium grade, long lasting components. Colour consistency and uniformity is a project must, so all our LED strip lights are batched for overall peace of mind.

Looking to dim your LED strip lights, Uprise offers a comprehensive range of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. You can also check out our new Dim to Warm & Seamless COB flexible LED strips for beautiful visual aesthetics and end dimming results.

Specifications

General

• Product Type: Single Colour LED Tape
• Colour: 2300K white (deep roast warm)
• IP Rating: IP65 Heat Shrink (splash resistant)
• PCB Colour: White
• Chip: 2835 SMD
• LEDs per meter: 120LEDs
• LED Life: 70% @ 50,000 Hours
• Brand: Uprise

Light Characteristics

• CRI: CRI80
• Beam angle: 120°

Electrical

• LED Wattage (Per meter): 24W
• Input Voltage: 24V
• Current (A): 1A
• Cable in: 500mm 2 core (as standard)
• Cable out: 500mm 2 core (as standard)

Dimensions

• Width: 10mm
• Height: 2mm
• Length: 5m (as standard), various lengths available.

Installation

• Cut points: 100mm
• Cable: 2 core flat cable
• Mounting: 3M backing tape

Guarantee

• Certification: CE, RoHS
• Warranty: 1 Years

Packaging

• Packaging: XM Roll
• Net Weight: 152g / Roll

I need help designing my project, can you help?

Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.

Can you custom cut this strip to length?

We can custom cut your LED strip lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.

What aluminium LED extrusions can I fit this into?

This product is 10mm and will fit into all LED profiles with an inside width of 10mm and above.

How can I buy?

You either buy individual components online or call us on 0116 406 2959 or email us at sales@upriseled.com and a member of our team will help you with your project.

What support will I receive once I’ve purchased?

Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
