10mm Economy RGBW (3000K) LED Tape 60LED per meter (14W/M) SMD5050 12V

10mm Economy RGBW (3000K) LED Tape 60LED per meter (14W/M) SMD5050 12V

[VIDEO] Seamless lighting simplified.

Regular price £29.75 GBP
Regular price £11.90 GBP Sale price £29.75 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

*Priced per meter. This flexible, high output RGBW LED tape light uses quality branded LEDs for excellent light performance. 14W/M (Max wattage potential). Typically supplied on a 5M reel (add qty x5), lengths include 100mm tail as standard.

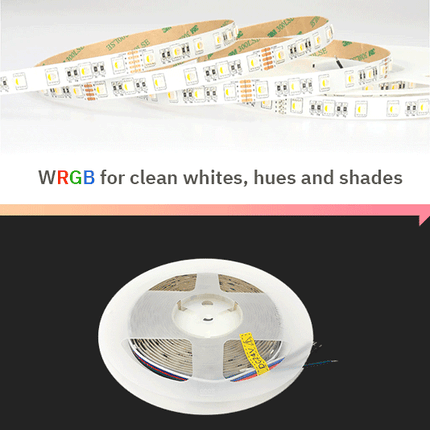

60LED RGBW LED tape light. All in one colour, for fuller light visuals.

This 1-watt (4 in 1) RGBW (3000K) LED strip lighting is a continuous LED light source that is both compact and flexible, making it perfect for a wide range of applications. This slim LED tape, which uses 60 5050 SMD branded LEDs and is manufactured to a high quality, emits up to 990 lumens per meter, while drawing only 14 watts per meter. Life expectancy of this luminous LED tape is 50,000 hours of continuous use.

Colour Temperatures

RGBW offers all the advantages of RGB colour changing LED tapes with the added dimensions of a dedicated 3000K white chip. Ideal for applications where quality in colour, longevity and brightness is required.

Colour Rendering Index (CRI)

This slim LED ribbon is available in CRI>80.

Brightness (Lumen Output)

Ultra efficient as standard, this radiant LED strip light emits 990 (RGB+3000K) lumens per meter.

Light Diffusion

As standard our LED strips offer a smooth linear effect when illuminating any surface.

Optionally, you can use these LED tapes together with our aluminium extrusions, also known as LED profiles. Fitted within profiles, the LED strips light source will be evenly diffused.

Wiring Example

Choose your length

Uprise’s 14-watt LED tape light, like our alternative bendable strip light series, comes in standard  5M reels and may be cut at every 100mm copper pads cut point. If you require specific lengths, large or small, we can cut your tape to length.

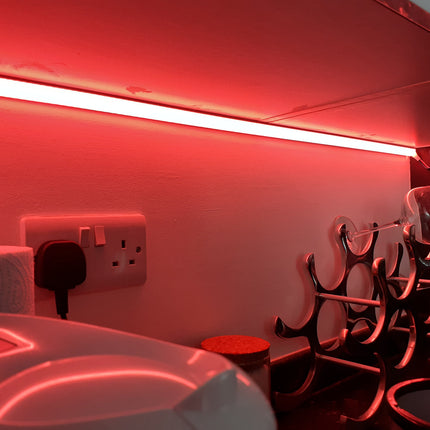

Application

This flexible LED strip light is ideal for fitouts within cabinet displays, under pelmets, shelves, signage and within coves.

The LED strip is just 10mm wide (IP20) and selectable up to an IP67 standard. An IP67 rating provides full dust and low immersion protection. It can be used, when water resistance is needed, within bathrooms, external areas or water features.

IP Rating Options

This LED tape is available in IP20, IP65(H), IP65(S) and IP68. Feel free to contact  us on 0116 406 2959 or email us via sales@upriseled.com to talk to an expert. We’ll assist  you to choose the right strip to apply.

See our IP rating charts here for additional information about the ideal strip for your  application.

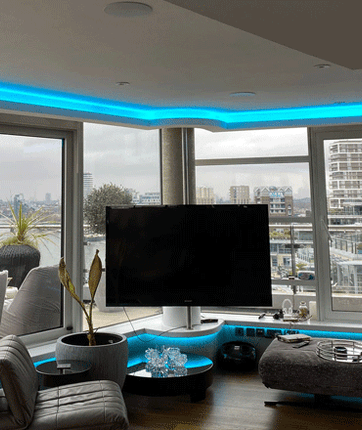

Environments

This slim LED tape provides excellent lighting for commercial applications, perfect for resorts, restaurants, bars, hotel lobbies and retail spaces and window displays. This LED ribbon is well suited to architects, light engineers, AV integrators and electrical  specialists when there is a requirement for slim, bright, long lasting LED strips.

It is particularly suited for outside garden areas such as edge lights, garden bars and steps,  living rooms, kitchens and home movies.

Quality Assurance

Uprise believes in long term value, that’s why our enterprise class LED tape lights use premium grade, long lasting components. Colour consistency and uniformity is a project must, so all our LED strip lights are batched for overall peace of mind.

Looking to dim your LED tape lights, Uprise offers a comprehensive range of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. You can also check out our new Dim to Warm & Seamless COB flexible LED strips for beautiful visual aesthetics and end dimming results.



Specifications

General

  • Product Type: RGBW LED Tape
  • Colour: RGBW (RGB+3000K warm white)
  • IP Rating: IP20
  • PCB Colour: White
  • Chip: 5050 SMD
  • LEDs per meter: 60LEDs
  • LED Life: 70% @ 50,000 Hours
  • Brand: Uprise

Light Characteristics

  • Lumens/m: 990Lm/m (RGB+3000K)
  • Lumens/w: 70.71Lm/w (RGB+3000K)
  • CRI: >80
  • Beam angle: 120°

Electrical

  • LED Wattage (Per meter): 14W
  • Input Voltage: 12V
  • Current (A): 0.8A
  • Cable in: 100mm 2 core (as standard)

Dimensions

  • Width: 10mm
  • Height: 2mm
  • Length: 5m (as standard)

Installation

  • Cut points: 50mm
  • Cable: 5 Core Flat Cable
  • Mounting: 3M backing tape / VHB Bonding tape

Guarantee

  • Certification: CE, RoHS
  • Warranty: 3 Year Warranty

Packaging

  • Packaging: 5M Roll
  • Net Weight: 152g / Roll



I need help designing my project, can you help?

Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.

Can you custom cut this strip to length?

We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.

What aluminium LED extrusions can I fit this into?

This product is 12mm and will fit into all LED profiles with an inside width of 12mm and above.

How can I buy?

You either buy individual components online or call us on 0116 406 2959 or email us at sales@upriseled.com and a member of our team will help you with your project.

What support will I receive once I’ve purchased?

Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.

Questions & Answers

I need help designing my project, can you help?

Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.

Can you custom cut this strip to length?

We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.

What aluminium LED extrusions can I fit this into?

This product is 12mm and will fit into all LED profiles with an inside width of 12mm and above.

How can I buy?

You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.

What support will I receive once I’ve purchased?

Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.

Shipping & Returns

View full details

Questions & Answers - LED Strips

Q) Do you have a fast, easy connection system for LED strip lights?

A) Yes typically our COB LED tape lights come with a 500mm lead with a micro male connector that clicks into our range of furniture lighting LED Drivers.

This allows for one of the fastest, simplest LED strip light setups you'll experience.

We also supply male to female micro connector extension leads which are available in 2M/3M/4M/5M/10M/20M lengths. This allows a quick and easy way of getting a cable to an LED strip without the need for onsite soldering.

Overall Benefits

1) Save allot of time onsite or with your project due to click and connect system.
2) Reduce risk of faulty connections due to poor soldering.
3) Allows adaptability in system connectivity for hard to reach areas.
4) Our cabinet LED drivers are also compatible with cabinet sensors such as hand wave, single & double door (for walkin wardrobes / cabinets) and PIR for movement.
5) Our next generation furniture LED drivers offer sensor and remote handset / wifi syncronisation.

Q) Can you help me with my LED lighting project design?

Yes, we're here to help you bring your unique project to completion.

Our team of LED lighting experts with over 16 years experience will go through your project with you and ensure a solution that's best suited for your goals.

Q) Do you supply no dot COB LED tape lights?

A) Yes, Uprise aims to bring you the absolute latest in LED strip technology including "no dot" COB LED strip lights. We're now able to supply COB LED tape at just 3mm wide along with 4mm, 5mm, 8mm, 10mm.

Looking to add spotless COB LED strips for your kitchen under cabiet lighting, within cupboards or within routed grooves? Or perhaps you to light up your bathroom or vanity mirrors? We can help supply a made to measure solution ideally suited for your project.

Q) How do I bend LED tape around a corner?

A) LED tape lights typically flex up/down and not side to side. So there are a options for mounting LED tapes around corners.

Option 1: Mount the LED tape horizontally allowing for it's natural bend ability.

Option 2: For corner applications where the LED tape is mounted and cannot bend you can use corner accessories. This are typically a good option but connections can come lose or degrade over time.

Option 3: Communicate your requirement to us and we can create and solder a corner "knuckle joint" especially for your project. Get in touch today via sales@upriseled.com or 07957 180 481.

Q) Are your LED strip lights available in 12V or 24V?

A) We typically offer both 12V and 24V LED strips. These come in a wide variety of colour options including "no dot" COB LED tapes, single colour, CCT, RGB, RGBW & RGBCCT.

I've heard about 12V, 24V and even 5V LED tape lights, what's the difference?

12V and 24V are the standard for most single colour or colour changing LED tapes.

The main difference between 12V and 24V is how far you can run an LED tape light without voltage drop.

What is voltage drop? It's the distance in which an LED light strip can be powered from one end without the light degrading or "trailing off" in brightness. 24V carries further than 12V before a noticeable brightness drop is visibly seen.

Another key difference you'll notice between 12V and 24V is the "cut points", these are the points in which an LED tape can be cut and are typically indicated by copper pads. With 12V the cut points are usually smaller allowing for a precision fit whereas 24V are usually wider.

So you could say 24V LED strip lights are good for long distance straight runs when you may only be able to feed from one end and 12V are better for smaller lengths where a "precision fit" for the light result is needed.

So what about 5V, what's the deal?

5V LED tape lights are usually associated with flexible Digitial pixel LED strip lights. These come in either single colour, RGB or RGBW and allow individual control over each LED. They can be controlled by SPI or DMX LED drivers or controller receivers. And then pixel mapped by frontend software such as Madrix, Light Jams, ELM or other such software.

Q) Do you supply LED profiles / aluminium channels for LED strips?

A) Yes we offer a wide range of aluminium profiles including the latest generation micro recessed, corner and surface types. Available in black / silver. Complete with blackout / semi-diffuser cover for a seamless light impression.

We also Plaster-in, walkover and circle tube style profiles along with standard sized corner, surface or recessed.

Q) What guarantee or warranty to do you provide?

All our products typically come with a 3-5 year warranty unless otherwise advised.

For modified LED strips by ourselves we offer a 1 year back to base warranty. However we always aim to provide a professional bespoke service. This is extremely unlikely to affect long term performance of the LED strip lights. Typical life estimation for our LED strips are 50,000 hours.

Q) Are your LED strips available in just white or do you offer colours as well?

A) We offer white LED tape lights along with CCT (Colour changing temperature, smart whites), RGB, RGBW and RGBCCT colour changing LED strips.

Whites: 2300K Deep Warm, 2700 Warmer, 3000K Warm, 4000K Neutral, 5000K Natural, 6000K Cool, 6500K Cooler.

CCT (Dual white): 2700K-6000K

RGB: Colour Changing for vibrant colours

RGBW: RGB3000K, RGB4000K,RGB6000K colour changing for vibrant colours, dedicated whites and pastel hues and shades.

RGBCCT: RGBCCT offers the most complete colour rendering. Allowing for vibrant colours and two seperate dedicated whites (typically 3K-6K) for crisp colour selection and toning.

Q) Are LED tape lights flexible? How flexible?

A) LED tape lights are extremely flexible, offering versatility in light planning and integration.

Typically LED tape lights will flex up and down. This allows for straight runs or if side facing to bend at 90 degree angles around a perimeter.

Depending on the LED tape it can also be flexed and folded or "looped" to get around corners within a wide cove integration for example. If in doubt contact one of our support team.
