Description
*Priced per meter. To order 5M you would add quantity 5, 1M qty 1, 2M qty 2 etc.. Made to measure lengths available on request.
A bright white cob led tape light that offers seamless light throughout the strip. 12W per meter with a 2700K / 3000K / 4000K / 6500K temperature, it's ideal for cabinets or shelves.
Contact us via sales@upriseled.com or on 0116 406 2959 to discuss your project today.
--

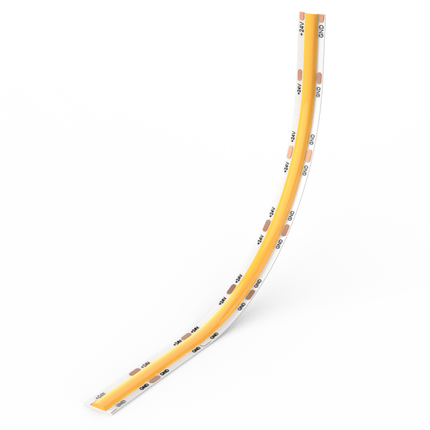

Seamless COB LED Tape 12W IP20
*Priced per meter. Supplied as 5M reel typically (Order x5 qty). Enterprise class quality with the latest in integrated LED technology.
Article - The Definitive Guide to COB LED Strip Lights
Seamless cob LED tape by Uprise LED. A revolutionary new PCB design mounted LED strip light with a uniform "micro dot" LED configuration for the most beautiful light line you've ever witnessed. Our 12 watts per meter flexible COB (Chip on-board) LED strip light provides a stunning flow of ambience throughout. Innovative cut of the cloth design means LEDs are closely knitted directly to the PCB substrate. A clever design that offers maximum efficacy and flexibility. This combined with a unique "bubble doming" silicone coating method ensures a stable, reliable solution for professional integrations. Lighting brilliance to put it simply.
Wiring Example
Support
How to connect COB LED tape lights simply.
This 12V COB LED tape strip is just 12W/M offering excellent efficiency and upto a respectable 1100 lumens per meter output. 480 LEDs per meter allow for a continuous, homogeneous illumination throughout the strip. Available colours include 2700K, 3000K, 4000K, 6000K.
Lifetime expectancy is 30,000+ hours of continuous use. 25mm cut points. 10mm wide. 12V. 2 core wiring.
Here at Uprise we aim to provide the utmost value and integrity throughout the entire supply process. From first point of call to happy result. That's why we ensure carefully selected high tolerance components are utilised. This means we've done our due diligence throughout the design and selection process ensuring premium quality throughout. High grade LED chips have been utilised for superior quality in strip longevity and effect.
Specifications
General
-
Product Type: Seamless No Dot LED Tape (12W)
-

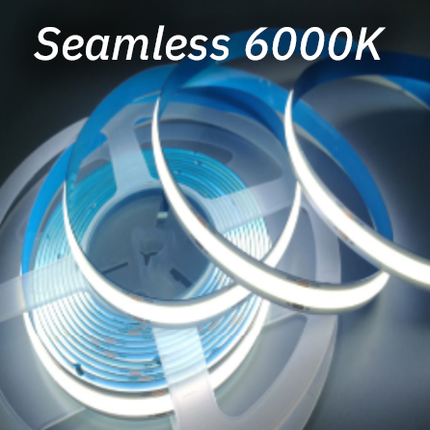

Colour: Warmer White (2700K) / Warm White (3000K) / Neutral White (4000K) / Cool White (6000K)
-
IP Rating: IP20 (Internal) / IP65 Heat Shrink (splash proof) (Available on request)
-
PCB Colour: White
-
Chip: COB (Chip on board) Flip Chip Technology
-
LEDs per meter: 480LEDS
-
LED Life: 70% @ 50,000 Hours
-
Brand: Uprise
Light Characteristics
-
Lumens/m: 1000-1100lm/m
-
Lumens/w: 87.5lm/W
-
High CRI: 90+
-
Beam angle: 180°
Electrical
-
LED Wattage (Per meter): 12W
-
Input Voltage: 12v DC
-
Current (A): 1A/m
-
Cable in: 200mm 2 core (as standard)
-
Cable out: 200mm 2 core (as standard)
Dimensions
-
Width: 10mm
-
Height: 2mm
-
Length: 5m (as standard)
Installation
-
Cut points: 25mm
-
Cable: 2 core flat cable
-
Mounting: Strong adhesive backing tape (Blue)
Guarantee
-
Certification: CE, RoHS
-
Warranty: 3 Years
Packaging
-

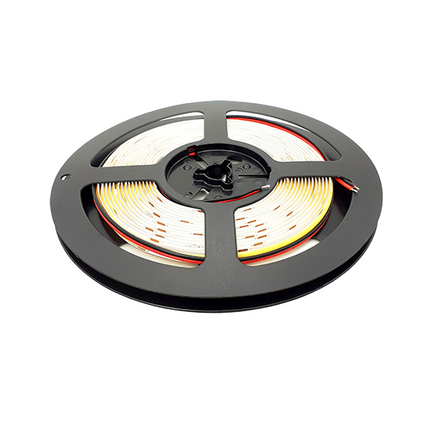

Packaging: 5M Roll as standard.
-
Net Weight: 152g/Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 10mm and will fit into all LED profiles with an inside width of 10mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I've purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we're here to help.
