Description
Get a fully weather proofed (IP68), light line with zero hot spots.
- Best in class for ultra sleek, spot free, weather proof exterior LED light lines.
- IP68 casing for water proof / exterior lighting applications
- Robust, bendable (top down) and durable.
- Completely spotless for a seamless light line
- Encased with clear silicone for superior light projection compared to other diffused lighting products such as neon flex.
- Ultra thin at just at just 5mm in depth
- Just 11mm wide

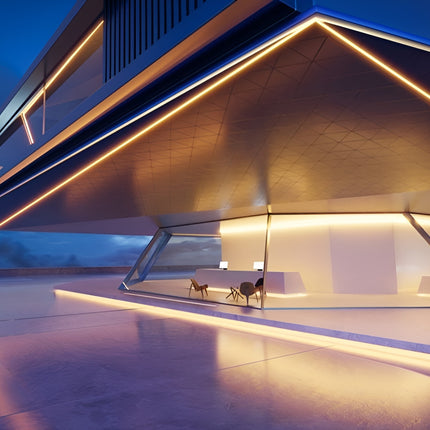

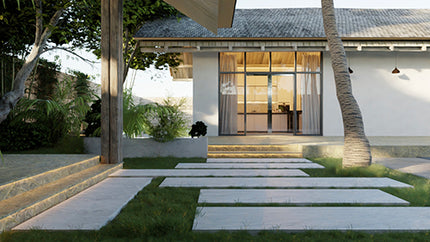

- Ideal for exterior signage and letter illumination (cinemas), pond and water features, decking, architectural and landscaping projects.

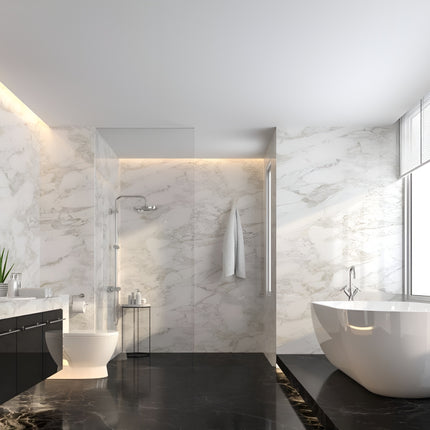

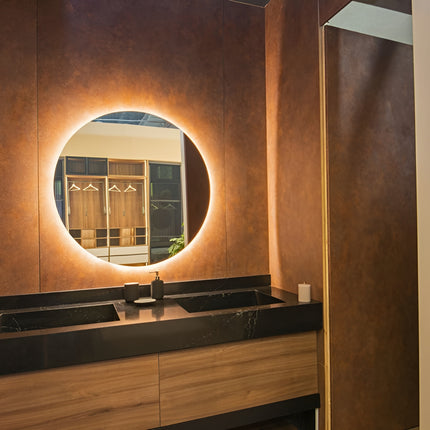

- Great for bathrooms, showers and kitchen applications where steam or water ingress may be present.
An IP68 fully waterproof white cob led tape light that offers seamless light throughout the strip. 9W per meter with a 2700K / 3000K / 4000K / 6000K temperature. Comes complete with feed in and out water proof connectors. Male/Female connector tails sold separately.
--
Waterproof Spotless Flexible COB LED Tape 9W (5M) IP68

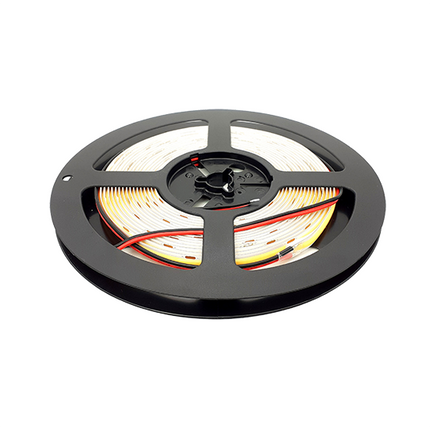

*Priced per meter. Supplied as 5M reel as standard. Enterprise class quality with the latest in integrated LED technology.
Article - The Definitive Guide to COB LED Strip Lights
Wiring Example
Support
How to connect COB LED tape lights simply.

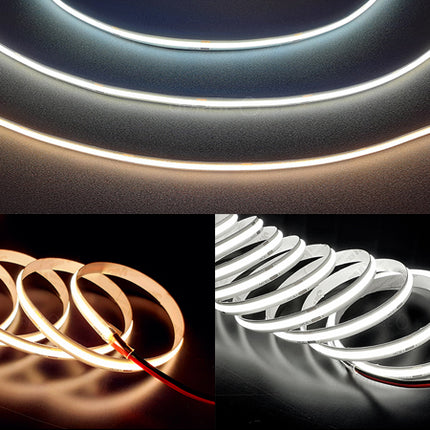

This 12V COB LED tape strip is just 9W/M offering excellent efficiency and upto a respectable 525 lumens per meter output. 480 LEDs per meter allow for a continuous, homogeneous illumination throughout the strip. Available colours include 2700K, 3000K, 4000K, 6000K.
Lifetime expectancy is 50,000 hours of continuous use. 25mm cut points. 11mm wide. 12V. 2 core wiring. Includes IP68 rated male and female pig-tail style connectors either end of strip.
Specifications
General
-
Product Type: IP68 waterproof seamless No Dot LED Tape (9W)
-
Colour: Warmer White (2700K) / Warm White (3000K) / Neutral White (4000K) / Cool White (6000K)
-
IP Rating: IP68
-
PCB Colour: White
-
Chip: COB (Chip on board) Flip Chip Technology
-
LEDs per meter: 480LEDS
-
LED Life: 70% @ 50,000 Hours
-
Brand: Uprise
Light Characteristics
-
Lumens/m: 525lm/m
-
Lumens/w: 105lm/W
-
High CRI: 90
-
Beam angle: 180°
Electrical
-
LED Wattage (Per meter): 9W
-
Input Voltage: 12v DC
-
Current (A): 0.42A/m
-
Cable in: 500mm IP68 pigtail (male screw style) 2 core heavy duty cable
-
Cable out: 500mm IP68 pigtail (female screw style) 2 core heavy duty cable

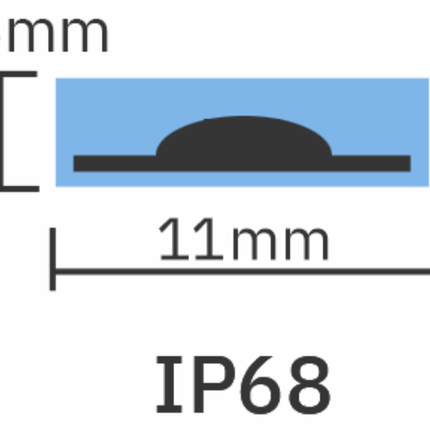

Dimensions
-
Width: 11mm
-
Width (End Caps): 12mm
-
Height: 5mm
-
Height (End Caps): 6mm
-
Length: 5m (as standard), other lengths available and can be made to measure.
Installation
-
Cut points: 25mm
-
Cable: 2 core flat cable
-
Mounting: 3M backing tape
Guarantee
-
Certification: CE, RoHS
-
Warranty: 2 Years
Packaging
-
Packaging: Length as selected. Roll as standard.
-
Net Weight: 152g/Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 11mm and will fit into all LED profiles with an inside width of 11mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I've purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we're here to help.
