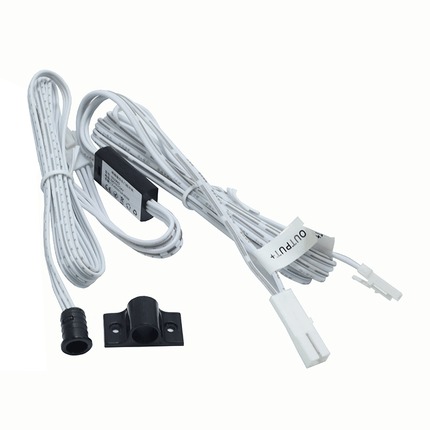

12-24V Black Single Door Sensor Switch for Cabinet/Wardrobe Doors (Output Dimming)

This black finished single door sensor switch offers simple on/off illumination when a single cabinet door is opened and shut. Complete with a single individual sensor for individual door sensing.

--

*In Stock UK - 12/24V DC Single Sensor Switch for Cabinet/Wardrobe Doors (Black)

12/24V DC Single Sensor Switch for Cabinet/Wardrobe Doors (Individual output dimming)

This single sensor switch consists of one inductive sensor which can be switched on or off, without the need for a physical switch. It connects directly to an individual output of our Cabinet LED driver range. It can also be wired in series to a standard 12V/24V power supply. Rated for either 12V/24V LED strip lights for a complete integrated solution within kitchen cabinets, wardrobes and walk in wardrobes, display cabinets and other furniture / shelf fitout applications.

What is the operation of this 12/24V DC single sensor switch for cabinet/wardrobe doors?

The operation is simple, the sensor acts as a contactless switch allowing for automatic turn on/off of any connected LED tape light or 12V/24V LED accessory. When movement is detected by opening or closing a left/right door of a cabinet or wardrobe the sensor will illuminate (on) or power down (off).

This sleek, beautifully finished solution offers a simple and automatic way to light on/off within the home or commercial space.

Product Compatibility

This product works well with our range of cabinet LED drivers and seamless COB LED tape lights.

PDF & Downloads



Specifications

General

• Part Number: SDS-2C
• Product Type: 5V/12V/24V DC black single sensor switch for kitchen cabinets, walk in wardrobes, retail displays
• Use: Indoor
• IP Rating: IP20
• Brand: Uprise

Electrical

• Voltage: 5V-24V DC
• Max Output Current: 3A
• Maximum Power: 60W (12V) 120W (24V)
• Detection Range: < 6cm

Design

• Material: PVC plastic
• Finish: Black

Dimensions

• Size: Ø 12 x 13 mm
• Outer Flange Size: 10mm
• Cutout hole: Ø 8 mm
• Cutout Depth: 12mm
• Total Length: 13mm
• Total tail distance: 2.5M
• Sensor Tail length: 1M
• Extension Tail: 1.5M (To supply)

Installation

• Mounting: Surface, x2 screws for sensor holders. Slip in/out.
• Cutout hole: Ø 8 mm
• Cutout Depth: 12mm

Guarantee

• Certification: CE, UKCA, RoHS
• Warranty: 2 Years
• Life Span: 30,000 Hours

Packaging

• Packaging: White cardboard box
• Net Weight: 90g
