Description
A sleek, simple to setup touch dimmer sensor. Includes on/off and touch and hold dimming up and down to control system LED lights. Finished in chrome silver with blue illuminated halo when powered up.
--

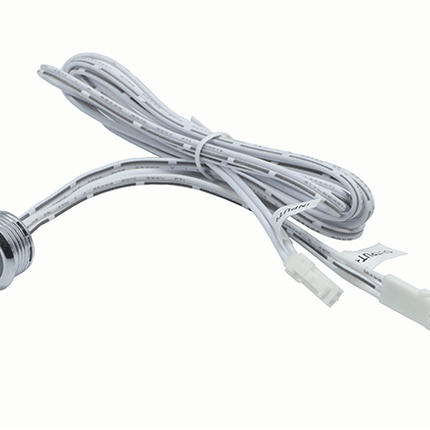

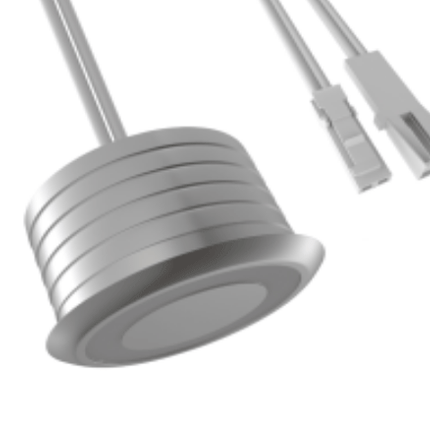

Mini Dimmable Touch Switch Sensor for LED Strips
A touch sensitive on-off micro dimmer switch that is simple to install. Simply click into one of our 9V / 12V / 24V (9-24V) plug and play cabinet LED drivers and press for on/off functionality. By gently touching the switch for a few seconds you can dim up/down system connected LED lights. When powered up it emanates with a low key, brilliant blue halo offering a stylish, more complete look.
This ready to connect mini light dimmer is ideal for kitchen cabinet lighting. Simply turn on/off and dim COB LED strip lights, Undercabinet lights and recessed spot lights with ease.
Product Compatibility
This product works well with our range of cabinet LED drivers and seamless COB LED tape lights.
PDF & Downloads
Specifications
General
- Part Number:
-
Product Type: 12/24V touch on/off sensor switch for kitchen cabinets, walk in wardrobes, retail displays
-
Use: Indoor
-
IP Rating: IP20
-
Brand: Uprise
Electrical
-
Voltage: Compatible with 9V, 12V, 24V (9V - 24V range)
-
Max Output Current: 5A
-
Maximum Power: 60W (5A in 12V / 2.5A in 24V)
Design
-
Material: Aluminium - PC
-
Finish: Silver/Chrome
Dimensions
-
Height: 13.5mm excluding cables
-
Width: 20mm Diameter including rim (outer flange)
-
Cutout: Ø 17.3 mm
-
Length: 170mm
Installation
-
Mounting: Surface, x2 screws for sensor holders. Slip in/out.
Guarantee
-
Certification: CE, RoHS
-
Warranty: 2 Years
-
Life Span: 30,000 Hours
Packaging
-
Packaging: White cardboard box
-
Net Weight: 90g
