Description

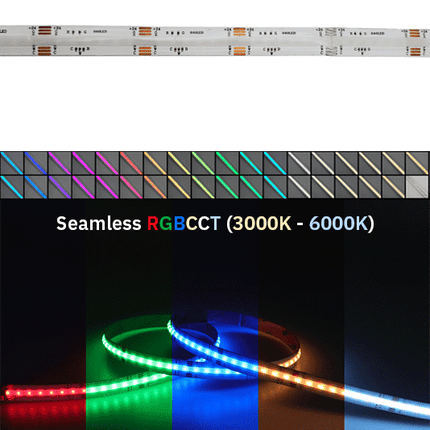

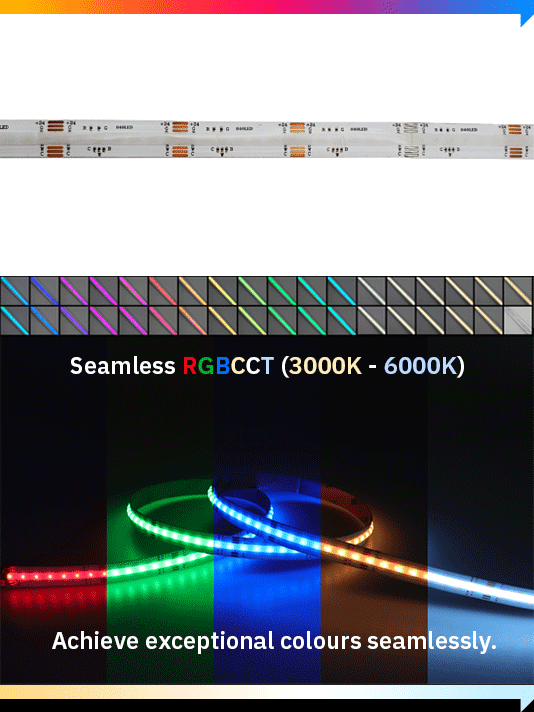

RGBCCT (Colour & 3000K-6000K) COB LED Tape. Beauty in light.
Working on a big or small project that requires custom lengths and expert advise? Send us an email via sales@upriseled.com or Whatsapp us details to 07957 180 481.
Inspired by the teachings of the Dalai Lama, this "no dot" RGBCCT LED strip light is one with everything. Clean whites, vibrants colours and stunning pastels.. Create a full colour, beautiful light line today.
*Priced per meter, supplied with 200mm 6 core flat cable as standard. Contact us for made to measure seamless "no dot" (when placed within any aluminium channel / LED profile) RGBCCT LED strip light solution.
Create a beautiful light line that's seamless on the eye. Ideal for routed work tops, undercabinet lighting, within kitchens, accents, bedrooms or walk in wardrobes along with low profile coving, retail POS displays and more.
Works well with
Wireless 5 in 1 CCT & RGBWW LED Remote Handset [Remote Handset]
Smart Wireless 5 in 1 CCT & RGBWW LED Controller Receiver [Controller-Receiver]
Article – The Definitive Guide to COB LED Strip Lights
Colour Temperatures
It's RGBCCT, that means it R,G,B colour with Warm 3000K & Cool 6000K mixing, providing the most beautiful, full colour, spot free lighting result.
Colour Rendering Index (CRI)
This versatile LED tape light is available in CRI>80.
Brightness (Lumen Output)
Light Diffusion
Add this RGB, Dual White (3000K-6000K transitioning) LED strip light to any light channel, LED profile or aluminium extrusion for a truly "no dot" LED lighting result.
When mounted within a routed hole via a professional joinery company or woodworker the low depth and make up of this strip offers minimal if any hot spotting at low groove depth. In some instances it can be mounted without an LED extrusion,use best judgement or contact us today to discuss your project.
Choose your length
This true full colour COB LED strip light can be purchased "made to measure" with longer length tails for ease of integration. It can also be purchased in various lengths online.
Application

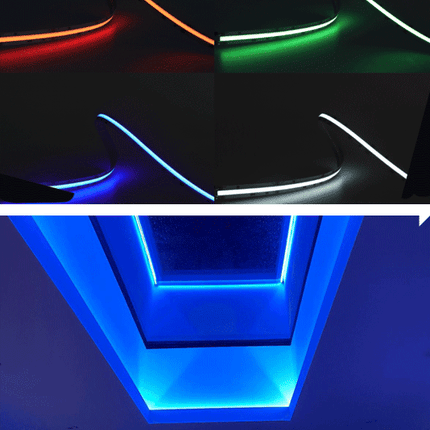

This flexible RGBCCT COB LED strip light is ideal for fitouts within cabinet displays, under pelmets, shelves, signage and within coves.
The LED tape is available in several IP rating options ranging from IP20 at 12mm wide to an IP65 rating. A silicone gel IP65 rating offers LED strip lights protection against splashes of water. Due the makeup of the silicone gel coating this can ever so slightly affect the original colour of the strip. Newer generations of IP65 LED strips have become better.
IP Rating Options
This bright LED tape is available in the IP20 & IP65 versions. Contact us on 0116 406 2959 or send us a message at sales@upriseled.com if you wish to talk to a lighting expert. We will guide you to select the correct type to apply.
Quality Assurance
Uprise believes in long term value, that’s why our enterprise class LED tape lights use premium grade, long lasting components. Colour consistency and uniformity is a project must, so all our LED strip lights are batched for overall peace of mind.
Specifications
General
-
Product Type: Seamless "no dot" COB RGBCCT LED Tape
-
Colour: RGBCCT (RGB Colour + 3000K-6000K transitioning)
-
IP Rating: IP20 / IP65
-
PCB Colour: White
-
Chip: COB (Chip on board) technology
-
LEDs per meter: 840LEDs
-
LED Life: 70% @ 50,000 Hours
-
Brand: Uprise
Light Characteristics
-
Lumens/m: 1170LM
- Wave Length: R: 620nm, G: 540nm, B: 455nm
-
Lumens/w: N/A
-
CRI: >80
-
Beam angle: 180°
Electrical
-
LED Wattage (Per meter): 21W
-
Input Voltage: 24V
-
Current (A): N/A
-
Cable in: 500mm 2 core (as standard)
-
Cable out: N/A
Dimensions
-
Width: 12mm
-
Height: 2.7mm
-
Length: 5m (as standard)
Installation
-
Cut points: 35.71mm
-
Cable: 6 core flat cable (20 AWG)
-
Mounting: 3M backing tape / VHB backing tape (contact us)
Guarantee
-
Certification: CE, RoHS
-
Warranty: 2 Years
Packaging
-
Packaging: 5M Roll
-
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 12mm and will fit into all LED profiles with an inside width of 12mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
Update 13-10-22: Wattage changed from 18-watt per meter to 20-watts per meter (19.2W/m actual) to build in tolerances based on new information.
- Stephen Watts
