Description
This black finished double door sensor offers simple on/off illumination when dual cabinet doors are opened and shut. Complete with two individual sensors for individual door sensing.
--
*In Stock UK - 12V DC Double Sensor Switch for Cabinet/Wardrobe Doors (Black)
12V DC Double Sensor Switch for Cabinet/Wardrobe Doors (Individual output dimming)

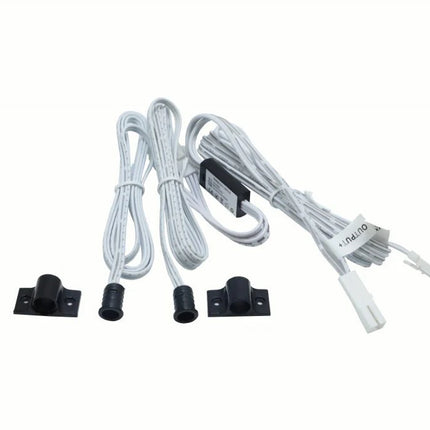

This double sensor switch consists of two inductive sensors which are can be switched on or off, without the need for a physical switch. It connects directly to an individual output of our 12V Cabinet LED driver range. Rated for either 12V LED strip lights for a complete integrated solution within kitchen cabinets, wardrobes and walk in wardrobes, display cabinets and other furniture / shelf fitout applications
What is the operation of this 12V DC double sensor switch for cabinet/wardrobe doors?
The operation is simple, each sensor acts as a contactless switch allowing for automatic turn on/off of any connected LED tape light or 12V LED accessory. When movement is detected by opening or closing a left/right door of a cabinet or wardrobe the sensor will illuminate (on) or power down (off).
This sleek, beautifully finished solution offers a simple and automatic way to light on/off within the home or commercial space.
Product Compatibility
This product works well with our range of cabinet LED drivers and seamless COB LED tape lights.
PDF & Downloads
Specifications
General
-
Part Number: DDS-2C-B
-
Product Type: 12V DC black double sensor switch for kitchen cabinets, walk in wardrobes, retail displays
-
Use: Indoor
-
IP Rating: IP20
-
Brand: Uprise
Connection
-
Sensors: x2 Black Micro Sensors
-
Head Cable Distance: 1.5M - 3 Pin Connector > 110mm 3 core flat cable > Central Processor > x1 500mm Male Connector / x1 500mm Female Connector
-
Product Type: 12V DC black double sensor switch for kitchen cabinets, walk in wardrobes, retail displays
-
Use: Indoor
-
IP Rating: IP20
-
Brand: Uprise
Electrical
Electrical
-
Voltage: 12V DC
-
Max Output Current: 5A
-
Maximum Power: 60W (12V)
Design
-
Material: PVC plastic
-
Finish: Black
Dimensions
-
Outer Flange: Ø 12 mm
-
Cutout: Ø 10-11 mm
-
Depth: 11mm
Installation
-
Mounting: Surface mount, x2 screws for sensor holders. Slip in/out. Or cutout hole mount.
Guarantee
-
Certification: CE, RoHS
-
Warranty: 2 Years
-
Life Span: 30,000 Hours
Packaging
-
Packaging: Plastic bag
-
Net Weight: 90
