Description

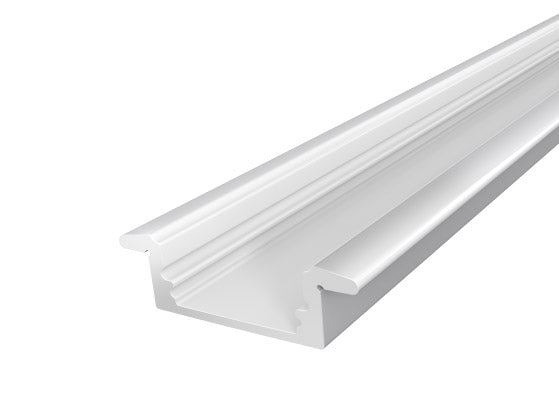

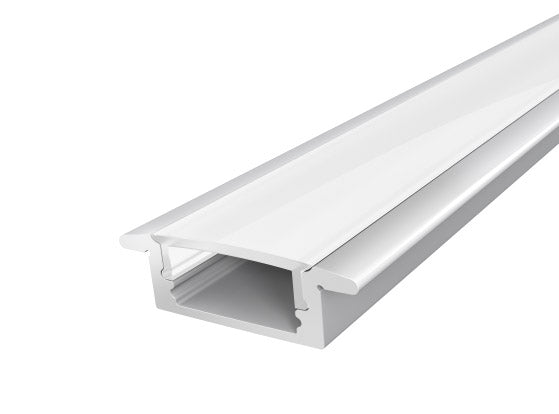

This is an aluminium extrusion designed for slim recessed lighting applications. This LED profile also acts as a heatsink, offering greater thermal management.

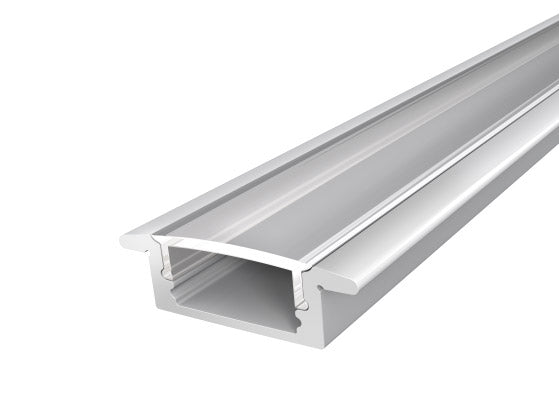

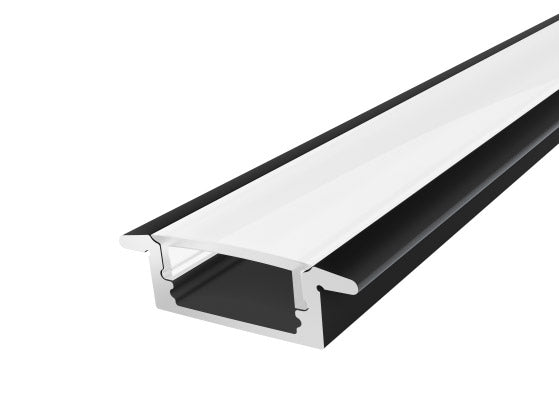

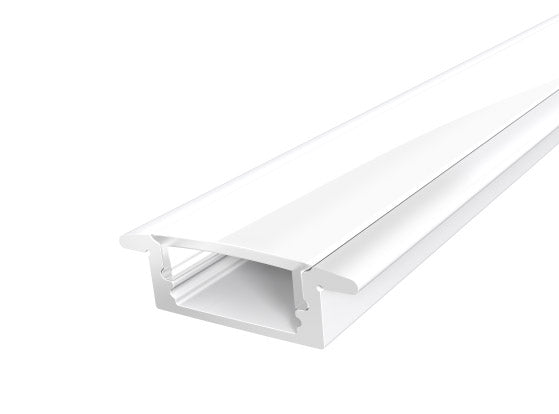

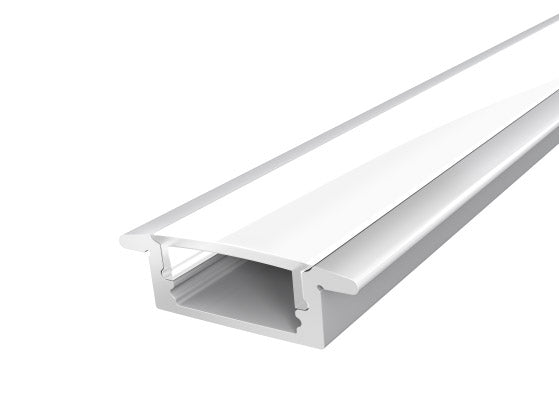

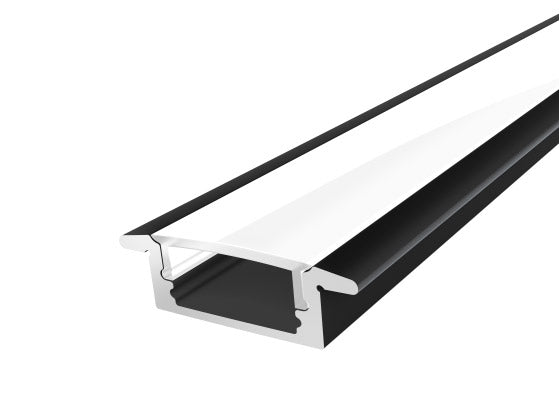

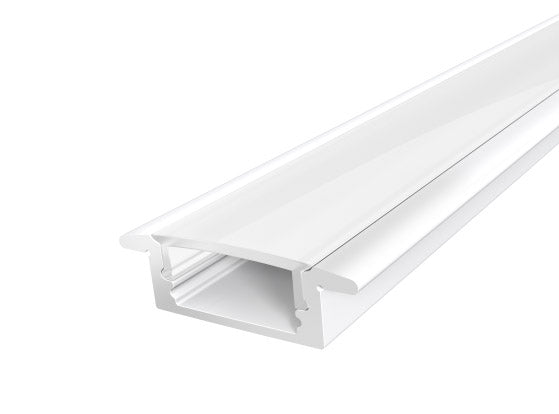

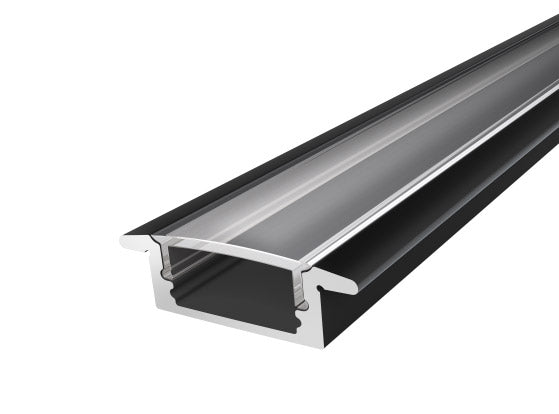

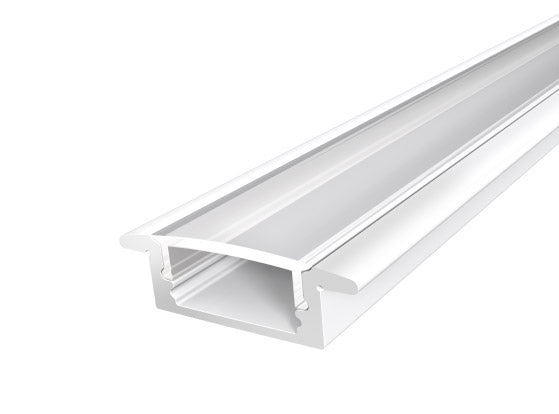

Supplied with plastic end caps and both, metal or plastic fix clips. The profile comes complete with a professional diffuser that is available in transparent (clear), diffused (Semi Frosted) or milky (Opal).
Compatible with LED strips that are up to 12mm wide.
The cutout hole size is 17.1mm wide, 8mm high, 23.2mm (outer flange width). The internal width is 12mm. Standard lengths are available in 1M and 2M. Available bespoke cut lengths also include 0.5M/1.5M/2.5M/3M. The base of the construction is 6063 T5 Aircraft Aluminium, which makes it tough and fit for purpose.
If you would like a custom length please get in touch on 0116 406 2959 or email us at sales@uprisemed.com
Specifications
Product Type: Slim Recessed
Compatible with: Suitable for LED tape width: <12mm
Material: 6063 T5 Aircraft Aluminum
End Caps: Plastic
Fix Clips: Metal/Plastic optional
Finish: Silver/Black/White
PC Cover: Transparent/Diffused/Milk optional
Width: 17.1mm
Outer Flange Width: 23.2mm
Internal Width: 12mm
Height: 8mm
Length: 1M/2M
Cutout Hole: 17.1mm
Available Cut Lengths: 0.5M/1M/1.5M/2M/2.5M/3M
1 meter package size: 125PCS/Carton,102X13X17CM
2 meter package size: 125PCS/Carton, 202X13X17CM
G.W (Per meter): 0.14KG
Warranty: 5 Year Warranty
