Description

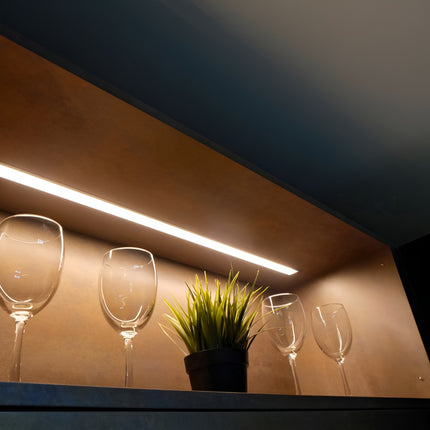

This simple to connect 2500mm cob led tape kit comes with 24W 5 output plug and play driver, x5 2M cable with micro connectors and x5 COB tape to wire connectors. This allows for an adaptable LED setup within any space where a seamless lighting result is desired.
--
12V 2.5M COB LED Tape Kit With Driver, Click Fit Cables and Connectors
Kit Includes

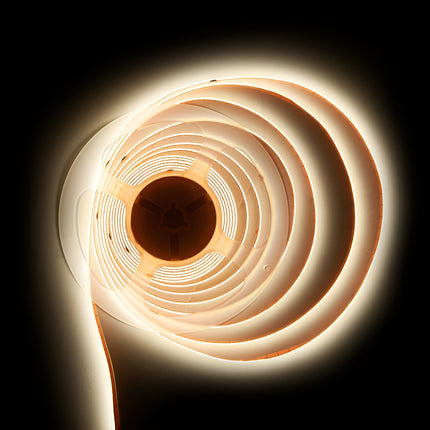

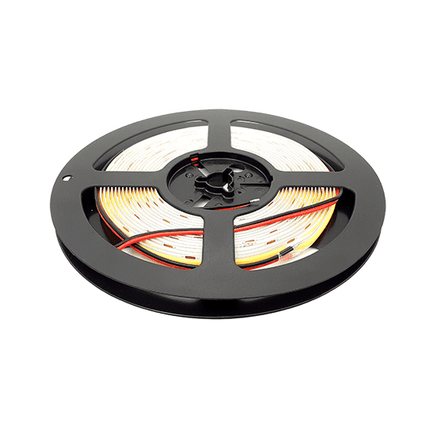

- x1 2.5M (2500mm) 8mm 12V COB LED tape light packed on reel.
- x1 24W 12V plug and play cabinet style LED driver
- x5 2M (2000mm) micro connector to bare end extension cables. Allows quick connect to supplied driver.
- x5 COB LED tape to 2 core cable 10mm wide connectors. These are ideal for connection to custom cut lengths from the 2.5M provided COB LED strip light.
Micro Connector-2M-Cable > Connector > COB LED tape length (cut down to size)
- x1 2M mains plugs with C7 type connector (plugs directly into cabinet LED driver).
Support
How to connect COB LED tape lights simply.
Specifications
COB LED Tape
-
Product Type: Seamless No Dot LED Tape (9W)
-
Colour: Warmer White (2700K) / Warm White (3000K) / Neutral White (4000K) / Cool White (6000K)
-
IP Rating: IP20 (Internal)
-
PCB Colour: White
-
Chip: COB (Chip on board) Flip Chip Technology
-
LEDs per meter: 480LEDS
-
LED Life: 70% @ 50,000 Hours
-
Brand: Uprise
Light Characteristics
-
Lumens/m: 900lm/m
-
Lumens/w: 80-120lm/W
-
High CRI: 90
-
Beam angle: 180°
Electrical
-
LED Wattage (Per meter): 9W
-
Input Voltage: 12v DC
-
Current (A): 0.75A/m
-
Cable in: 500mm 2 core (as standard)
-
Cable out: 500mm 2 core (as standard)
Dimensions
-
Width: 8mm
-
Height: 2mm
-
Length: 2.5m (as standard)
Installation
-
Cut points: 25mm
-
Cable: 2 core flat cable
-
Mounting: 3M backing tape
Guarantee
-
Certification: CE, RoHS
-
Warranty: 3 Years
Packaging
-
Packaging: 2.5M Roll as standard.
-
Net Weight: 152g/Roll
*Please Note: No more than 3 metres of COB LED tape should be connected to a single port. Upto 6 metres can be powered across two ports (powered both ends).
Article - The Definitive Guide to COB LED Strip Lights
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can I cut this COB LED strip to length?
Yes, it can be cut easily at every 25mm indicated cut point. Alternatively we can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
How do I connect an extension cable to the LED tape?
This LED tape kit comes with 10mm wide LED tape to 2 core cable connectors. Simply push the ends of tape into one side of the connector and the 2 core cable into the other. Once both are firmly in place clamp down the metal connection spokes with a pair of plyers. This results in a secure circuit. It's important to ensure the polarity of the + / - are correctly orientated, please check this.
What aluminium LED extrusions can I fit this into?
This product is 8mm and will fit into all LED profiles with an inside width of 8mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I've purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we're here to help you get a finished result that lasts.
