Uprise LED

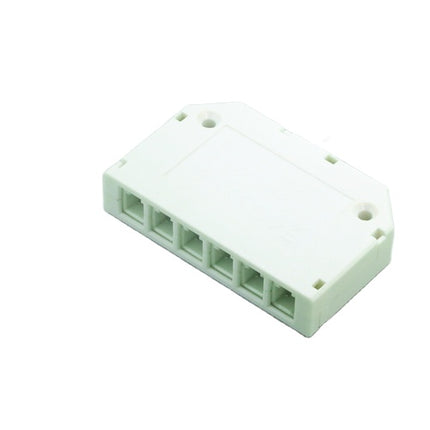

6 Way Splitter Distributor (3 Wire) For CCT LED Strip Lights and Components 12V-24V

Regular price £4.93 GBP
Regular price Sale price £4.93 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

*In stock UK for next day delivery or same day collection (Lutterworth, Leicestershire).

Product System Compatibility

2M 3 Wire (CCT) Extension Lead - 2M Plug & Play 3 Core (3 Wire) CCT / Digital Pixel Extension Cable With Input-Output Micro Connectors

500mm 3 Wire (CCT) input cable - 0.5M 3 Core (3 Wire) CCT LED Extension Cable With Male Connector & Bare Ends

Features

  • 1x 6 output splitter (3 wiring cores) for RGB 12V, 24V / 5V Digital Pixel / CCT LED tape, spotlights, lightbars and LED lamps.
  • Extend upto 6 lighting connections with this 6 way distributor
  • Small and sleek design for tidier integration.
  • Easy connection system for plug and play setup.
  • Works with 5V, 12V or 24V (5-50V) LED lights.
  • Uprise supply various compatible LED lights, Strip Lights, Spot Lights and plug & play LED driver kits, please search our store or call us on 0116 406 2959 or email us at sales@upriseled.com for more further project completion support.

Benefits

  • Quick and easy installation, plug and play.
  • Many configurable options, low cost.
  • International testing and certification makes it a safe option for commercial usage.
  • Very efficient resulting in greater energy saving along with time saved installing.
  • Sleek shape with small size for a tidy integration.

Connectivity Examples

Mains > 5V / 12V / 24V Power Supply (PSU) > *6 Way Splitter Distributor > [Male] 2M 3 Core Extensions Cable [Female] > [Male] 3 wire LED light source (CCT LED strip light or cabinet light).

Mains > 5V / 12V / 24V Power Supply (PSU) > Wifi LED Controller Receiver > *6 Way Splitter Distributor > [Male] 2M 3 Core Extensions Cable [Female] > [Male] 3 wire LED light source (CCT LED strip light or cabinet light).

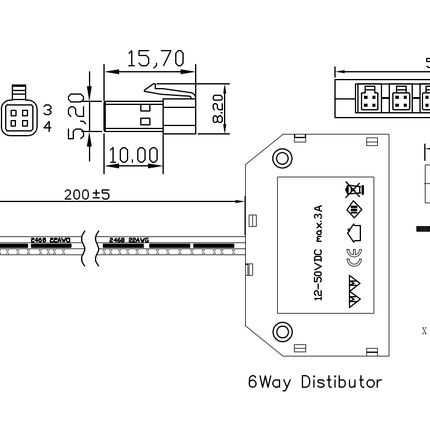

Technical Specification

  • Voltage: 5V / 12V / 24V (5-50V)
  • Max Current: 3A (Entire splitter) or 0.5A per connection port.
  • Max Wattages: 5V (15W) / 12V (36W / 24V (72W) at 3A total system load.
  • Number of Ports: 6
  • Cable Gauge: 22 AWG
  • Wiring Cores: Max 4 wires per connection port.
  • Input Cable Length: 200mm
  • Input Cable Type: 3 wire 22AWG.
  • Material: Plastic
  • Colour: White
  • Guarantee: 3 Years
  • Certification: RoHS, CE

All products to be installed by a technically competent person in accordance with BS7671 and all other local regulations and safety standards.

Questions & Answers

I need help designing my project, can you help?

Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.

Can you custom cut this strip to length?

We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.

What aluminium LED extrusions can I fit this into?

This product is 12mm and will fit into all LED profiles with an inside width of 12mm and above.

How can I buy?

You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.

What support will I receive once I’ve purchased?

Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
