Description

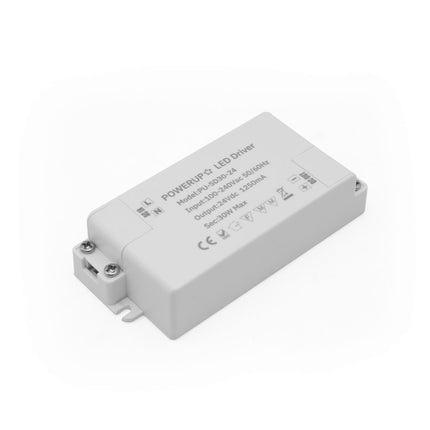

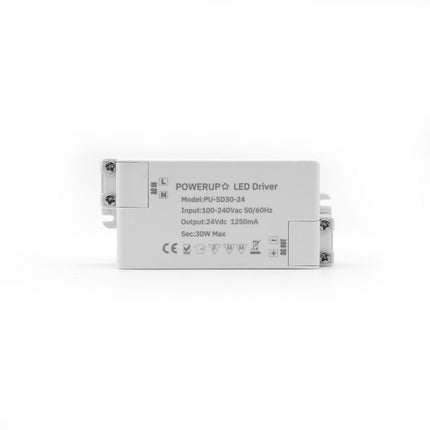

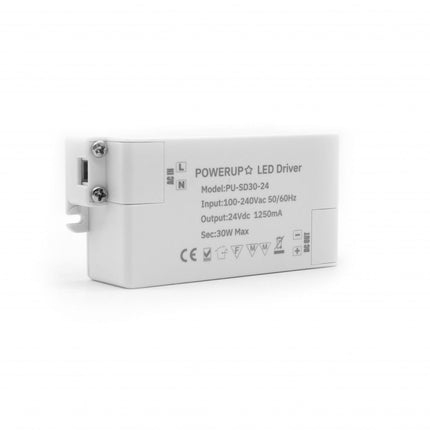

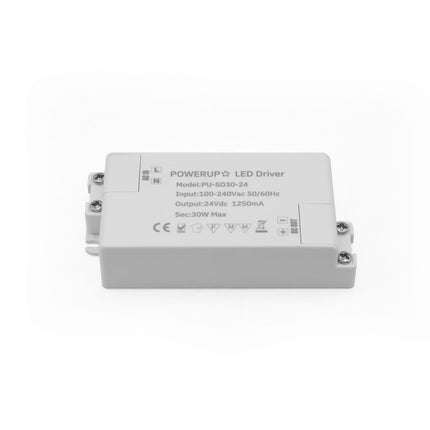

30W Constant Voltage LED Driver 24V
This small constant voltage LED driver by Uprise offers quick and simple PowerUp to 24V LED lights and single colour LED tape lights. Ideal for areas where space is limited and a tiny LED power source is required. With it’s 30W capacity and simple connection small 24V LED products / LED tape strips can be connected effortlessly.
Output
24V +/- connection for connection with 24V LED lamps, market LEDs or LED tape lights.
Power Consumption
Our PowerUp 30W small constant voltage LED PSU is rated at 30W.
Size
Small design at just 22mm depth for hidden installation. 95mm x 45mm x 24mm
Wiring
2 core cable connected to +/- connectors
Testing
100% full load age testing, consistent with world lighting safety standards.
Circuit Protection
Open circuit, short circuit, overload and overheating protection.
Standards
All of our PowerUP LED drivers are TUV/CE/SAA/ETL/FCC approved.
Choose your lengths
This product is compatible with all our 24V seamless cob and single colour LED tape lights. Simply decide the lengths required and ensure that the total wattage across all lengths when totalled does not exceed 30W - 10% (27W) to build in a safety buffer.
Application
A thin and functional LED driver that’s best suited for fitouts within cabinet displays, under pelmets, shelves, signage and within coves. It’s also suited for many other applications whereby space is limited and multiple lengths of LED strips are desired.
IP Rating
This LED supply is IP20 rated and suitable for internal applications.
Environments
Create a stunning, continuous visual aesthetic within the home, add beauty to your walk in wardrobes, designer cabinets, or prestigious wine racks by combining this PowerUp 30W super small constant voltage LED driver with a range of our single colour & seamless cob LED tape lights.
Quality Assurance
Uprise believes in long-term value, which is why our enterprise class LED tape lights include high-quality, long lasting components. Colour consistency and uniformity are important for the right finish for all our LED strips.
Uprise offers a wide variety of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. For splendid visual aesthetics and end dimming results, you can also view the Dim to Warm & Seamless COB flexible LED strip
Specifications
General
-
Product Type: Constant Voltage LED driver
-
IP Rating: IP20
-
Brand: PowerUp
Electrical
-
Power Range: 30W
-
Input Voltage: 100-240V
-
Output Current (A): 1.25A
-
Output Voltage: 24V + / - connection
-
Power Factor: 0.6
-
Efficiency: 83%
Dimensions
-
Width: 45mm
-
Height: 24mm
-
Length: 95mm
Installation
-
Mounting: x2 Screws at corners
Guarantee
-
Certification: CE, RoHS
-
Warranty: 3 Years

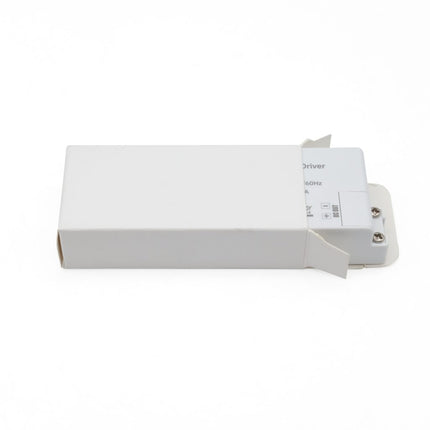

Packaging
-
Packaging: White cardboard box
-
Net Weight: 80g
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
What style of LED tape lights is this compatible with?
This driver is compatible with any 24V 2 core single colour LED tape strip or 24V LED source such as lamps, battens or marker LEDs. Contact us for more information.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
