Description

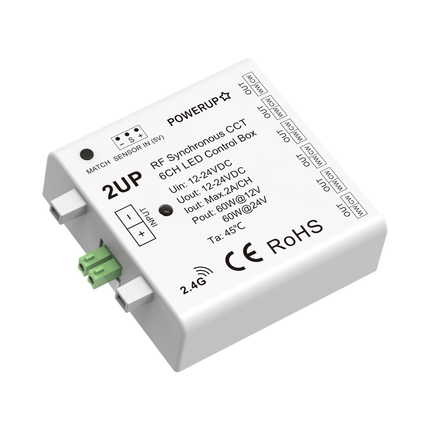

6CH CCT Wireless Connectable Controller Receiver (12V-24V)
This optional accessory 6CH single colour controller is compatible with either our 60W 12V (PWR-UP-60-12) / 24V (PWR-UP-60-24) cabinet LED driver. It allows for 6 way distribution and synchronises via wireless RF CCT remote handset control.
Download Cabinet LED Drivers Q&A Sheet PDF for more support.
Connections
Features
- 6 connector port outputs for CCT 2 Wire LED strip lights.
- Sensor Port for wide array of sensor options
- Single colour Remote Handset compatibility with easy match key setup.
- Dimming via Handset / App
Applications
- Cabinets, Shelves, Walkin-wardrobes, Integrated Light lines, Undercabinet Lighting
- Coving, Architectural features,
- Residential - Kitchens, Bedrooms, Conservatories, Home AV, Media Units,
- Commercial - Retail, window displays, Hotel, lobbies, conference rooms,
Connectable Accessories
Connect a hand wave, touch, or even a single door or double sensor (inline or master).
Power Consumption
This cabinet LED driver is rated at 60W.
Size
Ultra thin design at just 18mm depth for hidden installation. 164mm x 55mm x 18mm
Wiring
Mains > UK Mains Plug to C7 connector > PWR-UP-60-24 / PWR-UP-60-12 > 2UP > LED Accessories
Testing
100% full load age testing, consistent with world lighting safety standards.
Circuit Protection
Open circuit, short circuit, overload and overheating protection.
Standards
All of our Uprise LED drivers are TUV/CE/SAA/ETL/FCC approved.
Choose your lengths
This product is compatible with all our 24V COB LED strip lights, marker LED downlights, cabinet pad downlights, seamless cob and single colour LED tape lights. Simply decide the lengths required and ensure that the total wattage across all lengths when totalled does not exceed the connected power supply e.g 60W - 10% (54W) to build in a safety buffer.
IP Rating
This LED supply is IP20 rated and suitable for internal applications.
Environments
Create an easy, fast setup for any environment. Just click and connect this plug and play system to create stunning, continuous LED light aesthetics.
Quality Assurance
Uprise believes in long-term value, which is why our enterprise class LED tape lights include high-quality, long lasting components. Color consistency and uniformity are important for the right finish for all our LED strips.
Specifications
General
-
Product Type: Constant voltage furniture LED driver
-
IP Rating: IP20
-
Brand: POWERUP
Electrical
-
Power Range: 18W-60W
-
Input Voltage: 200-240V
-
Output Voltage: 24V +/- 5%
-
AC Input Current: 0.36A
-
Wattage: 60W
-
Voltage: 24V
-
Surge Protection: 1.5Kv
Sensor Connectivity
-
Sensor Port: PHB 2.0
-
Sensor Compatibility: Hand Wave Sensor / Touch Sensor / Single Door Switch / Double Door Switch / Wood Sensor (Hidden sensor)
Dimensions
-
Width: 55mm
-
Height: 18mm
-
Length: 164mm
Installation
Guarantee
-
Certification / Standards: CE, SELV, RoHS, UKCA
-
Warranty: 5 Years
Packaging
-
Packaging: White cardboard box
-
Net Weight: 375g
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
What style of LED tape lights is this compatible with?
This driver is compatible with any 24V 2 core single colour LED tape strip or 24V LED source such as lamps, battens or marker LEDs. Contact us for more information.
How can I buy?
You either buy individual components online or call us on 07957 180 481 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
