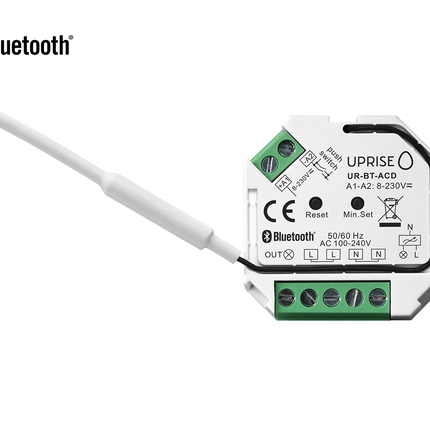

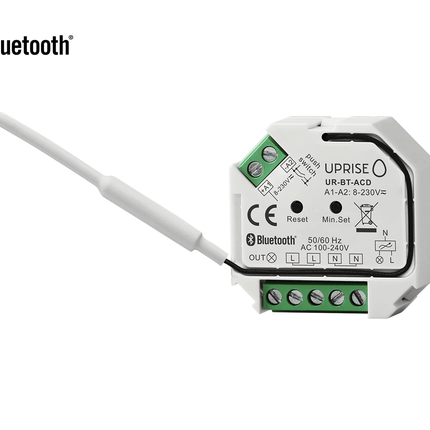

Bluetooth 1CH AC Phase Cut Dimmer Switch Sensor

UR-BT-ACD Instructions.pdf

Bluetooth 1CH AC Phase Cut Dimmer Switch Sensor

Download UR-BT-ACD Instructions.pdf for installation support.

Features

• AC phase-cut dimmer switch sensor based on RF+Bluetooth Mesh protocols


• 100-240VAC input with 100-240VAC output


• Supports both resistive and capacitive loads


• Single channel (1CH – channel), maximum 400W output


• Simple screw terminals for input and output, safe and reliable


• Available in both a leading edge and trailing edge dimming option. Trailing edge as standard.


• Enables to control ON/OFF and Light intensity of connected triac dimmable led light or led driver


• Smart App and Remote Control (RF) controllable, gate is not required.


• Quick and simply pairing to smart application, just push the reset button


• Due to intelligent mesh network, longer control distance is achieved, transmits a signal to neighbouring devices


• Achieve a transmission distance of up to 30M between every two neighbour devices


• Two-way encrypted communication and quick status feedback, offering safe & reliable data transmission


• Also compatible with our universal RF+Bluetooth remote controllers, each LED controller pairs with upto max 8 remotes


• Need cloud control? Achieve remote access, seamlessly working with Amazon Alexa and Google Home


• Also controllable by a universal 8-230V single input wire push switch


• Miniature size, simply install into a standard 86*86mm wall box


• Radio Frequency : 2.4GHz


• IP Rating: IP20 (Non waterproof, for internal use)

Specifications

General

• Part Number: UR-BT-ACD


• Product Type: Bluetooth 1CH AC Phase Cut Dimmer Switch Sensor


• IP Rating: IP20


• Brand: Uprise

Electrical

• Input Voltage: 100-240VAC


• Output Voltage: 100-240VAC


• Output Current: 1.8A max.


• Output Power: 400W max. @ 220V


• Load Type: Incandescent, Hv-halogen lamps, Dimmable LED lamps

Product Data

• Protocol: RF+Bluetooth Mesh


• Channels: 1 channel output (Up to 400W)


• Transmission Frequency: 2.4GHz

Dimensions

• Width: 45mm


• Height: 20.3mm


• Length: 45.5mm

Guarantee

• Certification: CE, RoHS


• Warranty: 5 Years

Packaging

• Packaging: White cardboard box


• Net Weight: 375g
