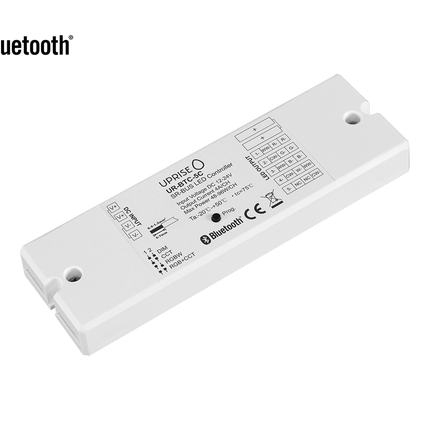

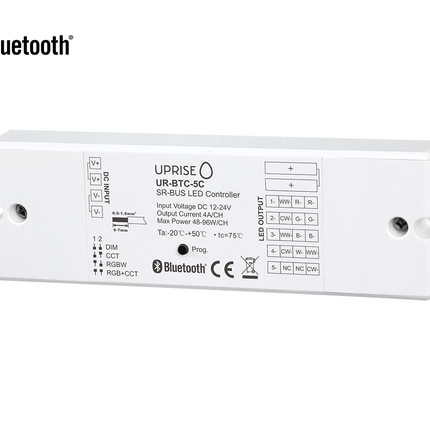

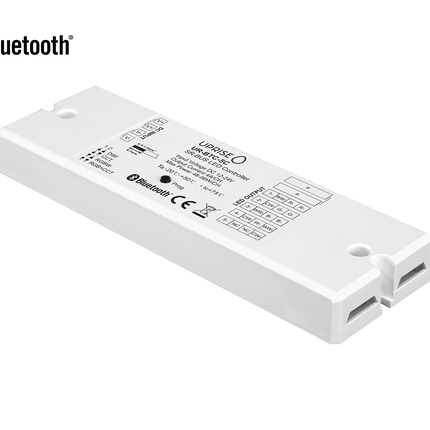

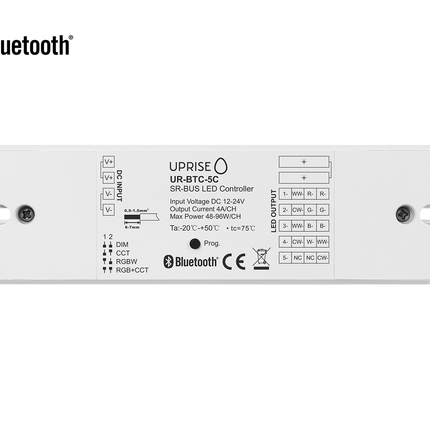

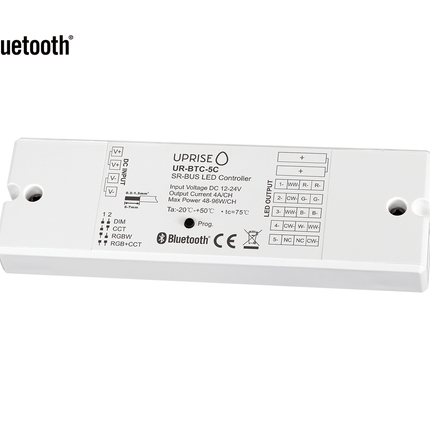

Bluetooth 5CH LED Controller Receiver For RGBCW (12V-24V)

UR-BTC-5C_instruction.pdf

Bluetooth 5CH LED Controller Receiver For RGBCW (12V-24V)

Download UR-BTC-5C_instruction.pdf for installation support.

Features

• Universal 4 in 1 wireless RF+Bluetooth LED controller, with 2.4Gz radio frequency control.


• 4 separate operating modes, including Dimmable (DIM), Tunable White 1500K-6000K (CCT), RGBW and RGB+CCT (RGB Colour + Smart Whites) in 1 controller, selectable by simple dial switch. Control 1500K, 2000K, 2100K, 2300K, 2500K, 2700K, 3000K, 3500K, 4000K or 6000K white LED tape strip lights via bluetooth.


• Enables simple ON/OFF, dimming light intensity, smart (tunable) white control, RGB / RGBW / RGB-CW-WW colour changing of connected LED lights.


• Powerful control functionality for Single Colour, Tunable Dual White (CCT), RGB, RGBW, RGB+CCT LED tape lights


• Smart App and Remote Control (RF) controllable. Gateway is not required for local control.


• Quick and simply pairing to smart application, just push the prog. button


• Due to intelligent mesh network, longer control distance is achieved, transmits a signal to neighbouring devices


• Achieve a transmission distance of up to 30M between every two neighbour devices


• Two-way encrypted communication and quick status feedback, offering safe & reliable data transmission


• Also compatible with our universal RF+Bluetooth remote controllers, each LED controller pairs with upto max 8 remotes


• Need cloud control? Achieve remote access, seamlessly working with Amazon Alexa and Google Home


• IP Rating: IP20 (Non waterproof, for internal use)

Specifications

General

• Part Number: UR-BTC-5C


• Product Type: Bluetooth Compatible 5CH LED Controller / Receiver


• IP Rating: IP20


• Brand: Uprise

Electrical

• Input Voltage: 12-24VDC


• Output Current: 5CH, 4A/CH


• Output Power: 240-480W


• Output type: Constant Voltage

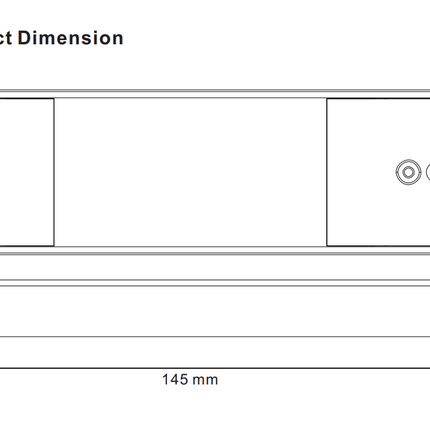

Dimensions

• Width: 46.5mm


• Height: 16mm


• Length: 145mm

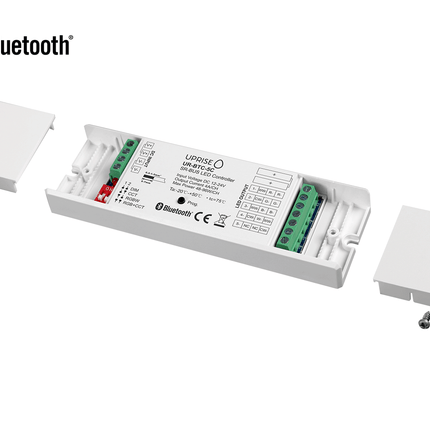

Installation

• Mounting: x2 Screws

Guarantee

• Certification: CE, RoHS


• Warranty: 5 Years

Packaging

• Packaging: White cardboard box


• Net Weight: 375g

Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.

What style of LED tape lights is this compatible with?

This driver is compatible with any 12-24V 2 core single colour LED tape strip or 12-v24V LED source such as lamps, battens or marker LEDs. Contact us for more information.
