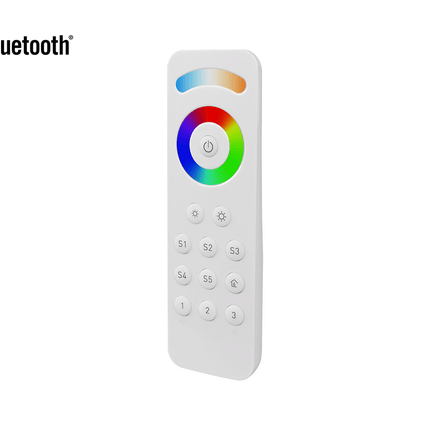

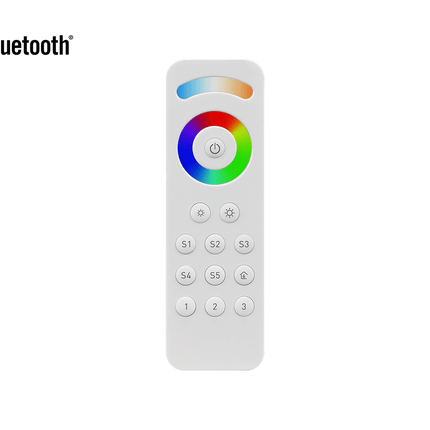

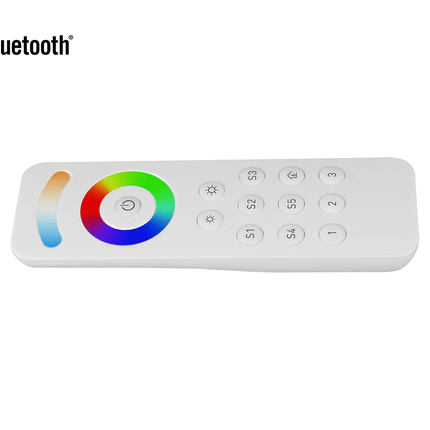

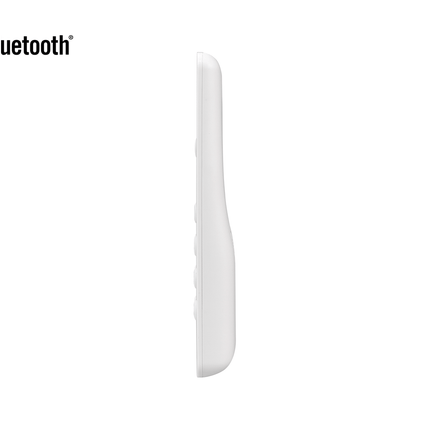

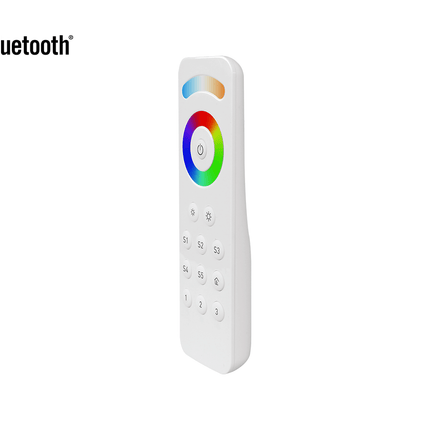

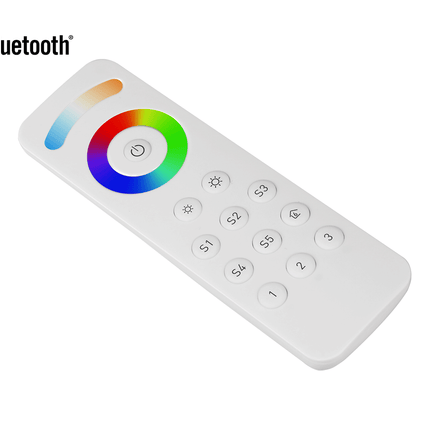

Bluetooth RGBCW (RGB + CCT + DIM) LED Remote

UR-BTR_Instruction.pdf

Bluetooth RGBCW (RGB + CCT + DIM) LED Remote

Download UR-BTR_Instruction.pdf for installation support.

Features

• RGB, RGBW, RGB + Tunable White (CCT) Remote


• Upto 3 zones can be controlled via RF+Bluetooth receiver


• The RGB and CCT channels are separately controllable


• Save 5 independent scenes and recall each of them per zone


• Simple & fast pairing to RF+Bluetooth receivers simply via pairing button.


• Greater control distance with mesh network system utilising receiver to receiver signal transmission.


• Several receivers can be controlled via a single remote.



• Pair upto a maximum of 8 remotes with each receiver.


• Control reception status is quickly synced to the smart App.


• Achieve upto 30M transmission between each two neighbouring devices.


• Eco friendly with low bluetooth power consumption results in long battery life.

Specifications

General

• Part Number: UR-BTR


• Operating Temperature: 0-40°C


• Relative Humidity: 8% to 80%


• Product Type: Bluetooth Compatible LED Remote Controller (Handset)


• IP Rating: IP20


• Brand: Uprise

Product Data

• Protocol: Bluetooth


• Operation Voltage: 3V(2*AAA battery)


• Transmission Frequency: 2.4GHz


• Transmission Range (free field): 30m


• Dimming Range: 0.1%-100%

Dimensions

• Width: 44mm


• Height: 17mm


• Length: 140mm

Guarantee

• Certification: CE, RoHS


• Warranty: 5 Years

Packaging

• Packaging: White cardboard box


• Net Weight: 375g

Safety & Warnings

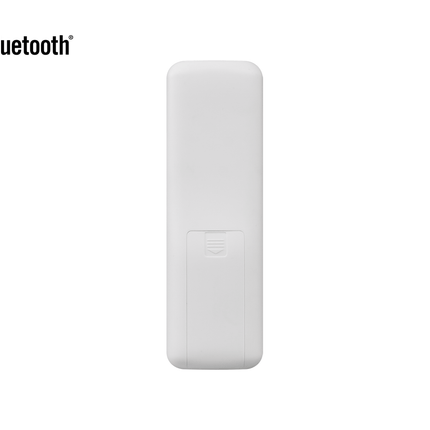

• Batteries: This device contains AAA batteries that should be safely stored and disposed properly once used.


• Waterproof Warning: This device is NOT waterproof, DO NOT expose to moisture.

Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.

What style of LED tape lights is this compatible with?

This driver is compatible with any 24V 2 core single colour LED tape strip or 24V LED source such as lamps, battens or marker LEDs. Contact us for more information.
