Uprise LED

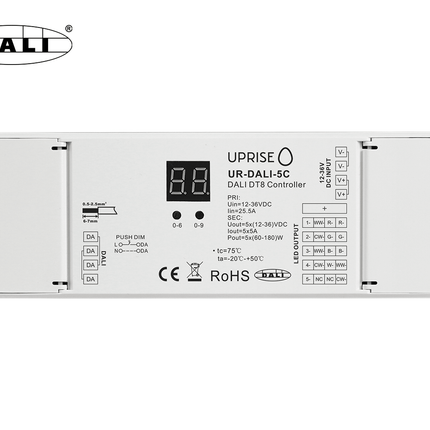

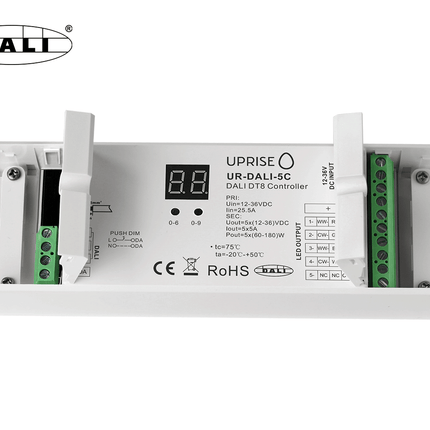

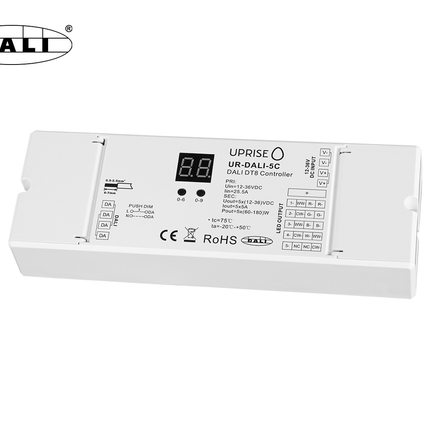

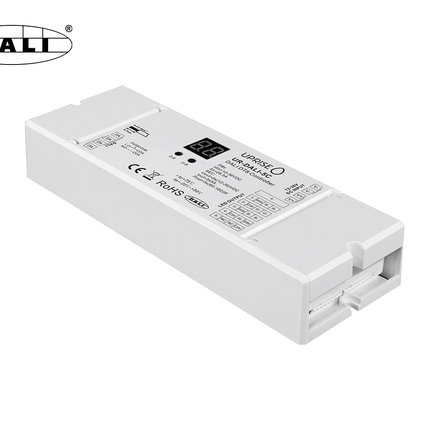

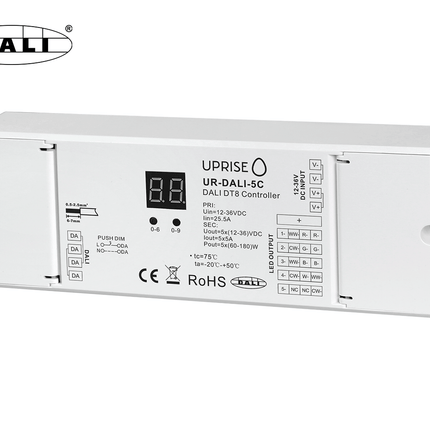

DALI 5CH LED DT8 Dimmer For RGBCW (12V-36V)

Regular price £79.00 GBP
Regular price Sale price £79.00 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

UR-DALI-5C_instruction.pdf


--

DALI 5CH LED DT8 Dimmer For RGBCW (12V-36V)

Download UR-DALI-5C_instruction.pdf for installation support.


Features



  • Compliance standards include IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, IEC 62386-209:2011

  • Includes built in DALI 2 interface and DALI DT8 device.

  • DT8 control gear with multiple addresses enabled.

  • Multiple devices integrated within one control system

  • 7 in 1 multi-functionality, includes TC (tunable-dual white), RGBWAF (RGB, White, Amber + Free Colour), XY (XY Chromaticity), XY + Tc, RGB + Tc, XY + W (DT6)

  • Assign DALI address through manual set buttons, showed via the display

  • Both single-address and multi-addresses types can be set as different device types.

  • Single address types include: TC (tunable-dual white), RGBWAF (RGB, White, Amber + Free Colour), XY (XY Chromaticity)

  • Multiple address types include: 2*Tc, XY+Tc, RGB+Tc, XY+W (DT6)

  • Outputs 5CH (Channel) constant voltage

  • Five PWM outputs are controllable via DALI device type 8 (T8)

  • Colour control, as defined per official DALI specification device type 8

  • Compatible with universal DALI masters that support DT8 commands, supports DT8 device commands

  • Setup configuration via DALI master USB interface

  • Independent push dim mode control allows both colour temperature and RGB colour control, even without DALI

  • IP20 for internal installation


Specifications


General



  • Part Number: UR-DALI-5C

  • Product Type: DALI Compatible 5CH LED DT8 Dimmer

  • IP Rating: IP20

  • Brand: Uprise

  • Dimming Range: 0.1%-100%

  • Ambient Temperature: - 20°C ~ +50°C


Electrical



  • Input Voltage: 12-36VDC

  • Output Current: 5 x 5A

  • Output Power: 5 x (60-180)W

  • Output type: Constant Voltage

  • DALI Consumption: 2mA


Dimensions



  • Width: 59mm

  • Height: 29mm

  • Length: 170mm


Installation



  • Mounting: x2 Screws


Guarantee



  • Certification: CE, RoHS

  • Warranty: 5 Years


Packaging



  • Packaging: White cardboard box

  • Net Weight: 375g


Safety & Warnings



  • Installation Warning: DO NOT install with power applied to the device.

  • Waterproof Warning: This device is NOT waterproof, DO NOT expose to moisture.


I need help designing my project, can you help?

Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.

What style of LED tape lights is this compatible with?

This LED Controller is compatible with any 12V/24V/36V single colour, dual white (tunable), RGB / RGBW / RGBTW (RGB + Dual White) LED tape strip lights or 12V/24V/36V LED source such as lamps, battens or marker LEDs. Contact us for more information.

How can I buy?

You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.

What support will I receive once I’ve purchased?

Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.

Questions & Answers

I need help designing my project, can you help?

Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.

Can you custom cut this strip to length?

We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.

What aluminium LED extrusions can I fit this into?

This product is 12mm and will fit into all LED profiles with an inside width of 12mm and above.

How can I buy?

You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.

What support will I receive once I’ve purchased?

Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
