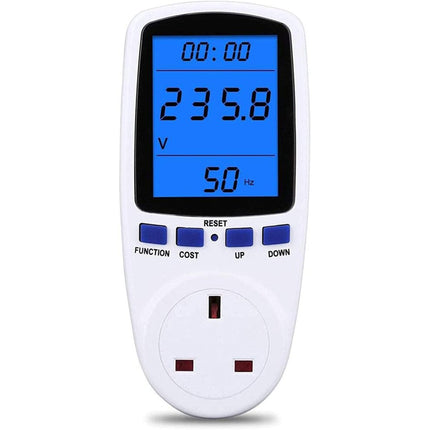

Energy / Electricity Usage Monitor Power Meter Plug with Backlit LCD Display, consumption analysis for Voltage, Amps, Wattage, KWH.

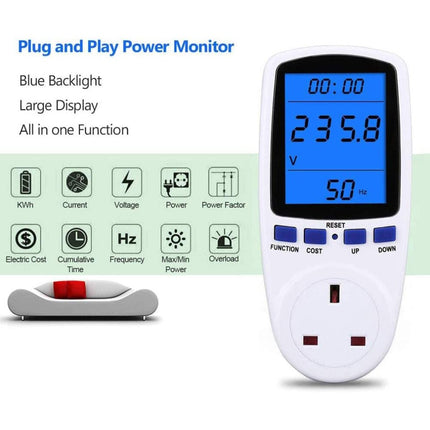

• Multiple Measurement Functions: This power energy meter can measure and display voltage, current, energy, frequency, power factor, maximum current & power, time days cost and total kWh. 7 modes for your choice.


• Overload Alarm Function: The power energy consumption monitor will alarm automatically to warn the user when exceeding the rated power 3680W. The power plug will simultaneously cut off to prevent from damaging.

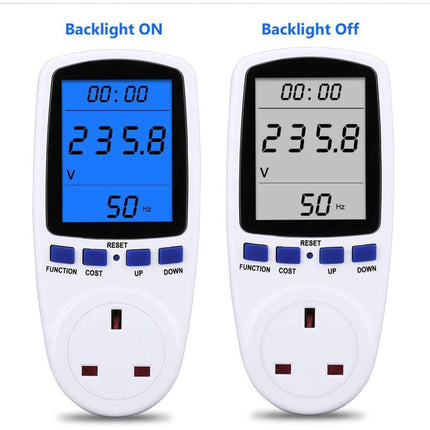

• Better Visual Experience: UPDATED VERSION with large and clear LCD display, 360° viewing without dead angle, with backlight function, it is clearly visible whatever day or night. The blue backlight can be turned on/off manually. Press any button to wake up the backlight. Backlight time: 10 minutes.

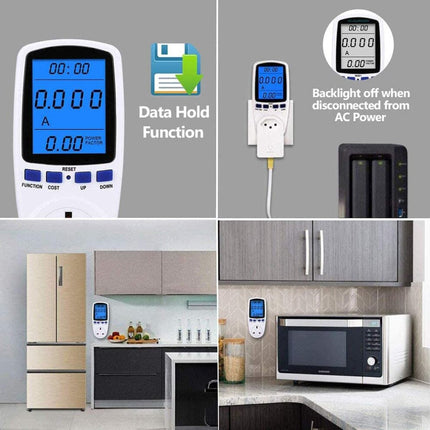

• Automatic Data Storage Function: The last data is stored automatically when the power supply abruptly lose. Don't worry about data loss due to a sudden power outage.

Main Features:
1. Electrical parameter measurement functions include (voltage, current, energy, frequency, power factor, maximum current & power, time days cost and total kWh).

2. An overload warning function that alerts (over threshold of 3680W alarm will sound, backlight and power booming noise to alert).

3. BACKLIGHT function (can be turned off manually).
Backlight time: 10 minutes

4.  Includes a 180° VIEWING ANGLE, easy to read data clearly.

5. The energy can be reset.

6. Memory function (store data when power off).

7. Large-screen LCD (screen dimension: 45mm x 70mm).

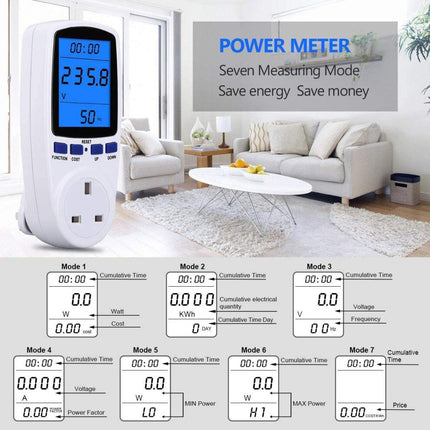

7 Independent Display Modes:
1: Time/Watt/Cost Display
2: Time/Cumulative Electrical Quantity Display
3: Time/Voltage/Frequency Display
4: Time/Current/Power Factor Display
5: Time/Minimum Power Display
6: Time/Maximal Power Display
7: Time/Price Display

Specifications:
3-pin UK mains plug
Operating voltage: 230VAC
Frequency display: 50Hz
Operating current: max 13A
Wide voltage range: 200V-250V
Wattage display(Watts): 0W-2900W
Current display(Amps): 0.0A---13.0A
Price display range: 0.00 £/kWh---99.99 £/kWh
Total kWh and cost display: 0.000 kWh---9999 kWh, 0.00 £---9999 £
Displays volts, amps and watts accurate: 3%

Included in package:
1 x Power Monitor (UK Plug, updated version)
1 x User Manual

Notes:
By pressing the "COST" button you can switch to Mode 7.
Pressing any button will wake up the backlight after it automatically turns off (Backlight time is: 10 minutes)
Should there be an abnormal display or no response, please reset the electricity power plug by pressing the RESET button. This should reset the device to normal functionality.
