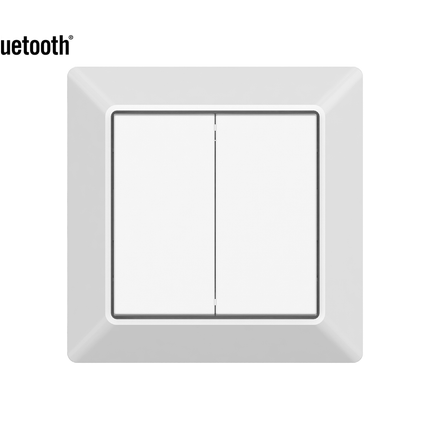

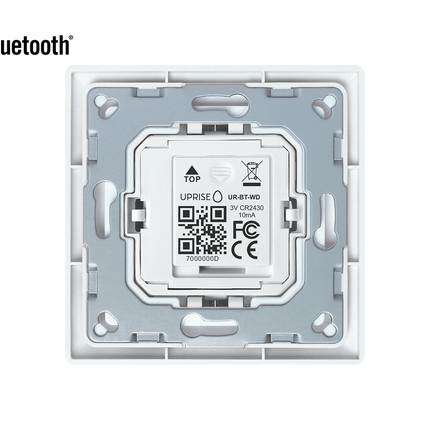

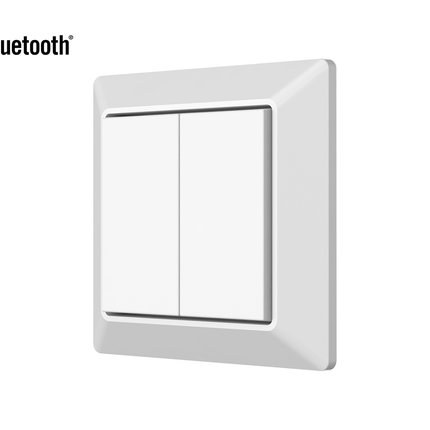

Bluetooth Wall Mounted Dimmer

Download UR-BT-WD_Instruction.pdf for installation support.

Features

• Configurable 4 button smart wall switch, works with RF (Radio Frequency) & Bluetooth


• Economic with ultra low power consumption, battery powered.


• Quick, simple push button setup to pair with RF & Bluetooth receivers


• Easily configurable via App with several functions and settings


• Simply turn ON/OFF, adjust brightness, select any RGB & tunable white (CCT) colour with ease


• Trigger saved light scenes, adaptable colour sequences or preset scenes in App


• Achieve greater control within mesh network, each receiver can transmit signal to one another


• Operates at 2.4 GHz globally


• The controller receiver status can be synchronized and updated directly to the App


• Achieve a transmission distance of up to 30M between every two neighbour devices


• Each controller receiver pairs with upto max 8 remotes.


• Also compatible with our universal DIM, CCT, RGB, RGBW and RGB+CCT (Warm-Cool White) RF & Bluetooth devices.


• Standard size, 80.5mm x 80.5mm


• Compatible with existing EU size frame. For UK integration, check UR-BT-ACD Instructions.pdf for dimensions.

Specifications

General

• Part Number: UR-BT-WD


• Product Type: Bluetooth/RF Wall Mounted Dimmer


• Number of Buttons: 4


• IP Rating: IP20


• Brand: Uprise

Electrical

• Power Supply: 3V (1 x CR2030 battery)


• Energy Consumption: Eco, lower energy

Product Data

• Protocol: Bluetooth / RF


• Transmission Range: 30M


• Dimming Range: 0.1%-100%


• Transmission Frequency: 2.4GHz

Dimensions

• Width: 80.5mm


• Height: 14.7mm


• Length: 80.5mm

Guarantee

• Certification: CE, RoHS


• Warranty: 5 Years

Packaging

• Packaging: White cardboard box


• Net Weight: 375g

Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.

What style of LED tape lights is this compatible with?

This Bluetooth / RF wall dimmer controller is compatible with our range of Bluetooth / RF receiver controllers and therefore any 12V, 24V or 36V 2 core single colour LED tape strip or 12V, 24V, 36V LED source such as lamps, battens or marker LEDs. Contact us below for more information.
