Description
This flexible, high output RGB LED tape light uses the highest quality Epistar LEDs for excellent light performance. 15W/M, 5M Reel.
10mm colour changing RGB LED tape. Beautiful colours that set the mood.

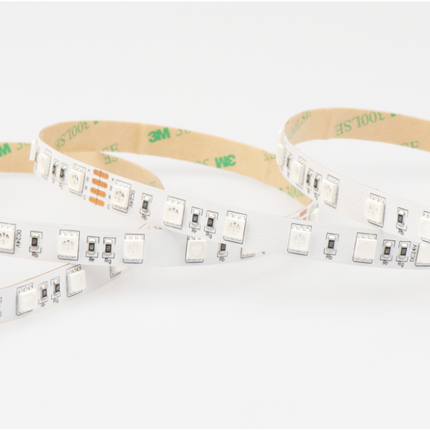

This 15-watt RGB LED tape light is a continuous LED lighting source that is both compact and flexible, making it perfect for a wide range of applications. This slim LED ribbon, which uses 60 5050 SMD branded LEDs and is manufactured to a high quality, outputs up to 635.13 (RGB) lumens per meter, while consuming only 15 watts per meter. Life expectancy of this luminous LED tape is 50,000 hours of continuous use.
Colour Temperatures
Our professional, long lasting RGB colour changing LED tapes are the standard in creating exciting, vibrant shades throughout your space. With millions of emotion inducing colours to choose from you get to set the scene. Ideal for commercial applications where fit and forget is a must.
We also supply RGBW and RGBTW colour changing LED tapes if added white visual effects are desired.
Colour Rendering Index (CRI)
This radiant LED ribbon is available in CRI>90.
Brightness (Lumen Output)
Ultra efficient as standard, this bright LED ribbon outputs 635.13 (RGB) lumens per meter.
Light Diffusion
When illuminating any surface, our flexible LED strips provide a seamless linear effect as standard. Our LED strips can be used in combination with our aluminium channels, commonly known as LED profiles. The light source of the LED strips will be evenly dispersed when they are fitted within profiles.
Wiring Example
Choose your length
Uprise’s 15-watt LED tape, like our other bendable strip light series, comes in standard 5M reels and may be cut at each 50mm soldered (copper coloured) segment. If you require specific lengths, large or small, we can cut your tape to length.
Simply enter your custom lengths during the online purchasing process, call us, or use our LED project configurator to add UP60-S5050RGB-10MM-15W-12V-5M and obtain an estimate in seconds.
Application
This flexible LED strip light is ideal for fitouts within cabinet displays, under pelmets, shelves, signage and within coves.
The LED ribbon is just 10mm wide (IP20) and selectable up to an IP67 standard. An IP67 rating provides full dust and low immersion protection. It can be used, when water resistance is needed, within bathrooms, external areas or water features.
IP Rating Options
This bright LED tape is available in the IP20 , IP52 , IP65H , IP65 , IP67 & IP67E versions. Contact us on 0116 406 2959 or send us a message at sales@upriseled.com if you wish to talk to a lighting expert. We will guide you to select the right strip to apply.
Check our IP rating charts here for additional information about which strip is suitable for your application.
Environments
This LED tape provides excellent lighting for commercial applications, ideal for resorts, restaurants, bars, hotel lobbies and retail spaces and window displays. This LED ribbon is well suited to architects, light engineers, AV integrators and electrical specialists when there is a requirement for slim, bright, long lasting LED strips.
It is particularly suited for outside garden areas such as edge lights, garden bars and steps, living rooms, kitchens and home movies.
Quality Assurance
Uprise believes in long term value, that’s why our enterprise class LED tape lights use premium grade, long lasting components. Colour consistency and uniformity is a project must, so all our LED strip lights are batched for overall peace of mind.
Looking to dim your LED tape lights, Uprise offers a comprehensive range of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. You can also check out our new Dim to Warm & Seamless COB flexible LED strips for beautiful visual aesthetics and end dimming results.
Specifications
General
-
Product Type: RGB LED Tape
-
Colour: RGB
-
IP Rating: IP20 / IP52 / IP65H / IP65 / IP67 / IP67E
-
PCB Colour: White
-
Chip: 5050 SMD
-
LEDs per meter: 60LEDs
-
LED Life: 70% @ 50,000 Hours
-
Brand: Uprise
Light Characteristics
-
Lumens/m: 635.13Lm/m (RGB)
-
Lumens/w: 44.11Lm/w (RGB)
-
CRI: >80
-
Beam angle: 120°
Electrical
-
LED Wattage (Per meter): 15W
-
Input Voltage: 12V
-
Current (A): 1.2A
-
Cable in: 500mm 2 core (as standard)
-
Cable out: 500mm 2 core (as standard)
Dimensions
-
Width: 10mm
-
Height: 2mm
-
Length: 5m (as standard)
Installation
-
Cut points: 50mm
-
Cable: 4 Core Flat Cable
-
Mounting: 3M backing tape
Guarantee
-
Certification: CE, RoHS
-
Warranty: 5 Years
Packaging
-
Packaging: 5M Roll
-
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 10mm and will fit into all LED profiles with an inside width of 10mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
