High Definition RGB COB LED Tape. Colour Completed.

This RGB "no dot" LED strip light provides a seamless LED light line that can be colour changed. Ideal for undercabinet areas within kitchens, bedrooms or walk in wardrobes along with low profile coving, retail POS displays and more.

Looking a continuous light line with extra dedicated white? Check out our RGBW No Dot LED strip light.

*Priced per meter, typically supplied as 5M reel with 2000mm 5 core flat cable as standard. Can be cut to length. Contact us for made to measure seamless RGB LED solution. Comes with an IP65 heat shrink protective coating as standard.

At 14-watt per meter, this RGB COB LED strip is slim, flexible, offering excellent brightness and colour output. Utilising the latest in flip chip COB technology with a long expected life of 50K hours.

Article – The Definitive Guide to COB LED Strip Lights

Build Your Solution

Add corner joint or feed custom length feed in services below.

Solder Corner Cable to RGB colour changing (4 wire) LED Strip Light

Colour Temperatures

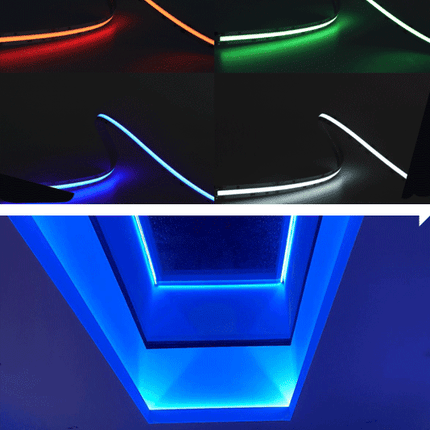

This strip offers full RGB colour changing for millions of colour combination. When all on you can also generate a nice white which can be toned and adjusted.

Colour Rendering Index (CRI)

This versatile "no dotting" LED tape light is available in CRI>80.

Brightness (Lumen Output)

This bright COB LED strip produces 650lm/m (RGB all on).

Light Diffusion

When it comes to illuminating any area, our COB LED strip lights come equipped with a smooth linear appearance. These flexible LED strips can be used together with our extruded aluminium channels, generally known as LED profiles, if desired. Once LED tape strips are fitted into the profiles, the light source will be evenly distributed.

Choose your length

This full colour COB LED strip light can be purchased now in 5M increments with a 2000mm tail. Or Uprise can cut your tape to exact sizes if you need specific lengths along with extended cables.

Application

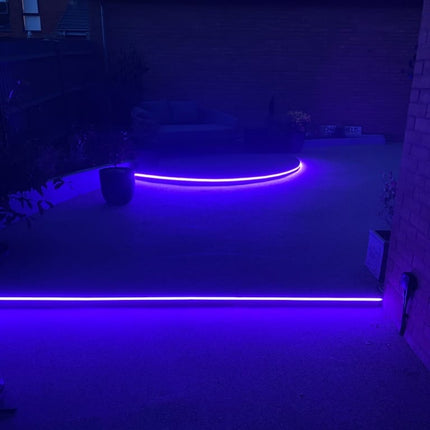

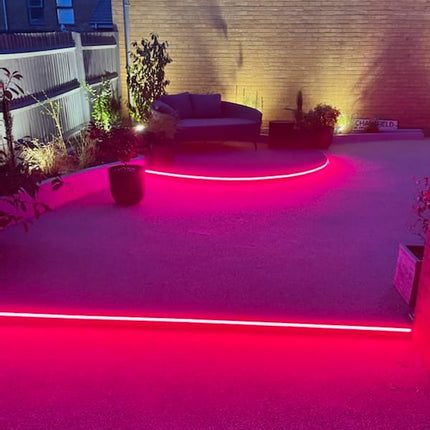

This flexible COB LED ribbon is ideal for fitouts within cabinet displays, under pelmets, shelves, signage and within coves.

The LED tape is available in IP65 (splashproof) or IP20 (internal) at 10mm.

IP Rating Options

This bright LED tape is available in the IP65 (splashproof) or IP20 (internal) versions. Contact us on 0116 406 2959 or send us a message at sales@upriseled.com if you wish to talk to a lighting expert. We will guide you to select the correct type to apply.

Quality Assurance

Uprise believes in long term value, that’s why our enterprise class LED tape lights use premium grade, long lasting components. Colour consistency and uniformity is a project must, so all our LED strip lights are batched for overall peace of mind.

Specifications

General

• Product Type: Seamless COB RGB LED Tape
• Colour: RGB colour mixing (white achieved with 100% all on)
• IP Rating: IP65 / IP20
• PCB Colour: White
• Chip: COB (Chip on board) technology
• LEDs per meter: 768 LEDs
• LED Life: 70% @ 50,000 Hours
• Brand: Uprise

Light Characteristics

• Lumens/m: 650Lm/m (RGB all on)
• Lumens/w: N/A
• CRI: >80
• Beam angle: 180°

Electrical

• LED Wattage (Per meter): 14W
• Input Voltage: 24V
• Current (A): N/A
• Cable in: 2000mm 2 core (as standard)
• Cable out: 0mm as standard

Dimensions

• Width: 10mm
• Height: 2mm
• Length: 5m (as standard), can be cut to size.

Installation

• Cut points: 50mm
• Cable: 4 core flat cable
• Mounting: 3M backing tape

Guarantee

• Certification: CE, RoHS
• Warranty: 3 Years

Packaging

• Packaging: 5M Roll
• Net Weight: 152g / Roll

I need help designing my project, can you help?

Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.

Can you custom cut this strip to length?

We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.

What aluminium LED extrusions can I fit this into?

This product is 12mm and will fit into all LED profiles with an inside width of 12mm and above.

How can I buy?

You either buy individual components online or call us on 0116 406 2959 or email us at sales@upriseled.com and a member of our team will help you with your project.

What support will I receive once I’ve purchased?

Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
