Description

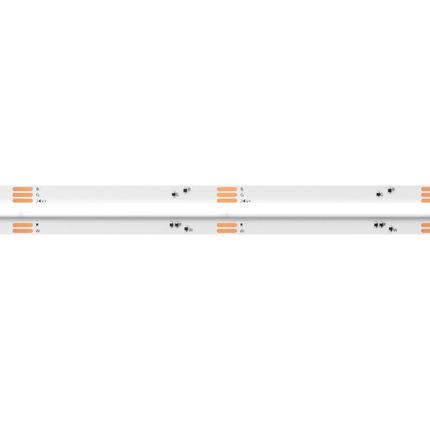

896LED/M RGBW COB LED Strip Light. 24V.
*Priced per meter, supplied with 0.5M / 2M /4M 5 core flat cable as standard. Contact us for made to measure seamless "no dot" (when placed within any aluminium channel / LED profile) RGBW LED strip light solution.
NOTE: This seamless RGBW COB LED tape light should be placed within an aluminium LED profile to act as a further heatsink, protect from dust ingress and as a barrier to human touch contact.

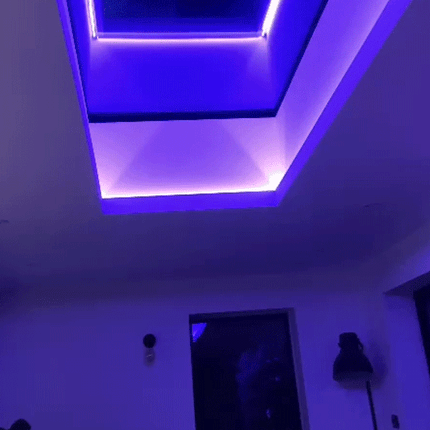

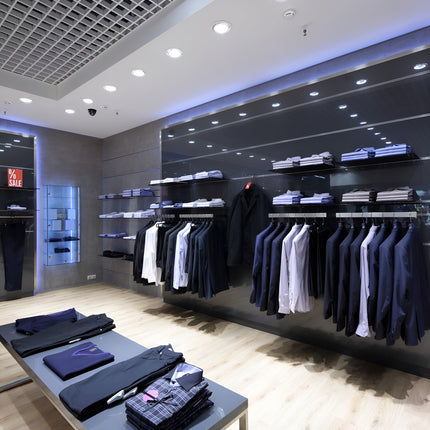

Create a colour changing light line that's seamless on the eye. Ideal for architectural light lines, media units, undercabinet areas within kitchens, bedrooms or walk in wardrobes along with low profile coving, retail POS displays and more.
Works well with
Wireless 5 in 1 CCT & RGBWW LED Remote Handset [Remote Handset]
Smart Wireless 5 in 1 CCT & RGBWW LED Controller Receiver [Controller-Receiver]
Article – The Definitive Guide to COB LED Strip Lights
Build Your Solution
Add corner joint or feed custom length feed in services below.
Solder Corner Cable to RGBW colour changing (5 wire) LED Strip Light
Solder Cable to RGBW colour changing (5 wire) LED Strip Light
Colour Temperatures

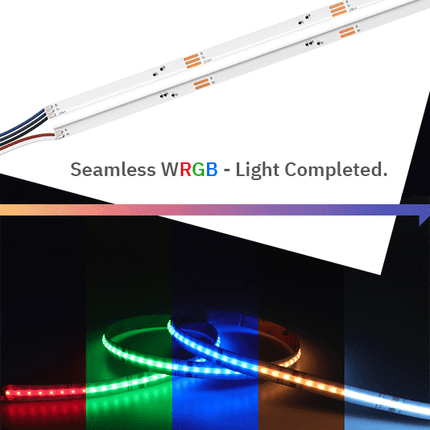

This strip offers either a dedicated 3000K warm white / 4000K neutral white / 6000K cool white along with full RGB colour changing for millions of colour combinations. Generate beautiful pastel hues and shades to compliment your room scheme. When combined with an LED profile a "no dot" lighting result can be achieved.
Colour Rendering Index (CRI)
This versatile LED tape light is available in CRI>80.
Brightness (Lumen Output)
This bright COB LED strip produces 711.8lm/m
Light Diffusion
When it comes to illuminating any area, our COB LED strip lights come equipped with a smooth linear appearance. These flexible LED strips can be used together with our extruded aluminium channels, generally known as LED profiles, if desired. Once LED tape strips are fitted into the profiles, the light source will be evenly distributed.
Choose your length
This full colour COB LED strip light can be purchased now in 1,2,3,4 5M increments with a 500mm tail. Or Uprise can cut your tape to exact sizes if you need specific lengths along with extended cables.
Application
This flexible COB LED ribbon is ideal for home av fitouts within media walls, featgure acoustic panels, under pelmets, shelves, signage and within coves.
IP Rating Options
This bright LED tape is available in the IP20 and IP65 (on request). Phone/Whatsapp us on 07957 180 481 or send us a message at sales@upriseled.com if you wish to talk to a lighting expert. We will guide you to select the correct type to apply.
Quality Assurance
Uprise believes in long term value, that’s why our enterprise class LED tape lights use premium grade, long lasting components. Colour consistency and uniformity is a project must, so all our LED strip lights are batched for overall peace of mind.
Specifications
General
-
Product Type: Seamless COB RGBW LED Tape
-
Colour: RGB+3000K / RGB+4000K / RGB+6000K
-
IP Rating: IP20 / IP65 (Available to discuss)
-
PCB Colour: White
-
Chip: COB (Chip on board) technology
-
LEDs per meter: 896LEDs
-
LED Life: 70% @ 50,000 Hours
-
Brand: Uprise
Light Characteristics
-
Lumens/m: 711.8Lm/m (RGB+3000K)
-
Lumens/w: N/A
-
CRI: >90
-
Beam angle: 180°
Electrical
-
LED Wattage (Per meter): 16W
-
Input Voltage: 24V
-
Current (A): N/A
-
Cable in: 0.5M/2M/4M
-
Cable out (return): 0.5M/2M/4M (On 10M lengths)
Dimensions
-
Width: 12mm
-
Height: 2mm
-
Length: 1M/2M/3M/4M/5M/6M/7M/8M/9M/10M
Installation
-
Cut points: 33.3mm
-
Cable: 5 core flat cable (22 AWG)
-
Mounting: 3M backing tape
Guarantee
-
Certification: CE, RoHS, ETL
-
Warranty: 2 Years
Packaging
-
Packaging: Silver Foil Bag
-
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 12mm and will fit into all LED profiles with an inside width of 12mm and above.
How can I buy?
You either buy individual components online or call us on 07957 180 481 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
