Uprise LED
Single Colour LED Controller
Single Colour LED Controller
[VIDEO] Seamless lighting simplified.
[VIDEO] Seamless lighting simplified.
Couldn't load pickup availability

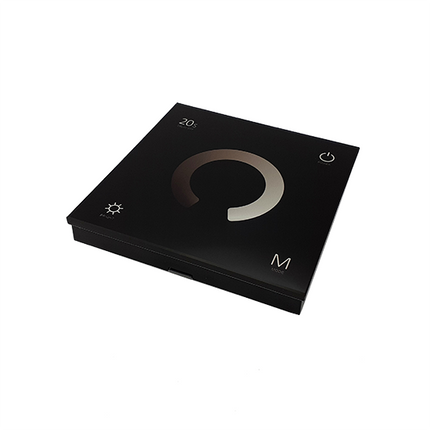

Simple to use single colour LED wall controller. Touch sensitive wall panel
Features
- Single colour touch panel constant voltage controller.
- High sensitivity, toughened glass touch panel with a simple to use centred colour wheel. Backlit for visibility.
- Compatible with RF 2.4G single zone or multiple zone remote control.
- Touch icon keys with LED indicator
- Available in polar white or jet black finish.
Technical Parameters
Input and Output.
Input Voltage: 12-24VDC
Input Current: 12.5A
Output Voltage: 4 x (12-24) VDC
Output Current: 4CH. 3ACH
Output Power: 144-288W
Output Type: Constant Voltage
Light Type: Single Colour
Technical Parameters
Safety and EMC
EMC standard (EMC): EN301 489, EN 62479
Safety standard (LVD): EN60950
Radio Equipment (RED): EN60950
Certification: CE, EMC, LVD, RED
Weight
Net Weight: 0.118kg
Gross Weight: 0.230kg
Environment
Operation Temperature: Ta:30°C - +55°C
Case temperature (Max.): Tc: +85°C
IP Rating: IP20
Warranty and Protection
Warranty: 5 years
Protection: Reverse polarity, Over Heat, Short Circuit
Key Function
- Turn on/off light
- Brightness wheel
- Brightness, 10 levels.
- Turn off light after 20s.
- Dynamic mode, 6 level speed.
