Description

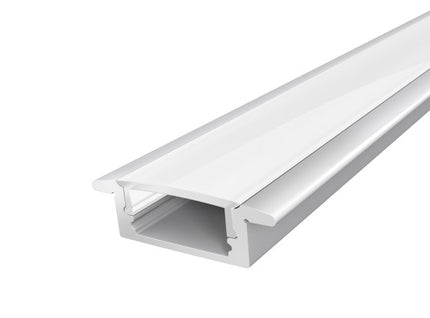

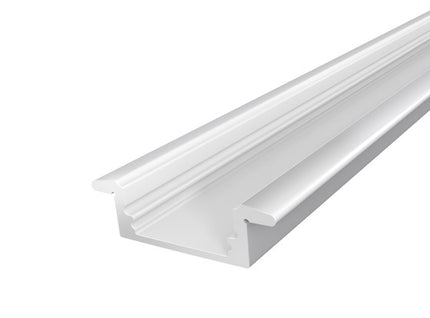

This is an LED aluminium extrusion designed for slim recessed lighting applications. This LED profile also acts as a heatsink, offering greater thermal management.
Supplied with plastic end caps and both, metal or plastic fix clips. The profile comes complete with a Semi Diffused PC Cover. Compatible with LED strips that are up to 12mm wide.
The cutout hole size is 17.1mm wide, 8mm high, 23.2mm (outer flange width). The internal width is 12mm. The length of this LED Profile is 1M. Available bespoke cut lengths also include 0.5M/1.5M/2.5M/3M. The base of the construction is 6063 T5 Aircraft Aluminium, which makes it tough and fit for purpose.
Additional detail is the silver finish that provides a professional look.
If you would like a custom length please get in touch on 0116 406 2959 or email us at sales@uprisemed.com
Specifications
Product Type: Slim Recessed
Compatible with: Suitable for LED tape width: <12mm
Material: 6063 T5 Aircraft Aluminum
End Caps: Plastic
Fix Clips: Metal/Plastic optional
Finish: Silver
PC Cover: Semi Diffused
Width: 17.1mm
Outer Flange Width: 23.2mm
Internal Width: 12mm
Height: 8mm
Length: 1M
Available Cut Lengths: 0.5M/1M/1.5M/2M/2.5M/3M
1 meter package size: 125PCS/Carton,102X13X17CM
2 meter package size: 125PCS/Carton, 202X13X17CM
G.W (Per meter): 0.14KG
Warranty: 5 Year Warranty
