Description

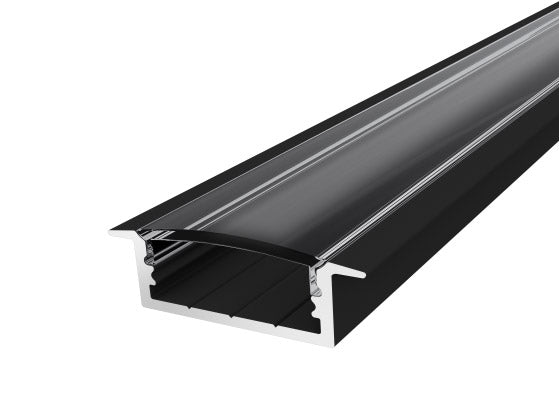

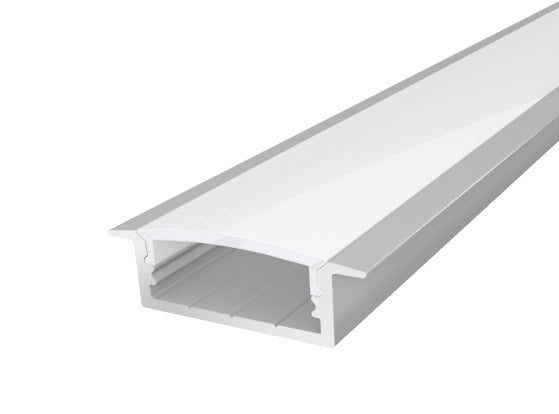

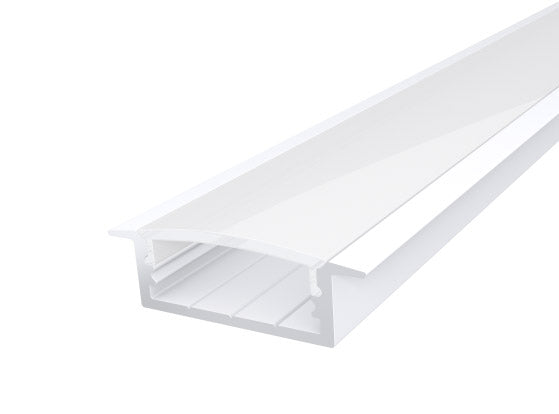

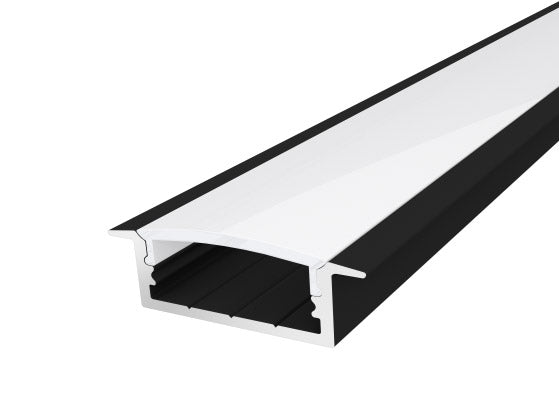

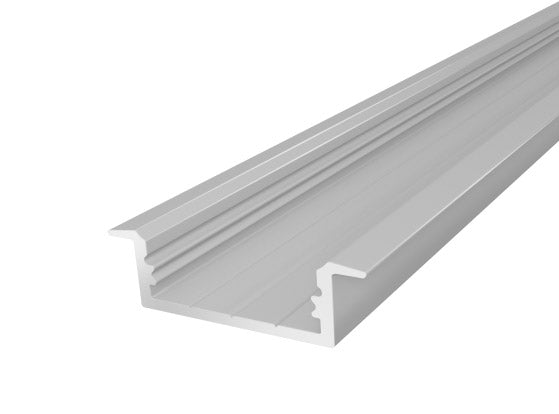

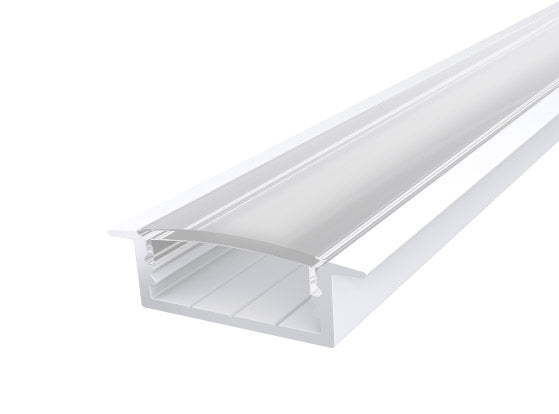

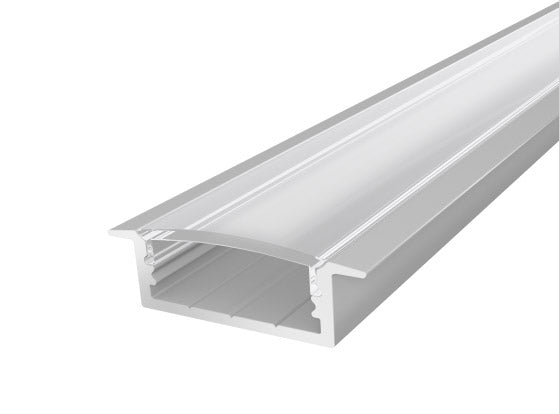

This is a recessed aluminium extrusion for LED strip lighting.
It includes end caps and fix clips, which are made out of plastics. Supplied with a professional diffuser that is available in transparent (clear) or diffused (Semi Frosted).
The cutout hole size is 23.5mm wide, 10mm high, 30.5mm (outer flange width). The internal width is 20mm. Standard lengths are available in 1M and 2M. Available bespoke cut lengths also include 0.5M/1.5M/2.5M/3M. The construction is based on 6063 T5 Aircraft Aluminum.
If you would like a custom length please get in touch on 0116 406 2959 or email us at sales@uprisemed.com
Specifications
Product Type: Slim Recessed
Compatible with: Suitable for LED tape width: 20mm
Material: 6063 T5 Aircraft Aluminum
End Caps: Plastic
Fix Clips: Plastic
Finish: Silver/Black/White
PC Cover: Transparent/Diffused
Width: 23.5mm
Outer Flange Width: 30.5mm
Internal Width: 20mm
Height: 10mm
Length: 1M/2M
Cutout Hole: 23.5mm
Available Cut Lengths: 0.5M/1M/1.5M/2M/2.5M/3M
1 meter package size: 102X13X17CM
2 meter package size: 202X13X17CM
G.W (Per meter): 0.16KG
Warranty: 5 Year Warranty
