Description
Quick Overview

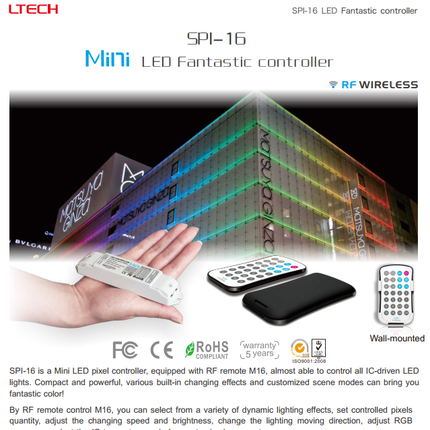

This LTECH SPI-16 M16 Mini RF SPI LED Pixel Controller is compatible with DC5-25V input. It's purpose is to generate both small and large scale digital pixel visual effects via simple handheld remote and presets. It's a popular, hardy system that is also cost effective. You easily generate a gradient rainbow effect amongst other fun effects patterns.
It has a max output rating of 10A which means this pixel LED controller can power no more than: 50W at 5V, 120W at 12V, 240W at 24V.

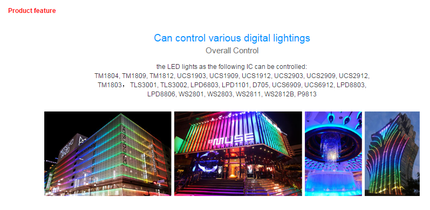

Compatible IC Types:
TM1803, TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912, UCS2903, UCS2909, UCS2912, TLS3001, TLS3002, LPD6803, LPD1101, D705, UCS6909, UCS6912, LPD8803, LPD8806, WS2801, WS2803, WS2811, WS2812, P9813

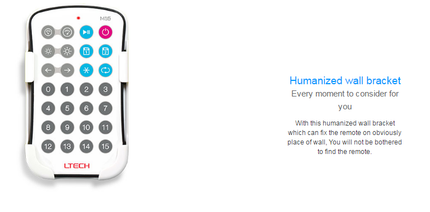

Please note: The RF handset requires a cr2032 lithium battery.
Please contact sales@upriseled.com for Pixel LED strips, LED controllers and compatible LED power supplies. This product is in stock UK for next day delivery (DPD). Many customers choose Uprise for high quality products, fast delivery and excellent service and support. If you have any challenges with your order we're here to help. You can also contact us on 0116 406 2959 to discuss your project.
Payments are safe via Stripe a leading platform or you can get in touch with us to discuss your needs and to arrange BACs transfer.
Specifications

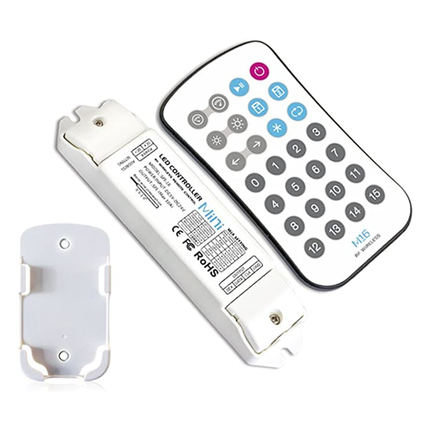

Model: MI6 Mini LED Pixel Controller With RF Remote
SKU: M16-RF

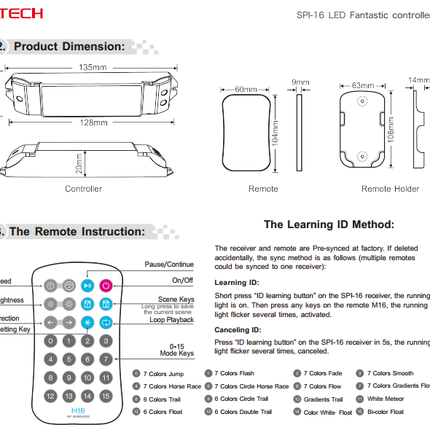

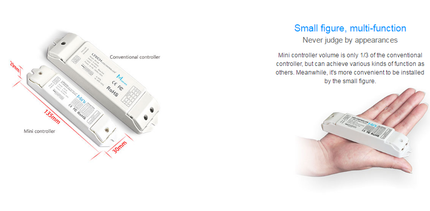

Receiver Dimensions: L135 x W30 x H20mm

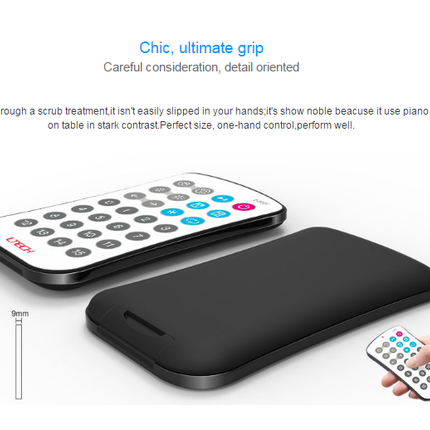

Handset Dimensions: L104 x W60 x H9mm
Type: Digital IC
Power input: 5V-24V
Output Power: 10 Amps Max
Watts: 50W at 5V, 120W at 12V, 240W at 24V
Total Pixels: 8 - 1020 pixels
Rating: IP20 (Dry / Indoor)
Operating Temperature: -22°C ~ 55°C
Warranty: 1 year
Previous Mode On Power Cycle: Yes
Remote Radius: 40M-50M (line of site)
Colour Effect Modes: 16

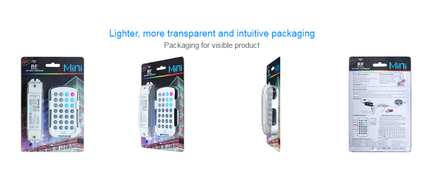

Packaging Dimensions: 13.2x20cm
Packaging Weight (G.W): 120g
