Description

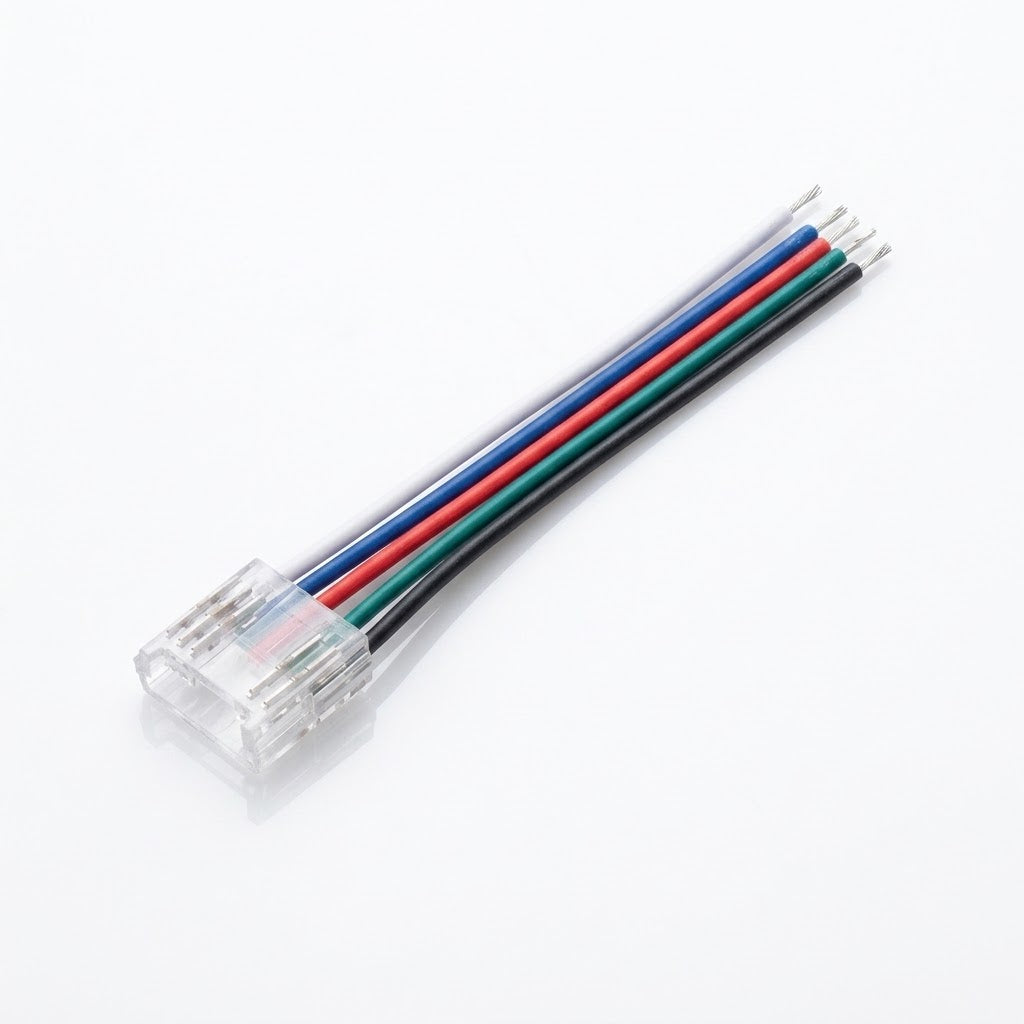

RGBW COB IP20 12mm Strip To 65mm 5 Core Cable
This simple to connect RGBW seamless COB LED strip connector allows connection an LED strip and includes 65mm of 5 core flat cable. It's designed for IP20 rated indoor applications. An ideal solution for linear LED strip lighting installations that are time dependent, requiring a fast connected install.
Installation
To install, carefully slide an RGBW COB LED strips into each connector. Then simply clamp the metal pins down a for a secure connection. At the 5 core cable end another 5 core flat cable and be joined professionally by using waygos, crimp connectors or via a qualified professional soldering the cable cores.
Product Dimensions
- Connector Length: 14mm
- Connector Width: 14mm
- Connector Height (With metal pins up): 6mm
- Connector Height (With metal pins down): 4mm (Once cable and strip
- Connector Internal LED Strip Width: 12mm (Suitable for 12mm wide RGBW COB LED strips)
- 5 Core Cable Length: 65mm
- 5 Core Cable Width: 7mm
- 5 Core Cable Height: 1.5mm
Will this RGBW COB LED strip connector fit within a 17mm wide U shape surface mounted LED profile with an internal width of 12mm? No as it's 14mm wide it requires a wider surface mount profile. Alternatively it will fit into a 16mm x 16mm corner quadrant profile.
KEY Benefits & Features
- 24V Rated
- RGBW COB LED strip compatible
- RGBW COB LED strip to 5 core cable connector
- IP20 Rated (Indoors)
- 14mm width by 5mm height allows fitting within wider profiles with good depth.
- Click and connect design
- Fast & easy LED strip solution as opposed to soldering
- UPRISE Branded for superior quality
What are the negatives about this type of connector? Connectors of this style can sometimes suffer from oxidation issues from the LED strip and over a period of time lose connection. This is due to a disjoint between the oxidising LED strip pads and pins from this connector. See below for an alternative professional micro soldered method:
Alternatively for professionally made bespoke length LED strip with custom cable lengths get in touch to discuss our bespoke RGBW seamless COB LED strip cut and solder services. You can email us via sales@upriseled.com or contact via phone / WhatsApp on 07957 190 481. Simply send your itemised list along with unique project challenges and we'll help you resolve them.
Uprise LED has over 17 years experience within flexible LED strip lights. We're here to help.
