Description

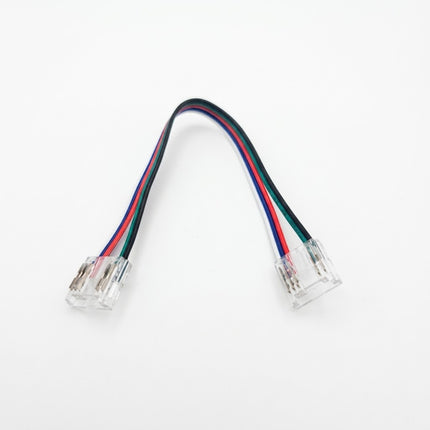

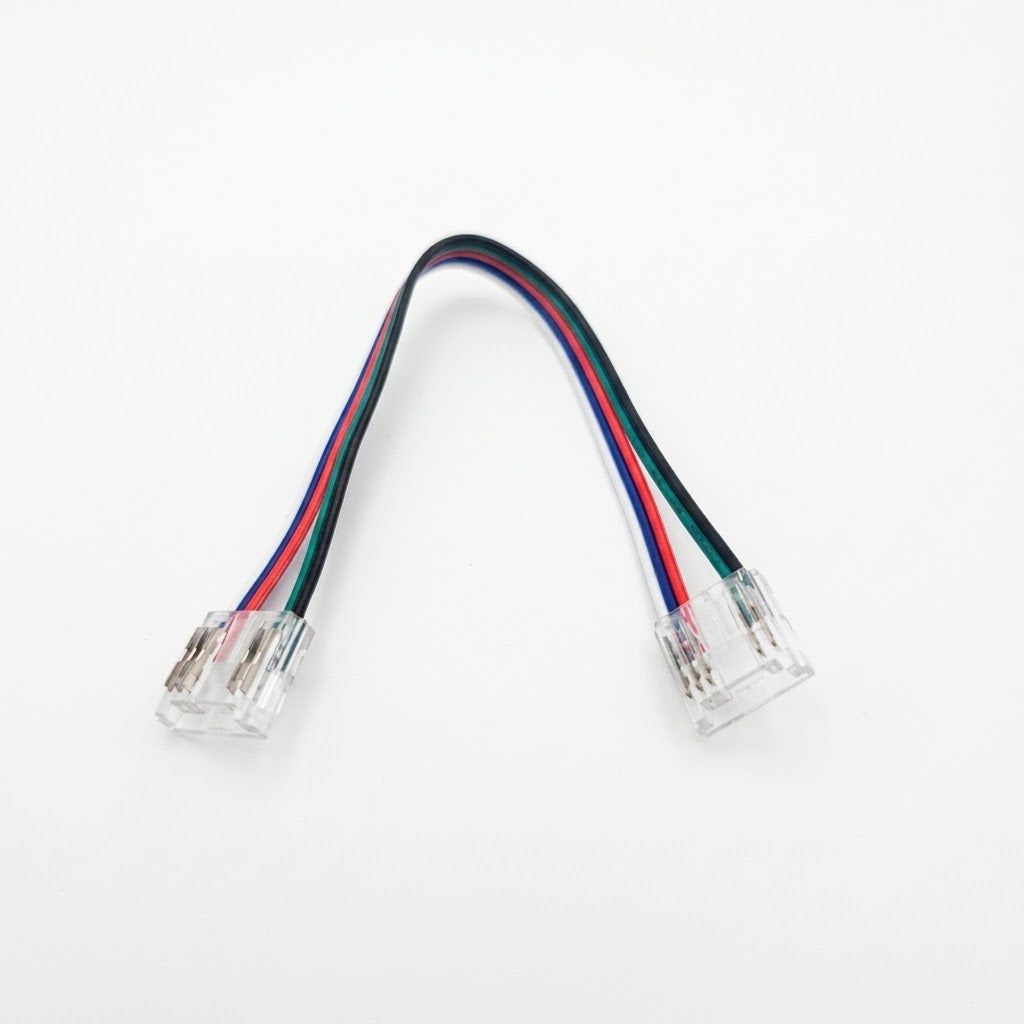

RGBW COB IP20 12mm Strip To Strip With 135mm Bridge 5 Core Flat Cable
1pc sold (Image show ).
This easy to connect RGBW seamless COB LED strip to strip cable provides simple connection between two 24V RGBW COB LED strips. It includes 135mm of 5 core cable which acts as a bridge, ideal for corner connections. It's designed specifically for IP20 rated indoor applications. An ideal solution for linear LED strip lighting installations that are time dependent, requiring a fast connected install.
Installation
To install, carefully slide two RGBW COB LED strips into each connector. Then simply clamp the metal pins down a for a secure connection.
Product Dimensions
- Connector Length: 14mm
- Connector Width: 14mm
- Connector Height (With metal pins up): 6mm
- Connector Height (With metal pins down): 4mm (Once cable and strip
- Connector Internal LED Strip Width: 12mm (Suitable for 12mm wide RGBW COB LED strips)
- 5 Core Cable Bridge Length: 135mm
- 5 Core Cable Width: 7mm
- 5 Core Cable Height: 1.5mm
Will this RGBW COB LED strip to strip bridge connector fit within a 17mm wide U shape surface mounted LED profile with an internal width of 12mm? No as it's 14mm wide it requires a wider surface mount profile. Alternatively it will fit into a 16mm x 16mm corner quadrant profile.
KEY Benefits & Features
- 24V Rated
- RGBW COB LED strip compatible
- RGBW COB LED strip to 5 core cable connector
- IP20 Rated (Indoors)
- 14mm width by 5mm height allows fitting within wider profiles with good depth.
- Click and connect design
- Fast & easy LED strip solution as opposed to soldering
- UPRISE Branded for superior quality
What are the negatives about this type of connector? Connectors of this style can sometimes suffer from oxidation issues from the LED strip and over a period of time lose connection. This is due to a disjoint between the oxidising LED strip pads and pins from this connector. See below for an alternative professional micro soldered method:
Alternatively for professionally made bespoke length LED strip with custom cable lengths get in touch to discuss our bespoke RGBW seamless COB LED strip cut and solder services. You can email us via sales@upriseled.com or contact via phone / WhatsApp on 07957 190 481. Simply send your itemised list along with unique project challenges and we'll help you resolve them.
Uprise LED has over 17 years experience within flexible LED strip lights. We're here to help.
