Description
RGBW COB IP20 Strip To 5 Core Flat Cable Without Wire Connector

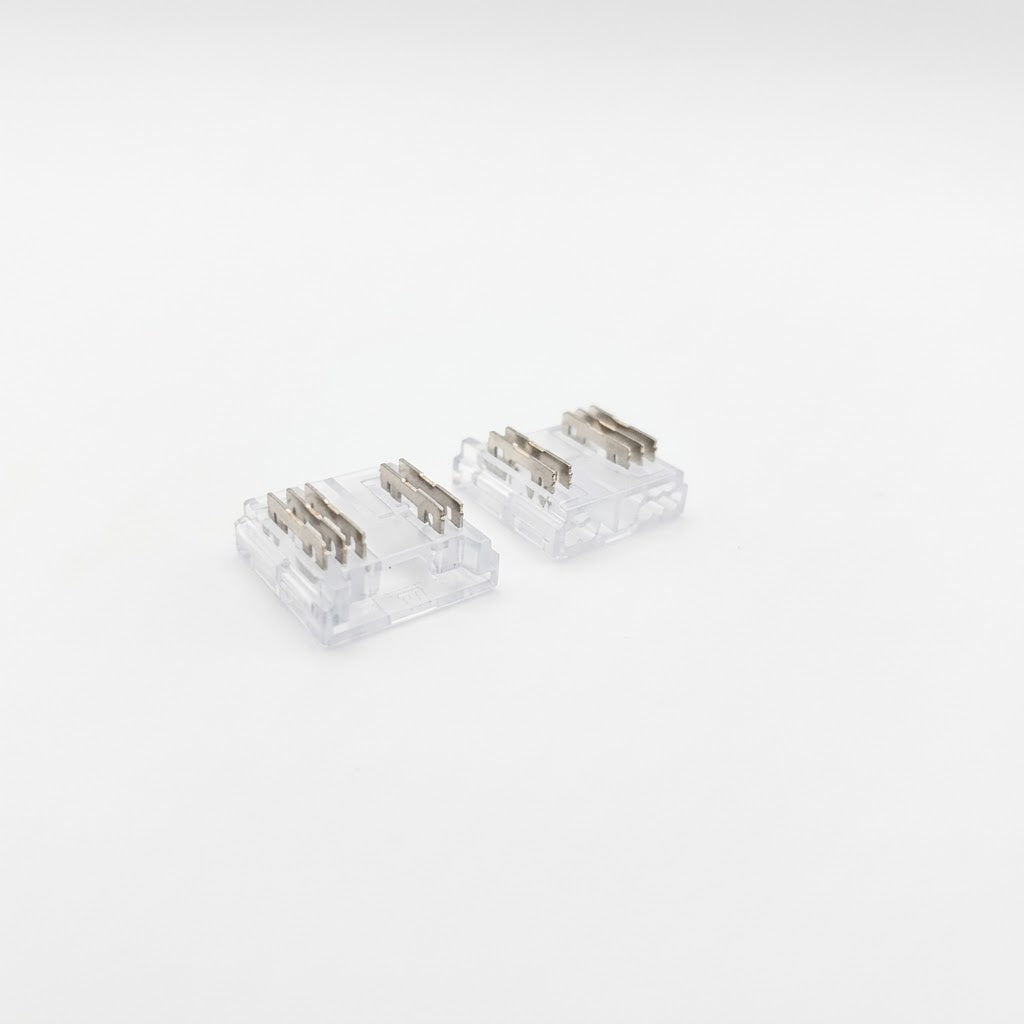

1pc sold (Image shows LED strip entry and 5 core cable input sides).
This simple to implement RGBW seamless COB LED strip to 5 core flat cable / 5 core cable provides simple connection between 24V RGBW COB LED strips and cable. It's designed specifically for IP20 rated indoor applications. An ideal solution for linear LED strip lighting installations that are time dependent, requiring a fast connected install.
Installation

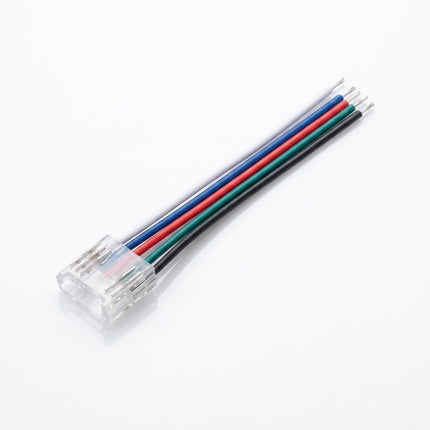

To install, carefully slide clip onto compatible RGBW COB LED strip in one side of connector. Then ensure a stripped RGBW 5 core flat cable is pushed into each of the corresponding colours. Red for Red, Green for Green, Blue for Blue, White for White and Black for +. Now use plyers to push the metal connectors down, locking them in place and creating a connection between LED strip and cable cores.
Product Dimensions
- Length: 14mm
- Width: 14mm
- Height (With metal pins up): 6mm
- Height (With metal pins down): 4mm (Once cable and strip
- Internal LED Strip Width: 12mm (Suitable for 12mm wide RGBW COB LED strips)
Will this connector fit within a 17mm wide U shape surface mounted LED profile with an internal width of 12mm? No as it's 14mm wide it requires a wider surface mount profile. Alternatively it will fit into a 16mm x 16mm corner quadrant profile.
KEY Benefits & Features
- 24V Rated
- RGBW COB LED strip compatible
- RGBW COB LED strip to 5 core cable connector
- IP20 Rated (Indoors)
- 14mm width by 5mm height allows fitting within wider profiles with good depth.
- Click and connect design
- Fast & easy LED strip solution as opposed to soldering
- UPRISE Branded for superior quality
What are the negatives about this type of connector? Connectors of this style can sometimes suffer from oxidation issues from the LED strip and over a period of time lose connection. This is due to a disjoint between the oxidising LED strip pads and pins from this connector. See below for an alternative professional micro soldered method:
Alternatively for professionally made bespoke length LED strip with custom cable lengths get in touch to discuss our bespoke RGBW seamless COB LED strip cut and solder services. You can email us via sales@upriseled.com or contact via phone / WhatsApp on 07957 190 481. Simply send your itemised list along with unique project challenges and we'll help you resolve them.
Uprise LED has over 17 years experience within flexible LED strip lights. We're here to help.
