Description
This 2 colour (CCT dual white) LED controller receiver operates a 2 wire dual white CCT LED strip. This means it can offer white varities (2700K-6000K) off just 2 wires (2 core).
--

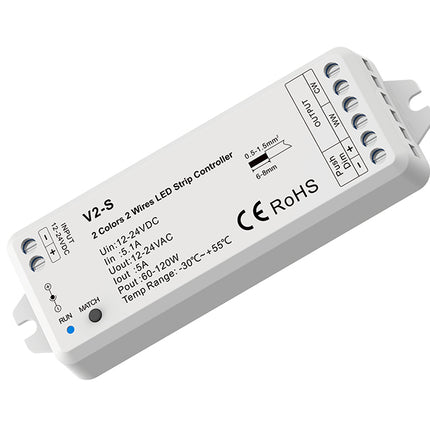

V2-S 2 Colour Single Channel LED Controller Receiver (12V-24V)
Features
- Only applies to 2 wire WW+CW LED strips
- Matches with an RF 2.4G single zone or multiple dual colour remote.
- One RF controller can accept upto 10 remote controllers
- 4096 levels of 0-100% dimming offers smooth results without any flashes or blips.
- Auto-transmitting function. Controller automatically transmits a signal to another controller within 30M of control distance.
- Syncronises with a multiple number of other controllers.
- 3 levels of colour temperature (WW, NW and CW) selectable by continuous power off and on operation.
- Connect with a further push switch to achieve on / off and 0-100% dimming function.
Setup
Compatible with Tuya application for simple wireless control via mobile or tablet device. Download for installation support.
Technical Parameters
Input and Output
-
Input Voltage: 12-24VDC
-
Input Current: 5.1A
-
Output Voltage: 12-24VDC
-
Output Current: 5A
-
Output Power: 60-120W
-
Output Type: Constant Voltage
Environment
-
Operation Temperature: Ta: -30°C ~ +55°C
-
Case temperature (Max.): Tc: +85°C
-
IP Rating: IP20
Dimming Data
-
Input Signal: RF 2.4GHz + Push Dim
-
Control Distance: 30M (barrier free space, no obstacle path)
-
Dimming Gray Scale: 256 Levels
-
Dimming Range: 0-100%
-
Dimming Curve: Linear
-
PWM Frequency: 500Hz
Safety and EMC
-
EMC standard (EMC): ETSI EN 301 489-1 V2.2.3
ETSI EN 301 489-17 V3.2.4
-
Safety Standard (LVD): EN 62368-1: 2020+A11:2020
-
Radio Equipment (RED): ETSI EN 300 328 V2.2.2
- Certification: CE, EMC, LVD, RED
Warranty & Protection
-
Warranty: 3 Years (5 year extended warranty available).
-
Protection: Reverse polarity Over-heat Short circuit
Weight
-
Net Weight: 0.053kg
-
Gross Weight: 0.066kg
Dimensions
-
Width: 38mm
-
Height: 20mm
-
Length: 114mm

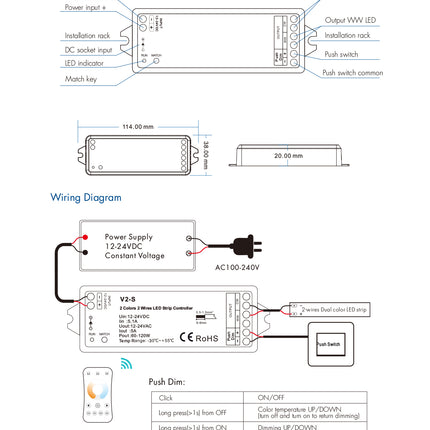

Installation
Packaging
-
Packaging: White cardboard box
-
Net Weight: 65g
