Description
WA-5UP Product Sheet.pdf

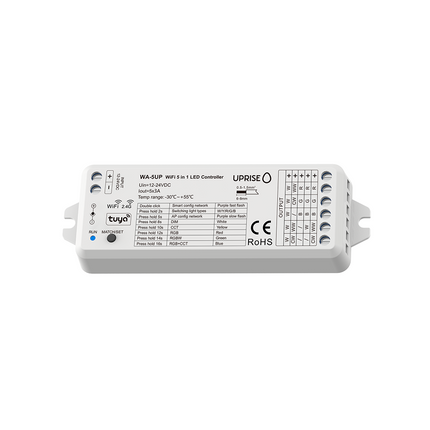

A simple to setup wireless 5 channel LED controller-receiver. It works with every type of 12V / 24V LED tape light or LED light source.
This product is also compatible with a 5CH remote handset, touch wall panel controller and smart phone app (Tuya). To control from a smart device simply download the Tuya app, connect your RGBTW LED tape lights and create a colourful dream scene for your space.
Complete with 5 year warranty for solution peace of mind.
--
Smart Wifi 5-Channel CCT & RGBTW LED Strip Controller (12V-24V)
Features
- Alexa and Google Assistant Compatible
- Control via Smart Device via Tuya App
- DIM, Smart Dual-White (CCT), RGBCW (RGB+CCT) 4 in 1 constant voltage LED controller. 4A per channel, 5 channels output.
- Download Tuya Smart application and control from mobile wirelessly
- Voice command control via Tuya app.
- Control single colour, tuneable white (CCT), RGB, RGBW, RGBCW and RGB+CCT LED lighting
- WiFi and 2.4GHz Compatibility
Setup
Compatible with Tuya application for simple wireless control via mobile or tablet device. Download for installation support.
Specifications
General
-
Part Number: WA-5UP
-
Product Type: Wifi 5CH LED Controller / Receiver
-
IP Rating: IP20
-
Brand: Uprise
Input & Output
-
Input Voltage: 12-24VDC
-
Input Current: 15.5A
- Output Voltage: 5 x (12-24)VDC
-
Output Current: 5CH,3A/CH
-
Output Power: 5 x (36-72)W
-
Output type: Constant Voltage
Dimming Data
-
Input Signal: Tuya APP + RF 2.4GHz
- Control distance: 30m(Barrier-free space)
- Dimming Grayscale: 4096 (2^12) levels
-
Dimming range: 0 -100%
-
Dimming curve: Logarithmic
-
PWM Frequency: 1000Hz (default)
Safety & EMC
-
EMC standard (EMC): ETSI EN 301 489-1 V2.2.3 ETSI EN 301 489-17 V3.2.4
- Safety standard(LVD): EN 62368-1:2020+A11:2020
- Radio Equipment(RED): ETSI EN 300 328 V2.2.2
-
Certification: CE,EMC,LVD,RED
Environment
-
Operation temperature: Ta: -30 O C ~ +55 O C
- Case temperature (Max.): T c:+85 O C
- IP rating: IP20
Warranty & Protection
-
Warranty: 5 Years
-
Protection: Reverse polarity Over-heat Short circuit
Mobile Application
Dimensions
-
Width: 38mm
-
Height: 20mm
-
Length: 114mm
Installation
Packaging
-
Size: L120 x W43 x H35mm
-
Packaging: White cardboard box
-
Net Weight: 65g
System Parameters
The max power is 15A, the controller can support around (12*15=180W or 24*15=360W)
Generally speaking, our controller is suitable for up to 10m led strip per controller without brightness degradation. If you connect up to 20m to 25m, the brightness will be affected unless strip is powered at both ends.
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
What style of LED tape lights is this compatible with?
This driver is compatible with any 12V/24V single colour, RGB, RGBW LED tape lights or RGBTW LED strips including our latest generation No Dot RGBW LED strip light. Contact us for more information.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
