Wifi 5-Channel CCT & RGBTW Controller, Alexa & Google Assistant Compatible

A simple to setup Wifi 5CH LED tape controller receiver. Download the Tuya app, connect your RGBTW LED tape lights and create a colourful dream scene for your space.

[caption id="attachment_21019" align="alignnone" width="161"] How to setup LED strip lights with Alexa (Echo Show 5) voice[/caption]

WA-5UP instructions

--

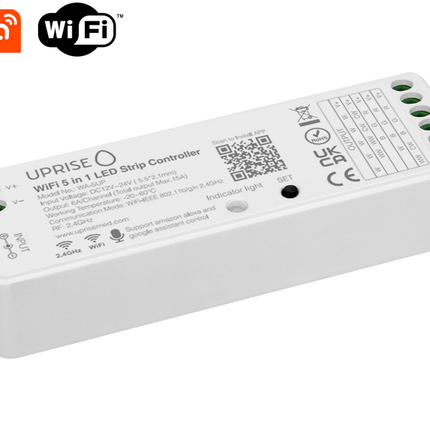

Smart Wifi 5-Channel CCT & RGBTW LED Strip Controller (12V-24V)

Download WA-5UP instructions for installation support

Features

• Alexa and Google Assistant Compatible


• Control via Smart Device via Tuya App.


• DIM, Smart Dual-White (CCT), RGBCW (RGB+CCT) 4 in 1 constant voltage LED controller. 4A per channel, 5 channels output.


• Download Tuya Smart application and control from mobile wirelessly


• Control single colour, tuneable white (CCT), RGB, RGBW, RGBCW and RGB+CCT LED lighting

Setup

Compatible with Tuya application for simple wireless control via mobile or tablet device. Download for installation support.

Specifications

General

• Part Number: WA-5UP


• Product Type: Wifi 5CH LED Controller / Receiver


• IP Rating: IP20


• Brand: Uprise

Electrical

• Input Voltage: 12-24VDC


• Output Current: 5CH, 6A/CH (Total output Max.15A)


• Output Power:


• Output type: Constant Voltage

Mobile Application

• Required Application: Tuya Smart App

Dimensions

• Width: 38mm


• Height: 23mm


• Length: 124mm

Installation

• Mounting: x2 Screws

Guarantee

• Certification: CE, RoHS


• Warranty: 1 Years

Packaging

• Packaging: White cardboard box


• Net Weight: 65g

System Parameters

The max power is 15A, the controller can support around (12*15=180W or 24*15=360W)

I need help designing my project, can you help?

Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.

What style of LED tape lights is this compatible with?

This driver is compatible with any 12V/24V single colour, RGB, RGBW LED tape lights or RGBTW LED strips. Contact us for more information.
