Uprise LED

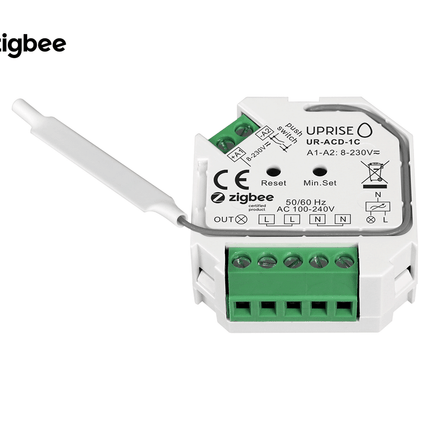

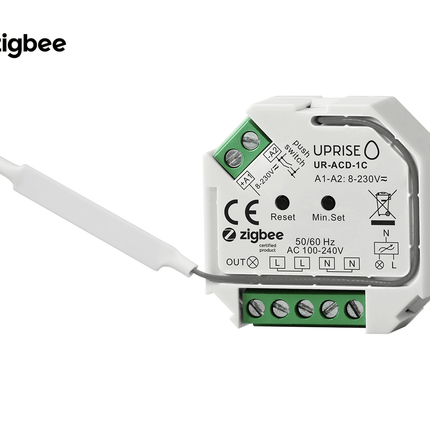

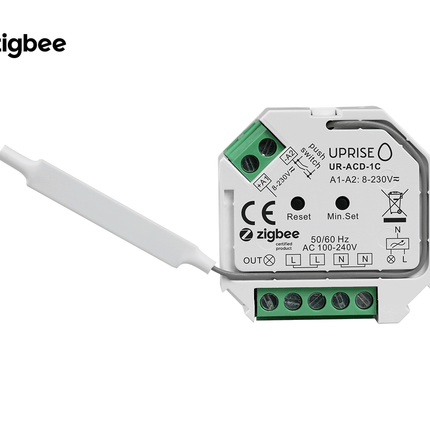

ZigBee 1CH AC Phase Cut Dimmer Switch Sensor

Regular price £77.95 GBP
Regular price Sale price £77.95 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

UR-ACD-1C instruction.pdf


--

ZigBee 1CH AC Phase Cut Dimmer Switch Sensor

Download UR-ACD-1C instruction.pdf for installation support.


Features



  • AC phase-cut dimmer switch sensor with ZigBee control interface

  • ZigBee approved and certified

  • Reliable, safe full isolation design

  • 100-240VAC input with 100-240VAC output

  • Single channel (1CH - channel), maximum 400W output

  • Available in both a leading edge and trailing edge dimming option. Leading edge as standard.

  • Full universal compatibility with ZigBee coordinator or gateway controller

  • Fully controllable from your ZigBee gateway interface along with remote controllers that are added to the network and discovered with dimmer

  • Upto 30 ZigBee remotes that support ZigBee light link via touch link can be controlled maximum

  • Supports brand new ZigBee eco green power feature. Upto 20 ZigBee eco green power remotes can be discovered and controlled.

  • New innovation with minimum brightness setting function

  • Dim beautifully and switch single colour dimmable LED lamps, flexible LED tape lights along with traditional incandescent and halogen lights.

  • Simple screw terminals for input and output, safe and reliable

  • Miniature size, simply install into a standard 86*86mm wall box


Specifications


General



  • Part Number: UR-ACD-1C

  • Product Type: ZigBee Compatible 1CH Dimmer Switch-Sensor

  • IP Rating: IP20

  • Brand: Uprise


Electrical



  • Input Voltage: 100-240VAC

  • Output Voltage: 100-240VAC

  • Output Current: 1.5A max.

  • Output Power: 400W max. @ 220V

  • Load Type: Incandescent, Hv-halogen lamps, Dimmable LED lamps

  • Allowed Inrush Current: Cold Start 75A max.


Product Data



  • Protocol: ZigBee 3.0

  • Channels: 1 channel output (Up to 400W)

  • Transmission Frequency: 2.4GHz


Dimensions



  • Width: 45mm

  • Height: 20.3mm

  • Length: 45.5mm


Guarantee



  • Certification: CE, RoHS

  • Warranty: 5 Years


Packaging



  • Packaging: White cardboard box

  • Net Weight: 375g
