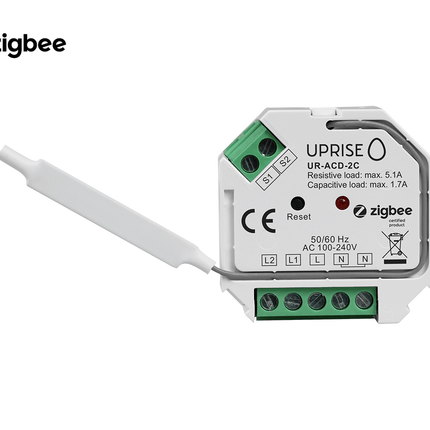

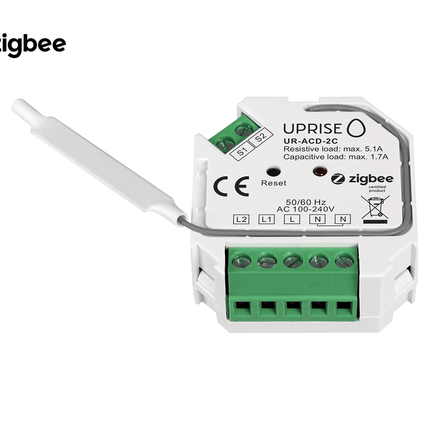

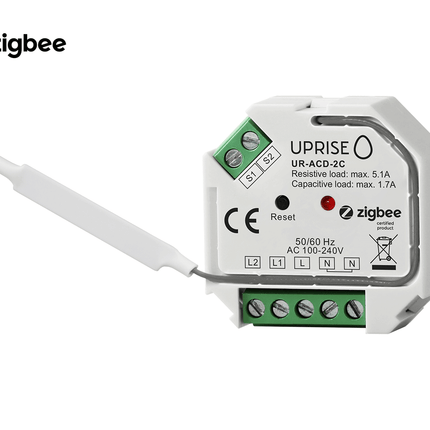

ZigBee 2CH 2-Gang In-Wall Switch Sensor

UR-ACD-2C instruction.pdf

ZigBee 2CH 2-Gang In-Wall Switch Sensor

Download UR-ACD-2C instruction.pdf for installation support.

Features

• 2-gang in-wall switch incorporating latest ZigBee 3.0 protocol


• ZigBee device which includes 2 endpoints, each being separately controllable


• Reliable, safe full isolation design


• 100-240VAC input with 100-240VAC output


• 2 channels output, with a maximum 1170/CH output for incandescent and HV halogen lamps and 390W/CH for LED lamps


• Includes energy metering functionality


• Over current protection, offers protection when the connected load is resistive load and total load is over 8.1A.


• Resistive loads and capacitive loads are supported, enabling control ON/OFF of connected load


• Available in both a leading edge and trailing edge dimming option. Leading edge as standard.


• Full universal compatibility with ZigBee coordinator or gateway controller


• Fully controllable from your ZigBee gateway interface along with remote controllers that are added to the network and discovered with dimmer


• Upto 30 ZigBee remotes that support ZigBee light link via touch link can be controlled maximum


• Supports brand new ZigBee eco green power feature. Upto 20 ZigBee eco green power remotes can be discovered and controlled


• 2 channels are available to be controlled by 2 channels push switch input separately


• ZigBee remote find and binding mode supported


• Simple screw terminals for input and output, safe and reliable


• Miniature size, simply install into a standard 86*86mm wall box

Specifications

General

• Part Number: UR-ACD-2C


• Product Type: ZigBee Compatible 2CH Dimmer Switch-Sensor


• IP Rating: IP20


• Brand: Uprise

Electrical

• Input Voltage: 100-240VAC


• Output Voltage: 100-240VAC


• Output Current: 5.1A max. For resistive loads. 1.7A max. For capacitive loads.


• Output Power: Resistive load: max. 1170W/CH @ 240V. Capacitive load: max. 390W @ 230V


• Load Type: Incandescent, Hv-halogen lamps, Dimmable LED lamps

Product Data

• Protocol: ZigBee 3.0


• Channels: 2 channels


• Transmission Frequency: 2.4GHz

Dimensions

• Width: 45mm


• Height: 20.3mm


• Length: 45.5mm

Guarantee

• Certification: CE, RoHS


• Warranty: 5 Years

Packaging

• Packaging: White cardboard box


• Net Weight: 375g

Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.

What style of LED tape lights is this compatible with?

This driver is compatible with any 24V 2 core single colour LED tape strip or 24V LED source such as lamps, battens or marker LEDs. Contact us for more information.

How can I buy?

You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.

What support will I receive once I’ve purchased?

Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
