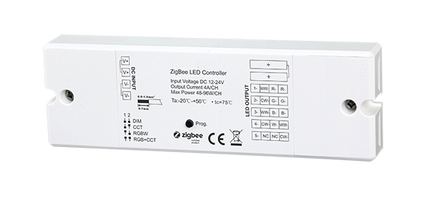

ZIGBEE 5CH RGB & CCT Constant voltage Receiver (12V-24V)

--

Instructions

Download

Description

Providing 5 channels of output means you can effectively control various whites (2100K, 2300K, 2700K, 3000K, 4000K and 6000K) & single colour LEDs, CCT Smart/Dual Whites, RGB, RGBW and even RGBW-CW 5CH mixing.

Expansive control options means you can take control remotely via your smart phone, PC or tablet device. A commercially viable receiver that embraces the latest Zigbee 3.0 protocol.

This enterprise class Zigbee LED receiver by Uprise is a wireless device that connects to your Zigbee network, allowing seamless management of your LEDs from a paired controller.

Accepting 12V-24V input at just 4 amps per channel.

How can I benefit from using this Zigbee LED receiver - what's it's purpose?

This Zigbee LED receiver is both a controller and receiver. With it, you can link multiple receivers -This means an ever expanding lighting control system is possible from a single controller.

These can be grouped or controlled individually, allowing multi-colour zone control. This translates into individual room and environment colour selection to inspire different moods.

Both wired and wireless control options are available. Uprise offers an elegant, simple to use pre-programmed Zigbee wall controller and a beautiful wireless remote handset option.

Specifications

General

• Product Type: Seamless No Dot LED Tape (10W)


• Colour: Warm White (3000K)


• IP Rating: IP20


• PCB Colour: White


• Chip: SMD COB (Chip on board) technology


• LEDs per meter: 480LEDS


• LED Life: 70% @ 50,000 Hours


• Brand: Uprise

Light Characteristics

• Lumens/m: 900lm/m


• Lumens/w: 80-120lm/W


• High CRI: 85+


• Beam angle: 180°

Electrical

• LED Wattage (Per meter): 9W (10W buffered)


• Input Voltage: 24v DC


• Current (A): 0.38A/m


• Cable in: 500mm 2 core (as standard)


• Cable out: 500mm 2 core (as standard)

Dimensions

• Width: 8mm


• Height: 2mm


• Length: 5m (as standard)

Installation

• Cut points: 50mm


• Cable: 2 core flat cable


• Mounting: 3M backing tape

Guarantee

• Certification: CE, RoHS


• Warranty: 3 Years

Packaging

• Packaging: 5M Roll


• Net Weight: 152g/Roll
