Description
UR-ZG-WD instruction.pdf
--

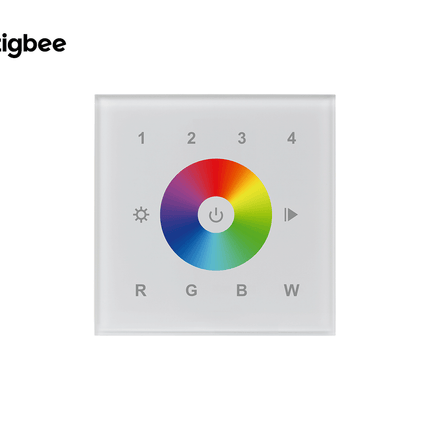

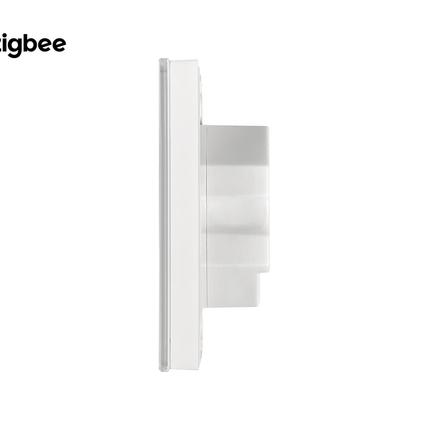

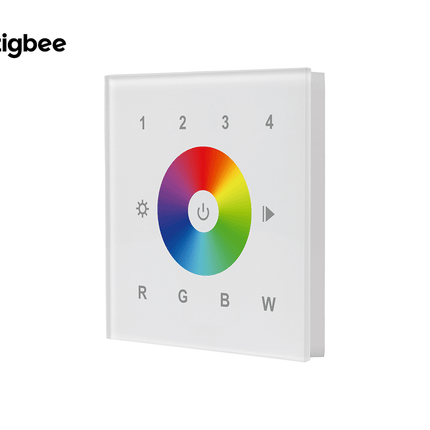

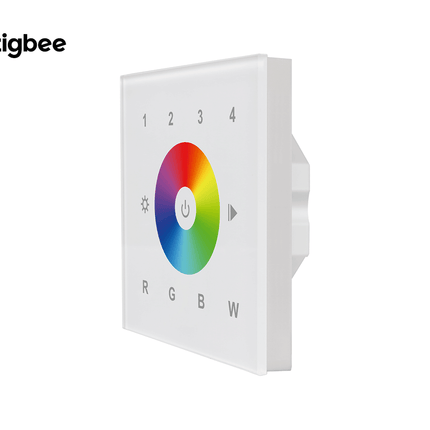

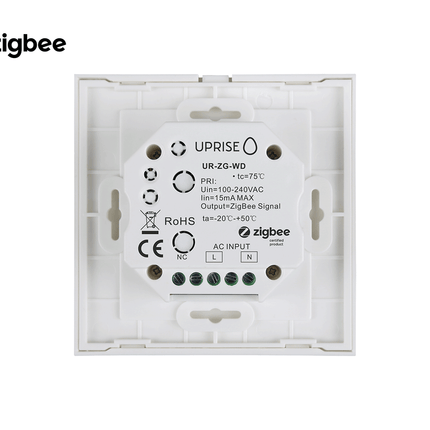

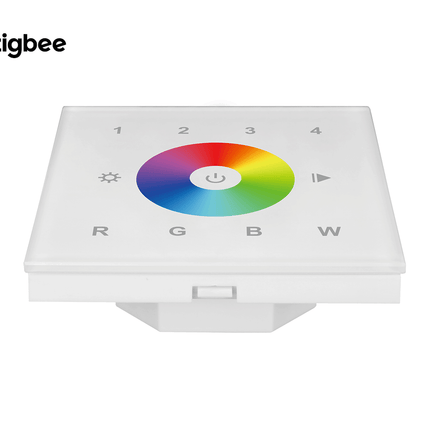

ZigBee Glass RGBW LED Touch Dimmer Panel
Download UR-ZG-WD instruction.pdf for installation support.
Features
- ZigBee compatible RGB+W touch panel wall controller
- Reliable & robust, ZigBee Pro networking capability
- 2.4 GHz global operation
- Power input of 100-240VAC
- Maximum transmission of up to 30 meters (30M)
- Universal ZigBee Gateway/Coordinator product compatibility
- Universal RGB+W ZigBee lighting device compatibility
- Widely scalable solutions for thousands of devices
- Supports a total of 4 groups for binding and connecting devices
- Each touch control panel can bind with upto max 30 devices
- Built-in colour visual effects with adjustable speed settings enabled
- Standard European & UK size available
Specifications
General
-
Part Number: UR-ZG-WD
-
Product Type: ZigBee Glass RGBW LED Touch Wall Controller
-
IP Rating: IP20
-
Brand: Uprise
Electrical
-
Operation Voltage: 100-240VAC
Product Data
-
Protocol: ZigBee 3.0
-
Channels: 5 channels
-
Transmission Frequency: 2.4GHz
-
Transmission Range: 30M
-
Dimming Range: 0.1%-100%
Dimensions
-
Width: 86mm
-
Height: 29.1mm
-
Length: 86mm
Guarantee
-
Certification: CE, RoHS
-
Warranty: 5 Years
Packaging
-
Packaging: White cardboard box
-
Net Weight: 375g
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
What style of LED tape lights is this compatible with?
This driver is compatible with any 24V 2 core single colour LED tape strip or 24V LED source such as lamps, battens or marker LEDs. Contact us for more information.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
